Arm GIC (V) how arm TrustZone supports security interrupt analysis notes.

The previous blog posts mainly combed GIC V3 Infrastructure , Interrupt the whole life cycle , And interruptions IRQ、FIQ Basic concepts . That's in ARM TrustZone How to support security interruption ？

ARM TrustZone A great advantage is that it is easy to manage peripherals , Management peripherals include ： Peripheral access , Peripherals as Master How to issue secure access or non secure access , And how peripherals generate security interrupts , as well as CPU How to respond to this interrupt . Today we mainly introduce how to generate security interruption , There are three parts involved ： Security peripherals ,GIC, as well as CPU.

CPU How to support secure interrupts ？

about CPU In itself, there is no perception of whether an interrupt is safe or unsafe ,CPU Only distinguish between IRQ, still FIQ. When CPU When receiving an interrupt, it will check whether the interrupt is masked according to the status register , for example PSTATE.DAIF, among I bit identification IRQ Whether it is Mask,F bit identification FIQ Whether it is Mask. If not Mask Words ,CPU This interrupt may be handled .

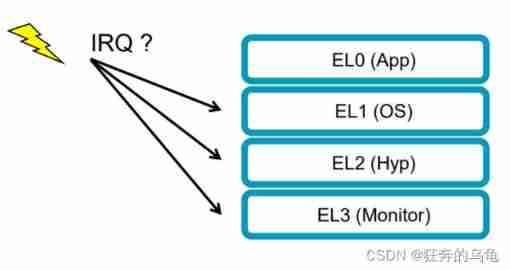

Where to deal with this interrupt ？ for example Armv8-A CPU It is divided into EL0,EL1,EL2,EL3,EL0 It does not handle interrupts ,EL1,EL2,EL3 Can handle interrupts , What are the details EL Handling interrupts , It is determined by the system register , for example SCR_EL3.FIQ and SCR_EL3.IRQ To mark the corresponding interrupt ,CPU Whether to directly enter EL3 The corresponding exception handler. however exception handler How to deal with this interrupt , That's about software , For example, processing interrupts directly , Or as a event To do other things , It's all controlled by software .
Visible for CPU For example, I don't know whether the interruption is safe or unsafe , Just do two things according to the type of interrupt received ： Is it shielded ？ If not shielded , Where to deal with it ？ Currently in Armv7-A In the framework of ,FIQ When safety is interrupted , stay Armv8-A and GICv3 Architecture FIQ It does not mean security interruption , Indicates an interruption , At present EL May not handle , It needs to be handled in another place .

GIC How to support secure interrupts ？

GIC It is also evolving , Now the latest one should GICv4, from GICv1 Start supporting TrustZone,GICv2 relative GICv1 It mainly supports virtualization ,GICv3 relative GICv2 Big changes , Support Message base interrupt, Supported by CPU more , Some enhancements have also been made in terms of security ,GICv4 Enhanced virtualization .

GICv1 and GICv2 The main thing is to cooperate with Armv7-A Of CPU, How to support TrustZone What about ？ combination Armv7-A The architecture of , Because I want to FIQ Reserved for security interruption , that GIC It is mainly realized by two points , The first is to divide safety Group,Group 0 Security interrupts can be generated IRQ perhaps FIQ,Group 1 Giving unsafe interrupts can only produce IRQ. The second one follows FIQ dependent registers All need security to configure , for example Group 0 Related configuration , Only CPU Configure in a safe state , Do this to achieve the purpose of safety .

GICv3 The main thing is to cooperate with Armv8-A Of CPU, however Armv8-A relative Armv7-A Of TrustZone optimized ,Secure World It is divided into S-EL1（Trusted OS） and EL3（Secure Monitor） Are different privilege levels , If it looks like GICv2 That is divided into Group 0 and Group 1,Group 0 If you give S-EL1 and EL3 Use , In fact, it is not enough . So in GICv3 There are three hours Group,Group0,Secure Group 1 and non-secure Group 1, This makes it easy to distinguish , for example Group 0 to EL3 Use ,Secure Group 1 to S-EL1 use ,Non-secure Group 1 to EL1 To use , This division is very reasonable , But there is another problem , If there are three Group, and CPU There are only two signal lines on the side IRQ and FIQ, How to distinguish these three Group Well ？ This is also where many developers tend to misunderstand , stay GICv3 Of GIC CPU interface with CPU Together , Also said GIC Distributor Send the interrupt to GIC CPU interface after ,CPU interface I know CPU In which EL, And whether it is safe or not ,CPU According to where the interrupt is Group, as well as CPU To decide whether to send IRQ, still FIQ, In this way, it is easy to distinguish three with two interrupt signals Group The problem of .

But here's something to note FIQ No longer means security interruption , For example, for Non-secure Group 1 The interrupt , If CPU stay Secure world,CPU interface Just give it to CPU Send a FIQ, If CPU stay Non-secure world Just one IRQ.CPU Receiving this IRQ perhaps IFQ, Is it shielded , And where to deal with , Is mentioned above CPU System register , Follow GIC No problem .

How can peripherals support secure interrupts

stay GICv3 in , Interrupts are divided into SGI,PPI,SPI,LPI. among LPI Only Non-secure Group 1, In other words, only unsafe interrupts can be generated , The other three can be configured as Group 0,Non-secure Group 1 or Secure Group 1.SGI yes software generated interrupts, It is generally used for inter nuclear communication ,PPI yes private peripheral interrupt Mainly for CPU For private peripherals , Generally, security peripherals are made SPI,shared peripheral interrupt.

TF-A2.6.0 Source code analysis

void __init gicv3_distif_init(void)
{

	unsigned int bitmap;

	assert(gicv3_driver_data != NULL);
	assert(gicv3_driver_data->gicd_base != 0U);

	assert(IS_IN_EL3());

	/* * Clear the "enable" bits for G0/G1S/G1NS interrupts before configuring * the ARE_S bit. The Distributor might generate a system error * otherwise. */
	gicd_clr_ctlr(gicv3_driver_data->gicd_base,
		      CTLR_ENABLE_G0_BIT |
		      CTLR_ENABLE_G1S_BIT |
		      CTLR_ENABLE_G1NS_BIT,
		      RWP_TRUE); //  The current interrupt is disabled, Clear grouping information , Reconfigure the current function

	/* Set the ARE_S and ARE_NS bit now that interrupts have been disabled */
	gicd_set_ctlr(gicv3_driver_data->gicd_base,
			CTLR_ARE_S_BIT | CTLR_ARE_NS_BIT, RWP_TRUE); //  Affinity routing can

	/* Set the default attribute of all (E)SPIs */
	/*  Set up SPIs The default configuration （ Such as setting SPIs The default grouping is G1NS, *  Interrupt priority 、 Interrupt trigger mode, level or edge trigger ） */
	gicv3_spis_config_defaults(gicv3_driver_data->gicd_base);
 /*  To configure TF-A in gicv3_driver_data The list needs to be configured as a security interrupt Group SPI interrupt . *（ For example, configure security interrupt grouping 0 perhaps 1、 Configure interrupt priority 、 Configure to route to CPU The way , As well as enabling disconnection ） */
	bitmap = gicv3_secure_spis_config_props(
			gicv3_driver_data->gicd_base,
			gicv3_driver_data->interrupt_props,
			gicv3_driver_data->interrupt_props_num);

	/* Enable the secure (E)SPIs now that they have been configured */
	gicd_set_ctlr(gicv3_driver_data->gicd_base, bitmap, RWP_TRUE); // Enable the above configured SPIs
}

unsigned int gicv3_secure_spis_config_props(uintptr_t gicd_base,
		const interrupt_prop_t *interrupt_props,
		unsigned int interrupt_props_num)
{

	unsigned int i;
	const interrupt_prop_t *current_prop;
	unsigned long long gic_affinity_val;
	unsigned int ctlr_enable = 0U;

	/* Make sure there's a valid property array */
	if (interrupt_props_num > 0U) {

		assert(interrupt_props != NULL);
	}

	for (i = 0U; i < interrupt_props_num; i++) {

		current_prop = &interrupt_props[i];

		unsigned int intr_num = current_prop->intr_num;

		/* Skip SGI, (E)PPI and LPI interrupts */
		if (!IS_SPI(intr_num)) {

			continue;
		}

		/* Configure this interrupt as a secure interrupt */
		gicd_clr_igroupr(gicd_base, intr_num);

		/* Configure this interrupt as G0 or a G1S interrupt */
		assert((current_prop->intr_grp == INTR_GROUP0) ||
				(current_prop->intr_grp == INTR_GROUP1S));

		if (current_prop->intr_grp == INTR_GROUP1S) {

			gicd_set_igrpmodr(gicd_base, intr_num);
			ctlr_enable |= CTLR_ENABLE_G1S_BIT;
		} else {

			gicd_clr_igrpmodr(gicd_base, intr_num);
			ctlr_enable |= CTLR_ENABLE_G0_BIT;
		}

		/* Set interrupt configuration */
		gicd_set_icfgr(gicd_base, intr_num, current_prop->intr_cfg);

		/* Set the priority of this interrupt */
		gicd_set_ipriorityr(gicd_base, intr_num,
					current_prop->intr_pri);

		/* Target (E)SPIs to the primary CPU */
		gic_affinity_val =
			gicd_irouter_val_from_mpidr(read_mpidr(), 0U);
		gicd_write_irouter(gicd_base, intr_num,
					gic_affinity_val);

		/* Enable this interrupt */
		gicd_set_isenabler(gicd_base, intr_num);
	}

	return ctlr_enable;
}
