Spark 内存管理机制 新版

---

一、内存参数

Property Name	Default
spark.memory.fraction	0.6
spark.memory.storageFraction	0.5
RESERVED_SYSTEM_MEMORY_BYTES	300M

1.简图：

2.示例：

Calculate the Memory for 5GB executor memory:
To calculate Reserved memory, User memory, Spark memory, Storage memory, and Execution memory, we will use the following parameters:

spark.executor.memory=5g
spark.memory.fraction=0.6
spark.memory.storageFraction=0.5

Java Heap Memory       = 5 GB
                       = 5 * 1024 MB
                       = 5120 MB

Reserved Memory        = 300 MB

Usable Memory          = (Java Heap Memory — Reserved Memory)
                       = 5120 MB - 300 MB
                       = 4820 MB

User Memory            = Usable Memory * (1.0 — spark.memory.fraction)
                       = 4820 MB * (1.0 - 0.6)
                       = 4820 MB * 0.4
                       = 1928 MB

Spark Memory           = Usable Memory * spark.memory.fraction
                       = 4820 MB * 0.6
                       = 2892 MB

Spark Storage Memory   = Spark Memory * spark.memory.storageFraction
                       = 2892 MB * 0.5
                       = 1446 MB

Spark Execution Memory = Spark Memory * (1.0 - spark.memory.storageFraction)
                       = 2892 MB * ( 1 - 0.5)
                       = 2892 MB * 0.5
                       = 1446 MB

Reserved Memory —  300 MB 	—	5.85%
User Memory 	— 1928 MB 	— 	37.65%
Spark Memory 	— 2892 MB 	—	56.48%

---

二、Spark 内存分配在Spark UI的表现

1.Spark UI with On Heap

• 1.提交参数

spark-shell \
    --driver-memory 5g \
    --executor-memory 5g

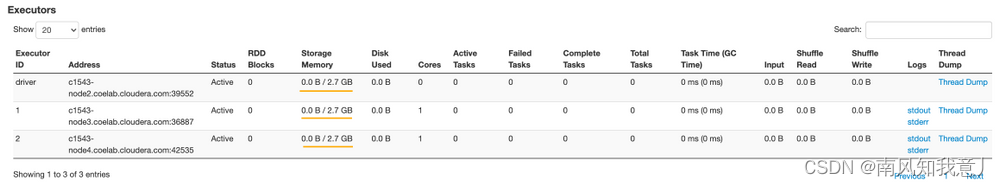

• 2.Spark UI表现


此时可以看到 StorageMemory只有 2.7GB，下面我们算一下这个数据是怎么来的

• 3.Storage Memory计算

Java Heap Memory       = 5 GB
Reserved Memory        = 300 MB
Usable Memory          = 4820 MB
User Memory            = 1928 MB
Spark Memory           = 2892 MB = 2.8242 GB
Spark Storage Memory   = 1446 MB = 1.4121 GB
Spark Execution Memory = 1446 MB = 1.4121 GB

从spark UI我们得知, Storage Memory value 是 2.7 GB ，但是我们计算的 the Storage Memory 是 1.4121 GB. 由此可知 Spark UI Storage Memory = Storage Memory + Execution Memory.

Storage Memory = Spark Storage Memory + Spark Execution Memory
               = 1.4121 GB + 1.4121 GB
               = 2.8242 GB

Spark UI Storage Memory (2.7 GB) 但是， 我们计算的 Storage Memory (2.8242 GB) 。
这是因为我们设置的 --executor-memory 5g. 然而spark运行得到的最大的堆内存还要减去300MB。 so Java Heap Memory is only 4772593664 bytes.

Java Heap Memory       = 4772593664 bytes = 4772593664/(1024 * 1024) = 4551 MB
Reserved Memory        = 300 MB
Usable Memory          = (Java Heap Memory - Reserved Memory) = (4551 - 300) MB = 4251 MB
User Memory            = (Usable Memory * (1 -spark.memory.fraction)) = 1700.4 MB
Spark Memory           = (Usable Memory * spark.memory.fraction) = 2550.6 MB
Spark Storage Memory   = 1275.3 MB
Spark Execution Memory = 1275.3 MB

Spark Memory (2550.6 MB/2.4908 GB) 依然不匹配 Spark UI (2.7 GB)
这是因为我们转换 Java Heap Memory 字节变为MB 用的是 1024 * 1024 ，但是 Spark UI 转换 bytes 变 MB 除以的是 1000 * 1000.

Java Heap Memory       = 4772593664 bytes = 4772593664/(1000 * 1000) = 4772.593664 MB
Reserved Memory        = 300 MB
Usable Memory          = (Java Heap Memory - Reserved Memory) = (4472.593664 - 300) MB = 4472.593664 MB
User Memory            = (Usable Memory * (1 -spark.memory.fraction)) = 1789.0374656 MB
Spark Memory           = (Usable Memory * spark.memory.fraction) = 2683.5561984 MB = ~ 2.7 GB
Spark Storage Memory   = 1341.7780992 MB
Spark Execution Memory = 1341.7780992 MB

至此，Spark Memory = (Usable Memory * spark.memory.fraction) = 2683.5561984 MB = ~ 2.7 GB，这样就和Spark UI一致了

• 4.不同版本bytes 变 MB 转换规则
• 4.1 spark 2.x

function formatBytes(bytes, type) {
    if (type !== 'display') return bytes;
    if (bytes == 0) return '0.0 B';
    var k = 1000;
    var dm = 1;
    var sizes = ['B', 'KB', 'MB', 'GB', 'TB', 'PB', 'EB', 'ZB', 'YB'];
    var i = Math.floor(Math.log(bytes) / Math.log(k));
    return parseFloat((bytes / Math.pow(k, i)).toFixed(dm)) + ' ' + sizes[i];
}

• 4.2 spark 3.x

function formatBytes(bytes, type) {
  if (type !== 'display') return bytes;
  if (bytes <= 0) return '0.0 B';
  var k = 1024;
  var dm = 1;
  var sizes = ['B', 'KiB', 'MiB', 'GiB', 'TiB', 'PiB', 'EiB', 'ZiB', 'YiB'];
  var i = Math.floor(Math.log(bytes) / Math.log(k));
  return parseFloat((bytes / Math.pow(k, i)).toFixed(dm)) + ' ' + sizes[i];
}

2.Spark UI with OffHeap Enabled

• 1.提交参数

spark-shell \
    --driver-memory 1g \
    --executor-memory 1g \
    --conf spark.memory.offHeap.enabled=true \
    --conf spark.memory.offHeap.size=5g

• 2.Spark UI表现

• 3.Storage Memory计算

Storage Memory = On Heap Memory + Off Heap Memory

• 3.1.On Heap Memory

Java Heap Memory       = 954728448 bytes = 954728448/1000/1000 = 954 MB
Reserved Memory        = 300 MB
Usable Memory          = (Java Heap Memory - Reserved Memory) = (954 - 300) MB = 654 MB
User Memory            = (Usable Memory * (1 -spark.memory.fraction)) = 261.6 MB
Spark Memory           = (Usable Memory * spark.memory.fraction) = 392.4 MB
Spark Storage Memory   = 196.2 MB
Spark Execution Memory = 196.2 MB

• 3.2.Off Heap Memory

spark.memory.offHeap.size = 5 GB = 5 * 1000 MB = 5000 MB

• 3.3 Storage Memory

Storage Memory = On Heap Memory + Off Heap Memory
               = 392.4 MB + 5000 MB
               = 5392.4 MB
               = 5.4 GB

3.Spark Storage Memory 计算程序demo

// JVM Arguments: -Xmx5g
public class SparkMemoryCalculation {


    private static final long MB = 1024 * 1024;
    private static final long RESERVED_SYSTEM_MEMORY_BYTES = 300 * MB;
    private static final double SparkMemoryStorageFraction = 0.5;
    private static final double SparkMemoryFraction = 0.6;

    public static void main(String[] args) {


        long systemMemory = Runtime.getRuntime().maxMemory();
        long usableMemory = systemMemory - RESERVED_SYSTEM_MEMORY_BYTES;
        long sparkMemory = convertDoubletLong(usableMemory * SparkMemoryFraction);
        long userMemory = convertDoubletLong(usableMemory * (1 - SparkMemoryFraction));

        long storageMemory = convertDoubletLong(sparkMemory * SparkMemoryStorageFraction);
        long executionMemory = convertDoubletLong(sparkMemory * (1 - SparkMemoryStorageFraction));

        printMemoryInMB("Heap Memory\t\t", systemMemory);
        printMemoryInMB("Reserved Memory", RESERVED_SYSTEM_MEMORY_BYTES);
        printMemoryInMB("Usable Memory\t", usableMemory);
        printMemoryInMB("User Memory\t\t", userMemory);
        printMemoryInMB("Spark Memory\t", sparkMemory);

        printMemoryInMB("Storage Memory\t", storageMemory);
        printMemoryInMB("Execution Memory", executionMemory);

        System.out.println();
        printStorageMemoryInMB("Spark Storage Memory", sparkMemory);
        printStorageMemoryInMB("Storage Memory UI \t", storageMemory);
        printStorageMemoryInMB("Execution Memory UI", executionMemory);
    }

    private static void printMemoryInMB(String type, long memory) {

        System.out.println(type + " \t=\t"+ (memory/MB) +" MB");
    }

    private static void printStorageMemoryInMB(String type, long memory) {

        System.out.println(type + " \t=\t"+ (memory/(1000*1000)) +" MB");
    }

    private static Long convertDoubletLong(double val) {

        return new Double(val).longValue();
    }
}

---

总结

参考：
https://community.cloudera.com/t5/Community-Articles/Spark-Memory-Management/ta-p/317794
大佬文章写的宛如艺术品
