Esp32 S3 vscode+idf setup

Premise installation

• install vscode
• install git

open vscode, install idf plug-in unit

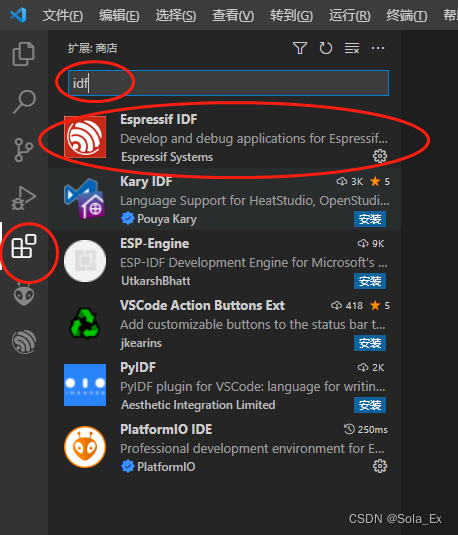

stay vscode In the market for plug-ins , look for IDF The words...

And click Install , My has been installed . Normally, after the installation is completed, you will enter a startup page

If you don't get into , Just click the icon on the left to enter

install IDF

Press down F1, Input IDF, find “ To configure ESP-IDF plug-in unit ”

choice ADVANCED

Choose what you need IDF edition , I usually choose the latest , In fact, it can be updated later , According to your own needs . The following is the configuration tool chain path and IDF The path of

Click... After configuration Install Just wait slowly .

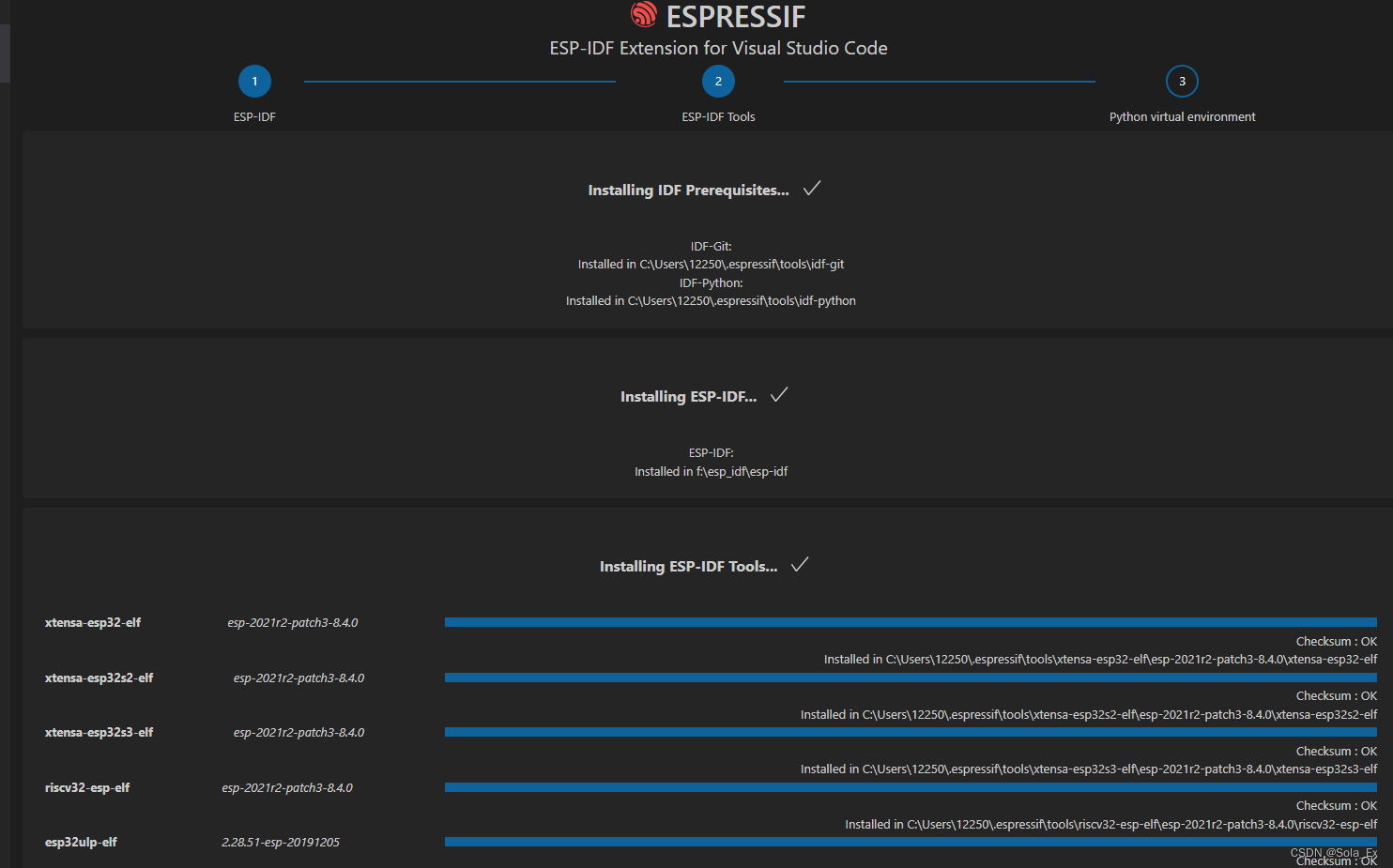

Wait for these places to tick slowly

And this

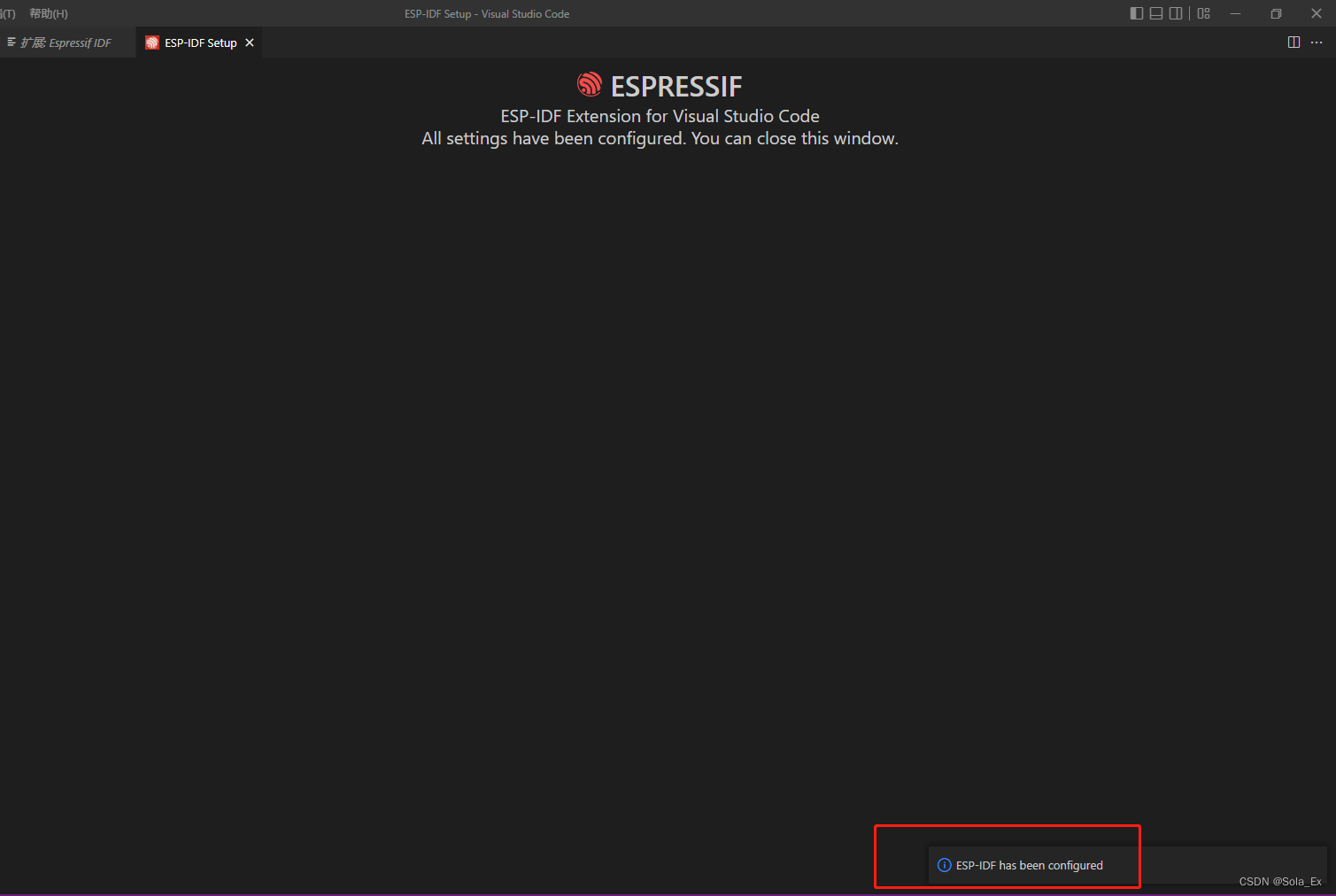

Your basic configuration is complete .

compile

I use ESP32 S3 DevkitC-1 My little board , Then we need to create demo

Also press F1, And type exam

Then continue to choose this

Here are a wealth of examples , Choose whichever you like , I choose blink

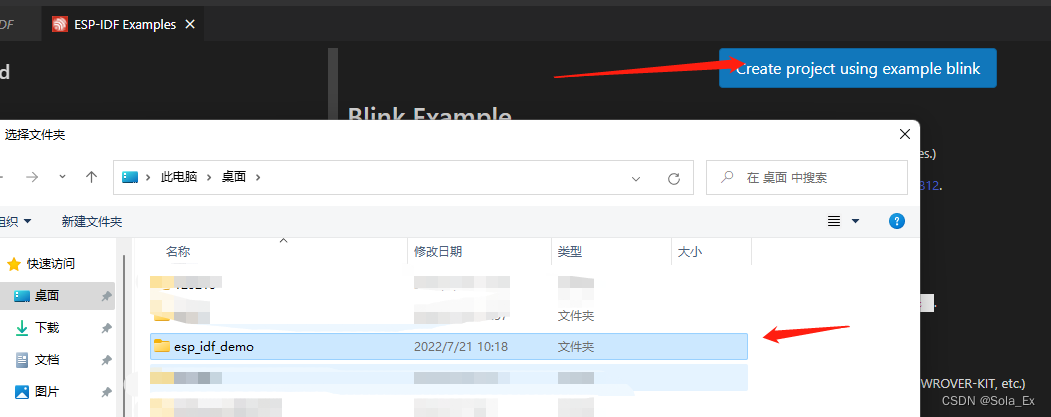

Create a folder on the desktop or elsewhere ,



And then use vscode Open this folder

Not familiar at first , So give them the picture above , Marked , I am using USB Transfer to serial port to download , You need an external connection USB turn TTL modular , Pick up TX RX GND, Just have power supply .

compile

Directly click the compiled place below , Wait slowly

download

IDF There are three tools to choose from

• JTAG
• DFU
• UART

However, according to the actual needs , I use UART The way .
Then click the download icon to download . Note before downloading , You need to press and hold boot, Then press reset , Give Way ESP32 Enter download mode , Then release , Otherwise it will be like this

Come back

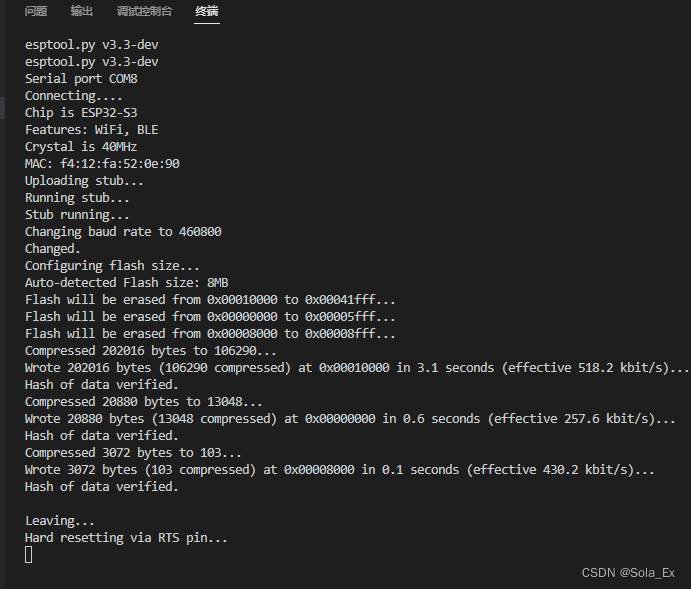

The correct thing is . When the download is complete , Press down rst Reset , The program can run .

When it's over, start with the light , Everyone is a lamp madman …
