Lac automatic dialing experiment of L2TP
2022-07-24 00:07:00 【Bad bad -5】
Catalog
LAC Automatic dialing （Call-LNS） To configure

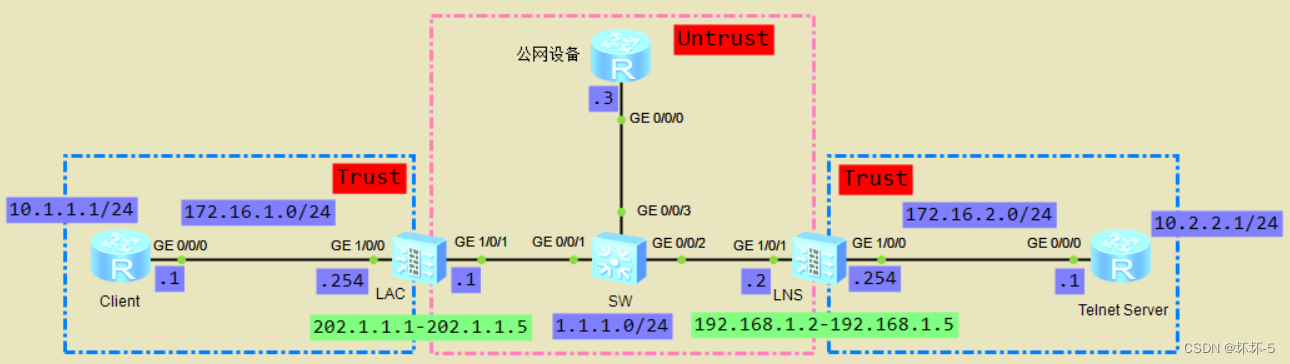

The topology
Experimental instructions
- Client As an intranet user , Use L2TP Of LAC Automatic dialing establishment VPN Tunnel , Visit the company headquarters Telnet Server The server
- LNS by LAC The distribution of IP Address pool is 192.168.1.2-192.168.1.5
- PPP Authentication method PAP authentication
- Client have access to 202.1.1.1-202.1.1.5 This public network address accesses public network devices
Basic configuration
- by Client、Telnet Server、 Public network equipment configuration IP Address
# Client | # Telnet Server set authentication password cipher [email protected] |
# Public network equipment | # SW |
- Basic firewall configuration
# LAC id 0 0 undo info en int g1/0/0 ip ad 172.16.1.254 24 int g1/0/1 ip ad 1.1.1.1 24 firewall zone trust add int g1/0/0 firewall zone untrust add int g1/0/1 | # LNS id 0 0 undo info en int g1/0/0 ip ad 172.16.2.254 24 int g1/0/1 ip ad 1.1.1.2 24 firewall zone trust add int g1/0/0 firewall zone untrust add int g1/0/1 |
LAC Automatic dialing （Call-LNS） To configure
- LAC To configure
- To configure L2TP function , Appoint LNS Of IP Address
[LAC]l2tp enable // Global enabling L2TP |
- When LAC Need to be different from LNS establish L2TP Tunnel time , Different groups can be used to build different tunnels
- To configure LNS when , The tunnel name used must be the same as LAC The tunnel names in are the same
- Appoint LNS The address of , You can specify several different LNS, High reliability has been achieved （start l2tp ip x.x.x.x ip x.x.x.x ip x.x.x.x）
- Configure virtual template interface , And divide the interface into DMZ Area
[LAC]interface Virtual-Template 1 // Enter the virtual template interface view [LAC-Virtual-Template1]call-lns local-user badboy // Use badboy Conduct L2TP Dial to LNS
|
- When configuring authentication in the virtual template interface , You can also use CHAP authentication
- In the use of badboy When dialing , Finally configure , You can grab packets to view L2TP Process information of tunnel establishment
- Configure the route to the headquarters intranet , The output interface is VT Interface . The traffic that will visit the headquarters will be introduced into the tunnel . stay LAC You also need to configure the default route , To ensure the connectivity of the public network . Configure the static route to the private network
ip route-static 10.2.2.1 32 Virtual-Template 1 |
- To configure NAT Strategy , send Client When accessing the server of the headquarters , It uses LNS The distribution of IP Address
[LAC]nat-policy |
- Because it uses Easy-ip By IP Address translation , So if there are multiple Client It's all through LAC Connect to the server accessing the headquarters , Then they are all used VT Interface IP Address access
- Configure the security policy between zones
# Configure the flow to enter from VT Interface security policy rule name trust_dmz source-zone trust destination-zone dmz source-address 10.1.1.1 32 destination-address 10.2.2.1 32 action permit | # After the configuration traffic is encapsulated again from the firewall , Security policy issued from physical interface rule name local_untrust source-zone local destination-zone untrust source-address 1.1.1.1 32 destination-address 1.1.1.2 32 service l2tp action permit |
- because VT The interface is divided into DMZ Regional , stay Client Visit the headquarters Telnet Server when , The flow is from trust Area to dmz Regional
- 10.1.1.1 visit 10.2.2.1 when , Packets arrive at the firewall , According to static routing , Bring packets into VT Tunnel interface , After repacking the packet , Then send the data from the actual physical interface , Therefore, the source area configured in the security policy is the firewall itself , namely Local, The destination area is Untrust Area , The matching source and destination address is the actual source and destination address of the tunnel , The service of release is L2TP
- Packet encapsulation process
- Packet arrival LAC after , Will be carried out in Easy-IP Address translation , Will source IP Convert to VT Interface IP Address
- After looking up the routing table , The discovery came from VT Interface send out , Then according to the forwarding , Iterate data packets to real physical interfaces , Package NEW IP Behind the headlines , Source IP by 1.1.1.1, Purpose IP by 1.1.1.2, The protocol used in the transport layer is UDP, The source port is randomly generated , The destination port is L2TP The use of 1701, The encapsulation protocol used is L2TP, The inner layer agreement is PPP, Then send it from the physical interface
- Packet arrival LNS after , Purpose of discovery IP Is your own , Unpack , Found to be L2TP Data message of , After removing the outer Baotou , View the data information of the inner layer , According to the purpose IP Forward
- LNS To configure
- To configure IP Address pool , Used to LAC Distribute IP Address
[LNS]ip pool l2tp [LNS-ip-pool-l2tp]section 1 192.168.1.2 192.168.1.5 |
- To configure L2TP Our business plan , the L2TP And IP Address pool binding
[LNS]aaa [LNS-aaa]service-scheme l2tp // To configure L2TP Our business plan [LNS-aaa-service-l2tp]ip-pool l2tp // In the business plan , Will be used to give LAC Allocate address pool to bind |
- Configure authentication domain , And configure the branch group and the user information in the branch group
[LNS-aaa]domain default // Default authentication domain [LNS-aaa-domain-default]service-type l2tp // The service type is L2TP [LNS]user-manage group /default/branch // Create an affiliate group [LNS]user-manage user badboy // Create user [LNS-localuser-badboy]alias huaihuai // Configure aliases [LNS-localuser-badboy]parent-group /default/branch // Add the user to the affiliate group [LNS-localuser-badboy]password [email protected] // Configure the password for this user |
- The user created is the user used for authentication
- To configure VT Interface , And divide the interface into DMZ Area
[LNS]interface Virtual-Template 1 [LNS-Virtual-Template1]ip ad 192.168.1.1 29 [LNS-Virtual-Template1]ppp authentication-mode pap // The configuration authentication type is PAP authentication [LNS-Virtual-Template1]remote service-scheme l2tp // And L2TP Business solutions of [LNS]firewall zone dmz [LNS-zone-dmz]add int Virtual-Template 1 |
- by VT Interface configuration IP Address , It can't be LNS by LAC The distribution of IP Addresses in the address pool
- stay VT Interface , Need and AAA Medium L2TP Business scheme binding , To allocate IP Address
- To configure L2TP Group
[LNS]l2tp enable [LNS]l2tp-group 1 [LNS-l2tp-2]allow l2tp virtual-template 1 remote LAC // Specify the name and... Of the opposite end of the tunnel when receiving the call VT Interface [LNS-l2tp-2]tunnel authentication // Enable tunnel authentication [LNS-l2tp-2]tunnel password cipher Huawei123 // Configure the password for tunnel authentication |
- When configuring the name of the opposite end tunnel when receiving calls, it must be consistent with LAC The tunnel names configured on are consistent
- Configure the default route and the static route to the private network
ip route-static 0.0.0.0 0.0.0.0 1.1.1.1 ip route-static 10.2.2.1 255.255.255.255 172.16.2.1 |
- Configure the security policy between zones
security-policy rule name untrust_local source-zone untrust destination-zone local source-address 1.1.1.1 mask 255.255.255.255 destination-address 1.1.1.2 mask 255.255.255.255 service l2tp action permit | security-policy source-zone dmz destination-zone trust source-address 192.168.1.0 mask 255.255.255.248 destination-address 10.2.2.1 mask 255.255.255.255 action permit |
- After the packet is received from the tunnel , The source address of the packet is 1.1.1.1, The destination address is 1.1.1.2, That is, the interface address of the firewall itself , So the matching source region is Untrust, The destination area is its own Local Area , It needs to be released L2TP service
- Received packet from tunnel interface , The tunnel entrance belongs to DMZ Regional , So the matching source region is DMZ, The destination address is Trust Area , Because in LAC On , It has been done. SNAT Transformation , So the matching source address is LNS by LAC Of VT Interface assigned IP Address
To configure SNAT
- stay LAC Configure source on NAT, Realization Client You can access public network devices
- To configure NAT Address pool
nat address-group ISP 0 mode pat section 1 202.1.1.1 202.1.1.5 |
- To configure NAT Strategy
nat-policy rule name ISP source-zone trust destination-zone untrust source-address 10.1.1.1 mask 255.255.255.255 action source-nat address-group ISP |
- Configure the security policy between zones
security-policy rule name ISP source-zone trust destination-zone untrust source-address 10.1.1.1 mask 255.255.255.255 action permit |
test
- stay LAC On , stay VT Interface view , Use call-lns local-user badboy Make a dial-up connection LNS
- stay LAC Of G1/0/1 Interface grab , see L2TP Connection information
- stay LNS Check out L2TP The construction of the tunnel
- stay Client On ping Test and Telnet Server The connectivity of , And in LAC View session table entries on
- Normal access ,LAC You can see the session table entry on ,10.1.1.1 Of 59307 The port is converted to 192.168.1.2 Of 2049 port , Yes 10.2.2.1 Of 2048 Port initiation ICMP The interview of
- l2tp The session table entry of is established L2TP Tunnel , The exit address of the tunnel is 1.1.1.2, The destination port is 1701

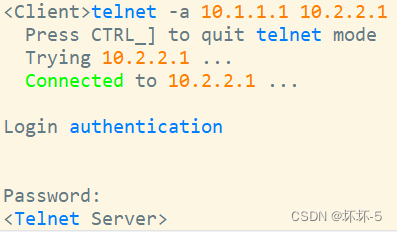

- stay Client Try login on Tenlet Server, And look at LAC Session table entry
- Can log in normally , And the corresponding session table entries can be seen on the firewall
- Use Client Access public network test
- Client You can also access the public network normally
