Creation of canape can project

CANape CAN Project creation

1 newly build device;

2 device Name and select CAN communication mode ;

3 choice database, That is to say dbc file ;

4 newly build CAN passageway , And configure baud rate and other information ;

5 Select the new CAN passageway ;

6 Click on OK Then push out the spring frame ;

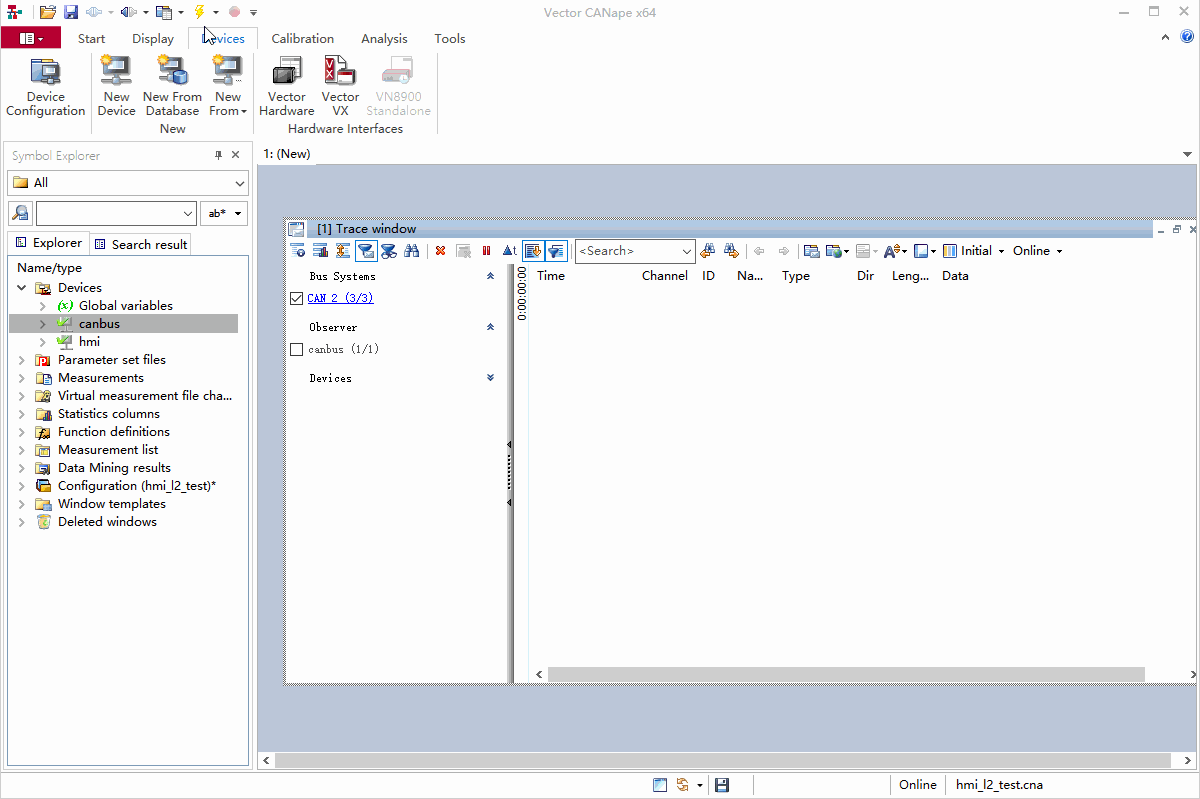

7 establish trace window , Verify whether the project can operate normally ;

8 Start the project , Receive messages normally and according to dbc Information parsing succeeded , It means that the project is normal .
