一、数字图像处理复习回忆

这么课没有复习太长时间，因为有其他事情，很忙，最后结果还不错，差一点点满绩点。其实不是因为我学得好，我也不咋会，但是老师画重点了，我把老师画重点的地方好好琢磨了。
在网上40块钱买了个网课，讲得真的一般，不如看我这个

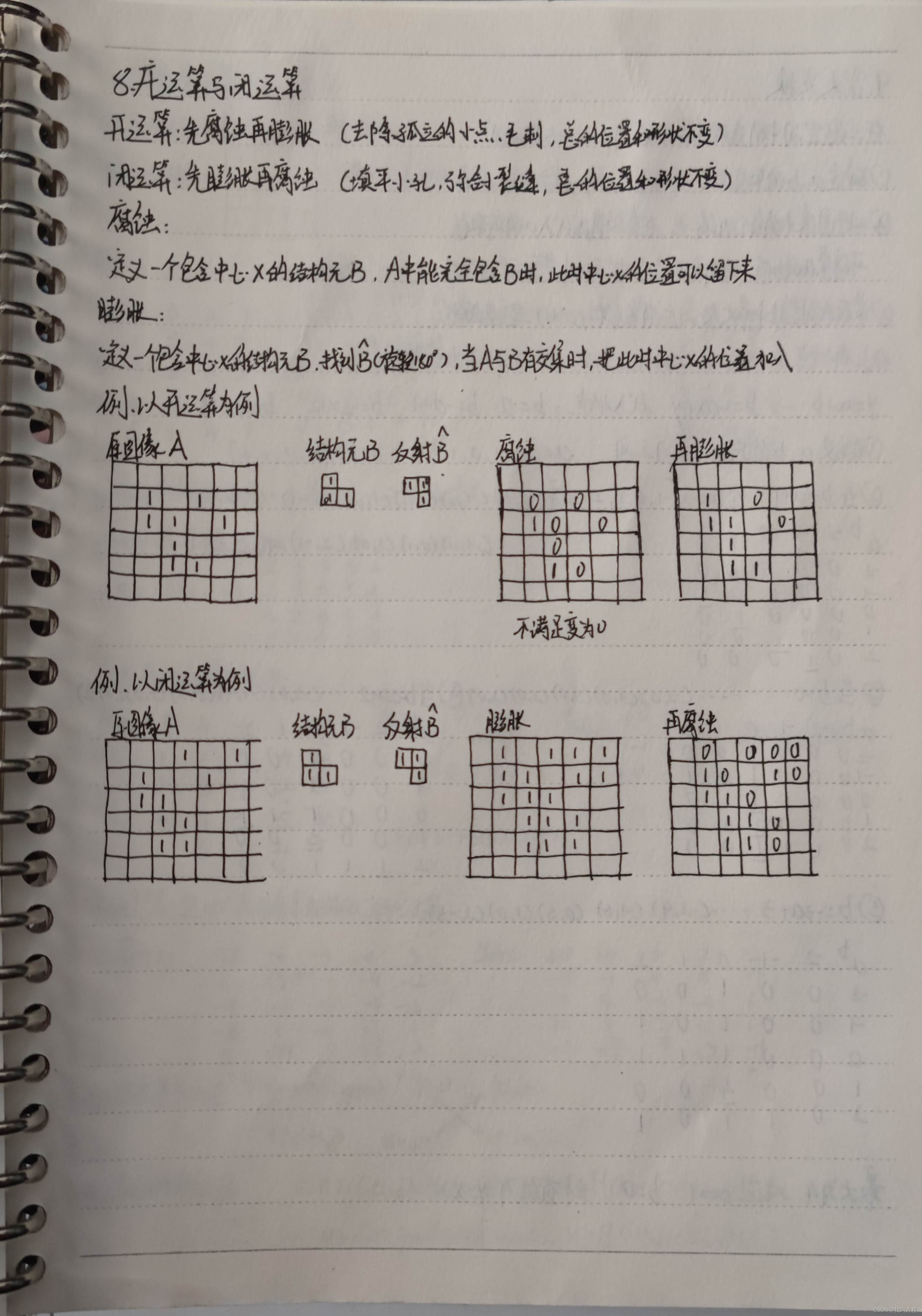

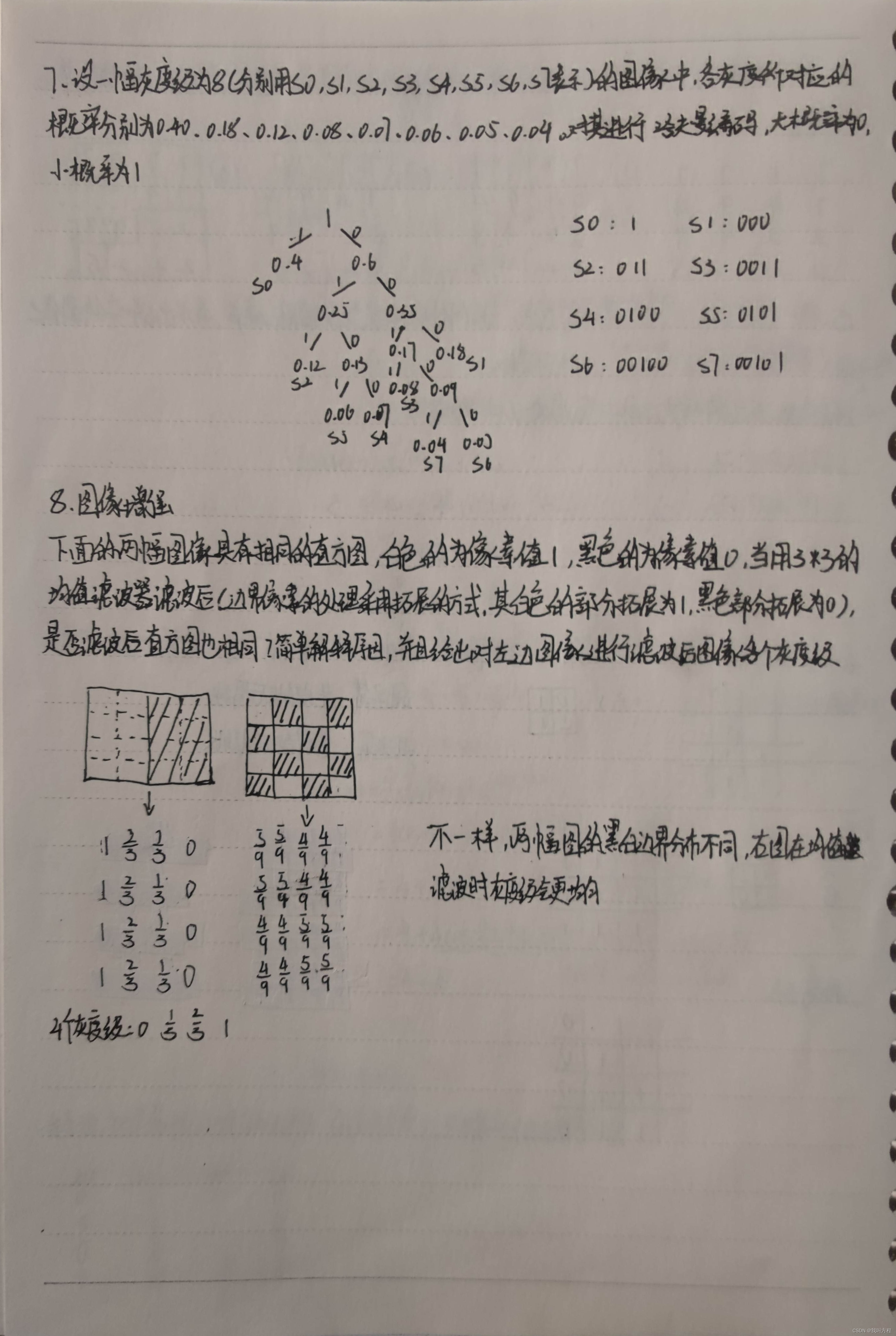

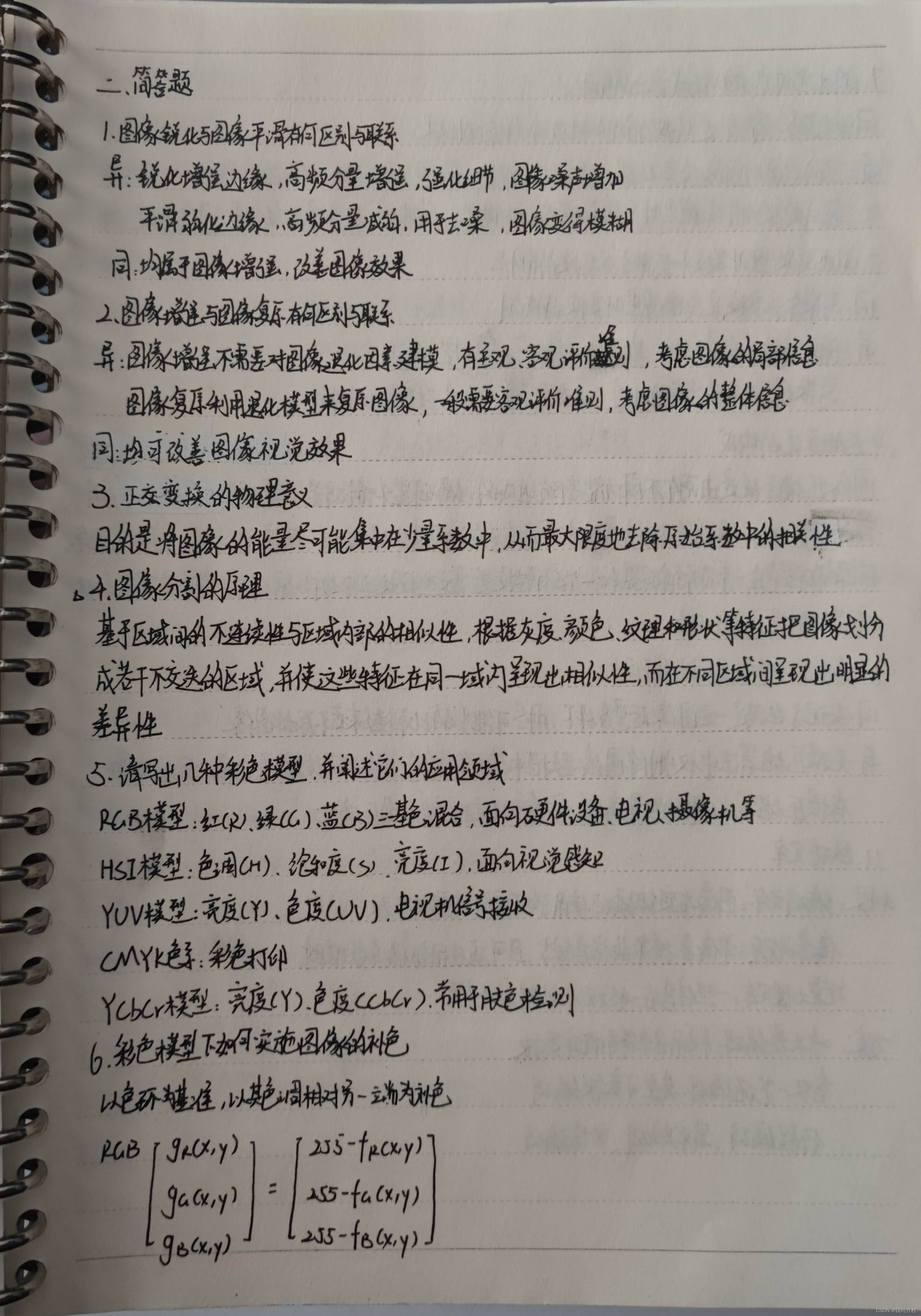

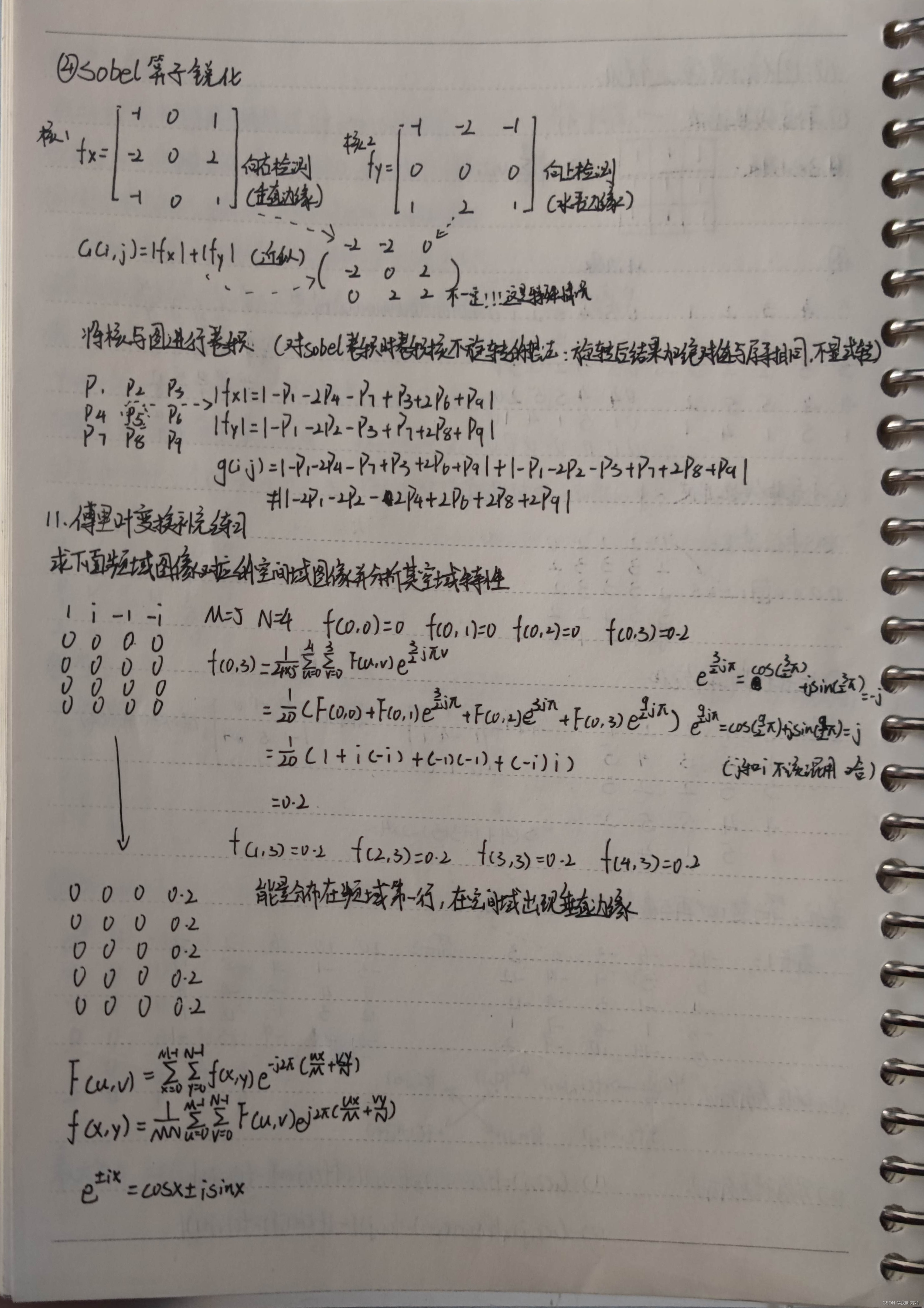

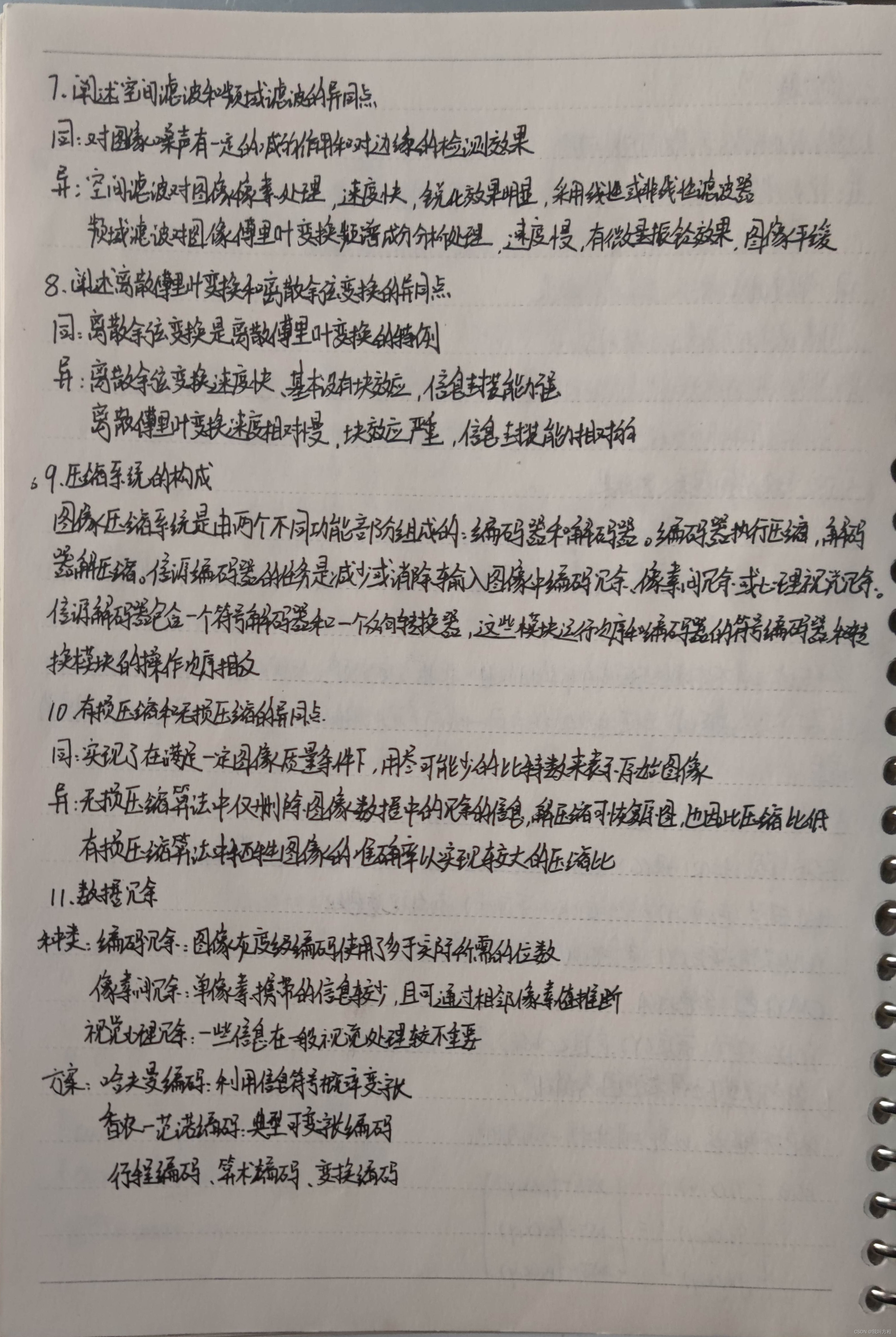

二、笔记

考试的时候简答题答得和笔记上稍有出入，但差别不大，反正下一年题也改了





考试考了一个圆的检测，幸好看了

其实这个小道消息毫无意义

课后作业

代码都在csdn上找的，Python+opencv，代码都不是原创的，现在没能力写出来

拉普拉斯锐化

import cv2
import numpy as np
img=cv2.imread("1.jpeg")
gimg=cv2.cvtColor(img, cv2.COLOR_BGR2GRAY)
kernel=np.array([[0,-1,0],[-1,5,-1],[0,-1,0]],np.float32)
dst=cv2.filter2D(img,-1,kernel=kernel)
cv2.imshow('lapres',dst)
cv2.waitKey(0)
cv2.destroyAllWindows()

高斯平滑

import cv2
import numpy as np
from matplotlib import pyplot as plt
img=cv2.imread('123.png',cv2.IMREAD_COLOR)
blur=cv2.GaussianBlur(img,(5,5),0)
cv2.imshow('',blur)
cv2.waitKey(0)
cv2.destroyAllWindows()

刘德华是真的帅

低通滤波平滑

import cv2
import numpy as np
import math
def low_pass_filtering(image, radius):
    fft = cv2.dft(np.float32(image), flags=cv2.DFT_COMPLEX_OUTPUT)
    dshift = np.fft.fftshift(fft)
    rows, cols = image.shape[:2]
    mid_row, mid_col = int(rows / 2), int(cols / 2)
    mask = np.zeros((rows, cols, 2), np.float32)
    mask[mid_row - radius:mid_row + radius, mid_col - radius:mid_col + radius] = 1
    fft_filtering = dshift * mask
    ishift = np.fft.ifftshift(fft_filtering)
    image_filtering = cv2.idft(ishift)
    image_filtering = cv2.magnitude(image_filtering[:, :, 0], image_filtering[:, :, 1])
    cv2.normalize(image_filtering, image_filtering, 0, 1, cv2.NORM_MINMAX)
return image_filtering
if __name__ == "__main__":
    image = cv2.imread("123.png", 0)
    image_low_pass_filtering = low_pass_filtering(image, 30)
    cv2.imshow('re',image)
    cv2.imshow('low pass',image_low_pass_filtering)
    cv2.waitKey(0)
    cv2.destroyAllWindows()

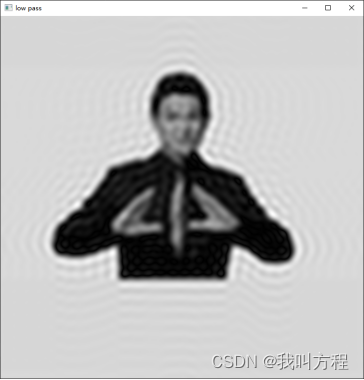

我记得代码是巴图沃斯滤波器，振铃现象还是挺严重的

高斯滤波

import cv2
import numpy as np
import math
def high_pass_filtering(image, radius, n):
    fft = cv2.dft(np.float32(image), flags=cv2.DFT_COMPLEX_OUTPUT)
    dshift = np.fft.fftshift(fft)
    rows, cols = image.shape[:2]
    mid_row, mid_col = int(rows / 2), int(cols / 2)
    mask = np.zeros((rows, cols, 2), np.float32)
    for i in range(0, rows):
        for j in range(0, cols):
            d = math.sqrt(pow(i - mid_row, 2) + pow(j - mid_col, 2))
            try:
                mask[i, j, 0] = mask[i, j, 1] = 1 / (1 + pow(radius / d, 2 * n))
            except ZeroDivisionError:
                mask[i, j, 0] = mask[i, j, 1] = 0
    fft_filtering = dshift * mask
    ishift = np.fft.ifftshift(fft_filtering)
    image_filtering = cv2.idft(ishift)
    image_filtering = cv2.magnitude(image_filtering[:, :, 0], image_filtering[:, :, 1])
    cv2.normalize(image_filtering, image_filtering, 0, 1, cv2.NORM_MINMAX)
    return image_filtering
if __name__ == "__main__":
    image = cv2.imread("123.png", 0)
    image_high_pass_filtering = high_pass_filtering(image, 50, 1)
    cv2.imshow('re',image)
    cv2.imshow('low pass',image_high_pass_filtering )
    cv2.waitKey(0)
    cv2.destroyAllWindows()

颜色模型补色

import cv2
import math
import numpy as np
def bu(img):
    height, width, channels = img.shape
    buImg = img.copy()
    for i in range(height):
        for j in range(width):
            buImg[i, j] = (img[i][j].max() + img[i][j].min()) - img[i][j]
    return buImg
def rgb2hsv(img):
    h = img.shape[0]
    w = img.shape[1]
    H = np.zeros((h, w), np.float32)
    S = np.zeros((h, w), np.float32)
    V = np.zeros((h, w), np.float32)
    r, g, b = cv2.split(img)
    r, g, b = r / 255.0, g / 255.0, b / 255.0
    for i in range(0, h):
        for j in range(0, w):
            mx = max((b[i, j], g[i, j], r[i, j]))
            mn = min((b[i, j], g[i, j], r[i, j]))
            V[i, j] = mx
            if V[i, j] == 0:
                S[i, j] = 0
            else:
                S[i, j] = (V[i, j] - mn) / V[i, j]
            if mx == mn:
                H[i, j] = 0
            elif V[i, j] == r[i, j]:
                if g[i, j] >= b[i, j]:
                    H[i, j] = (60 * ((g[i, j]) - b[i, j]) / (V[i, j] - mn))
                else:
                    H[i, j] = (60 * ((g[i, j]) - b[i, j]) / (V[i, j] - mn)) + 360
            elif V[i, j] == g[i, j]:
                H[i, j] = 60 * ((b[i, j]) - r[i, j]) / (V[i, j] - mn) + 120
            elif V[i, j] == b[i, j]:
                H[i, j] = 60 * ((r[i, j]) - g[i, j]) / (V[i, j] - mn) + 240
            H[i, j] = H[i, j] / 2
    return H, S, V
img = cv2.imread("2.jpg")
cv2.namedWindow('Original')
cv2.namedWindow('BuSe')
BuImg = bu(img)
h, s, v = rgb2hsv(BuImg)
merged = cv2.merge([h, s, v])
cv2.imshow('Original', img)
cv2.imshow('BuSe', BuImg)
cv2.imshow("hsv", merged)
cv2.waitKey(0)
cv2.destroyAllWindows()

我其实感觉这个不对

rgb补色

补色图转hsv

hough变换检测直线

import cv2
import numpy as np
def HoughLinesP(minLineLength):
    tempIamge = scr.copy()
    lines = cv2.HoughLinesP(edges, 1, np.pi / 180, threshold=minLineLength, minLineLength=20, maxLineGap=20)
    for x1, y1, x2, y2 in lines[:, 0]:
        cv2.line(tempIamge, (x1, y1), (x2, y2), (0, 255, 0), 2)
    print(lines)
    cv2.imshow(window_name, tempIamge)
minLineLength = 20
window_name = "HoughLines Demo"
scr = cv2.imread("33.jpeg")
gray = cv2.cvtColor(scr, cv2.COLOR_BGR2GRAY)
print(gray.shape)
img = cv2.GaussianBlur(gray, (3, 3), 0)
edges = cv2.Canny(img, 50, 150, apertureSize=3)
cv2.namedWindow(window_name)
HoughLinesP(minLineLength)
cv2.imshow("org",scr)
if cv2.waitKey(0) == 27:
cv2.destroyAllWindows()

写在最后

后面好好重新学，感觉很有意思
