Double machine hot standby of firewall on ENSP

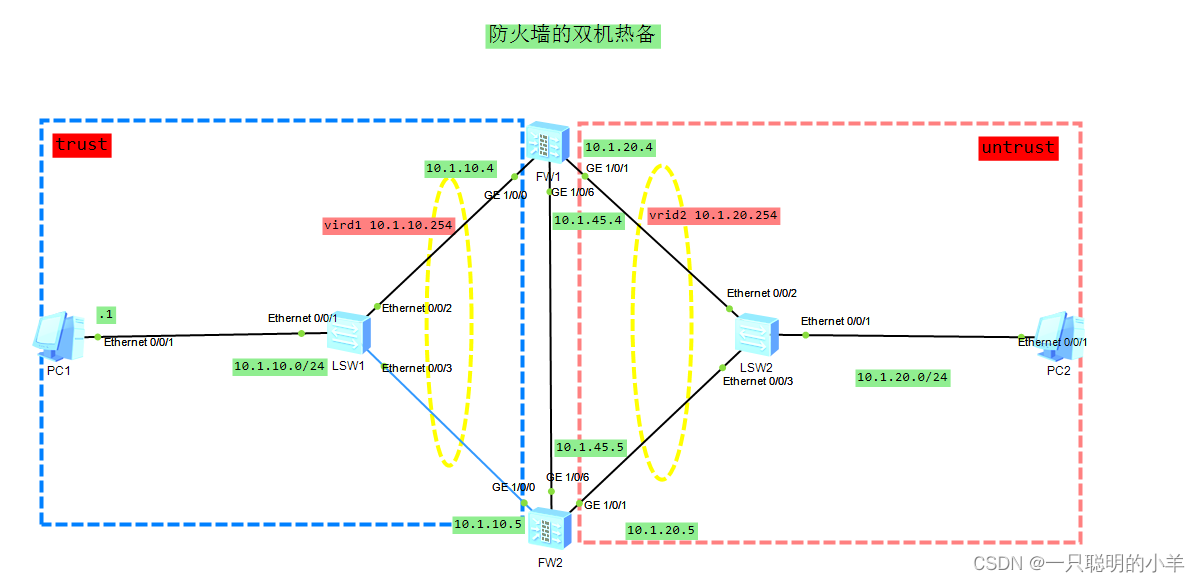

Build a network topology

Configure the server and client IP Address

Main firewall

<USG6000V1>
<USG6000V1>u t  m   // Turn off message push
<USG6000V1>system-view 	// Enter the system view
[USG6000V1]sysname FW4    // Change the name to FW4
[FW4]

// Add interface IP Address
[FW4]int g1/0/0  // Access interface
[FW4-GigabitEthernet1/0/0]ip add 10.1.10.4 24   // add to IP Address
[FW4-GigabitEthernet1/0/0]q    // sign out
[FW4]int g1/0/1
[FW4-GigabitEthernet1/0/1]ip add 10.1.20.4 24
[FW4-GigabitEthernet1/0/1]q
[FW4]int g1/0/6
[FW4-GigabitEthernet1/0/6]ip add 10.1.45.4 24
[FW4-GigabitEthernet1/0/6]q
[FW4]

// Add the interface address to the corresponding security zone
[FW4]firewall zone trust       // Get into trust Area
[FW4-zone-trust]add int g1/0/0  // Add the interface to the security zone
[FW4-zone-trust]q
[FW4]
[FW4]firewall zone untrust
[FW4-zone-untrust]add int g1/0/1
[FW4-zone-untrust]q
[FW4]
[FW4]firewall zone name hrp_zone    // Create a name hrp_zone Safety zone of
[FW4-zone-hrp_zone]set priority 20   // Set the security level to 20
[FW4-zone-hrp_zone]add int g1/0/6   // Add the interface to the security zone
[FW4-zone-hrp_zone]q
[FW4]

// Access interface , To configure vrrp
[FW4]
[FW4]int g1/0/0   // Access interface
[FW4-GigabitEthernet1/0/0]vrrp vrid 1 virtual-ip 10.1.10.254 active
                                                                             // To configure vrrp, The name is vrid1, fictitious IP by 10.1.10.254, The role of active
[FW4-GigabitEthernet1/0/0]q
[FW4]int g1/0/1
[FW4-GigabitEthernet1/0/1]
[FW4-GigabitEthernet1/0/1]vrrp vrid 2 virtual-ip 10.1.20.254 active
                                                                             // To configure vrrp, The name is vrid2, fictitious IP by 10.1.20.254, The role of active
[FW4-GigabitEthernet1/0/1]q
[FW4]

Backup firewall

<USG6000V1>u t m
<USG6000V1>system-view
[USG6000V1]sysname FW5
[FW5]

[FW5]int g1/0/0
[FW5-GigabitEthernet1/0/0]ip add 10.1.10.5 24
[FW5-GigabitEthernet1/0/0]q
[FW5]int g1/0/1
[FW5-GigabitEthernet1/0/1]ip add 10.1.20.5 24
[FW5-GigabitEthernet1/0/1]q
[FW5]int g1/0/6
[FW5-GigabitEthernet1/0/6]ip add 10.1.45.5 24
[FW5-GigabitEthernet1/0/6]q
[FW5]firewall zone trust
[FW5-zone-trust]add int g1/0/0
[FW5-zone-trust]q

[FW5]firewall zone untrust
[FW5-zone-untrust]add int g1/0/1
[FW5-zone-untrust]q
[FW5]firewall zone name hrp_zone
[FW5-zone-hrp_zone]set priority 20
[FW5-zone-hrp_zone]add int g1/0/6
[FW5-zone-hrp_zone]q
[FW5]

[FW5]
[FW5]int g1/0/0
[FW5-GigabitEthernet1/0/0]vrrp vrid 1 virtual-ip 10.1.10.254 standby
[FW5-GigabitEthernet1/0/0]q
[FW5]int g1/0/1
[FW5-GigabitEthernet1/0/1]vrrp vrid 2 virtual-ip 10.1.20.254 standby
[FW5-GigabitEthernet1/0/1]q
[FW5]

Configure heartbeat line

[FW4]hrp int g1/0/6 remote 10.1.45.5
[FW4]hrp enable
HRP_S[FW4]
HRP_S[FW4]

[FW5]hrp int g1/0/6 remote 10.1.45.4
[FW5]hrp enable
HRP_S[FW5]
HRP_S[FW5]

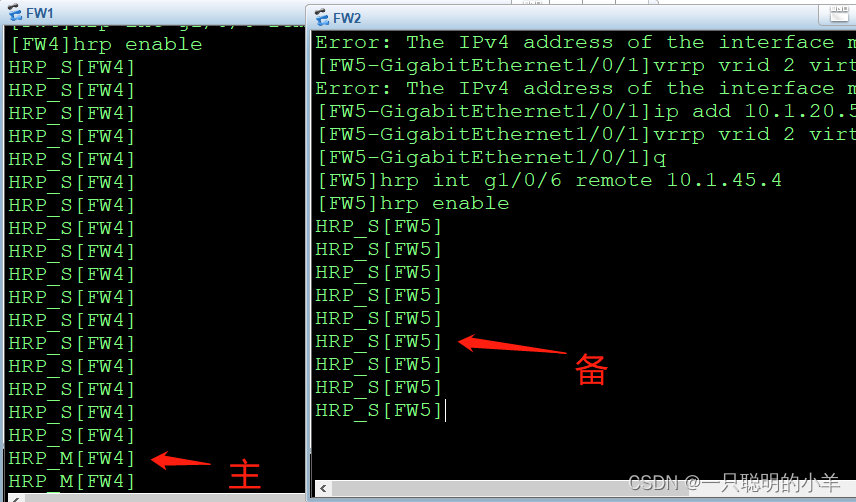

take FW5 After setting the backup firewall ,FW4 Will become the main firewall

see vrrp

HRP_M[FW4]
HRP_M[FW4]dis vrrp brief

HRP_S[FW5]
HRP_S[FW5]dis vrrp brief

Configure security policy

Configure on the main firewall , The backup firewall will back up automatically
Configure on the main firewall

HRP_M[FW4]security-policy (+B)
HRP_M[FW4-policy-security]rule name 123 (+B)
HRP_M[FW4-policy-security-rule-123]source-zone trust (+B)
HRP_M[FW4-policy-security-rule-123]destination-zone untrust (+B)
HRP_M[FW4-policy-security-rule-123]action permit (+B)
HRP_M[FW4-policy-security-rule-123]dis this
#
 rule name 123
  source-zone trust
  destination-zone untrust
  action permit
#
return
HRP_M[FW4-policy-security-rule-123]q
HRP_M[FW4-policy-security]q

View on the standby firewall

HRP_S[FW5]dis security-policy all

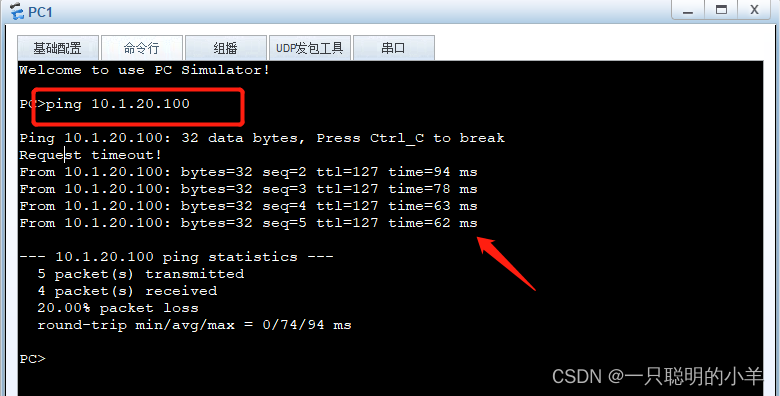

The verification results

close FW4 Of g1/0/1 After the interface , The primary firewall becomes the standby firewall , The standby firewall becomes the primary firewall .
