Spingboot integrates the quartz framework to realize dynamic scheduled tasks (support real-time addition, deletion, modification and query tasks)

2022-07-29 07:19:00 【@Primes~】

SpingBoot Integrate Quartz The framework implements dynamic scheduled tasks （ Support real-time addition, deletion, modification and query tasks ）

1. Preface
2. About Quartz Introduction and recommendation
3. For reference code address, please enter
4. Look at the effect
5. preparation
6. Core code （ Directly stick down the code ）
7. Implement a business scenario
8. The attached code

1. Preface

The last article on dynamic timed tasks
SpringBoot Dynamic configuration processing of dynamic timing tasks （ Dynamically read the database configuration in real time , Support dynamic modification and new tasks without restarting the service ）.
This method is simple , But there will be many disadvantages , You can search online , Maybe I haven't figured it out yet , So I don't think it's easy to use , So I recommend you to use today's introduction Quartz frame , Of course, choose according to your needs

2. About Quartz Introduction and recommendation

Recommend a very good article , You can see that , This article will not introduce , I'll go directly to the case later , Want to know more , Take a look at the following article , It's still very friendly to explain the children's shoes that you just touched .
Timing task framework Quartz-( One )Quartz Introduction and Demo build .

3. For reference code address, please enter

Shared by friends clone The code of the following address , I found that there was an introduction Quartz, Originally, I always wanted to make a question about Quartz Of demo, I haven't done it , After reading it, I think it's necessary to make a demo Show me , I recommend you clone Boss upload to gitHub The code on , If you don't clone Look directly at me demo It's OK , What I have done below is to make changes , The initialization table is also less
https://github.com/xkcoding/spring-boot-demo.

4. Look at the effect

New task
Inquire about 、 modify state 、 Delete etc.

5. preparation

5.1 database

① Initialize the following tables ：qrtz, Just create a table , No data , Post after the statement of creating table , Originally 11 A watch , I use these here , So if you build all the tables , You can refer to the above github Upper
After adding tasks to the page, the data of these tables will be automatically filled , Of course, you can also directly insert, Just a little trouble , First, take a brief look at the data structure of these tables in the screenshot
dog_play_plan This table is created according to the business logic , Later on

5.2 Java Back end configuration, etc

5.2.1 pom file

as follows ：
Insert picture description here

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-quartz</artifactId>
 </dependency>

5.2.2 yml The configuration file

as follows ：
Insert picture description here

spring:
  quartz:
    #  See  org.springframework.boot.autoconfigure.quartz.QuartzProperties
    job-store-type: jdbc
    wait-for-jobs-to-complete-on-shutdown: true
    scheduler-name: SpringBootDemoScheduler
    properties:
      org.quartz.threadPool.threadCount: 5
      org.quartz.threadPool.threadPriority: 5
      org.quartz.threadPool.threadsInheritContextClassLoaderOfInitializingThread: true
      org.quartz.jobStore.misfireThreshold: 5000
      org.quartz.jobStore.class: org.quartz.impl.jdbcjobstore.JobStoreTX
      org.quartz.jobStore.driverDelegateClass: org.quartz.impl.jdbcjobstore.StdJDBCDelegate
      #  In the first step of the scheduling process , That is, pull the to be triggered triggers when , It's locked , That is, there will not be multiple threads pulling to the same trigger The situation of , This avoids the risk of repeated scheduling . Reference resources ：https://segmentfault.com/a/1190000015492260
      org.quartz.jobStore.acquireTriggersWithinLock: true
# org.quartz.jobStore.tablePrefix: sys_

6. Core code （ Directly stick down the code ）

6.1 vo、mapper And mapper.xml

Pictured ：

6.2 controller、service

First cut a new , Other code posted below

6.3 JobUtil.java

Pictured ：

6.4 BaseJob、 timing job（HelloJob For example ）

Pictured ：

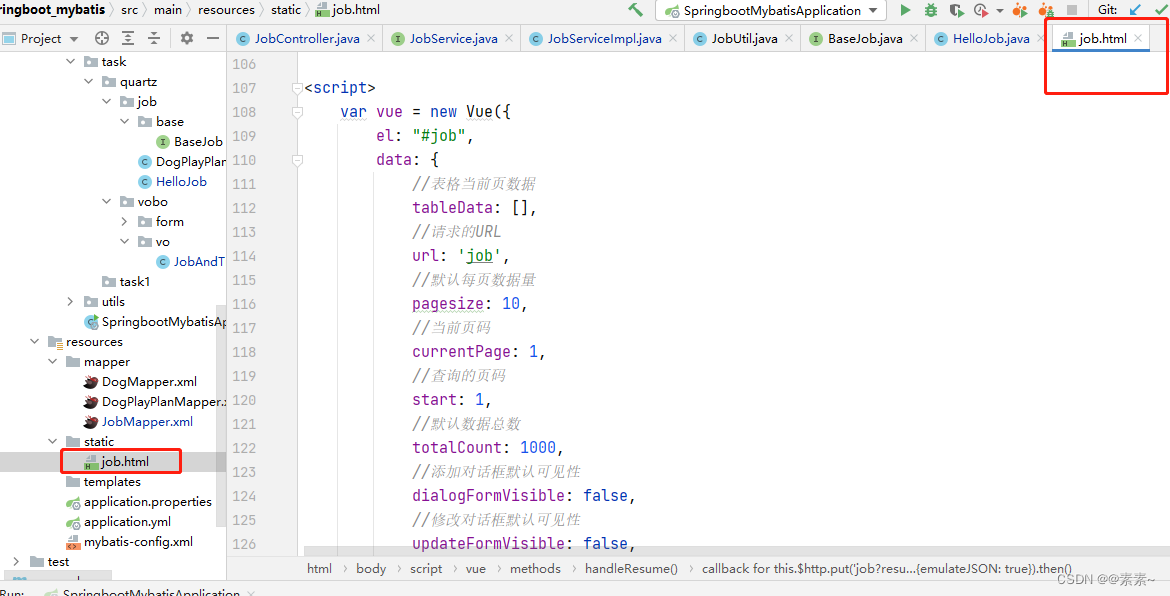

6.5 job.html

Pictured ：

6.6 Test to see the effect

① Start the service , New task , View the new tasks
② Disable task

If it's enabled again , Click restore , Fool operation is not introduced , Mainly code implementation

7. Implement a business scenario

7.1 dog_play_plan—— schedule

Just talk about the watch , Entities and mapper and xml Omitted

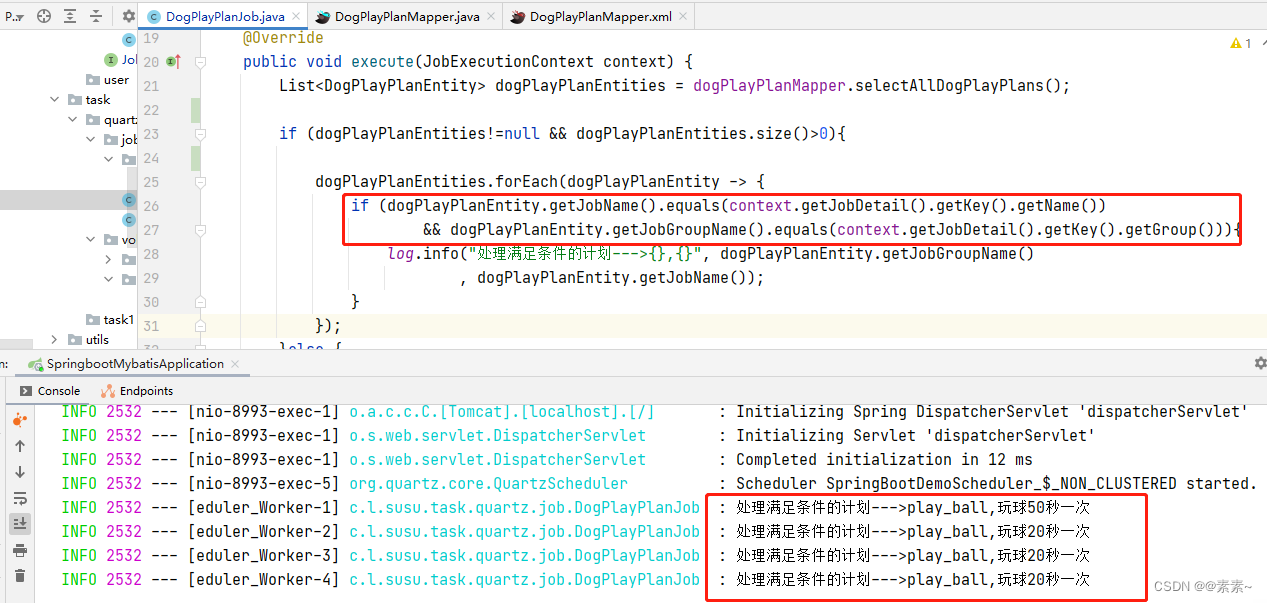

7.2 DogPlayPlanJob.java

as follows ：

Of course, you can also deal with business directly , Don't get the schedule , Look at yourself , Why make a schedule , For example, send text messages ,SendMessageJob There is one , But there are 2 Send it every minute, some 5 Every minute , So you can form the same group sendMessage But different task names 2 Minutes at a time and 5 Minutes at a time , But what business data do you need to deal with 2 Minutes at a time , What to 5 Minutes at a time , Of course, my schedule may not be more reasonable , So we need to optimize according to our own needs

7.3 test

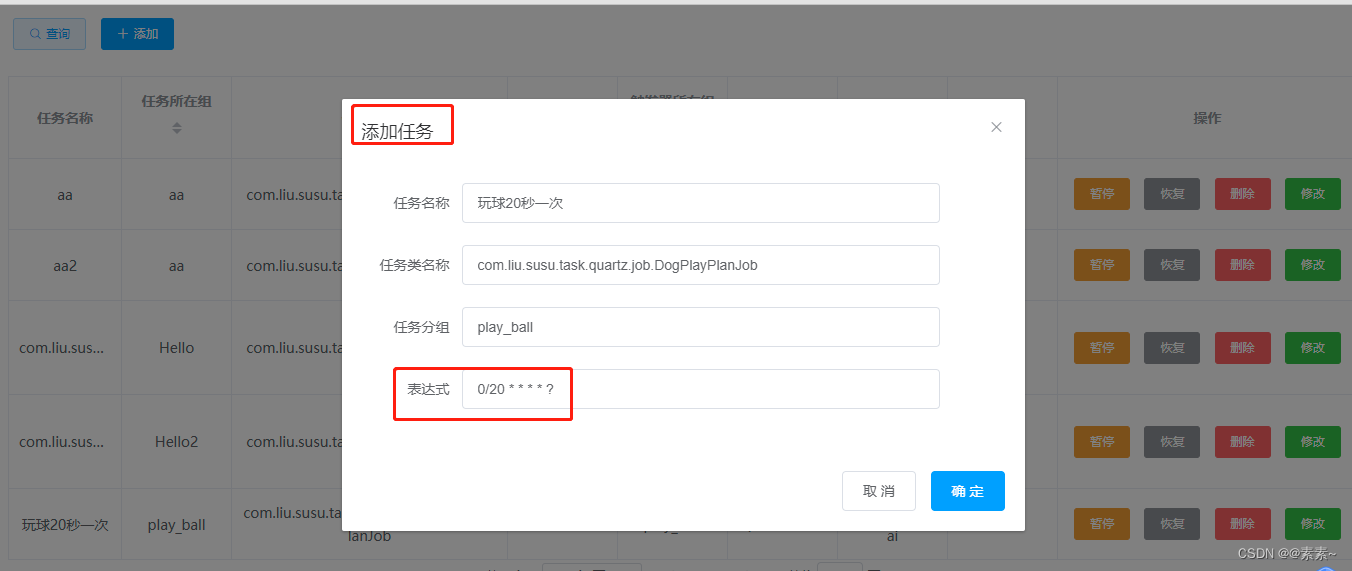

Start the service , Add business , Test the following ：

7.3 You can optimize later

1. Control the data of adding tasks

New tasks cannot be added randomly , Therefore, the business name 、 Full class name maintenance dictionary or enumeration, or directly maintain the form data into a table , Check the data to reverse display , Ensure data correctness , Especially the full class name or cron expression

2. dog_play_plan surface

This table is optimized according to your needs , Here is just a simple analogy

3. Timed task management should be made into permission control

This function is relatively important , You can control the page , But we should make it into permission control , You can't add, delete, modify or check at will
Okay , In short, so much , Just watch the optimization by yourself

7.4 Right up there 7.3 Proposed to carry out a simple optimization

1. Maintain with enumeration jobGroupName and jobName

To avoid data scribbling when adding new tasks , So maintain

2. newly added sys_job_manager surface —— Used to manage the addition of scheduled tasks

The table structure is as follows ：
purpose ：
This table can be maintained by developers in the background , When adding tasks to the page , Take the data maintained in this table , If there is no maintenance, it is not allowed to add tasks randomly

3. Control the query of adding tasks sql

Query all tasks that can be added ：
Check whether the added task is maintained

4. controller Revised as follows

as follows

5. When added , Pay attention to the data

as follows ：

6. Don't forget dog_play_plan

This watch depends on the situation , No corresponding plan can be maintained , But first maintain the above tasks , Add this plan

This table , Optimize according to your own needs , It probably means this

8. The attached code

8.1 Database tables

In the following order ：

CREATE TABLE `qrtz_cron_triggers` (
  `SCHED_NAME` varchar(120) NOT NULL,
  `TRIGGER_NAME` varchar(200) NOT NULL,
  `TRIGGER_GROUP` varchar(200) NOT NULL,
  `CRON_EXPRESSION` varchar(200) NOT NULL,
  `TIME_ZONE_ID` varchar(80) DEFAULT NULL,
  PRIMARY KEY (`SCHED_NAME`,`TRIGGER_NAME`,`TRIGGER_GROUP`) USING BTREE
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

CREATE TABLE `qrtz_fired_triggers` (
  `SCHED_NAME` varchar(120) NOT NULL,
  `ENTRY_ID` varchar(95) NOT NULL,
  `TRIGGER_NAME` varchar(200) NOT NULL,
  `TRIGGER_GROUP` varchar(200) NOT NULL,
  `INSTANCE_NAME` varchar(200) NOT NULL,
  `FIRED_TIME` bigint(20) NOT NULL,
  `SCHED_TIME` bigint(20) NOT NULL,
  `PRIORITY` int(11) NOT NULL,
  `STATE` varchar(16) NOT NULL,
  `JOB_NAME` varchar(200) DEFAULT NULL,
  `JOB_GROUP` varchar(200) DEFAULT NULL,
  `IS_NONCONCURRENT` bit(1) DEFAULT NULL,
  `REQUESTS_RECOVERY` bit(1) DEFAULT NULL,
  PRIMARY KEY (`SCHED_NAME`,`ENTRY_ID`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

CREATE TABLE `qrtz_job_details` (
  `SCHED_NAME` varchar(120) NOT NULL,
  `JOB_NAME` varchar(200) NOT NULL,
  `JOB_GROUP` varchar(200) NOT NULL,
  `DESCRIPTION` varchar(250) DEFAULT NULL,
  `JOB_CLASS_NAME` varchar(250) NOT NULL,
  `IS_DURABLE` bit(1) NOT NULL,
  `IS_NONCONCURRENT` bit(1) NOT NULL,
  `IS_UPDATE_DATA` bit(1) NOT NULL,
  `REQUESTS_RECOVERY` bit(1) NOT NULL,
  `JOB_DATA` blob,
  PRIMARY KEY (`SCHED_NAME`,`JOB_NAME`,`JOB_GROUP`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

CREATE TABLE `qrtz_locks` (
  `SCHED_NAME` varchar(120) NOT NULL,
  `LOCK_NAME` varchar(40) NOT NULL,
  PRIMARY KEY (`SCHED_NAME`,`LOCK_NAME`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;


CREATE TABLE `qrtz_paused_trigger_grps` (
  `SCHED_NAME` varchar(120) NOT NULL,
  `TRIGGER_GROUP` varchar(200) NOT NULL,
  PRIMARY KEY (`SCHED_NAME`,`TRIGGER_GROUP`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COMMENT=' No startup error ';

CREATE TABLE `qrtz_triggers` (
  `SCHED_NAME` varchar(120) NOT NULL,
  `TRIGGER_NAME` varchar(200) NOT NULL,
  `TRIGGER_GROUP` varchar(200) NOT NULL,
  `JOB_NAME` varchar(200) NOT NULL,
  `JOB_GROUP` varchar(200) NOT NULL,
  `DESCRIPTION` varchar(250) DEFAULT NULL,
  `NEXT_FIRE_TIME` bigint(20) DEFAULT NULL,
  `PREV_FIRE_TIME` bigint(20) DEFAULT NULL,
  `PRIORITY` int(11) DEFAULT NULL,
  `TRIGGER_STATE` varchar(16) NOT NULL,
  `TRIGGER_TYPE` varchar(8) NOT NULL,
  `START_TIME` bigint(20) NOT NULL,
  `END_TIME` bigint(20) DEFAULT NULL,
  `CALENDAR_NAME` varchar(200) DEFAULT NULL,
  `MISFIRE_INSTR` smallint(6) DEFAULT NULL,
  `JOB_DATA` blob,
  PRIMARY KEY (`SCHED_NAME`,`TRIGGER_NAME`,`TRIGGER_GROUP`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

CREATE TABLE `qrtz_simple_triggers` (
  `SCHED_NAME` varchar(120) NOT NULL,
  `TRIGGER_NAME` varchar(200) NOT NULL,
  `TRIGGER_GROUP` varchar(200) NOT NULL,
  `REPEAT_COUNT` bigint(20) NOT NULL,
  `REPEAT_INTERVAL` bigint(20) NOT NULL,
  `TIMES_TRIGGERED` bigint(20) NOT NULL,
  PRIMARY KEY (`SCHED_NAME`,`TRIGGER_NAME`,`TRIGGER_GROUP`),
  CONSTRAINT `qrtz_simple_triggers_ibfk_1` FOREIGN KEY (`SCHED_NAME`, `TRIGGER_NAME`, `TRIGGER_GROUP`) REFERENCES `qrtz_triggers` (`SCHED_NAME`, `TRIGGER_NAME`, `TRIGGER_GROUP`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COMMENT=' Use this when modifying scheduled tasks ';

8.2 Java Core code

1. vo、mapper And mapper.xml etc.

① JobForm.java

package com.liu.susu.task.quartz.vobo.form;

import lombok.Data;
import lombok.experimental.Accessors;

import javax.validation.constraints.NotBlank;

@Data
@Accessors(chain = true)
public class JobForm {

    /** *  Time task name  */
    @NotBlank(message = " The name of the task ")
    private String jobName;

    /** *  Task force name  */
    @NotBlank(message = " Task group name cannot be empty ")
    private String jobGroupName;

    /** *  Full class name of scheduled task  */
    @NotBlank(message = " Full class name of scheduled task ")
    private String jobClassName;

    /** *  Timing task cron expression  */
    @NotBlank(message = "cron Expression cannot be empty ")
    private String cronExpression;
}

② JobAndTriggerVo.java

package com.liu.susu.task.quartz.vobo.vo;

import lombok.Data;

import java.math.BigInteger;

@Data
public class JobAndTriggerVo {

    /** *  Timing task name  */
    private String jobName;
    /** *  Timed task force  */
    private String jobGroup;
    /** *  Full class name of scheduled task  */
    private String jobClassName;
    /** *  Trigger Name  */
    private String triggerName;
    /** *  Trigger group  */
    private String triggerGroup;
    /** *  Repeat interval  */
    private BigInteger repeatInterval;
    /** *  Number of triggers  */
    private BigInteger timesTriggered;
    /** * cron  expression  */
    private String cronExpression;
    /** *  The time zone  */
    private String timeZoneId;
    /** *  Scheduled task status  */
    private String triggerState;
}

③ JobMapper.java

package com.liu.susu.mapper.task;

import com.liu.susu.task.quartz.vobo.vo.JobAndTriggerVo;
import org.apache.ibatis.annotations.Mapper;
import org.springframework.stereotype.Repository;

import java.util.List;

@Mapper
@Repository
public interface JobMapper {


    /** *  Query the list of scheduled jobs and triggers  */
    List<JobAndTriggerVo> list();

}

④ JobMapper.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.liu.susu.mapper.task.JobMapper">

  <select id="list" resultType="com.liu.susu.task.quartz.vobo.vo.JobAndTriggerVo">
	SELECT
		job_details.`JOB_NAME`,
		job_details.`JOB_GROUP`,
		job_details.`JOB_CLASS_NAME`,
		cron_triggers.`CRON_EXPRESSION`,
		cron_triggers.`TIME_ZONE_ID`,
		qrtz_triggers.`TRIGGER_NAME`,
		qrtz_triggers.`TRIGGER_GROUP`,
		qrtz_triggers.`TRIGGER_STATE`
	FROM
		`QRTZ_JOB_DETAILS` job_details
		LEFT JOIN `QRTZ_CRON_TRIGGERS` cron_triggers ON job_details.`JOB_NAME` = cron_triggers.`TRIGGER_NAME`
		AND job_details.`JOB_GROUP` = cron_triggers.`TRIGGER_GROUP`
		LEFT JOIN `QRTZ_TRIGGERS` qrtz_triggers ON qrtz_triggers.`TRIGGER_NAME` = job_details.`JOB_NAME`
		AND qrtz_triggers.`TRIGGER_GROUP` = job_details.`JOB_GROUP`
    </select>
</mapper>

2. controller、service

① JobController.java

package com.liu.susu.controller.task;

import cn.hutool.core.util.ObjectUtil;
import cn.hutool.core.util.StrUtil;
import com.github.pagehelper.PageInfo;
import com.liu.susu.common.ResultData;
import com.liu.susu.common.ReturnCode;
import com.liu.susu.service.task.JobService;
import com.liu.susu.task.quartz.vobo.vo.JobAndTriggerVo;
import com.liu.susu.task.quartz.vobo.form.JobForm;
import lombok.extern.slf4j.Slf4j;
import org.quartz.SchedulerException;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;

import javax.validation.Valid;


@RestController
@RequestMapping("/job")
@Slf4j
public class JobController {

    private final JobService jobService;

    @Autowired
    public JobController(JobService jobService) {

        this.jobService = jobService;
    }

    /** *  Save scheduled tasks  */
    @PostMapping
    public ResultData addJob(@Valid JobForm form) {

        try {

            jobService.addJob(form);
            return new ResultData(ReturnCode.INSERT_SUCCESS);
        } catch (Exception e) {

            return new ResultData(ReturnCode.FAIL_999999);
        }
    }

    /** *  Pause scheduled tasks  */
    @PutMapping(params = "pause")
    public ResultData pauseJob(JobForm form) throws SchedulerException {

        if (StrUtil.hasBlank(form.getJobGroupName(), form.getJobClassName())) {

            return new ResultData(ReturnCode.FAIL_NO_PARAM, " The parameter cannot be null ！");
        }
        jobService.pauseJob(form);
        return new ResultData(ReturnCode.SUCCESS_000000, " Pause succeeded ！");
    }

    /** *  Resume scheduled tasks  */
    @PutMapping(params = "resume")
    public ResultData resumeJob(JobForm form) throws SchedulerException {

        if (StrUtil.hasBlank(form.getJobGroupName(), form.getJobClassName())) {

            return new ResultData(ReturnCode.FAIL_NO_PARAM, " The parameter cannot be null ！");
        }
        jobService.resumeJob(form);
        return new ResultData(ReturnCode.SUCCESS_000000, " Recovery successful ！");
    }

    /** *  Modify scheduled tasks , Timing time  */
    @PutMapping(params = "cron")
    public ResultData cronJob(@Valid JobForm form) {

        try {

            jobService.cronJob(form);
            return new ResultData(ReturnCode.UPDATE_SUCCESS, " Modification successful ！");
        } catch (Exception e) {

            return new ResultData(ReturnCode.FAIL_999999);
        }
    }

    /** *  Delete scheduled tasks  */
    @DeleteMapping
    public ResultData deleteJob(JobForm form) throws SchedulerException {

        if (StrUtil.hasBlank(form.getJobGroupName(), form.getJobClassName())) {

            return new ResultData(ReturnCode.FAIL_NO_PARAM, " The parameter cannot be null ！");
        }
        jobService.deleteJob(form);
        return new ResultData(ReturnCode.DELETE_SUCCESS, " Delete successful ！");
    }

    /** *  Query the scheduled task list  * @param currentPage * @param pageSize * @return */
    @RequestMapping
    public ResultData jobList(Integer currentPage, Integer pageSize) {

        if (ObjectUtil.isNull(currentPage)) {

            currentPage = 1;
        }
        if (ObjectUtil.isNull(pageSize)) {

            pageSize = 10;
        }
        PageInfo<JobAndTriggerVo> all = jobService.list(currentPage, pageSize);
        return new ResultData(ReturnCode.SELECT_SUCCESS, all);
    }

}

② JobService.java

package com.liu.susu.service.task;

import com.github.pagehelper.PageInfo;
import com.liu.susu.task.quartz.vobo.vo.JobAndTriggerVo;
import com.liu.susu.task.quartz.vobo.form.JobForm;
import org.quartz.SchedulerException;

public interface JobService {

    /** *  Add and start scheduled tasks  */
    void addJob(JobForm form) throws Exception;

    /** *  Delete scheduled tasks  */
    void deleteJob(JobForm form) throws SchedulerException;

    /** *  Pause scheduled tasks  */
    void pauseJob(JobForm form) throws SchedulerException;

    /** *  Resume scheduled tasks  */
    void resumeJob(JobForm form) throws SchedulerException;

    /** *  Reconfigure scheduled tasks  */
    void cronJob(JobForm form) throws Exception;

    /** *  Query the scheduled task list  */
    PageInfo<JobAndTriggerVo> list(Integer currentPage, Integer pageSize);
}

③ JobServiceImpl.java

package com.liu.susu.service.task.impl;

import com.github.pagehelper.PageHelper;
import com.github.pagehelper.PageInfo;
import com.liu.susu.mapper.task.JobMapper;
import com.liu.susu.service.task.JobService;
import com.liu.susu.task.quartz.vobo.vo.JobAndTriggerVo;
import com.liu.susu.task.quartz.vobo.form.JobForm;
import com.liu.susu.utils.JobUtil;
import lombok.extern.slf4j.Slf4j;
import org.quartz.*;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.List;


@Service
@Slf4j
public class JobServiceImpl implements JobService {

    private final Scheduler scheduler;
    private final JobMapper jobMapper;

    @Autowired
    public JobServiceImpl(Scheduler scheduler, JobMapper jobMapper) {

        this.scheduler = scheduler;
        this.jobMapper = jobMapper;
    }

    /** *  Add and start scheduled tasks  */
    @Override
    public void addJob(JobForm form) throws Exception {

        //  Start the scheduler
        scheduler.start();

        //  structure Job Information
// JobDetail jobDetail = JobBuilder.newJob(JobUtil.getClass(form.getJobClassName()).getClass()).withIdentity(form.getJobClassName(), form.getJobGroupName()).build();
        JobDetail jobDetail = JobBuilder.newJob(JobUtil.getClass(form.getJobClassName()).getClass()).withIdentity(form.getJobName(), form.getJobGroupName()).build();

        // Cron Expression scheduling builder ( That is, the time of task execution )
        CronScheduleBuilder cron = CronScheduleBuilder.cronSchedule(form.getCronExpression());

        // according to Cron Expression builds a Trigger
// CronTrigger trigger = TriggerBuilder.newTrigger().withIdentity(form.getJobClassName(), form.getJobGroupName()).withSchedule(cron).build();
        CronTrigger trigger = TriggerBuilder.newTrigger().withIdentity(form.getJobName(), form.getJobGroupName()).withSchedule(cron).build();

        try {

            scheduler.scheduleJob(jobDetail, trigger);
        } catch (SchedulerException e) {

            log.error("【 Timing task 】 Create failure ！", e);
            throw new Exception("【 Timing task 】 Create failure ！");
        }

    }

    /** *  Delete scheduled tasks  */
    @Override
    public void deleteJob(JobForm form) throws SchedulerException {

        scheduler.pauseTrigger(TriggerKey.triggerKey(form.getJobClassName(), form.getJobGroupName()));
        scheduler.unscheduleJob(TriggerKey.triggerKey(form.getJobClassName(), form.getJobGroupName()));
        scheduler.deleteJob(JobKey.jobKey(form.getJobClassName(), form.getJobGroupName()));
    }

    /** *  Pause scheduled tasks  */
    @Override
    public void pauseJob(JobForm form) throws SchedulerException {

        scheduler.pauseJob(JobKey.jobKey(form.getJobClassName(), form.getJobGroupName()));
    }

    /** *  Resume scheduled tasks  */
    @Override
    public void resumeJob(JobForm form) throws SchedulerException {

        scheduler.resumeJob(JobKey.jobKey(form.getJobClassName(), form.getJobGroupName()));
    }

    /** *  Reconfigure scheduled tasks  */
    @Override
    public void cronJob(JobForm form) throws Exception {

        try {

            TriggerKey triggerKey = TriggerKey.triggerKey(form.getJobClassName(), form.getJobGroupName());
            //  Expression scheduling builder
            CronScheduleBuilder scheduleBuilder = CronScheduleBuilder.cronSchedule(form.getCronExpression());

            CronTrigger trigger = (CronTrigger) scheduler.getTrigger(triggerKey);

            //  according to Cron Expression builds a Trigger
            trigger = trigger.getTriggerBuilder().withIdentity(triggerKey).withSchedule(scheduleBuilder).build();

            //  Press new trigger To reset job perform
            scheduler.rescheduleJob(triggerKey, trigger);
        } catch (SchedulerException e) {

            log.error("【 Timing task 】 Update failed ！", e);
            throw new Exception("【 Timing task 】 Create failure ！");
        }
    }

    /** *  Query the scheduled task list  */
    @Override
    public PageInfo<JobAndTriggerVo> list(Integer currentPage, Integer pageSize) {

        PageHelper.startPage(currentPage, pageSize);
        List<JobAndTriggerVo> list = jobMapper.list();
        return new PageInfo<>(list);
    }
}

3. JobUtil.java

as follows ：

package com.liu.susu.utils;


import com.liu.susu.task.quartz.job.base.BaseJob;

/** *  Timed task reflection tool class  */
public class JobUtil {

    /** *  Get the full class name Job example  */
    public static BaseJob getClass(String classname) throws Exception {

        Class<?> clazz = Class.forName(classname);
        return (BaseJob) clazz.newInstance();
    }
}

4. BaseJob、HelloJob

① BaseJob.java

package com.liu.susu.task.quartz.job.base;

import org.quartz.*;


public interface BaseJob extends Job {


    @Override
    void execute(JobExecutionContext context) throws JobExecutionException;

}

② HelloJob.java

package com.liu.susu.task.quartz.job;

import com.liu.susu.task.quartz.job.base.BaseJob;
import lombok.extern.slf4j.Slf4j;
import org.quartz.JobExecutionContext;
import org.quartz.JobKey;

import java.time.LocalDateTime;

@Slf4j
public class HelloJob implements BaseJob {


    @Override
    public void execute(JobExecutionContext context) {


        JobKey key = context.getJobDetail().getKey();
        if ("bb".equals(key.getName())){

            log.info(" Handle bb Business of scheduled tasks ……  execution time -->: {}", LocalDateTime.now());
        }
        if ("aa".equals(key.getName())){

            log.info(" Handle aa Business of scheduled tasks ……  execution time -->: {}",LocalDateTime.now());
        }
        log.info(" Handle aa、bb External scheduled tasks , execution time -->: {}",LocalDateTime.now());

    }

}

5. job.html

as follows ：

<!DOCTYPE html>
<html>
<head>
    <meta charset="UTF-8">
    <title>spring-boot-demo-task-quartz</title>
    <link href="https://cdnjs.cloudflare.com/ajax/libs/element-ui/2.4.9/theme-chalk/index.css" rel="stylesheet">
    <script src="https://cdn.bootcss.com/vue/2.5.17/vue.min.js"></script>
    <script src="https://cdn.bootcss.com/vue-resource/1.5.1/vue-resource.min.js"></script>
    <script src="https://cdnjs.cloudflare.com/ajax/libs/element-ui/2.4.9/index.js"></script>

    <style> #top {
         /*background: #20A0FF;*/ padding: 5px; /*overflow: hidden*/ } </style>

</head>
<body>
<div id="job">
    <div id="top">
        <el-button size="small" type="primary" plain @click="search" :loading="loading" icon="el-icon-search"> Inquire about
        </el-button>
        <el-button size="small" type="primary" plain @click="handleadd" icon="el-icon-plus"> add to </el-button>
    </div>
    <br/>
    <div>
        <el-table ref="jobTable" :data="tableData" style="width:100%" border center>
            <el-table-column prop="jobName" label=" The name of the task " show-overflow-tooltip align="center"></el-table-column>
            <el-table-column prop="jobGroup" label=" Task group " sortable align="center"></el-table-column>
            <el-table-column prop="jobClassName" label=" Task class name " align="center"></el-table-column>
            <el-table-column prop="triggerName" label=" Trigger Name " align="center"></el-table-column>
            <el-table-column prop="triggerGroup" label=" Trigger group " sortable align="center"></el-table-column>
            <el-table-column prop="cronExpression" label=" expression " align="center"></el-table-column>
            <el-table-column prop="timeZoneId" label=" The time zone " align="center"></el-table-column>
            <el-table-column prop="triggerState" label=" state " align="center" :formatter="formatState"></el-table-column>
            <el-table-column label=" operation " width="300" align="center">
                <template scope="scope">
                    <el-button size="small" type="warning" @click="handlePause(scope.$index, scope.row)">
                         Pause
                    </el-button>
                    <el-button size="small" type="info" @click="handleResume(scope.$index, scope.row)">
                         recovery
                    </el-button>
                    <el-button size="small" type="danger" @click="handleDelete(scope.$index, scope.row)">
                         Delete
                    </el-button>
                    <el-button size="small" type="success" @click="handleUpdate(scope.$index, scope.row)">
                         modify
                    </el-button>
                </template>
            </el-table-column>
        </el-table>

        <div align="center">
            <el-pagination @size-change="handleSizeChange" @current-change="handleCurrentChange" :current-page="currentPage" :page-sizes="[10, 20, 30, 40]" :page-size="pagesize" layout="total, sizes, prev, pager, next, jumper" :total="totalCount">
            </el-pagination>
        </div>
    </div>

    <el-dialog title=" Add tasks " :visible.sync="dialogFormVisible">
        <el-form :model="form">
            <el-form-item label=" The name of the task " label-width="100px" style="width:90%">
                <el-input v-model="form.jobName" auto-complete="off"></el-input>
            </el-form-item>
          <el-form-item label=" Task class name " label-width="100px" style="width:90%">
            <el-input v-model="form.jobClassName" auto-complete="off"></el-input>
          </el-form-item>
            <el-form-item label=" Task groups " label-width="100px" style="width:90%">
                <el-input v-model="form.jobGroup" auto-complete="off"></el-input>
            </el-form-item>
            <el-form-item label=" expression " label-width="100px" style="width:90%">
                <el-input v-model="form.cronExpression" auto-complete="off"></el-input>
            </el-form-item>
        </el-form>
        <div slot="footer" class="dialog-footer">
            <el-button @click="dialogFormVisible = false"> take   eliminate </el-button>
            <el-button type="primary" @click="add"> indeed   set </el-button>
        </div>
    </el-dialog>

    <el-dialog title=" Modify task " :visible.sync="updateFormVisible">
        <el-form :model="updateform">
            <el-form-item label=" expression " label-width="100px" style="width:90%">
                <el-input v-model="updateform.cronExpression" auto-complete="off"></el-input>
            </el-form-item>
        </el-form>
        <div slot="footer" class="dialog-footer">
            <el-button @click="updateFormVisible = false"> take   eliminate </el-button>
            <el-button type="primary" @click="update"> indeed   set </el-button>
        </div>
    </el-dialog>
</div>

<footer align="center">
    <p>&copy; Quartz  Timed task management </p>
</footer>

<script> var vue = new Vue({
         el: "#job", data: {
         // Table current page data  tableData: [], // Requested URL url: 'job', // The default data volume per page  pagesize: 10, // The current page number  currentPage: 1, // Page number of the query  start: 1, // Default total data  totalCount: 1000, // Add dialog default visibility  dialogFormVisible: false, // Modify the default visibility of the dialog  updateFormVisible: false, // Submitted forms  form: {
         jobName: '', jobGroup: '', cronExpression: '' }, updateform: {
         jobName: '', jobGroup: '', cronExpression: '' }, loading: false }, methods: {
         //  Format state  formatState: function (row, column, cellValue, index) {
         if (row.triggerState === 'WAITING' || row.triggerState === 'ACQUIRED') {
         return " Running "; } else if (row.triggerState === 'PAUSED') {
         return " Pause "; } else {
         return " Unknown status "; } }, //  Read data from the server  loadData: function (currentPage, pageSize) {
         this.loading = true; this.$http.get('job?' + 'currentPage=' + currentPage + '&pageSize=' + pageSize).then(function (res) {
         console.log(res); this.tableData = res.body.data.list; this.totalCount = res.body.data.total; this.loading = false; }, function () {
         console.log('failed'); }); }, //  Delete task  handleDelete: function (index, row) {
         this.$http.delete('job', {
         params: {
         "jobClassName": row.jobName, "jobGroupName": row.jobGroup } }, {
        emulateJSON: true}).then(function (res) {
         this.loadData(this.currentPage, this.pagesize); }, function () {
         console.log('failed'); }); }, //  Suspend task  handlePause: function (index, row) {
         this.$http.put('job?pause', {
         "jobClassName": row.jobName, "jobGroupName": row.jobGroup }, {
        emulateJSON: true}).then(function (res) {
         this.loadData(this.currentPage, this.pagesize); }, function () {
         console.log('failed'); }); }, //  Recovery task  handleResume: function (index, row) {
         this.$http.put('job?resume', {
         "jobClassName": row.jobName, "jobGroupName": row.jobGroup }, {
        emulateJSON: true}).then(function (res) {
         this.loadData(this.currentPage, this.pagesize); }, function () {
         console.log('failed'); }); }, //  Search for  search: function () {
         this.loadData(this.currentPage, this.pagesize); }, //  Pop-up dialog box  handleadd: function () {
         this.dialogFormVisible = true; }, //  add to  add: function () {
         this.$http.post('job', {
         "jobName": this.form.jobName, "jobClassName": this.form.jobClassName, "jobGroupName": this.form.jobGroup, "cronExpression": this.form.cronExpression }, {
        emulateJSON: true}).then(function (res) {
         this.loadData(this.currentPage, this.pagesize); this.dialogFormVisible = false; }, function () {
         console.log('failed'); }); }, //  to update  handleUpdate: function (index, row) {
         console.log(row); this.updateFormVisible = true; this.updateform.jobName = row.jobName; this.updateform.jobGroup = row.jobGroup; }, //  Update task  update: function () {
         this.$http.put('job?cron', {
         "jobClassName": this.updateform.jobName, "jobGroupName": this.updateform.jobGroup, "cronExpression": this.updateform.cronExpression }, {
        emulateJSON: true} ).then(function (res) {
         this.loadData(this.currentPage, this.pagesize); this.updateFormVisible = false; }, function () {
         console.log('failed'); }); }, //  The amount of data displayed on each page changes  handleSizeChange: function (val) {
         this.pagesize = val; this.loadData(this.currentPage, this.pagesize); }, //  Page number change  handleCurrentChange: function (val) {
         this.currentPage = val; this.loadData(this.currentPage, this.pagesize); } } }); // Load data  vue.loadData(vue.currentPage, vue.pagesize); </script>

</body>
</html>

8.3 about 7.4 Optimized code and Download address

8.3.1 Optimized code

1. JobService.java

as follows ：

package com.liu.susu.service.task;

import com.liu.susu.common.ResultData;
import com.liu.susu.pojo.entity.sys.SysJobManagerEntity;
import com.liu.susu.task.quartz.vobo.vo.JobAndTriggerVo;

import java.util.List;

public interface JobService {


    /** *  Query the scheduled task list  */
    List<JobAndTriggerVo> selectAllJobList();

    /** *  Add and start scheduled tasks  */
    void addJob(SysJobManagerEntity form) throws Exception;

    /** *  Pause scheduled tasks  */
    ResultData pauseJob(String jobNameKey, String jobGroupNameCode);

    /** *  Resume scheduled tasks  */
    ResultData resumeJob(String jobNameKey, String jobGroupNameCode) ;

    /** *  Reconfigure scheduled tasks  */
    ResultData updateJobCron(String jobNameKey, String jobGroupNameCode,String newCron) ;

    /** *  Delete scheduled tasks  */
    ResultData deleteJob(String jobNameKey, String jobGroupNameCode);


}

2. JobServiceImpl.java

as follows ：

package com.liu.susu.service.task.impl;

import com.liu.susu.common.ResultData;
import com.liu.susu.common.ReturnCode;
import com.liu.susu.mapper.task.JobMapper;
import com.liu.susu.pojo.entity.sys.SysJobManagerEntity;
import com.liu.susu.service.task.JobService;
import com.liu.susu.task.quartz.vobo.vo.JobAndTriggerVo;
import com.liu.susu.utils.JobUtil;
import lombok.extern.slf4j.Slf4j;
import org.quartz.*;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.List;


@Service
@Slf4j
public class JobServiceImpl implements JobService {


    @Autowired
    private Scheduler scheduler;

    @Autowired
    private JobMapper jobMapper;

    /** *  Query the scheduled task list  */
    @Override
    public List<JobAndTriggerVo> selectAllJobList() {

        return jobMapper.list();
    }


    /** *  Add and start scheduled tasks  */
    @Override
    public void addJob(SysJobManagerEntity form) throws Exception {

        //  Start the scheduler
        scheduler.start();

        //  structure Job Information
        JobDetail jobDetail = JobBuilder.newJob(JobUtil.getClass(form.getJobClassName()).getClass())
                .withIdentity(form.getJobNameKey(), form.getJobGroupNameCode()).build();

        // Cron Expression scheduling builder ( That is, the time of task execution )
        CronScheduleBuilder cron = CronScheduleBuilder.cronSchedule(form.getJobCron());

        // according to Cron Expression builds a Trigger
        CronTrigger trigger = TriggerBuilder.newTrigger()
                .withIdentity(form.getJobNameKey(), form.getJobGroupNameCode())
                .withSchedule(cron).build();

        try {

            scheduler.scheduleJob(jobDetail, trigger);
        } catch (SchedulerException e) {

            log.error("【 Timing task 】 Create failure ！", e);
            throw new Exception("【 Timing task 】 Create failure ！");
        }

    }

    /** *  Pause scheduled tasks  */
    @Override
    public ResultData pauseJob(String jobNameKey, String jobGroupNameCode) {

        try {

            scheduler.pauseJob(JobKey.jobKey(jobNameKey, jobGroupNameCode));
            return new ResultData(ReturnCode.SUCCESS_000000," Pause succeeded ！");
        } catch (SchedulerException e) {

            e.printStackTrace();
            return new ResultData(ReturnCode.FAIL_999999);
        }
    }

    /** *  Resume scheduled tasks  */
    @Override
    public ResultData resumeJob(String jobNameKey, String jobGroupNameCode) {

        try {

            scheduler.resumeJob(JobKey.jobKey(jobNameKey, jobGroupNameCode));
            return new ResultData(ReturnCode.SUCCESS_000000," The scheduled task is restored successfully ！");
        } catch (SchedulerException e) {

            e.printStackTrace();
            return new ResultData(ReturnCode.FAIL_999999);
        }
    }

    /** *  Modify scheduled tasks  */
    @Override
    public ResultData updateJobCron(String jobNameKey, String jobGroupNameCode,String newCron) {

        try {

            TriggerKey triggerKey = TriggerKey.triggerKey(jobNameKey, jobGroupNameCode);
            //  Expression scheduling builder
            CronScheduleBuilder scheduleBuilder = CronScheduleBuilder.cronSchedule(newCron);

            CronTrigger trigger = (CronTrigger) scheduler.getTrigger(triggerKey);

            //  according to Cron Expression builds a Trigger
            trigger = trigger.getTriggerBuilder().withIdentity(triggerKey).withSchedule(scheduleBuilder).build();

            //  Press new trigger To reset job perform
            scheduler.rescheduleJob(triggerKey, trigger);
            return new ResultData(ReturnCode.UPDATE_SUCCESS," The scheduled task is modified successfully ！");
        } catch (SchedulerException e) {

            log.error("【 Timing task 】 Update failed ！", e);
            e.printStackTrace();
            return new ResultData(ReturnCode.FAIL_999999);
        }
    }

    /** *  Delete scheduled tasks  */
    @Override
    public ResultData deleteJob(String jobNameKey, String jobGroupNameCode)  {

        try {

            scheduler.pauseTrigger(TriggerKey.triggerKey(jobNameKey, jobGroupNameCode));
            scheduler.unscheduleJob(TriggerKey.triggerKey(jobNameKey, jobGroupNameCode));
            scheduler.deleteJob(JobKey.jobKey(jobNameKey, jobGroupNameCode));
            return new ResultData(ReturnCode.DELETE_SUCCESS," Scheduled task deleted successfully ！");
        } catch (SchedulerException e) {

            e.printStackTrace();
            return new ResultData(ReturnCode.FAIL_999999);
        }
    }

}

3.JobController2.java

as follows ：

package com.liu.susu.controller.task;

import com.github.pagehelper.PageHelper;
import com.github.xiaoymin.knife4j.annotations.ApiOperationSupport;
import com.github.xiaoymin.knife4j.annotations.ApiSupport;
import com.liu.susu.common.PageParam;
import com.liu.susu.common.ResultData;
import com.liu.susu.common.ReturnCode;
import com.liu.susu.mapper.task.SysJobManagerMapper;
import com.liu.susu.pojo.entity.sys.SysJobManagerEntity;
import com.liu.susu.service.task.JobService;
import io.swagger.annotations.Api;
import io.swagger.annotations.ApiOperation;
import lombok.extern.slf4j.Slf4j;
import org.apache.commons.lang.StringUtils;
import org.apache.ibatis.annotations.Param;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.*;

import javax.validation.Valid;

@Controller
@RequestMapping("/sys/quartz/task")
@Api(tags = " System management --> Timed task management ")
@ApiSupport(author = " Ride the wind and waves ",order = 3)
@Slf4j
public class JobController2 {


    @Autowired
    private JobService jobService;

    @Autowired
    private SysJobManagerMapper sysJobManagerMapper;


    @ApiOperationSupport(author = " Ride the wind and waves ",order = 1)
    @ApiOperation(value = " Query the scheduled task list ")
    @PostMapping("/selectAllJob")
    @ResponseBody
    public ResultData selectAllJob(@Valid PageParam pageParam) {

        if (pageParam!=null){

            PageHelper.startPage(pageParam.getPageNum(),pageParam.getPageSize());
        }
        return ResultData.getPageBaseResultData(pageParam,jobService.selectAllJobList());
    }

    @ApiOperationSupport(author = " Ride the wind and waves ",order = 2)
    @ApiOperation(value = " Add a scheduled task ")
    @PostMapping("/addNewJob")
    @ResponseBody
    public ResultData addNewJob(@RequestBody SysJobManagerEntity form) {

        if (form!=null && StringUtils.isNotEmpty(form.getJobGroupNameCode())
        && StringUtils.isNotEmpty(form.getJobNameKey())){

            // Before adding tasks , First verify whether there is maintenance in the list that can be added
            int count = sysJobManagerMapper.findSysJobManager(form.getJobGroupNameCode(), form.getJobNameKey());
            if (count>0){

                try {

                    jobService.addJob(form);
                    return new ResultData(ReturnCode.INSERT_SUCCESS);
                } catch (Exception e) {

                    return new ResultData(ReturnCode.FAIL_999999);
                }
            }else {

                return new ResultData(ReturnCode.FAIL_999998," The scheduled task to be added is not maintained , Please contact the administrator to maintain ！");
            }
        }
        return new ResultData(ReturnCode.FAIL_NO_PARAM, " The form parameter is empty , Please check the parameters ");
    }

    @ApiOperationSupport(author = " Ride the wind and waves ",order = 3)
    @ApiOperation(value = " Suspend task ")
    @GetMapping("/pauseJob")
    @ResponseBody
    public ResultData pauseJob(@RequestParam(value = "jobNameKey",required = true) String jobNameKey,
                               @RequestParam(value = "jobGroupNameCode",required = true) String jobGroupNameCode){


        if (StringUtils.isEmpty(jobNameKey) || StringUtils.isEmpty(jobGroupNameCode)){

            return new ResultData(ReturnCode.FAIL_NO_PARAM, " The parameter cannot be null ！");
        }
        return jobService.pauseJob(jobNameKey,jobGroupNameCode);
    }

    @ApiOperationSupport(author = " Ride the wind and waves ",order = 4)
    @ApiOperation(value = " Resume scheduled tasks ")
    @GetMapping("/resumeJob")
    @ResponseBody
    public ResultData resumeJob(@RequestParam(value = "jobNameKey") String jobNameKey,
                                @RequestParam(value = "jobGroupNameCode") String jobGroupNameCode) {

        if (StringUtils.isEmpty(jobNameKey) || StringUtils.isEmpty(jobGroupNameCode)){

            return new ResultData(ReturnCode.FAIL_NO_PARAM, " The parameter cannot be null ！");
        }
        return jobService.resumeJob(jobNameKey,jobGroupNameCode);
    }

    @ApiOperationSupport(author = " Ride the wind and waves ",order = 5)
    @ApiOperation(value = " Modify scheduled tasks , Timing time ")
    @GetMapping("/updateJobCron")
    @ResponseBody
    public ResultData updateJobCron(@Param("jobNameKey") String jobNameKey,
                                    @Param("jobGroupNameCode") String jobGroupNameCode,
                                    @Param("cron") String newCron) {

        return jobService.updateJobCron(jobNameKey, jobGroupNameCode, newCron);
    }

    @ApiOperationSupport(author = " Ride the wind and waves ",order = 6)
    @ApiOperation(value = " Delete scheduled tasks ")
    @GetMapping("/deleteJob")
    @ResponseBody
    public ResultData deleteJob(@Param("jobNameKey") String jobNameKey,
                                @Param("jobGroupNameCode") String jobGroupNameCode) {


        jobService.deleteJob(jobNameKey,jobGroupNameCode);
        return new ResultData(ReturnCode.DELETE_SUCCESS, " Delete successful ！");
    }


}

8.3.2 Download address

I integrated this into my project , The optimized code is also , Too much code , So I posted part of the code above , Others can be downloaded by themselves as needed ：
springboot_mybatis Small projects .

原网站

版权声明
本文为[@Primes~]所创，转载请带上原文链接，感谢
https://yzsam.com/2022/210/202207290638397296.html
