VGA display of color bar, character and picture based on FPGA
2022-06-09 03:41:00 【Intoxication, thousand layer dream】
List of articles
One 、VGA
What is? VGA？VGA It's not the screen used for display , It's an interface for transmitting signals .VGA The full name is Video Graphics Array, Video graphics array , It is a video transmission standard for analog signals .
Two 、 Sequence diagram
3、 ... and 、 Realization
Parameters corresponding to different resolutions
0. The clock frequency division
Separate use 640×480 60HZ and 800×600 72HZ, The corresponding clocks are 25M and 50M, Need to use PLL Frequency division clock frequency = Line frame length × Column frame length * The refresh rate ,640 ×480 60HZ Corresponding clock frequency = 800 ×525 × 60 = 25.2M
ip Found in the nucleus ALTPLL
Basic clock selection 50M
Uncheck output enable
c0 Default output 50M that will do ,c1 Frequency division to 25M, If you need other clock frequencies, you can set them yourself
Check the following options finish

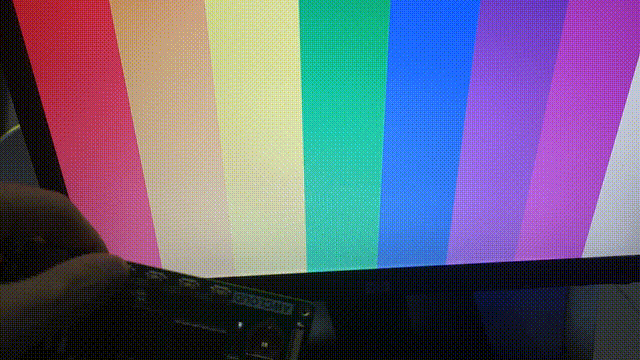

1. Color bar display
Judge the color to be displayed according to the address of the current line .
2. Character display
Input the characters to be displayed in the sub module extraction tool and set the character size to 64*64
Then click file - Save as , Save picture as BMP picture
And then click file - open , Put the preserved BMP Open the picture to get the whole character
Then click the option to set the following parameters
Finally, click generate character and save the character as a text file
The resulting characters are as follows
Put the obtained characters in verilog It can be used inside
3. Picture shows
Because of one 640×480 Of 24 The size of the bit image exceeds the memory of the chip , Unable to save the picture , Therefore, one sheet is used 128*78 The picture of .
Original picture ：
Use the tool to turn the picture into HEX file
The conversion is completed and data1.hex, Content as shown
Too much picture data needs to be used ROM To store data
open quartus, find ROM
Set the bit width to 16 position , The size is the size of the picture 128×78 = 9984
Uncheck the following options
Find the data1.hex file
Check the following options and directly finsh that will do
For data reading and use, refer to the following code section
Four 、 Code
be based on EP4CEF17C8 Model chip
1.vga Driver module
module vga_dirve (input wire clk, // The system clock
input wire rst_n, // Reset
input wire [ 15:0 ] rgb_data, //16 position RGB Corresponding value
output wire vga_clk, //vga The clock 25M
output reg h_sync, // Line sync
output reg v_sync, // Field synchronization signal
output reg [ 11:0 ] addr_h, // Line address
output reg [ 11:0 ] addr_v, // Column address
output wire [ 4:0 ] rgb_r, // Red base color
output wire [ 5:0 ] rgb_g, // Green base color
output wire [ 4:0 ] rgb_b // Blue base color
);
// 640 * 480 60HZ
localparam H_FRONT = 16; // The leading edge signal period of line synchronization is long
localparam H_SYNC = 96; // The period of line synchronization signal is long
localparam H_BLACK = 48; // The signal period of the trailing edge of line synchronization is long
localparam H_ACT = 640; // The line display cycle is long
localparam V_FRONT = 11; // The signal period at the front of field synchronization is long
localparam V_SYNC = 2; // The period of field synchronization signal is long
localparam V_BLACK = 31; // The signal period at the trailing edge of field synchronization is long
localparam V_ACT = 480; // Long field display period
// 800 * 600 72HZ
// localparam H_FRONT = 40; // The leading edge signal period of line synchronization is long
// localparam H_SYNC = 120; // The period of line synchronization signal is long
// localparam H_BLACK = 88; // The signal period of the trailing edge of line synchronization is long
// localparam H_ACT = 800; // The line display cycle is long
// localparam V_FRONT = 37; // The signal period at the front of field synchronization is long
// localparam V_SYNC = 6; // The period of field synchronization signal is long
// localparam V_BLACK = 23; // The signal period at the trailing edge of field synchronization is long
// localparam V_ACT = 600; // Long field display period
localparam H_TOTAL = H_FRONT + H_SYNC + H_BLACK + H_ACT; // Line period
localparam V_TOTAL = V_FRONT + V_SYNC + V_BLACK + V_ACT; // Column period
reg [ 11:0 ] cnt_h ; // Row counter
reg [ 11:0 ] cnt_v ; // Field counter
reg [ 15:0 ] rgb ; // Corresponding display color value
// The corresponding counter starts 、 end 、 Counting signal
wire flag_enable_cnt_h ;
wire flag_clear_cnt_h ;
wire flag_enable_cnt_v ;
wire flag_clear_cnt_v ;
wire flag_add_cnt_v ;
wire valid_area ;
// 25M The clock Line period * Field period * The refresh rate = 800 * 525* 60
wire clk_25 ;
// 50M The clock 1040 * 666 * 72
wire clk_50 ;
//PLL
pll pll_inst (
.areset ( ~rst_n ),
.inclk0 ( clk ),
.c0 ( clk_50 ), //50M
.c1 ( clk_25 ), //25M
);
// Select different frequency clocks according to different allocation rates
assign vga_clk = clk_25;
// Line count
always @( posedge vga_clk or negedge rst_n ) begin
if ( !rst_n ) begin
cnt_h <= 0;
end
else if ( flag_enable_cnt_h ) begin
if ( flag_clear_cnt_h ) begin
cnt_h <= 0;
end
else begin
cnt_h <= cnt_h + 1;
end
end
else begin
cnt_h <= 0;
end
end
assign flag_enable_cnt_h = 1;
assign flag_clear_cnt_h = cnt_h == H_TOTAL - 1;
// Line sync
always @( posedge vga_clk or negedge rst_n ) begin
if ( !rst_n ) begin
h_sync <= 0;
end
else if ( cnt_h == H_SYNC - 1 ) begin // The synchronization period is 1
h_sync <= 1;
end
else if ( flag_clear_cnt_h ) begin // Others are 0
h_sync <= 0;
end
else begin
h_sync <= h_sync;
end
end
// Field count
always @( posedge vga_clk or negedge rst_n ) begin
if ( !rst_n ) begin
cnt_v <= 0;
end
else if ( flag_enable_cnt_v ) begin
if ( flag_clear_cnt_v ) begin
cnt_v <= 0;
end
else if ( flag_add_cnt_v ) begin
cnt_v <= cnt_v + 1;
end
else begin
cnt_v <= cnt_v;
end
end
else begin
cnt_v <= 0;
end
end
assign flag_enable_cnt_v = flag_enable_cnt_h;
assign flag_clear_cnt_v = cnt_v == V_TOTAL - 1;
assign flag_add_cnt_v = flag_clear_cnt_h;
// Field synchronization signal
always @( posedge vga_clk or negedge rst_n ) begin
if ( !rst_n ) begin
v_sync <= 0;
end
else if ( cnt_v == V_SYNC - 1 ) begin
v_sync <= 1;
end
else if ( flag_clear_cnt_v ) begin
v_sync <= 0;
end
else begin
v_sync <= v_sync;
end
end
// Corresponding to the effective area row address 1-640
always @( posedge vga_clk or negedge rst_n ) begin
if ( !rst_n ) begin
addr_h <= 0;
end
else if ( valid_area ) begin
addr_h <= cnt_h - H_SYNC - H_BLACK + 1;
end
else begin
addr_h <= 0;
end
end
// Corresponding valid area column address 1-480
always @( posedge vga_clk or negedge rst_n ) begin
if ( !rst_n ) begin
addr_v <= 0;
end
else if ( valid_area ) begin
addr_v <= cnt_v -V_SYNC - V_BLACK + 1;
end
else begin
addr_v <= 0;
end
end
// Effective display area
assign valid_area = cnt_h >= H_SYNC + H_BLACK && cnt_h <= H_SYNC + H_BLACK + H_ACT && cnt_v >= V_SYNC + V_BLACK && cnt_v <= V_SYNC + V_BLACK + V_ACT;
// Display color
always @( posedge vga_clk or negedge rst_n ) begin
if ( !rst_n ) begin
rgb <= 16'h0;
end
else if ( valid_area ) begin
rgb <= rgb_data;
end
else begin
rgb <= 16'b0;
end
end
assign rgb_r = rgb[ 15:11 ];
assign rgb_g = rgb[ 10:5 ];
assign rgb_b = rgb[ 4:0 ];
endmodule // vga_dirve
2. Display data generation module
module data_drive (input wire vga_clk,
input wire rst_n,
input wire [ 11:0 ] addr_h,
input wire [ 11:0 ] addr_v,
input wire [ 2:0 ] key,
output reg [ 15:0 ] rgb_data);
localparam red = 16'd63488;
localparam orange = 16'd64384;
localparam yellow = 16'd65472;
localparam green = 16'd1024;
localparam blue = 16'd31;
localparam indigo = 16'd18448;
localparam purple = 16'd32784;
localparam white = 16'd65503;
localparam black = 16'd0;
reg [ 383:0 ] char_line[ 64:0 ];
localparam states_1 = 1; // Color bar
localparam states_2 = 2; // character
localparam states_3 = 3; // picture
parameter height = 78; // Picture height
parameter width = 128; // Image width
reg [ 1:0 ] states_current ; // current state
reg [ 1:0 ] states_next ; // Next state
reg [ 13:0 ] rom_address ; // ROM Address
wire [ 15:0 ] rom_data ; // Picture data
wire flag_enable_out1 ; // Text valid area
wire flag_enable_out2 ; // Picture effective area
wire flag_clear_rom_address ; // The address is cleared
wire flag_begin_h ; // The picture shows the line
wire flag_begin_v ; // Picture display column
// State shift
always @( posedge vga_clk or negedge rst_n ) begin
if ( !rst_n ) begin
states_current <= states_1;
end
else begin
states_current <= states_next;
end
end
// State judgement
always @( posedge vga_clk or negedge rst_n ) begin
if ( !rst_n ) begin
states_next <= states_1;
end
else if ( key[ 0 ] ) begin
states_next <= states_1;
end
else if ( key[ 1 ] ) begin
states_next <= states_2;
end
else if ( key[ 2 ] ) begin
states_next <= states_3;
end
else begin
states_next <= states_next;
end
end
// State output
always @( * ) begin
case ( states_current )
states_1 : begin
if ( addr_h == 0 ) begin
rgb_data = black;
end
else if ( addr_h >0 && addr_h <81 ) begin
rgb_data = red;
end
else if ( addr_h >80 && addr_h <161 ) begin
rgb_data = orange;
end
else if ( addr_h >160 && addr_h <241 ) begin
rgb_data = yellow;
end
else if ( addr_h >240 && addr_h <321 ) begin
rgb_data = green;
end
else if ( addr_h >320 && addr_h <401 ) begin
rgb_data = blue;
end
else if ( addr_h >400 && addr_h <481 ) begin
rgb_data = indigo;
end
else if ( addr_h >480 && addr_h <561 ) begin
rgb_data = purple;
end
else if ( addr_h >560 && addr_h <641 ) begin
rgb_data = white;
end
else begin
rgb_data = black;
end
end
states_2 : begin
if ( flag_enable_out1 ) begin
rgb_data = char_line[ addr_v-208 ][ 532 - addr_h ]? white:black;
end
else begin
rgb_data = black;
end
end
states_3 : begin
if ( flag_enable_out2 ) begin
rgb_data = rom_data;
end
else begin
rgb_data = black;
end
end
default: begin
case ( addr_h )
0 : rgb_data = black;
1 : rgb_data = red;
81 : rgb_data = orange;
161: rgb_data = yellow;
241: rgb_data = green;
321: rgb_data = blue;
401: rgb_data = indigo;
481: rgb_data = purple;
561: rgb_data = white;
default: rgb_data = rgb_data;
endcase
end
endcase
end
assign flag_enable_out1 = states_current == states_2 && addr_h > 148 && addr_h < 533 && addr_v > 208 && addr_v < 273 ;
assign flag_begin_h = addr_h > ( ( 640 - width ) / 2 ) && addr_h < ( ( 640 - width ) / 2 ) + width + 1;
assign flag_begin_v = addr_v > ( ( 480 - height )/2 ) && addr_v <( ( 480 - height )/2 ) + height + 1;
assign flag_enable_out2 = states_current == states_3 && flag_begin_h && flag_begin_v;
//ROM Address counter
always @( posedge vga_clk or negedge rst_n ) begin
if ( !rst_n ) begin
rom_address <= 0;
end
else if ( flag_clear_rom_address ) begin // When the count is full, it is cleared
rom_address <= 0;
end
else if ( flag_enable_out2 ) begin // Within the effective area +1
rom_address <= rom_address + 1;
end
else begin // Invalid region hold
rom_address <= rom_address;
end
end
assign flag_clear_rom_address = rom_address == height * width - 1;
// Initialize display text
[email protected]( posedge vga_clk or negedge rst_n ) begin
if ( !rst_n ) begin
char_line[ 0 ] = 384'h000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000;
char_line[ 1 ] = 384'h000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000;
char_line[ 2 ] = 384'h000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000;
char_line[ 3 ] = 384'h000000000000000000000008000000000000000000000000000000000000000000000000000000000000200000800000;
char_line[ 4 ] = 384'h0000000001E000000000000E000000000000000000000000000000000002000000000000000000000000380000E00000;
char_line[ 5 ] = 384'h0000003000F800000000000780000000000000000000000000000000000F0000001000000000080000003E0000F80000;
char_line[ 6 ] = 384'h00000070007C000000000003C0000000000000000000000000000000007F8000000C000000001C0000003E0000FC0000;
char_line[ 7 ] = 384'h000000F8007E000000000003C000000000000000000000000000000003FFC000000FFFFFFFFFFE0000003C0000F00000;
char_line[ 8 ] = 384'h3FFFFFFC003E000000000003C00300000000000000000000000000003FFFE000000FFFFFFFFFFF0000003C0000F00000;
char_line[ 9 ] = 384'h3FFFFFFE003E000000000001C0078000000000000000000000000007FFFF8000000F000000003E0000003C0000F00000;
char_line[ 10 ] = 384'h1F3E7C00003E0180001FFFFFFFFFC0000000000000000000000000FFFF800000000F000000003C0000003C0000F00000;
char_line[ 11 ] = 384'h003E7C00001E03C0000FFFFFFFFFE000000000000000000000003FFFC0000000000F000000003C0000003C0000F00000;
char_line[ 12 ] = 384'h003E7C00001C07E000000600010000000000000000000000001FFFC3C0000000000F000000003C0000003C3000F00600;
char_line[ 13 ] = 384'h003E7C07FFFFFFF00000038003C00000000000000000000000300003C0000000000F000000003C0000003C7800F00F00;
char_line[ 14 ] = 384'h003E7C07FFFFFFF8000001C003E00000000000000000000000000003C0000000000F000000003C0007FFFFFDFFFFFF80;
char_line[ 15 ] = 384'h003E7C03EC006000000001E003C00000000000000000000000000003C0000000000F000000003C0003FFFFFEFFFFFFC0;
char_line[ 16 ] = 384'h003E7C000F007800000000E007800000000000000000000000000003C0000000000F000000003C0001803C0001F80000;
char_line[ 17 ] = 384'h003E7C601FC07E00000000E007000000000000000000000000000003C0000000000FFFFFFFFFFC0000007C0001FC0000;
char_line[ 18 ] = 384'h0F3E7CF01F807E00000000E00E000200000000000000000000000003C0000000000FFFFFFFFFFC0000007C0003F40000;
char_line[ 19 ] = 384'h0FFFFFF81F00FC00000000E00C000700000000000000000000000003C0000000000E000000003C000000FF8003F60000;
char_line[ 20 ] = 384'h0FFFFFF81F00F8000000000018000F80000002000000000000000003C0000000000E000000003E000000FDF007F30000;
char_line[ 21 ] = 384'h0FBE7DF03E00F8000FFFFFFFFFFFFFC0000001800000000000000003C0000000000E0000000030000001FCF80FF38000;
char_line[ 22 ] = 384'h0FBE7DF03E01F00007FFFFFFFFFFFFE0000000C00000000000000003C0000000000E0000000000000003FC7C0EF1C000;
char_line[ 23 ] = 384'h0FBE7DF03E01F8000300000000000000000000700000000000000003C0000000000E0000000000000003FC7C1EF1E000;
char_line[ 24 ] = 384'h0FBE7DF07F83FC0000000000000000000000007C0000000000000003C0000000000E0000000000000007BC3C3CF0F000;
char_line[ 25 ] = 384'h0FBE7DF07BE3FF0000000000000000000000003E0000000000000003C0000180000E000000000000000F3C1838F07C00;
char_line[ 26 ] = 384'h0FBE7DF07BF7CFC000030000000700000000001F8000000000000003C00003C0000E000000003000001E3C1870F03F00;
char_line[ 27 ] = 384'h0FBE7DF0F1F787E00003FFFFFFFF80000000000FC000000000000003C00007E0000E000000007800001C3C00E0F03FC0;
char_line[ 28 ] = 384'h0FBE7DF0F1FF83E00003FFFFFFFFC00000000007F00000003FFFFFFFFFFFFFF0000E07FFFFFFFC0000383C01C0F01FF8;
char_line[ 29 ] = 384'h0FBC7DF1E0FF03F00003C0000007000000000003F80000001FFFFFFFFFFFFFF8000E03FFFFFFFE0000703C0300F007E0;
char_line[ 30 ] = 384'h0FBC7DF1E0FE01F00003C0000007000000000001FC0000000C000003C0000000000E01000000000000E03C0600F00300;
char_line[ 31 ] = 384'h0FBC7DF3C07C01F00003C0000007000000000000FE00000000000003C0000000001E00000000000001803C2800F00100;
char_line[ 32 ] = 384'h0FBC7DF3807800E00003C0000007000000000000FE00000000000003C0000000001E00000000000007003C3000F00000;
char_line[ 33 ] = 384'h0FBC7DF7007000C00003FFFFFFFF0000000000007F00000000000003C0000000001E0000000000000C003C7800F00000;
char_line[ 34 ] = 384'h0FF87DF700FC00000003FFFFFFFF0000000000003F00000000000003C0000000001E00000000000018003C7E00E00000;
char_line[ 35 ] = 384'h0FF87FFE01FF00000003C00000070000000000003F00000000000003C0000000001E000000000100000030FC00808000;
char_line[ 36 ] = 384'h0FF83FFC013F00000003C00000070000000000001F00000000000003C0000000001E000000000380000001F00001C000;
char_line[ 37 ] = 384'h0FF01FF0003E00000003C00000070000000000001F00000000000003C0000000001C0000000007C0000003FFFFFFE000;
char_line[ 38 ] = 384'h0FE001F0003E00C00003C00000070000000000000E00000000000003C0000000001CFFFFFFFFFFE0000003FFFFFFF000;
char_line[ 39 ] = 384'h0FE001F0003E01E00003C00000070000000000000400000000000003C0000000001C7FFFFFFFFFF0000007800003F800;
char_line[ 40 ] = 384'h0FC001F0003E03F00003FFFFFFFF0000000000000000000000000003C0000000001C20006000000000000F000003E000;
char_line[ 41 ] = 384'h0F8001FFFFFFFFF80003FFFFFFFF0000000000000000000000000003C0000000003C00007000000000001E000007C000;
char_line[ 42 ] = 384'h0F8001FFFFFFFFFC0003C02000070000000000000000000000000003C0000000003C0000FC00000000003C00000F8000;
char_line[ 43 ] = 384'h0FFFFFF7C03E00000003801800060000000000000000000000000003C000000000380000FC00000000007E00001F0000;
char_line[ 44 ] = 384'h0FFFFFF0003E00000000000E00000000000000000000000000000003C000000000380001F80000000000E780003E0000;
char_line[ 45 ] = 384'h0F8001F0003E00000000100780000000000000000000000000000003C000000000380001E00000000001C3C0003E0000;
char_line[ 46 ] = 384'h0F8001F0003E000000001C07C0018000000000000000000000000003C000000000780003C0000000000781F0007C0000;
char_line[ 47 ] = 384'h0F8001F0003E000000081F03E000E000000000000000000000000003C00000000070000780000000000E00F800F80000;
char_line[ 48 ] = 384'h0F8001F0003E000000181E01E0007800000000000000000000000003C00000000070000700180000001C007803F00000;
char_line[ 49 ] = 384'h0F8001F0003E000000181C00E0183E00000000000000000000000003C00000000070000E000C00000070007807E00000;
char_line[ 50 ] = 384'h0F8001F0003E000000181C00E0181F00000000000000000000000003C000000000E0001C0007000000C000380F800000;
char_line[ 51 ] = 384'h0F8001F0003E000000381C0060180F80000000000000000000000003C000000000E0003800038000010000381F000000;
char_line[ 52 ] = 384'h0F8001F0003E000000381C00401807C0000000000000000000000003C000000000C000700001E000000000187E000000;
char_line[ 53 ] = 384'h0FFFFFF0003E000000701C00001807C0000000000000000000000003C000000001C000600001F00000000010F8000000;
char_line[ 54 ] = 384'h0FFFFFF0003E000000F01C00001803C0000000000000000000000003C0000000018001C00000F80000000003F0000000;
char_line[ 55 ] = 384'h0F8001F0003E000003F01C00001803C0000000000000000000000003C00000000380038000007C000000000FC0000000;
char_line[ 56 ] = 384'h0F8001F0003E000003E01E00003C0180000000000000000000000003C000000003000700FFFFFE000000003F00000000;
char_line[ 57 ] = 384'h0F8001F0003E000007E01FFFFFFE0000000000000000000000000003C000000006001FFFFFF03E00000001FC00000000;
char_line[ 58 ] = 384'h0F8001F0003E000003800FFFFFFC0000000000000000000000000003C000000006000FFFE0001E0000000FF000000000;
char_line[ 59 ] = 384'h0F8001E0003E0000000007FFFFF00000000000000000000000000003C00000000C000FF800001E000000FF8000000000;
char_line[ 60 ] = 384'h0F000000003C00000000000000000000000000000000000000000003800000000800070000000E00000FF80000000000;
char_line[ 61 ] = 384'h00000000003800000000000000000000000000000000000000000002000000001800040000000C0001FF000000000000;
char_line[ 62 ] = 384'h000000000000000000000000000000000000000000000000000000000000000010000000000000000F80000000000000;
char_line[ 63 ] = 384'h000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000;
char_line[ 64 ] = 384'h000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000;
end
end
// Instantiation ROM
rom rom_inst (
.address ( rom_address ),
.clock ( vga_clk ),
.q ( rom_data )
);
endmodule // data_drive
3. Key anti shake module
module key_debounce(
input wire clk,
input wire rst_n,
input wire key,
output reg flag,// 0 shake , 1 Jitter end
output reg key_value//key The value after dithering
);
parameter MAX_NUM = 20'd1_000_000;
reg [19:0] delay_cnt;//1_000_000
reg key_reg;//key Last time's value
always @(posedge clk or negedge rst_n) begin
if(!rst_n) begin
key_reg <= 1;
delay_cnt <= 0;
end
else begin
key_reg <= key;
// When key by 1 key by 0 Indicates press jitter , Start timing
if(key_reg != key ) begin
delay_cnt <= MAX_NUM ;
end
else begin
if(delay_cnt > 0)
delay_cnt <= delay_cnt -1;
else
delay_cnt <= 0;
end
end
end
// When the timing is done , obtain key Value
always @(posedge clk or negedge rst_n) begin
if(!rst_n) begin
flag <= 0;
key_value <= 1;
end
else begin
// Time to finish In a stable state , Assign a value
if(delay_cnt == 1) begin
flag <= 1;
key_value <= key;
end
else begin
flag <= 0;
key_value <= key_value;
end
end
end
endmodule
4. Top level modules
module vga_top (input wire clk,
input wire rst_n,
input wire [ 2:0 ] key,
output wire vga_clk,
output wire h_sync,
output wire v_sync,
output wire [ 4:0 ] rgb_r,
output wire [ 5:0 ] rgb_g,
output wire [ 4:0 ] rgb_b,
output reg [ 3:0 ] led);
reg [ 27:0 ] cnt ;
wire [ 11:0 ] addr_h ;
wire [ 11:0 ] addr_v ;
wire [ 15:0 ] rgb_data ;
wire [ 2:0 ] key_flag ;
wire [ 2:0 ] key_value ;
//vga modular
vga_dirve u_vga_dirve(
.clk ( clk ),
.rst_n ( rst_n ),
.rgb_data ( rgb_data ),
.vga_clk ( vga_clk ),
.h_sync ( h_sync ),
.v_sync ( v_sync ),
.rgb_r ( rgb_r ),
.rgb_g ( rgb_g ),
.rgb_b ( rgb_b ),
.addr_h ( addr_h ),
.addr_v ( addr_v )
);
// Data module
data_drive u_data_drive(
.vga_clk ( vga_clk ),
.rst_n ( rst_n ),
.addr_h ( addr_h ),
.addr_v ( addr_v ),
.key ( {
key_value[ 2 ] && key_flag[ 2 ], key_value[ 1 ] && key_flag[ 1 ], key_value[ 0 ] && key_flag[ 0 ] } ),
.rgb_data ( rgb_data )
);
// Press the key to shake off
key_debounce u_key_debounce0(
.clk ( vga_clk ),
.rst_n ( rst_n ),
.key ( key[ 0 ] ),
.flag ( key_flag[ 0 ] ),
.key_value ( key_value[ 0 ] )
);
key_debounce u_key_debounce1(
.clk ( vga_clk ),
.rst_n ( rst_n ),
.key ( key[ 1 ] ),
.flag ( key_flag[ 1 ] ),
.key_value ( key_value[ 1 ] )
);
key_debounce u_key_debounce2(
.clk ( vga_clk ),
.rst_n ( rst_n ),
.key ( key[ 2 ] ),
.flag ( key_flag[ 2 ] ),
.key_value ( key_value[ 2 ] )
);
// led
always @( posedge clk or negedge rst_n ) begin
if ( !rst_n ) begin
cnt <= 0;
end
else if ( cnt == 50_000_000 - 1 ) begin
cnt <= 0;
end
else begin
cnt <= cnt + 1;
end
end
always @( posedge clk or negedge rst_n ) begin
if ( !rst_n ) begin
led <= 4'b0000;
end
else if ( cnt == 50_000_000 -1 )begin
led <= ~led;
end
else begin
led <= led;
end
end
endmodule // vga_top
5.TCL Binding pin code
package require ::quartus::project
set_location_assignment PIN_E1 -to clk
set_location_assignment PIN_E15 -to rst_n
set_location_assignment PIN_C16 -to h_sync
set_location_assignment PIN_D15 -to v_sync
set_location_assignment PIN_E16 -to key[0]
set_location_assignment PIN_M16 -to key[1]
set_location_assignment PIN_M15 -to key[2]
set_location_assignment PIN_G15 -to led[0]
set_location_assignment PIN_F16 -to led[1]
set_location_assignment PIN_F15 -to led[2]
set_location_assignment PIN_D16 -to led[3]
set_location_assignment PIN_A14 -to rgb_b[4]
set_location_assignment PIN_B14 -to rgb_b[3]
set_location_assignment PIN_A15 -to rgb_b[2]
set_location_assignment PIN_B16 -to rgb_b[1]
set_location_assignment PIN_C15 -to rgb_b[0]
set_location_assignment PIN_A11 -to rgb_g[5]
set_location_assignment PIN_B11 -to rgb_g[4]
set_location_assignment PIN_A12 -to rgb_g[3]
set_location_assignment PIN_B12 -to rgb_g[2]
set_location_assignment PIN_A13 -to rgb_g[1]
set_location_assignment PIN_B13 -to rgb_g[0]
set_location_assignment PIN_C8 -to rgb_r[4]
set_location_assignment PIN_A9 -to rgb_r[3]
set_location_assignment PIN_B9 -to rgb_r[2]
set_location_assignment PIN_A10 -to rgb_r[1]
set_location_assignment PIN_B10 -to rgb_r[0]
5、 ... and 、 effect
Switch the status by pressing the key , Output color bars according to different states 、 character 、 picture .
RTL View
top floor
vga_drive
data_drive
Color bar
640 × 480 Resolution down
800 × 600 The resolution of the
be relative to 640 × 480 The overall resolution is shifted to the left , In line with expectations
character
video
640 ×480 Shooting at resolution
6、 ... and 、 Reference resources
http://www.mdy-edu.com/zhijian/2019/1210/461.html
https://blog.csdn.net/Bunny9__/article/details/118873815
边栏推荐
- Concurrent operation BlockingQueue
- 初入软件测试职场的朋友看过来，初次编写测试用例的要点
- 解决报错:错误1130- Host xxx is not allowed to connect to this MariaDb server
- Is CICC wealth safe? I want to open an account
- Two Merged Sequences（CF 1144 G）（将序列拆分成升序序列和降序序列两部分）-DP
- ERP starts from internal integration
- 故障分析 | MySQL 数据库升级后，数据库怎么卡住了
- The key points of writing test cases for the first time
- 分布式 | dble 读写分离场景下为什么普通的读 sql 发送到了 master 实例上
- 85. (leaflet house) leaflet military plotting - line arrow drawing
猜你喜欢
unity物理引擎因为挤压导致的一些bug
![[reinforcement learning notes] V value and Q value in reinforcement learning](/img/8a/c6143a8d6c0bc2c42a608acb019d95.png)
[reinforcement learning notes] V value and Q value in reinforcement learning
Final assignment of Web Design - scenic spot tourism website (including navigation bar, rotation map, exquisite style)
Simple use of Wireshark
故障分析 | DDL 导致的 Xtrabackup 备份失败
JVM内存查看及设置思路
word+正则表达式==快速批量添加图注题注（保姆级图文）
Indonesia widya robotics and Huawei cloud make the safety of construction sites visible
印尼Widya Robotics携手华为云，让建筑工地安全看得见
苹果宣布 2022 年 Apple 设计大奖得主
随机推荐
Neural network learning (V) -- comparison of common network structures
SQL Server counts the data volume difference between today and yesterday that is greater than 10
Zhongang Mining: fluorite resources listed in the strategic mineral catalogue
Two merged sequences (CF 1144 g) -dp
Simple use of Wireshark
C＃.net调用动态库dll注意事项
Concurrent operation BlockingQueue
软件工程期末考试试题及答案（详细、经典）
Electron desktop development (process)
Development of DAPP system for digital currency holding interest bearing pledge financial management
Some bugs of unity physics engine caused by squeezing
互联网寒冬？软件测试人员如何逆势而行进入高薪大厂
关于回调的一些思考
Ranking list of short-term financial products in 2022
基于FPGA的VGA显示彩条、字符、图片
Wwdc2022 interesting news Apple released the free weather API weatherkit
SAS batting lab demonstrates the value of data and analysis to teenagers
unity物理引擎因为挤压导致的一些bug
Final assignment of Web Design - website of XXX company (including navigation bar, rotation chart, etc.)
Excuse me: is it safe for Haitong Securities to open an account
