Chitubox micromake l3+ slicing software configuration correspondence

Red Rabbit Layer lifting distance   Corresponding L3+ Of Bottom feed rate , In fact, the stepping motor is the speed . Once it was set to 2mm, As a result, the motor crawled more slowly than the snail . I thought it crashed . The following data is to distinguish the relationship between parameters , Write casually .

2 The corresponding relationship between the names of

Red Rabbit                         L3+

Lifting distance of bottom layer         Bottom feed rate

Lifting distance               Uplift 1（mm）

Bottom layer lifting speed       Uplift 2 Feed rate

Lifting speed               Uplift 1 Feed rate

Return speed               Round feed rate



Number of transition layers （ The example is filled with 2） stay L3 It doesn't reflect , But in practice , After printing the number of bottom layers , Will play more 2 layer （ The value of the number of transition layers ）, The exposure time is about 10-20 second （ Between the bottom exposure time and the exposure time ）.



Light off delay 、 Ground floor light off delay There is no correspondence , Can not fill .



If there is something missing , Please check the following carefully 2 Tables . Or use the software to actually compare the operation .



chart 1  CHITUBOX Slicing Software Slice configuration table



chart 2  L3+ Slicing Software Slice configuration table

notes ： The red rabbit slicing software is installed L3+ The plug-in can only be output later L3+ Required for UV curing printer 3ds Format file

Plug in download address  https://download.csdn.net/download/silno/12669887

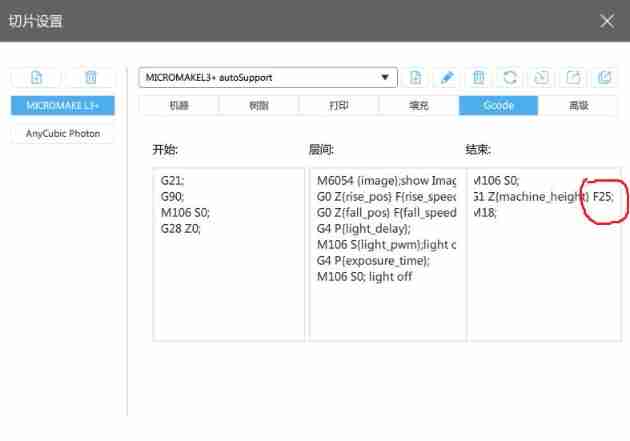

Add ： In slice settings ,gcode Inside End of the code F25 Change to F300（ or 100  200  400 The speed you think you can ）  , Or when it's over z Axis movement speed turtle speed , Or not
