AutoCAD - text display mode and how CAD can directly open Tianzheng drawings

CAD Control how text is displayed .

Mode of operation

Open some drawings and find , The text only shows the outer border , How to set it ？

1. First, enter the custom setting command “OPTIONS”（ Shortcut key ：OP）, Press the space bar , Open the settings panel .

Custom settings command

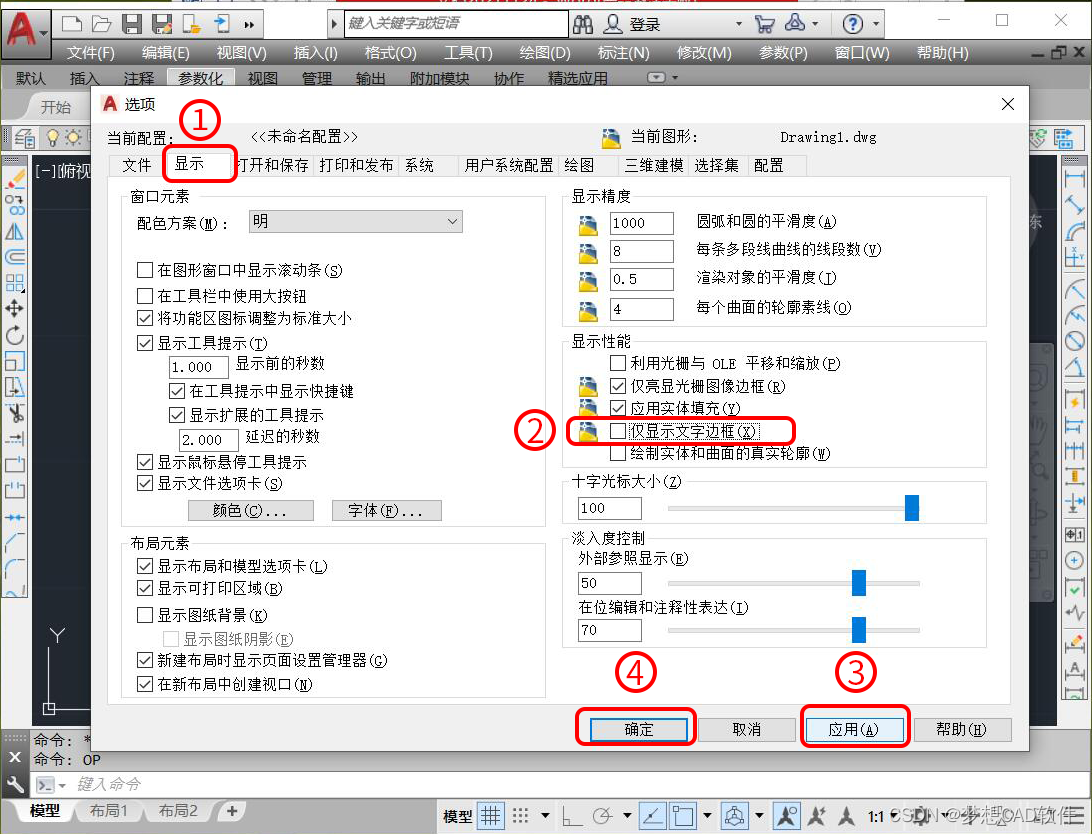

2. In the pop-up “ Options ” Interface , choice “ Show —— Display performance ”, Will be one of the “ Show only text borders ” Choose not to check , And click apply and OK .

Options screen

3. If after the last command , The words remain unchanged , You can enter the update parameter order “REGEN”（ Shortcut key ：RE）, Press the space bar , Complete the update parameter and text attribute size command .

Update order

Complete the order

Drawings drawn with Tianzheng software generally use CAD Format conversion is required when the software is opened , What we are talking about today is to use... Without converting the format CAD Dream drawing software opens .

Operating tools

operating system ：Windows10

CAD Software ：CAD Dream drawing

step

1. open CAD Dream drawing software , Click Open... Under the file above dwg file , As shown in the figure below ：

open dwg file

2. The open dialog box will pop up at this time , We find the Tianzheng drawing to be opened and click open , As shown in the figure below ：

Open the dialog box

3. Then we just need to wait for the open file to finish , After opening, it will show that the current drawing is Tianzheng drawing in the lower left corner of the software , As shown in the figure below ：

Open complete

4. At this time, we can see that the Tianzheng drawing has been opened , Show no problems , And you can edit it , As shown in the figure below ：

The Tianzheng drawing completely shows
