Activity startup process

Launcher request AMS Stage

AMS To ApplicationThread Stage

ApplicationThread To Activity start-up

Code / Detail analysis

Launcher -->AMS



final IBinder b = ServiceManager.getService(Context.ACTIVITY_SERVICE);

final IActivityManager am = IActivityManager.Stub.asInterface(b); // binder signal communication

return am;

Come here ：launcher adopt binder The communication is transferred to AMS In the

  The second stage ：AMS To ActivityThread

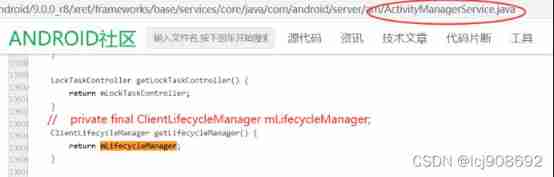

final ActivityManagerService mService;

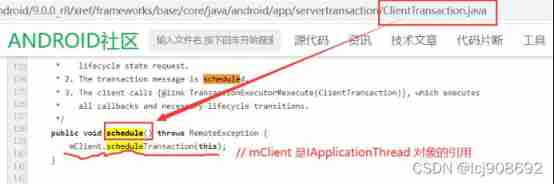

public void schedule() throws RemoteException {

mClient.scheduleTransaction(this);

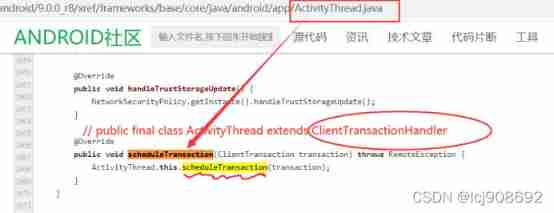

} // This is through interprocess communication , Call to ActivityThread Of scheduleTransaction() in





ActivityStackSupervisor  Class ,addCall() Method is added LaunchActivityItem object

public static LaunchActivityItem obtain(.....){.....}

Client yes ClientTransactionHandler object , namely Called ClientTransactionHandler Object's handleLaunchActivity() Methods

client.handleLaunchActivity(r, pendingActions, null /* customIntent */);

because ClientTransactionHandler Of handleLaunchActivity() It's an abstract method , So find the implementation class

 ActivityThread Inherited ClientTransactionHandler. So it is called ActivityThread Of handleLaunchActivity() Methods
