From the establishment to the actual combat of the robotframework framework, I won't just read this learning note

2022-06-23 14:10:00 【Software testing】

Insert picture description here
Robot Framework from Robot Framework Foundation Support . Many industry-leading companies use... In their software development This tool .

Robot Framework It's open and scalable .Robot Framework It can be integrated with almost any other tool , To create powerful and flexible automation solutions .Robot Framework Free to use , No license fee .

Robot Framework With simple grammar , Use human readable keywords . Its function can be realized by using Python、Java or Many other programming languages implement libraries for extension .Robot Framework There is a rich ecosystem , Including libraries and tools developed as independent projects .

01 robotframework Environment building

install python3.6 above , And ensure that the environment variables are configured correctly

install robotframework library

pip install robotframework

install robotframework ride Script graphical interface editor

pip install robotframwork-ride

Click is , A shortcut icon will be created on the desktop

02 Built in key word library

robotframwork After installation, it will appear in python Installation directory Lib/site-packages Under the table of contents

Among them libraries The directory is the keyword source code we will use when writing scripts in the future

These key word libraries are classified according to certain categories

Builtln

Variable definitions 、 Cycle control 、 Data calculation 、 Hexadecimal conversion 、 Assertion judgement 、 Log, etc.

Collections

Handle python List and dictionary related operations

DateTime

Handling date and time conversion related operations

Dialogs

Provides methods for pausing execution and obtaining user input

OperatingSystem

Provide operating system related keywords

Process

Keywords related to the operation process

Remote

Special library acts as Robot Framework Agents with libraries elsewhere . The actual library can run on different machines , And you can use any support XML-RPC A programming language

Screenshot

Provide keywords for capturing desktop screenshots

String

Used to generate 、 Modify and validate the library of strings

Telnet

Can be connected to Telnet Server and execute commands on the open connection

XML

Used to generate 、 Modification and validation XML Document library

03 ride Basic explanation

Double click on the desktop ride Icon to open ride Interface

01 Project creation

Click on File->New Project, choice directory as a result of , stay directory Test suite can be created under the project of , If it is tpye by fifile, Only test cases can be created , This is not good for use case management

02 Create a test suite

A test suite is a collection used to manage multiple test cases

Right click to select the project name ,New Suite, choice fifile as a result of , stay fifile Test cases can be created under the test suite of , If it is tpye by directory, It's going to have to be rebuilt fifile Test suite for , To create test cases , Because test cases can only be used in fifile Create pictures under type

03 Create test cases

Right click to select test suite , Click on New Test Case

04 Test suite workspace description

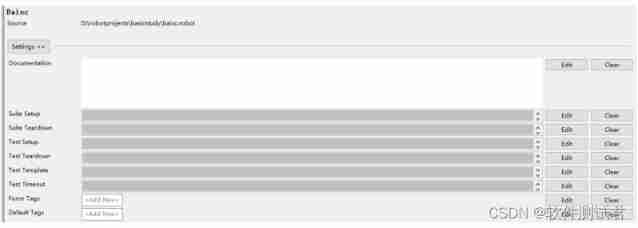

1、 test suite Edit District It is divided into 4 part

Setting area

The setting area is hidden by default , Click to appear

Documentation：

file , Every item has . You can add a document description to the current object

Suite Setup：

It refers to the execution of a keyword when the test suite starts .

( example ： I am here Suite Setup Set up Sleep | 5sec, Said wait 5 second , Pay attention to the keyword parameters to use | Separate )

Suite Teardown：

It refers to the execution of a keyword at the end of the test suite

Test Setup：

It refers to the execution of a keyword when the case is started

Test Teardown：

It refers to the execution of a keyword at the end of the case

Test Template：

Test template , This is to specify a keyword for all of the test suite TestCase The mold edition , So all of TestCase You just need to set the incoming parameter of this keyword

Test Timeout：

Set the timeout for each test case , If you go beyond that time, you will fail , And stop the case function . This is to prevent certain circumstances from causing the case to stick , Neither stop nor fail

Force Tags：

In the file type Suite Here you can continue to add to the sub elements Force Tags, But he can't delete the parent Element set tags

Default Tags：

Default tag , Actually sum Force Tags It doesn't make any difference

Reference area

It is mainly used to load external files

Library： Load the test library , Mainly [PYTHON Catalog ]\Lib\site-packages The test library in

Resource： load resources , Mainly your project related resource files

Variables： Load variable file

Parameter area

It is mainly used to define the internal variables of the suite

Add Scalar： Define common variables

Add List： Define list variables

Add Dict： Definition dictionary

Data area

Mainly in the report and log Show the defined content in , Format and document equally

2、 test suite Text Edit District

Test suite test case text information

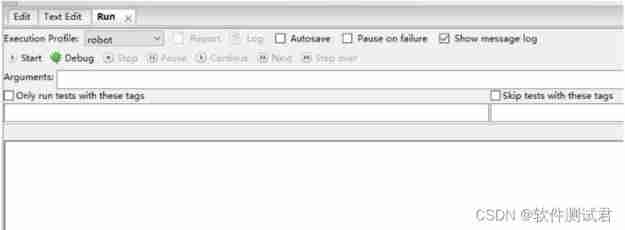

3、 test suite Run District

Execution Profifile：

Choose the mode of operation , There are pybot、jybot and custom script. Default pybot that will do .

Start：

Running cases . If there is no check in front of the test case under the test suite , All use cases under the test suite will be executed by default . If the test case is checked , Then execute the test. See the case checked below .

Stop：

Stop the case .

Report and Log:

Reports and logs , You need to run it before you can click . Their differences , The report is more a display of the results , journal More records of the process , It's more about logs .

Autosave:

Save automatically , If I don't check it , After modifying the case, if it is not saved , You will be prompted whether to run the case preservation . Check to save automatically at run time .

Arguments:

pybot Parameters of （ perhaps jybot etc. ）. The full version of the parameters can be found in doc Command line input pybot.bat --help

Only Run Tests with these Tags:

Run only test cases for these tags . stay case Of setting You can add tag

Skip Tests with these Tags:

Skip the test cases for these tags . stay case Of setting You can add tag

05 Test case workspace description

1、 The test case Edit District It is mainly divided into 2 part

Setting area

Documentation：

file , Every item has . You can add a document description to the current object .

Setup：

It refers to the execution of a keyword when the case is started .

Teardown：

It refers to the execution of a keyword at the end of the case .

Tags：

Mark a test case . stay Run In the area Only Run Tests with these Tags and Skip Tests with these Tags, This flag bit will be used to identify whether to run or skip the use case .

Timeout：

Set the timeout for each test case , If you go beyond that time, you will fail , And stop the case running . This is to prevent certain circumstances from causing the case to stick , Neither stop nor fail .

Template：

Test template , This is to specify a keyword for all of the test suite TestCase Template , So all of TestCase You just need to set the incoming parameter of this keyword

Table area

This is where test cases are written

2、Text Edit and Run There is no difference between the test area and the test suite

04 robotframwork Basic grammar

01 Log Chinese garbled code processing

Find yourself python Install under directory Lib\site-packages\robotide\contrib\testrunner\testrunnerplugin.py Open the above file , find 565 The line is copied first , Re annotation , Paste and modify from another line

Restart after modification ride

02 Use case internal variables

1、 Common variables

Common variable definitions need to use Set Variable keyword , The first cell refers to the variable name , The last cell 10, Refers to the 10 Assign a value to a This variable

Log Is the log keyword , Output a Value

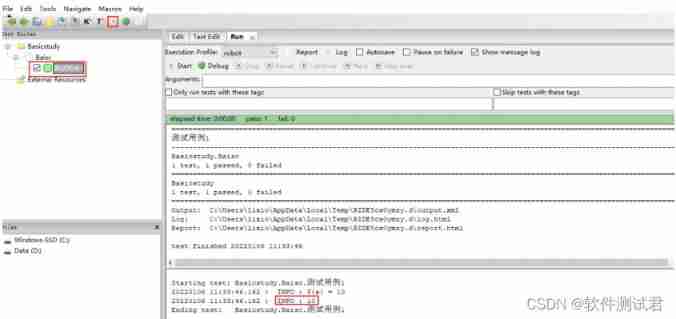

Run it

2、 List variables

The list variable definition needs to use Create List keyword

There are two ways to define a list ：

${xxx}

@{xxx}

3、 Dictionary variables

Dictionary variable definitions need to use Create Dictionary

Dictionary definitions can be defined in two ways ：

${xxx}

&{xxx}

03 Set public variables

There are some common variables that will be used in the same test set , Then it can be defined in the set

Add a normal variable

Add a list variable

Add a dictionary variable

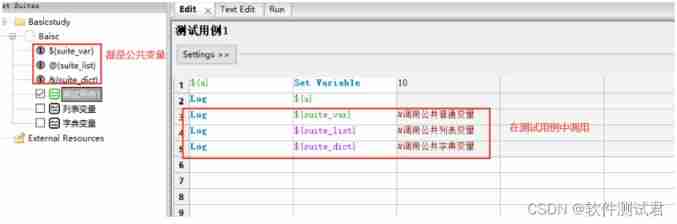

Public variables use

The public variable of the collection can be used in each test case below it

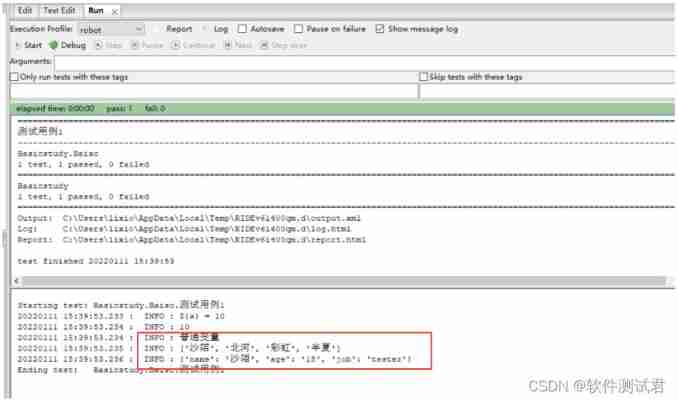

Results after operation ：

04 Judge

Case study ： Given a score value , Greater than 90 Sub output excellent 、 Greater than 80 Is good 、 Greater than 70 It's average 、 Greater than 60 It's passing , Others are failing

Run Keyword If Use

05 loop

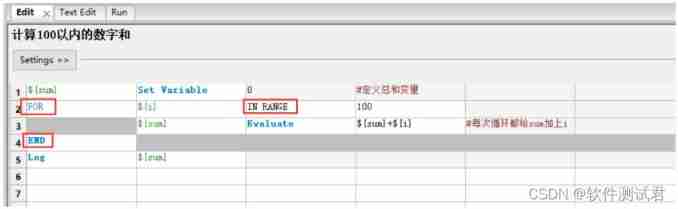

Case study 1： Calculation 100 Numbers within and

FOR…IN RANGE xxx … END structure

${i} Equivalent to a loop variable

Evaluate It means that you will ${sum}+$ {i} The result of the calculation is assigned to ${sum}

Case study 2： Even numbers in the output list

FOR … IN xxx … END structure

${i} Equivalent to a loop variable

Run Keyword If Is to judge that the current loop variable is 2 Multiple , Then output

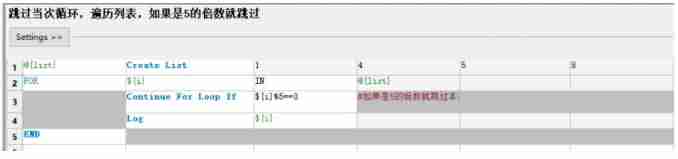

Case study 3： Skip this cycle , Traverse the list , If it is 5 The multiple of is skipped

Continue For Loop If It means that if the conditions are met, this cycle will be skipped

Case study 4： Traverse the list , If you come across 5 Just stop the cycle

Exit For Loop If Indicates that if the condition is met, the loop is terminated

06 Key word library import

When you need to use some extended keywords , You need to import the corresponding library first , For example, the library for list and dictionary operations is Collections

Import Collections

Select test set , Note that if you explicitly red after importing , Description: incorrect import

Use Collections Keywords in

07 User keywords

User keyword is a kind of customized keyword , It is equivalent to encapsulating a function when writing code

1、 Ordinary variables as input parameters

Case study ： Encapsulates the sum of all numbers within a specified number , such as 100 within ,1000 And so on

Create keywords

Call the keyword

You want to call a custom keyword in a test set , You need to import

Import custom keywords

After importing, the explicit green description is correct , Explicit red indicates imported resource The path is not right

Call the keyword

Invoke the keywords you wrote in test cases.

2、 List variables as input parameters

Case study ： Encapsulates an even number that returns a given list

Create keywords

Call the keyword

3、 Dictionary variables as input parameters

Case study ： Define the students' scores in each language subject as a dictionary {‘python’:95,‘java’:58,‘c’:70}, Encapsulating a keyword will be less than The scores in the grid are changed to 60

Create keywords

Call the keyword

4、 Multivariable input parameter

Case study ： Encapsulates a keyword that calculates the sum of three numbers , The default value of the third number is 10

Create keywords

Call the keyword

For parameters with default values , When calling, you can pass or not pass
