Prometheus and grafana

A set of monitoring processes ,Prometheus Used to store monitoring data ,Grafana Display various data in the form of charts in the form of icons .

plug-in unit	Default port	dashboard ID	remarks
Node Exporter	9100	11074	Monitoring server data
process exporter	9256	249	Data monitoring in the process dimension
redis_exporter	9121		monitor redis
mysqld_exporter	9104	7362	monitor mysql

Basic way to view data ： curl localhost:port/metrics
prometheus Original page of :http:ip:9090, Input the index quantity and other information to query the original data . In general use grafana Display the index quantity

prometheus Configuration file for prometheus.yml, The basic format is shown in Figure .job_name Corresponding to one job, Multiple... Can be configured below targets,target Information about the machine where the corresponding plug-in is deployed ;

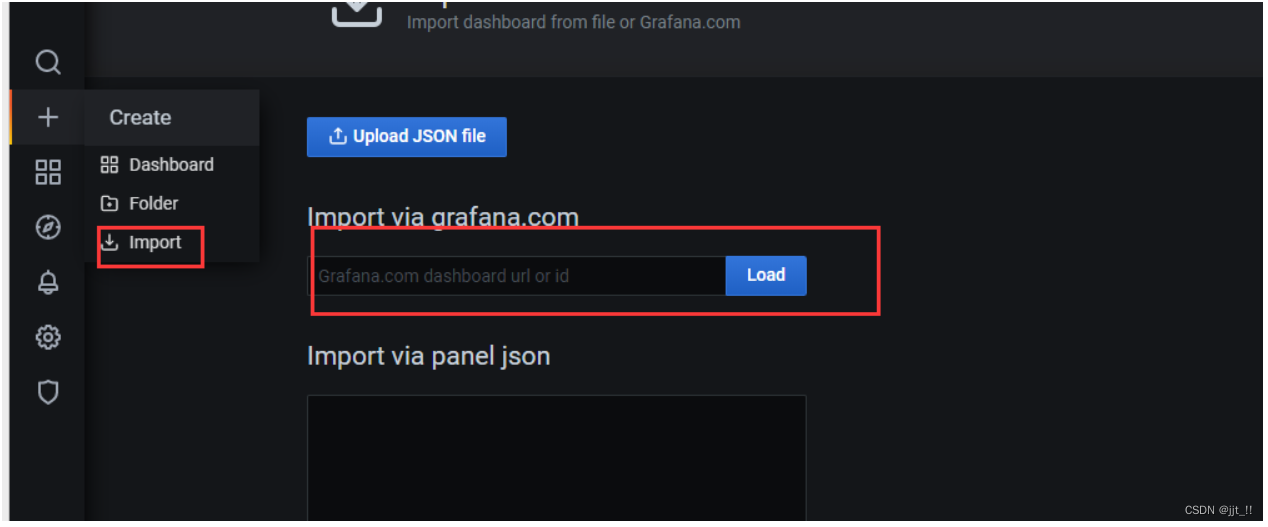

Use grafana Under the circumstances ： install dashboard The way , Enter id that will do .id No. can be found on the official website 【https://grafana.com/grafana/dashboards】 Search for ：

Node Exporter

Deploy on node machines , start-up ： ./node_exporter
stay
Monitoring links ： https://www.ipcpu.com/2021/04/prometheus-node_exporter/

stay prometheus Configuration on

  - job_name: '44_141_pro'
    static_configs:
    - targets: ['10.130.44.141:9100']

process exporte

Official website address

https://github.com/ncabatoff/process-exporter/

Deploy

Monitor in the process dimension , Deploy on the nodes allowed by the process
Starting mode ： ./process-exporter -config.path config.yml
Configuration mode ：

 process_names:
  - name: "{
    {.Comm}}"
    cmdline:
    - 'go-call-distrib'

name： Adapt to various matching rules

• { {.Comm}} Contains the basic name of the original executable , The second field in /proc//stat
• { {.ExeBase}} Contains the basic name of the executable { {.ExeFull}} The fully qualified path that contains the executable file
• { {.Username}} Contains the user name of a valid user { {.Matches}}map Contains applications cmdline regexps All matches generated
• { {.PID}} Contains the PID. Please note that , Use PID This means that the group will contain only one process .
• { {.StartTime}} Contains the start time of the process . This can be done with PID Use a combination of , because PID It will be reused over time .
• { {.Cgroups}} contain （ If the support ） Process cgroup (
  /proc/self/cgroup). This is particularly useful for identifying which container the process belongs to .

process_names Must contain one or more selectors （comm,exe
or cmdline）; If there are multiple selectors , They must all match . Each selector is a list of strings , For matching processes comm, argv[0], Or in
Under the circumstances cmdline, Is a regular expression applied to the command line .

stay prometheus Configuration on

  - job_name: '44_141_pro'
    static_configs:
    - targets: ['10.130.44.141:9256']

redis_exporte

stay redis Deployed machine deployment
Start command (redis The connection of ip And password )./redis_exporter -redis.addr 10.130.44.103:6380 -redis.password 123456

stay prometheus Configuration on

  - job_name: 'redis_exporter_targets'
    static_configs:
      - targets:
        - redis://10.130.44.103:6380
        - redis://10.130.44.103:6381
        - redis://10.130.44.103:6382
        - redis://10.130.44.141:6383
        - redis://10.130.44.141:6384
        - redis://10.130.44.141:6385
    metrics_path: /scrape
    relabel_configs:
      - source_labels: [__address__]
        target_label: __param_target
      - source_labels: [__param_target]
        target_label: instance
      - target_label: __address__
        replacement: 10.130.44.103:9121
  ## config for scraping the exporter itself
  - job_name: 'redis_exporter'
    static_configs:
     - targets:
        - 10.130.44.103:9121

mysqld_exporter

stay mysql Machine deployment
Start command ： ./mysqld_exporter --config.my-cnf=.mysqld_exporter.cnf
Where monitoring is required mysql Create users on the database ：

grant select,replication client, process on *.* to 'mysql_monitor'@'localhost' identified by '123456';
flush privileges;

The configuration file ( Hide file formats )：

[client]
user=mysql_monitor
password=123456

stay prometheus Configuration on

  - job_name: '44_103_mysql'
    static_configs:
    - targets: ['10.130.44.103:9104']
