Tutorial: encryption keys in cloud (using golang and CLI)

course ：Cloud Encryption key in （ Use Golang and CLI）

As we increasingly turn to the public cloud , The use of encryption keys is also becoming more and more important . This includes encrypting data and digital signatures . Its advantages include :

• Encryption in the cloud . This allows us to encrypt data in the cloud , Instead of processing data on the client machine .
• Access strategy . Use cloud based systems , You can define strict access policies for the use of encryption keys .
• Audit . adopt AWS CloudTrail, Access to encryption keys can be recorded , This can support regulation and the need for compliance .
• BYOK. This allows users to create their own keys , Then upload them to the cloud .

stay AWS in , We have KMS( Key management service ), It generates and stores encryption keys . These keys will never leave Amazon Of HSM（ Hardware security module ）, And according to FIPS 140–2 It was verified . Export time , They are only provided in encrypted form . in general , The cost of storing a key is per month 1 dollar ( But for AWS The key generated by the service is stored for free ). The use of the key is not limited by the access threshold . Besides , Keys can only be used in the geographical area where they are set .

Symmetric or asymmetric key

The encryption key is kept in AWS In a trusted hardware environment , Locked to a specific area , And it is applied to AWS IAM( Identity and access management ) Strict access policies related to identifiers . These are related to the minimum privilege —— Unless permissions are defined in the access policy , Otherwise, permission will not be granted .

first , We can create symmetric keys ( Is used to encrypt / Decrypt or generate HMAC) Or asymmetric key ( Used for encryption or digital signature ). Use HMAC, We create a symmetric key , This key can be used to sign messages , Then verify the signature with the same key . Digital signature , We use a private ( Secret ) The key signs the message , Then it is verified by a public key .

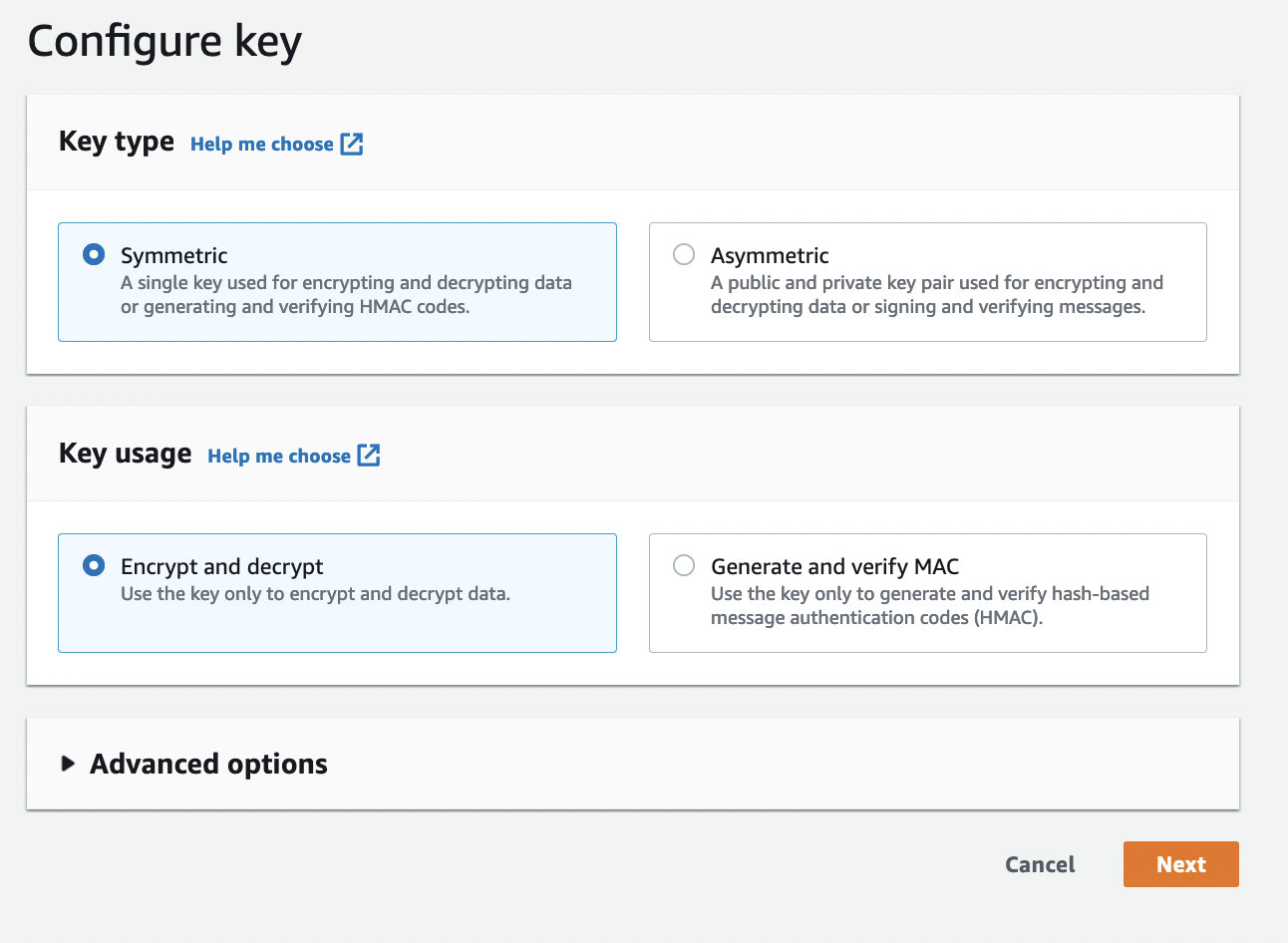

stay AWS Control , We can use the following command to create a symmetric key ：

The generated key has a key ID, We defined its purpose ( Such as encryption and decryption )：

then , User defined key aliases and ARN (Amazon Resource Names). Next , We can define a policy for the use of keys ：

{
    "Id": "key-consolepolicy-3",
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "Enable IAM User Permissions",
            "Effect": "Allow",
            "Principal": {
                "AWS": "arn:aws:iam::960039751898:root"
            },
            "Action": "kms:*",
            "Resource": "*"
        },
        {
            "Sid": "Allow access for Key Administrators",
            "Effect": "Allow",
            "Principal": {
                "AWS": "arn:aws:iam::960039751898:user/bill"
            },
            "Action": [
                "kms:Create*",
                "kms:Describe*",
                "kms:Enable*",
                "kms:List*",
                "kms:Put*",
                "kms:Update*",
                "kms:Revoke*",
                "kms:Disable*",
                "kms:Get*",
                "kms:Delete*",
                "kms:TagResource",
                "kms:UntagResource",
                "kms:ScheduleKeyDeletion",
                "kms:CancelKeyDeletion"
            ],
            "Resource": "*"
        },
        {
            "Sid": "Allow use of the key",
            "Effect": "Allow",
            "Principal": {
                "AWS": "arn:aws:iam::960039751898:user/bill"
            },
            "Action": [
                "kms:Encrypt",
                "kms:Decrypt",
                "kms:ReEncrypt*",
                "kms:GenerateDataKey*",
                "kms:DescribeKey"
            ],
            "Resource": "*"
        },
        {
            "Sid": "Allow attachment of persistent resources",
            "Effect": "Allow",
            "Principal": {
                "AWS": "arn:aws:iam::960039751898:user/bill"
            },
            "Action": [
                "kms:CreateGrant",
                "kms:ListGrants",
                "kms:RevokeGrant"
            ],
            "Resource": "*",
            "Condition": {
                "Bool": {
                    "kms:GrantIsForAWSResource": "true"
                }
            }
        }
    ]
}

In this case , We will see that only users are allowed to encrypt and decrypt , However, other users are not allowed to perform these operations . Then from Key ID and ARN Describe the key created ：

Now we can write a Golang Program , Use this key to encrypt plaintext , And then decrypt it . We first need to define AWS Areas and ARN. meanwhile , We also AWS_Access_Key_ID and AWS_Secret_Access_Key Defined AWS voucher . They can be defined in the program , It can also be in ~/.aws/credentials Folder In the definition of ：

package mainimport (
 "fmt""os""github.com/aws/aws-sdk-go/aws"
 "github.com/aws/aws-sdk-go/aws/session"
 "github.com/aws/aws-sdk-go/service/kms"
 "github.com/aws/aws-sdk-go/aws/credentials"
)func main() {message := "This is a secret"
 const keyID = "arn:aws:kms:us-east-1:904269751807:key/9954354-f122-45f9-b6c6-29e571562a22"argCount := len(os.Args[1:])if argCount > 0 {
  message = os.Args[1]
 }creds := credentials.NewStaticCredentials("AWS_Access_Key_ID", "AWS_Secret_Access_Key", "")sess, _ := session.NewSession(&aws.Config{Region: aws.String("us-east-1"), Credentials: creds})svc := kms.New(sess)encMethod := &kms.EncryptInput{KeyId: aws.String(keyID), Plaintext: []byte(message)}cipherText, _:= svc.Encrypt(encMethod)fmt.Printf("Input: %s\n", message)
fmt.Printf("Encrypted: %x\n", cipherText.CiphertextBlob)
inputDecrypt := &kms.DecryptInput{CiphertextBlob: cipherText.CiphertextBlob}
 respDecrypt, _ := svc.Decrypt(inputDecrypt)fmt.Printf("Decrypted: %s\n", string(respDecrypt.Plaintext))
}

A running example ：

Input: Testing 12345
Encrypted: 0102020078eba286059ff61e64dc8414c5fc8ff716dda2c8c47903983373a262fcc3a1503a01bfe78037a671257e78e683cd5483b3f00000006b306906092a864886f70d010706a05c305a020100305506092a864886f70d010701301e060960864801650304012e3011040c0516bdc01f1edea632e7fd6102011080282531e65f367891af4ac6c418bf804bbe0bed2e008e30cb93670089c83dc44e7e94950770b8a70488
Decrypted: Testing 12345

AWS CLI Encryption and decryption

In addition to using programming languages , We can also use CLI Perform the operation . Create key ：

aws kms create-key --tags TagKey=Purpose, TagValue=MyKey --description "For testing

We can list our keys from the alias ：

\> **aws kms list-aliases**
{
    "Aliases": [
        {
            "AliasName": "alias/Test01",
            "AliasArn": "arn:aws:kms:us-east-1:**904269751807**:alias/Test01",
            "TargetKeyId": "9954354-f122-45f9-b6c6-29e571562a22",
            "CreationDate": 1657877917.647,
            "LastUpdatedDate": 1657877917.647
        },

then , We can encrypt plaintext messages in the following ways “Hello 123”：

aws kms encrypt --plaintext hello.txt --key-id="9954354-f122-45f9-b1c3-29e571562a22" --encryption-context purpose=test
{
    "CiphertextBlob": "AQICAHjrooYFn/YeZNyEFMX8j/cW3aLIxHkDmDNzomL8w6FQOgE+rt03vmCwrYR5fP153zPjAAAAZzBlBgkqhkiG9w0BBwagWDBWAgEAMFEGCSqGSIb3DQEHATAeBglghkgBZQMEAS4wEQQMNvsXMqFmyq7j5tMeAgEQgCSrzEA0EJEgrstoNvnbVfH/EaptXzqeOwADaRLMvhDo7F9G6nM=",
    "KeyId": "arn:aws:kms:us-east-1:904269751807:key/9954354-f122-45f9-b6c6-29e571562a22",
    "EncryptionAlgorithm": "SYMMETRIC_DEFAULT"
}

Now we can see that we have “AQICAH…m4sE=” The ciphertext of . Next , Can be decrypted ：

aws kms decrypt --ciphertext-blob "AQICAHjrooYFn/YeZNyEFMX8j/cW3aLIxHkDmDNzomL8w6FQOgEnx2HXcpIIObK9qjHFGit3AAAAZzBlBgkqhkiG9w0BBwagWDBWAgEAMFEGCSqGSIb3DQEHATAeBglghkgBZQMEAS4wEQQM/qzr60lyQS5A5yZ8AgEQgCQueKSLpCjdQiYHKWPX3NUT87cOvcmrT/RDYlBcDge7Ymzm4sE=" --key-id "9954354-d28-45f9-b1c3-29e571562a22"

Asymmetric keys and HMAC

Use asymmetric key , We can choose RSA 2K、3K or 4K：

For digital signatures , We can add P256、P521、sepc256k1 Elliptic curve method ：

Conclusion

One of the most costly events in network security is the destruction of trust infrastructure . therefore , Key management and control are very important , Storing them in the cloud brings many benefits . meanwhile , We have seen too many data leaks , The use of encryption can reduce the scope of data leakage to almost zero —— But we must make sure that our keys are kept securely , At least in a secret way .

These keys are our most important secrets , So don't be locked in a cloud provider , And there are still people entering our AWS Environment and discover the risk of our key .

I created a demo here :

https://asecuritysite.com/golang/go_aws
