2022 Tsinghua summer school notes L2_ 1 basic composition of neural network

2022 Tsinghua University large model cross Seminar

L2 Neural Network basics

1 The basic composition of neural network

1.1 Neuron

• A single neuron ：


  Put the weight vector （ matrix ） Multiply with the input vector point , Get a scalar value , Plus offset b（ Scalar ） Send in the nonlinear activation function f, Get the output .

1.2 neural network

• Multiple neurons form a single-layer neural network ：


  When there are multiple neurons , The weight changes from vector to matrix (3*3), bias b From scalar to vector (b1,b2,b3).
• Stack single-layer neural networks to get multi-layer neural networks ：

  We can calculate the result of each layer from the input , The result of each layer is the result of the previous layer through linear change and activation function .

1.3 Activation function

• why use f？ Why use nonlinear function to activate ？

  • Pictured , Suppose there is only linear transformation in our network , After two layers of network , We found that h2 It is completely possible to use the initial input data after only one change .
  • therefore , The expression ability of single layer is consistent with that of multiple layers , In order to prevent the collapse of the network , Increase the expression ability of the network , To fit more complex functions , We introduce nonlinear network structure .
• Common nonlinear activation functions


1.4 Output layer

• Determine the output layer according to different output forms ：
  • linear output
    • Add a linear layer after the hidden layer to output directly .
    • For regression problems .
  • Sigmoid
    • First, use the ordinary linear layer to get a value , Then use sigmoid Activation function , Press the output to 0-1 In this range .
    • It is applicable to binary classification problems .
  • Softmax
    • First calculate a linear layer with the last hidden layer , Get an output z, Then substitute into the function $y_i=\mathrm{softmax}(z{)}_i=\frac{\exp \left(z_i\right)}{{\sum }_j\exp \left(z_j\right)}$.
    • Purpose ： Eliminated z When it is negative ; Make all output class values sum to 1, The probability distributions of different classes are obtained .
    • Often solve multi classification problems .

2 Training

2.1 Training objectives ：

• Forecast target ： Reduce mean square error （ The return question ）
• The goal of classification ： Minimize cross entropy

  If the correct answer is the first category , We can calculate the cross entropy as 0.74; If the correct answer is the second category , It can be calculated that the cross entropy is 1.74; If the correct answer is the third category ……

2.2 How to update

• Concept of gradient descent ：
  • We reduce the loss function a little at a time
  • Each time, calculate the gradient of the loss function with respect to the parameter , That is, we get the place where the loss function changes fastest for parameters . Because we want to take the minimum , So we choose the direction with the largest absolute value in the negative direction .
• Gradient descent :
  • For a single input （ It can be regarded as a one-dimensional parameter ）, Finding partial derivatives
  • about n One input time , See the picture below , The resulting gradient matrix can be obtained .

• The trick of gradient descent ：
  • Continuous derivation
  • Back propagation algorithm
    • Forward propagation refers to the order in which the edges point , Among them, the function of the edge is to transfer values .

    • In order to find the gradient of the final output to an input value , We use the opposite direction of calculation .

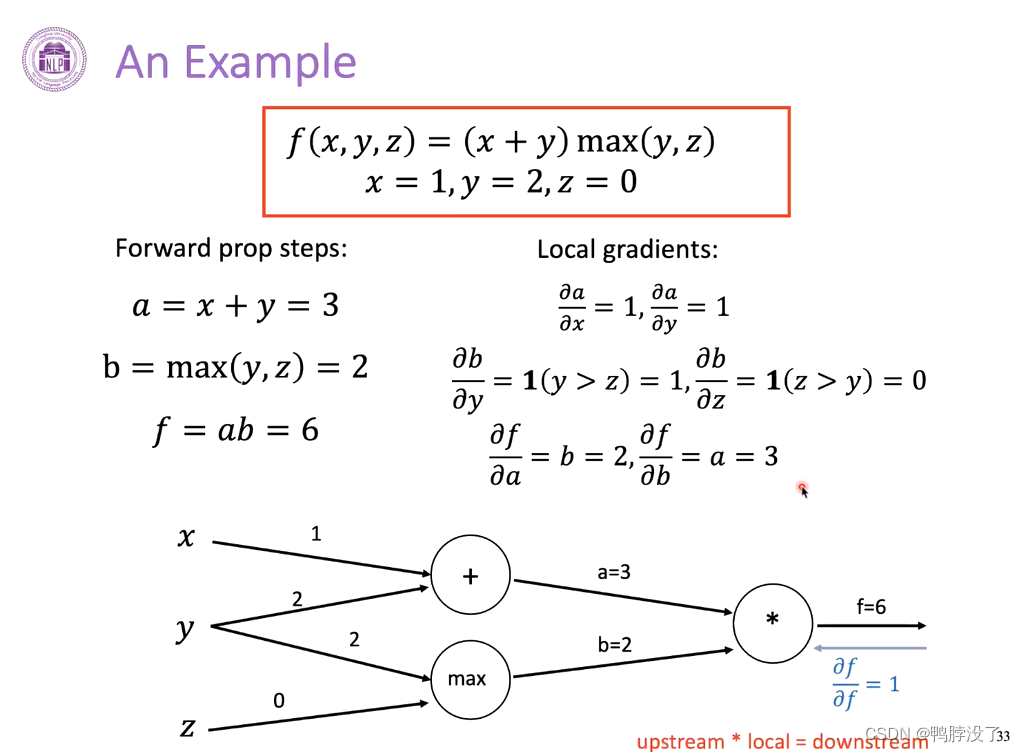

    • Take one paragraph as an example , Introduce the calculation method of single node ：

      • Multiply the upstream gradient by the local gradient , The gradient downstream can be calculated , By analogy, we can continue to find the gradient downstream .


3 Lexical representation Word2Vec

3.1 Sliding Box： A fixed size sliding window

When the window moves to one end of the sentence , Only target

3.2 CBOW： according to context, forecast target

take never and late use one-hot Vector representation , Average these two vectors , Then turn the word vector into the size of the vocabulary , Finally through softmax Get the probability distribution .

3.3 skip-gram： according to target, forecast context

• Because it is too difficult for the model to predict multiple results , So we decompose the task , one by one .

3.4 improvement ：

3.4.1 disadvantages ： full softmax when , If you encounter a large vocabulary , Goodbye back propagation and gradient descent , The speed will be slow .

3.4.2 Two ways to improve computational efficiency ：

• Negative sampling
  Understand reference
  • Only a small part is sampled , Sample according to the frequency of words .
    $P\left(w_i\right)=\frac{f{\left(w_i\right)}^{3/4}}{{\sum }_{j=1}^{\mathbb{V}}f{\left(w_j\right)}^{3/4}}$
  • 3/4 Empirical value , In order to slightly improve the sampling frequency of low-frequency words .
• layered softmax

3.4.3 Other tips：

• sub-sampling： Balance common words with rare words
  • Common words appear frequently , The semantics covered are not very rich , Rare words are the opposite .
    $1-\sqrt{t/f(w)}$
  • If a word appears more frequently , The more likely he is to be removed
• soft sliding window
  • Words that are farther away should be considered less
