What is instruction reordering ？

In order to understand more intuitively , I still use a case to illustrate .

public class MemoryReorderingExample {
    private static int x=0,y=0;
    private static int a=0,b=0;
    public static void main(String[] args) throws InterruptedException {
        int i=0;
        while(true){
            i++;
            x=0;y=0;
            a=0;b=0;
            Thread t1=new Thread(()->{
                a=1;
                x=b;
            });
            Thread t2=new Thread(()->{
                b=1;
                y=a;
            });
            t1.start();
            t2.start();
            t1.join();
            t2.join();
            String result=" The first "+i+" Time ("+x+","+y+")";
            if(x==0&&y==0){
                System.out.println(result);
                break;
            }
        }
    }
}

The logic of the above program is as follows ：

• Define four int Variable of type , Initialization is 0.

• Define two threads t1、t2,t1 Thread modification a and x Value ,t2 Thread modification b and y Value , Start two threads separately .

• Under normal circumstances ,x and y Value , Will be based on t1 and t2 The execution of the thread .

• If t1 Thread priority , So the result is x=0、y=1.

• If t2 Thread priority , So the result is x=1、y=0.

• If t1 and t2 Thread executing at the same time , So the result is x=1、y=1.

Let's take a look at the results ：

 The first 136164 Time (0,0)

Readers are not surprised to see this result ？ Running 13 After 10000 times , I got one x=0、y=0 Result .

In fact, this is the so-called instruction reordering problem , Suppose the above code is reordered by instructions , Become the following structure ：

Thread t1=new Thread(()->{
    x=b; // Instruction reordering
    a=1;
});
Thread t2=new Thread(()->{
    y=a; // Instruction reordering
    b=1;
});

After reordering , If t1 and t2 Thread running at the same time , Will get x=0、y=0 Result , The result is from a human perspective , It's kind of like t1 In the thread a=1 The modification result of t2 Threads are not visible , Again t2 In the thread b=1 The result of the implementation of t1 Threads are not visible .

01

What is instruction reordering

Instruction reordering Refers to the compiler or CPU A means of reordering instructions to optimize the execution performance of a program , Reordering causes visibility problems , Therefore, in multi-threaded development, we must pay attention to and avoid reordering .

From the source code to the final running instructions , It will go through the following two stages of reordering .

The first stage , Compiler reorder , Is in the compilation process , The compiler reorders instructions according to context analysis , The aim is to reduce CPU Interaction with memory , After reordering, try to ensure that CPU Read data from registers or cache lines .

In front JIT The loop expression mentioned in the optimization （Loop Expression Hoisting） It's compiler level reordering , from CPU On the other hand , It avoids the processor from loading in memory every time stop, Reduce the interaction overhead between processor and memory .

if(!stop){
    while(true){
        i++;
    }
}

The second stage , Processor reorder , The processor reordering is divided into two parts .

• Parallel instruction set reordering , This is a form of processor optimization , The processor can change the execution order of instructions .

• Memory system reorder , This is the introduction of the processor Store Buffer The instruction execution sequence caused by buffer delay writing is inconsistent , It will be explained in detail in the following content .

To help readers understand , The author makes a simple explanation for the principle of parallel instruction set .

What is a parallel instruction set ？

There are usually multiple execution units in the processor core , For example, arithmetic logic unit 、 Displacement element, etc . Before introducing parallel instruction sets ,CPU Only a single instruction can be executed in each clock cycle , That is, only one execution unit is working , Other execution units are idle ; After introducing the parallel instruction set ,CPU In one clock cycle, multiple instructions can be allocated to execute in different execution units at the same time .

So what is the reordering of parallel instruction sets ？

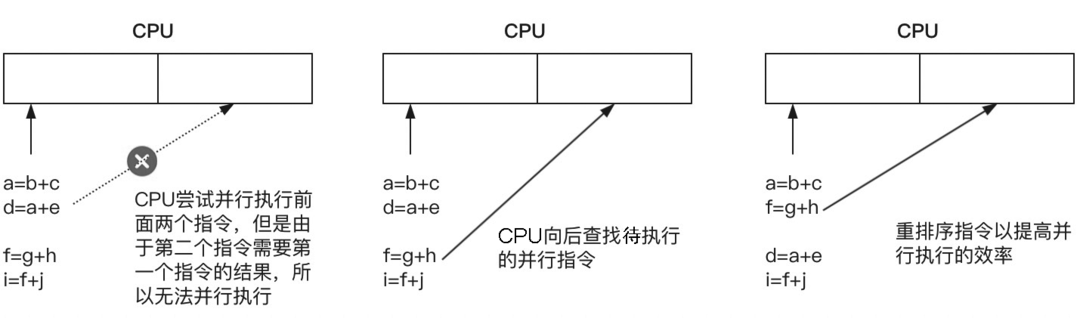

As shown in the figure below , Suppose a program has multiple instructions , The execution and implementation of different instructions are also different .

chart   Parallel instruction set reordering

For an instruction that reads data from memory ,CPU One of the execution units executes the instruction and waits until the result is returned , according to CPU It's fast enough to handle hundreds of other instructions , and CPU In order to improve the efficiency of execution , It will be analyzed according to the idle state of the unit circuit and whether the instructions can be executed in advance , Advance the instructions with the last instruction address order before reading the memory instructions .

actually , The essence of this optimization is to fill the gap by executing other executable instructions in advance CPU Time gap , Then reorder the results at the end , So as to realize the running result of sequential execution of instructions .



02

as-if-serial semantics

as-if-serial Indicates that all program instructions can be reordered due to optimization , However, in the optimization process, we must ensure that it is in a single threaded environment , The running result after reordering is consistent with the expected execution result of the program code itself ,Java compiler 、CPU The reordering of instructions needs to be guaranteed in a single threaded environment as-if-serial The semantics are correct .

Some readers may have doubts , Since it can ensure the order in a single threaded environment , So why is there instruction reordering ？ stay JSR-133 Specification , This is what the original text says .

The compiler, runtime, and hardware are supposed to conspire to create the illusion of as-if-serial semantics, which means that in a single-threaded program, the program should not be able to observe the effects of reorderings.However, reorderings can come into play in incorrectly synchronized multithreaded programs, where one thread is able to observe the effects of other threads, and may be able to detect that variable accesses become visible to other threads in a different order than executed or specified in the program.

as-if-serial Semantics allow reordering ,CPU Instruction optimization at the level still exists . In a single thread , These optimizations do not affect the overall execution results , In multithreading , Reordering causes visibility problems .

in addition , In order to ensure as-if-serial The semantics are correct , Compilers and processors do not reorder instructions for dependent operations , Because this will affect the execution result of the program . Let's look at the following code .

public void execute(){
    int x=10;  //1
    int y=5;   //2
    int c=x+y; //3
}

The above code should be... In the normal execution order 1、2、3, In multithreaded environment , There may be 2、1、3 Such execution order , But it won't happen 3、2、1 In this order , because 3 And 1 and 2 There is a data dependency , Once reordered , There's no guarantee as-if-serial The semantics are correct .

thus , I believe readers have a basic understanding of the visibility problem caused by instruction reordering , But in CPU There is also a memory system reordering problem at the level , Memory system reordering can also cause visibility problems ,《Java Deep analysis and practice of concurrent programming 》 The book will also make a detailed analysis around this problem .
