21: Chapter 3: develop pass service: 4: further improve [send SMS, interface]; (in [send SMS, interface], call Alibaba cloud SMS service and redis service; a design idea: basecontroller;)

explain ：

（1） Statement ：

          ●  This project , The front end will not be deployed by itself ;;; Use your own browser or postman Test interface ;;; however , For each interface , Performance on the front page , I will explain clearly ;;; meanwhile , If I meet some “ Things that can only be made clear on the front page ”, I will also explain the context clearly ;

          ●  The most important thing is to clear your mind ;

          ●  Due to Alibaba cloud SMS service , Limit the maximum number of messages sent by the same mobile number in a day 10 Short message ;;; therefore , After ensuring that the Alibaba cloud SMS service has been tuned , When testing in the development phase , I usually comment out the statement that calls alicloud SMS service ;（ SMS Limited , And cherish it ~~）

Catalog

zero ： The rational explanation of this blog ;

1. stay 【19： The third chapter ： Developing a pass service ：2： In the program , Get through Alibaba cloud SMS service ;】, We got through the Alibaba cloud SMS service in the program ;

2. stay 【20： The third chapter ： Developing a pass service ：3： In the program , Get through redis The server ;】 in , We got through in the program redis The server ;

3. This blog , Is to perfect 【imooc-news-dev-user】 In this user microservice ,【 Send a text message , Interface 】getSMSCode();

One ： perfect 【imooc-news-dev-user】（ In this user's microservice ） Of 【 Send a text message , Interface 】getSMSCode();

1. First , perfect 【 Send a text message , Interface 】 The definition of ;（ That is, improve the interface , stay 【imooc-news-dev-api】 Definition in interface engineering ）

2. then , perfect 【imooc-news-dev-user】（ In this user's microservice ） Of 【 SMS verification code interface getSMSCode()】 The implementation of the ;

Two ： effect ;

---

zero ： The rational explanation of this blog ;

1. stay 【19： The third chapter ： Developing a pass service ：2： In the program , Get through Alibaba cloud SMS service ;】, We got through the Alibaba cloud SMS service in the program ;

（1） First , We are 【imooc-news-dev-common】 In general engineering , Write a 【 Call alicloud SMS service , Send a text message 】 Tool class of ：SMSUtils;;; natural , Other places that need to use Alibaba cloud SMS services （ such as 【imooc-news-dev-user】 This user microservice ） You can call this tool class ;

（2） then , stay 【imooc-news-dev-user】 This user microservice that needs to call alicloud SMS service , We write 【 Send a text message , Interface 】, To call SMSUtils Tool class ;

          ● First , stay 【imooc-news-dev-api】 Interface engineering , Defined a 【 Send a text message , Interface 】getSMSCode();

          ●  then , stay 【imooc-news-dev-user】 In this user's microservice , To implement this interface ;

（3） At that time, the main purpose was to test whether Alibaba cloud's SMS service OK, So the interface is very simple , Not strictly in accordance with “ The front end and the back end agree ” To write ;

2. stay 【20： The third chapter ： Developing a pass service ：3： In the program , Get through redis The server ;】 in , We got through in the program redis The server ;

（1） First , We are 【imooc-news-dev-common】 In general engineering , Write a 【 operation redis】 Tool class of ：RedisOperator;;; In this class , We have written many operations ourselves redis Methods ;;; natural , Other needs redis The place to serve （ such as 【imooc-news-dev-user】 This user microservice ） You can call this tool class ;

（2） then , stay 【imooc-news-dev-user】 This needs to use redis In the user microservices of , We are in the configuration file , To configure redis Server's url、 user name 、 Password and so on ;

（3） then , stay 【imooc-news-dev-user】 This needs to use redis In the user microservices of , What we are testing HelloController in , Write an interface , To measure redis whether OK;

（4） At that time, the main purpose was to test whether our program could be connected redis, So we are in a pure test interface , Tested it ;

3. This blog , Is to perfect 【imooc-news-dev-user】 In this user microservice ,【 Send a text message , Interface 】getSMSCode();

Let this SMS interface , Improve the logic of calling alicloud SMS services , At the same time, add the call redis Logic of service ;

---

One ： perfect 【imooc-news-dev-user】（ In this user's microservice ） Of 【 Send a text message , Interface 】getSMSCode();

1. First , perfect 【 Send a text message , Interface 】 The definition of ;（ That is, improve the interface , stay 【imooc-news-dev-api】 Definition in interface engineering ）

package com.imooc.api.controller.user;


import com.imooc.grace.result.GraceJSONResult;
import io.swagger.annotations.Api;
import io.swagger.annotations.ApiOperation;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;

import javax.servlet.http.HttpServletRequest;

@Api(value = " User registration login ",tags = {" The user registers to log in controller"})
@RequestMapping("passport")
public interface PassportControllerApi {

    /**
     *  Get SMS verification code
     * @param mobile: When calling this interface , You need to send your mobile number ;
     * @param request: We inject here HttpServletRequest, Users can be obtained through it ip;
     * @return
     */
    @ApiOperation(value = " Get SMS verification code ", notes = " Get SMS verification code ", httpMethod = "GET")
    // The request interface on the front end is already “getSMSCode” 了 , So I am writing back-end interface url When , Don't write ;
    @GetMapping("/getSMSCode")
    public GraceJSONResult getSMSCode(@RequestParam("mobile") String mobile, HttpServletRequest request);
}

explain ：

（1） Modify the content description ;

（2） Because in practice , When the front end requests this interface , Its integrity url yes 【/passport/getSMSCode?mobile=' + mobile】;

          ●  therefore , This interface needs to be set url, To be consistent with the front end ; meanwhile , We also need to receive front-end parameters mobile;

          ●  Statement ： Actually , I didn't deploy the front end （ Mainly lazy , Be afraid of trouble ）; I want to put more energy into the back end ;; therefore , When you are testing the back-end interface of the machine , It's just postman Or tested on the browser ;;;; however , For each interface , Performance on the front page , I will make myself clear ;;; and , Meet some “ Things that can only be made clear on the front page ”, I will also explain the context clearly ;

          ●  then , We are here to achieve 【 The same user , stay 60 Seconds , Cannot send verification code repeatedly 】 Purpose ;;; here , It's through ip Address to determine whether it belongs to the same user ;;; therefore , We injected HttpServletRequest This method parameter ;;

2. then , perfect 【imooc-news-dev-user】（ In this user's microservice ） Of 【 SMS verification code interface getSMSCode()】 The implementation of the ;

package com.imooc.user.controller;

import com.imooc.api.BaseController;
import com.imooc.api.controller.user.PassportControllerApi;
import com.imooc.grace.result.GraceJSONResult;
import com.imooc.utils.IPUtil;
import com.imooc.utils.SMSUtils;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.RestController;

import javax.servlet.http.HttpServletRequest;

@RestController
public class PassportController extends BaseController implements PassportControllerApi {
    final static Logger logger = LoggerFactory.getLogger(PassportController.class);
    @Autowired
    private SMSUtils smsUtils;// Inject , We wrote it ourselves , Alibaba cloud SMS service tools ;

    /**
     *  Get SMS verification code
     * @return
     */
    @Override
    public GraceJSONResult getSMSCode(String mobile, HttpServletRequest request) {
        // According to the user ip, Limit users to 60 Seconds , Only one verification code can be obtained ;
        String userIp = IPUtil.getRequestIp(request);// Call the tool class , Based on current request , Get users ip;
        redisOperator.setnx60s(MOBILE_SMSCODE + ":" + userIp, userIp);// towards redis Stores the current user requested ip, But come here 60 Seconds later , This data will time out and disappear ;

        String randomCode = (int) ((Math.random() * 9 + 1) * 100000) + "";// Random verification code ,6 Bit or 4 All positions are OK
        smsUtils.sendSMS(mobile, randomCode);

        // Back end , Generated 、 Native verification code , There is redis in ; Back , When the user enters the verification code at the front end , Can be used to verify ;
        redisOperator.set(MOBILE_SMSCODE + ":" + mobile, randomCode, 30 * 60);

        return GraceJSONResult.ok();
    }

}

explain ：

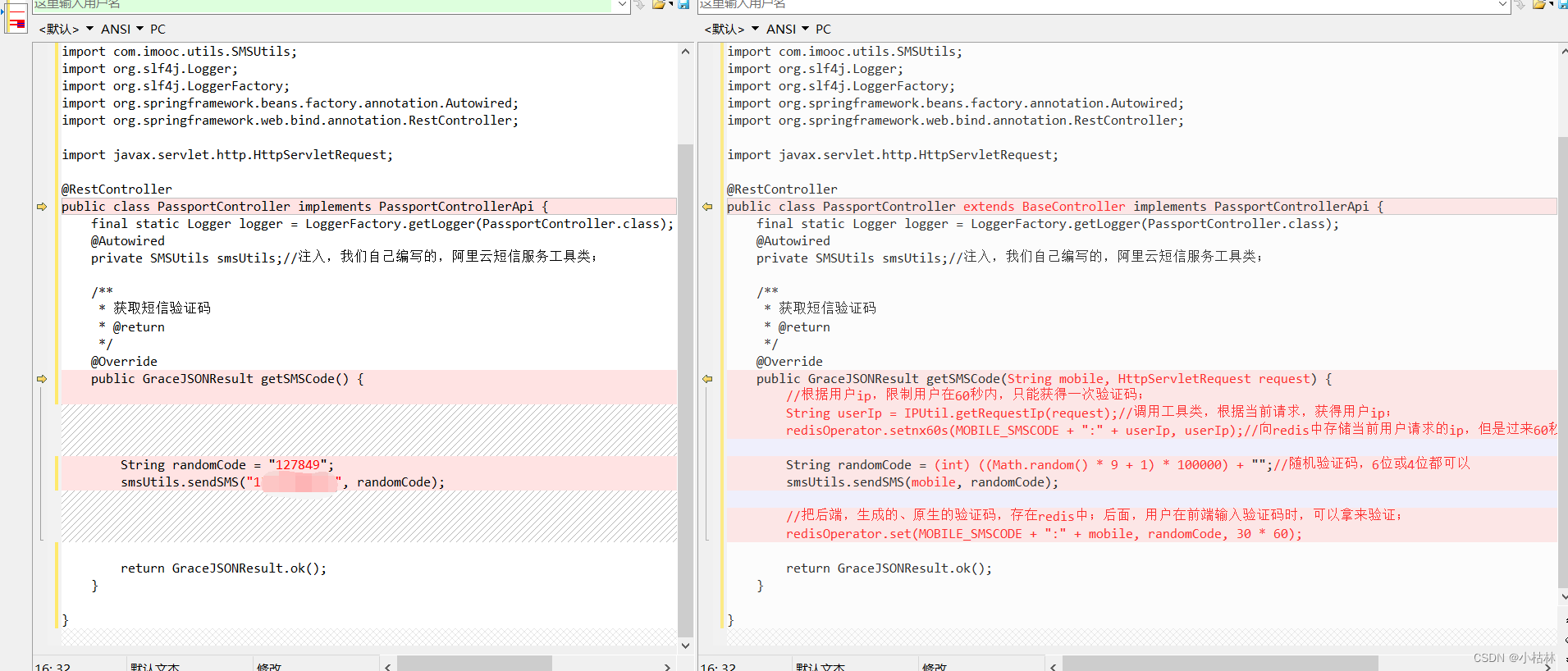

（1） Modify the content description ;

（2） according to HttpServletRequest Get the ip Address ;

          ● IPUtil Tool class ： For the content in this tool class , For the time being, we can not go deep into ; meanwhile , You can see that we do not use this tool class IoC management , And the methods , We set it as static;（ A lingering question ： For a tool class , When is it recommended to use IoC management , When not recommended IoC management ？？？）

package com.imooc.utils;

import javax.servlet.http.HttpServletRequest;

/**
 *  Users get users ip Tool class of
 */
public class IPUtil {

    /**
     *  Get request IP:
     *  The reality of users IP Out of commission request.getRemoteAddr()
     *  This is because some agent software may be used , such ip The acquisition is not accurate
     *  In addition, if we use multiple levels （LVS/Nginx） In the case of reverse proxy ,ip Need from X-Forwarded-For Get the first non unknown Of IP Is the user's effective ip.
     * @param request
     * @return
     */
    public static String getRequestIp(HttpServletRequest request) {
        String ip = request.getHeader("x-forwarded-for");
        if (ip == null || ip.length() == 0 || "unknown".equalsIgnoreCase(ip)) {
            ip = request.getHeader("Proxy-Client-IP");
        }
        if (ip == null || ip.length() == 0 || "unknown".equalsIgnoreCase(ip)) {
            ip = request.getHeader("WL-Proxy-Client-IP");
        }
        if (ip == null || ip.length() == 0 || "unknown".equalsIgnoreCase(ip)) {
            ip = request.getHeader("HTTP_CLIENT_IP");
        }
        if (ip == null || ip.length() == 0 || "unknown".equalsIgnoreCase(ip)) {
            ip = request.getHeader("HTTP_X_FORWARDED_FOR");
        }
        if (ip == null || ip.length() == 0 || "unknown".equalsIgnoreCase(ip)) {
            ip = request.getRemoteAddr();
        }
        return ip;
    }
}

（3） A design idea ： stay 【api】 Interface engineering , Define a BaseController, In this BaseController in , Inject some （ Other microservices that handle specific business Controller in , The probability will be used ） object ;;; then , Other microservices that handle specific business Controller, You can inherit this BaseController;;; So dependent on , These microservices that handle specific businesses Controller, When you want to use certain objects , There is no need to inject again ;

          ●  Why? BaseController Don't use IoC Container management ？ For two reasons ：（1） If BaseController Use IoC If containers are managed , We need to be in PassportController In the injection BaseController, Such a move is not elegant , It's not as good as the above inheritance ;;（2） When a subclass inherits a parent class , Create subclass objects , Will create a parent object ？？？

（4） Put the user's ip, Deposit in redis in ;（PS： It seems that I heard redis The expiration time of the median , Sometimes it's not very accurate ……, therefore , This solution , It is open to question. …… In their own actual development , This use redis Solutions to business problems by expiration time , Choose carefully ！）

          ●  Suppose the user's ip yes 【192.147.43.3】, So just make sure we store it in redis Medium key yes 【mobile_smscode:192.147.43.3】, That is, as long as this key Is unique and has ip Information is enough ;;;; Its value Is it 【192.147.43.3】 still 【“aahldjfsjk”】 It doesn't matter ;;;;; because , as long as redis There is key by 【mobile_smscode:192.147.43.3】 This data of , If the same user is 60 When a request is initiated again within , To redis When storing data in , You will find redis Already there are key by 【mobile_smscode:192.147.43.3】 The data of the ,,, It is determined that the same user wants to 60 Repeat the call within seconds , It's natural to be rejected ;

（5） Backstage , Randomly generate a verification code ;（ This is very simple , There's nothing to say ）

（6） Call alicloud SMS service , Go to the verification code generated in the background , Send it to the user in the form of SMS ;

（7） then , Save our generated verification code to redis in ;（ Back , When the user inputs the received verification code at the front end , We will reduce the 【 After the user receives the message , The verification code entered on the front page 】 and 【redis The native verification code stored in 】 compare ）

---

Two ： effect ;

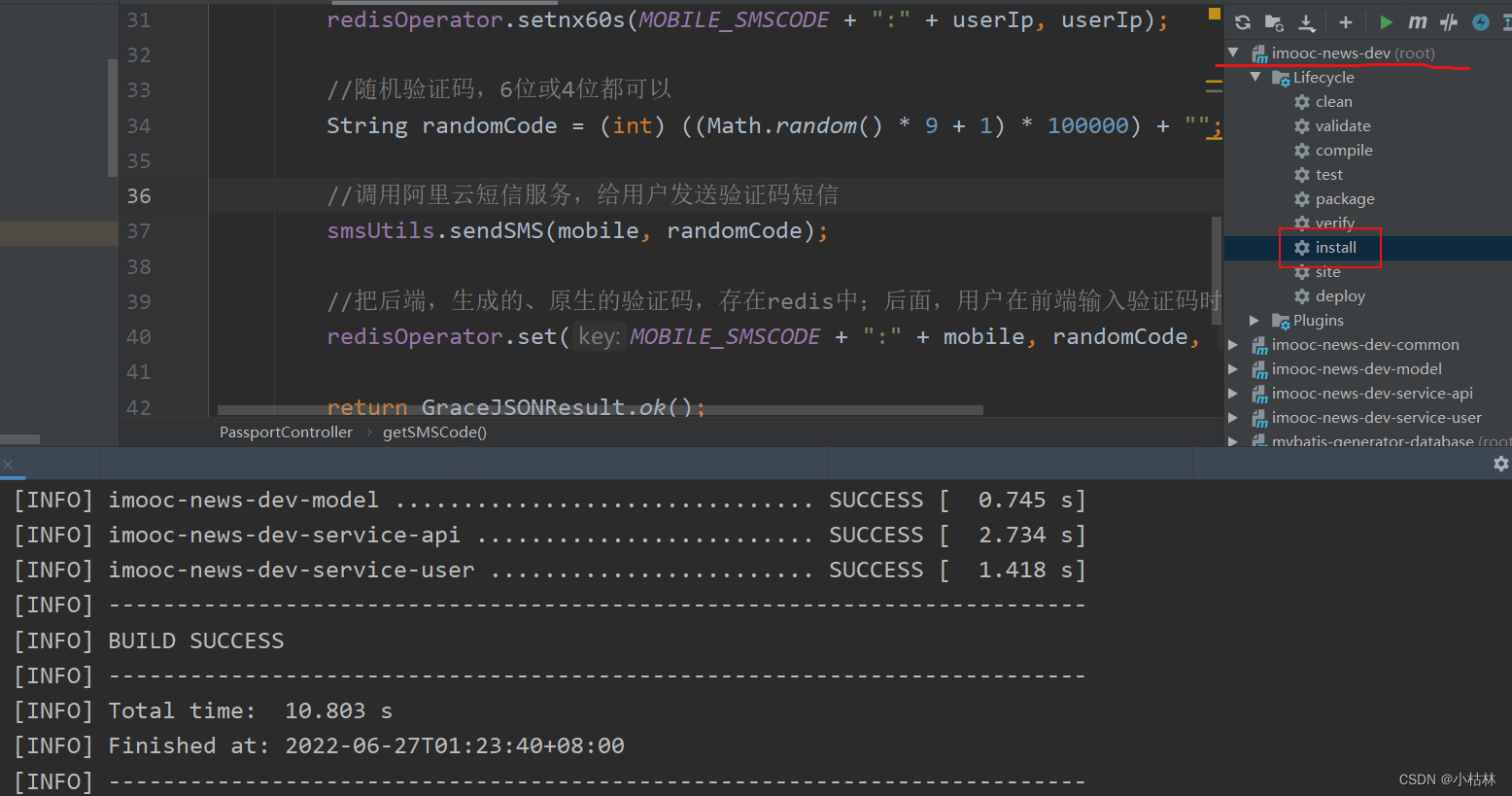

（1） First , overall situation install once ;

（2） then , start-up 【user】 The main startup class of ;

（3） then , visit 【user】 Of 【"/getSMSCode"】 Interface ;
