Understand the quality assurance of open source software (OSS)

This article will introduce you to developing Milvus Vector database QA frame , And covers Milvus Main test modules in 、 And can be used to improve QA Methods and tools for testing efficiency .

If quality assurance （QA） It is a systematic process to determine whether a product or service meets specific requirements , Then the quality assurance system is an integral part of the R & D process , It plays a role in ensuring product quality .

In this paper , I will introduce you to the development of Milvus Vector database （Vector Database） It's the same as QA frame , And covers Milvus Main test modules in 、 And can be used to improve QA Methods and tools for testing efficiency .

PART 01

Milvus QA System Overview

Whereas the system architecture is very important for QA The importance of testing ,QA The more familiar the engineer is with the system , The more likely it is to work out a reasonable 、 Effective test plan .

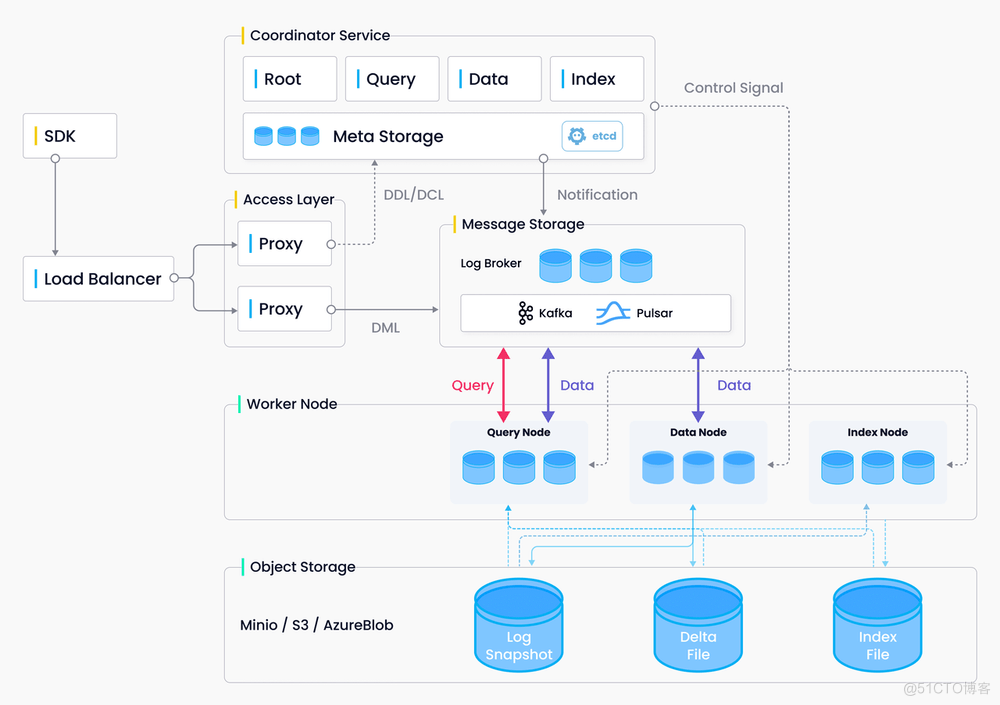

Milvus framework

Milvus 2.0 Using cloud native 、 Distributed layered architecture . among ,SDK Is the data in Milvus The main inlet of the medium flow . Through the frequent use of SDK Perform functional tests , We will be able to detect Milvus Problems within the system . In addition to functional testing , We should also unit test the vector database 、 The deployment of test 、 Reliability test 、 Stability test 、 And performance testing .

The cloud native and distributed architectures are QA Testing brings convenience and challenges . Different from the system running on the local deployment , stay Kubernetes Deployed and running on the cluster Milvus example , It can ensure that in the same environment as software development , Do software testing . However , The disadvantage is the complexity of the distributed architecture , It will bring more uncertainty , This will cause the system QA The test is tedious . for example ,Milvus 2.0 Microservices using different components , This will lead to an increase in the number of services and nodes , An increase in the probability of system errors . therefore , We need a more comprehensive QA plan , To improve the efficiency of testing .

PART 02

QA Testing and problem management

Milvus Of QA It is necessary to test and manage the problems in the process of software development .

1、QA test

As shown in the figure below , We should base on Milvus Features and user requirements , In order of priority , Carry out different types of QA test .

QA Tests and priorities

stay Milvus in ,QA The test mainly aims at the following aspects ：

• function ： Verify whether the functions and features can work according to the original design .
• Deploy ： Check whether the user can do it in different ways （ Such as ：Docker Compose、Helm、APT、 as well as YUM etc. ） Deploy 、 reinstall 、 upgrade Milvus Stand alone and cluster .
• performance ： test Milvus Data insertion in 、 Indexes 、 Vector search and query performance .
• stability ： Check Milvus At normal workload levels , Whether it can run stably 5-10 God .
• reliability ： If a system error occurs , test Milvus Is it still possible to partially run .
• To configure ： verification Milvus In a specific configuration , Can it work as expected .
• Compatibility ： test Milvus Whether it is compatible with different types of hardware or software .

2、 Problem management

There may be many problems in the process of software development . These problems may stem from QA The engineer himself , It may also come from the open source community Milvus user . however ,QA It is the responsibility of the team to identify these issues .

Milvus Workflow of problem management in

When creating a problem , They first need to classify . In the process of diversion , New problems detected shall be ensured with enough problem details , So that developers can confirm 、 Accept 、 And trying to fix . And after the repair , If the problem belongs to the owner, you need to verify its repair , Determine whether the problem can be finally closed .

PART 03

When do you need QA？

A common misconception is that ：QA And development are independent of each other . The fact is to ensure the quality of the system , Developers and QA Engineers need to work together , take QA Throughout the life cycle .

take QA Introduce the whole software development life cycle

As shown in the figure above , A complete software development life cycle includes three stages ：

• In the initial stage , Developers publish design documents ,QA The engineer makes the test plan accordingly 、 Define publishing standards 、 And assign QA Mission . Developers and QA Engineers need to be familiar with design documents and test plans , To share information about release goals between two teams 、 function 、 performance 、 stability 、 Mutual understanding of error convergence, etc .
• During R & D , Development and QA Testing through continuous interaction , To verify the developed features and functions , And fix bugs and problems reported from the open source community .
• In the final stage , They can release new versions that meet the release notes and labels Milvus Of Docker Mirror image . meanwhile ,QA The team will also publish test reports on this release .

PART 04

Milvus Test module in

below , Let's elaborate Milvus Six test modules in ：

1、 unit testing

unit testing

Unit testing can help identify software errors as early as possible , And provide verification standards for code reorganization . according to Milvus Pull request for （pull request,PR） Acceptance criteria , The coverage of code unit tests should reach 80%.

2、 A functional test

stay Milvus in , The main purpose of functional test is to verify whether the interface can run according to the design . By surrounding PyMilvus and SDK Develop , The functional test will involve the following two aspects ：

• test SDK When passing the correct parameters , Whether the expected results can be returned .
• test SDK Can I handle errors , And when passing wrong parameters , Whether a reasonable error message can be returned .

The following figure depicts the current mainstream based pytest Functional testing framework for . The framework is PyMilvus Added a wrapper （wrapper）, And test through automatic test interface .

Milvus Functional testing framework in

Considering that the test mode is shared , Some functions need to be reused , So we can use the above testing framework , You don't have to use it directly PyMilvus Interface . Besides , The framework also includes a “ check （check）” modular , It is convenient to verify the expected value and the actual value .

Its tests/python_client/testcases The directory contains up to 2700 Functional test cases , And completely covers almost all PyMilvus Interface . And functional testing can strictly monitor each PR The quality of the .

3、 The deployment of test

because Milvus Yes standalone and cluster Two modes , So we can use Docker Compose or Helm Two important ways , Deploy it . meanwhile , In the deployment of Milvus after , Users can restart or upgrade the test . among , Restart testing is the process of testing data persistence , That is, whether the data after restart is still available . Upgrade test refers to testing the compatibility of data , In order to prevent in Milvus The process of inserting incompatible data formats into . As shown in the figure below , Both types of deployment tests can share the same workflow ：

Deploy test workflow

In the restart test , Both deployments will use the same Docker Mirror image . however , In the upgrade test , The first deployment will use the previous version of Docker Mirror image , The second deployment uses a later version of Docker Mirror image . The test results and data will be saved in Volumes File or persistent volume declaration .

The first test creates multiple collections at run time , And different operations will be performed on each set . In the second test run , It focuses on verifying that the created collection can still be used for CRUD operation , And whether you can further create new collections .

4、 Reliability test

Reliability test of cloud native distributed system , Chaos engineering is usually used （Chaos Engineering） Method , The aim is to nip errors and system failures in the bud . let me put it another way , In chaos engineering test , We purposefully create system faults , To identify problems in stress testing , And repair it before the system fault really begins to cause harm . stay Milvus In the chaos test of , We can choose Chaos Mesh As a tool for creating chaos , To create the following fault types ：

• Pod kill： Simulate the node downtime scenario .
• Pod failure： The test has a worker Node pod Failure time , Whether the whole system can continue to work .
• Memory stress： The simulation comes from worker The node pair has a large amount of memory and CPU The consumption of resources .
• Network partition： because Milvus Can separate storage from computing , Therefore, the system will rely heavily on the communication between various components . To test different Milvus Interdependencies between components , We need to simulate different pod The communication between is partitioned .

Milvus Reliability testing framework in

The picture above shows Milvus A reliability testing framework for automated chaos testing . The process is ：

• First , Read initialization through deployment configuration Milvus colony .
• When the cluster is ready , function test_e2e.py To test Milvus Whether the functions of are available .
• function hello_milvus.py, To test data persistence . That is, create a new one called “hello_milvus” Set , For data insertion 、 Refresh 、 Index building 、 Vector search and query . This collection will not be released or discarded during testing .
• Create a monitoring object , This object will start six threads （ The following code snippet shows ）, Execute creation separately 、 Insert 、 Refresh 、 Indexes 、 Search and query operations .

Log in and copy





       checkers = {


Op.create: CreateChecker（）,


Op.insert: InsertFlushChecker（）,


Op.flush: InsertFlushChecker（flush=True）,


Op.index: IndexChecker（）,


Op.search: SearchChecker（）,


Op.query: QueryChecker（）


}







1.


2.


3.


4.


5.


6.


7.


8.



• Make the first assertion —— All operations can run successfully as expected .
• Use Chaos Mesh Analyze and define the fault yaml file , Introduce system faults into Milvus. for example , Every five seconds “ kill ” Query nodes at once .
• A second assertion is made when a system fault is introduced —— Judge during system failure ,Milvus Whether the result returned by the operation meets the expectation .
• adopt Chaos Mesh Eliminate faults .
• When Milvus Service recovery （ That is all pod All ready ） after , Make a third assertion —— All operations are as expected .
• function test_e2e.py, To test Milvus Whether the function is available . After chaos is eliminated , Some operations may continue to be blocked , Thus hindering the third assertion . therefore , This step is intended to facilitate the third assertion , And as a check Milvus Criteria for service recovery .
• function hello_milvus.py, To load the created collection , On the assembly CRUP operation . then , Check the existing data before the system failure , Is it still available after recovery .
• Collect the logs .

5、 Stability and performance test

The following table describes the purpose of the stability and performance tests 、 Test scenarios and indicators .

Stability tests and performance tests share the same set of workflows ：

Workflow of stability test and performance test

• Parsing and updating the configuration , And define indicators .server-configmap Corresponding Milvus Stand alone or cluster configuration , and client-configmap Various configurations corresponding to test cases .
• Configure the server and client .
• Prepare the data .
• Request the interaction between the server and the client .
• Report and display indicators .

PART 05

Improve QA Tools and methods for efficiency

It can be seen from the module test section , Most of the testing processes are similar , The main thing is to modify Milvus Server and client configuration , Pass on API Parameters . When there are multiple configurations , The more diversified the combination of different configurations , Experiments and tests can cover a wider range of scenarios . therefore , Code and program reuse , It is very important to improve test efficiency .

1、SDK The test framework

SDK The test framework

To speed up the testing process , We can add one to the original test framework API_request Wrappers , And according to API Gateway settings . Such kind API The gateway will be responsible for collecting all API request , Then pass them on to Milvus, In order to collectively receive responses , And pass it back to the client . This design enables the capture of log information such as parameters and return results , It's easier . Besides ,SDK Test framework checker Components can also be validated and checked Milvus Result . All inspection methods can be found in this checker Defined in the component .

Use SDK The test framework , We can also initialize some key processes , Encapsulate into a function , To cut down a lot of tedious code . It's also worth noting , Each individual test case is related to its unique set , This ensures data isolation . for example , When executing test cases ,pytest-xdist You can use pytest An extension of , Execute all individual test cases in parallel , So it's a big boost to efficiency .

2、GitHub Action

GitHub Action

GitHub Action Because of the following characteristics , Used to improve QA efficiency ：

• It is related to GitHub Deeply integrated native CI/CD Tools .
• Machine environment with unified configuration , It is pre installed with Docker、Docker Compose And other commonly used software development tools .
• Its support includes Ubuntu、MacOs、 as well as Windows-server Various operating systems and versions including .
• It has a market that offers rich extensions and out of the box functionality .
• Its matrix can support concurrent jobs , And reuse the same test process , To improve efficiency .

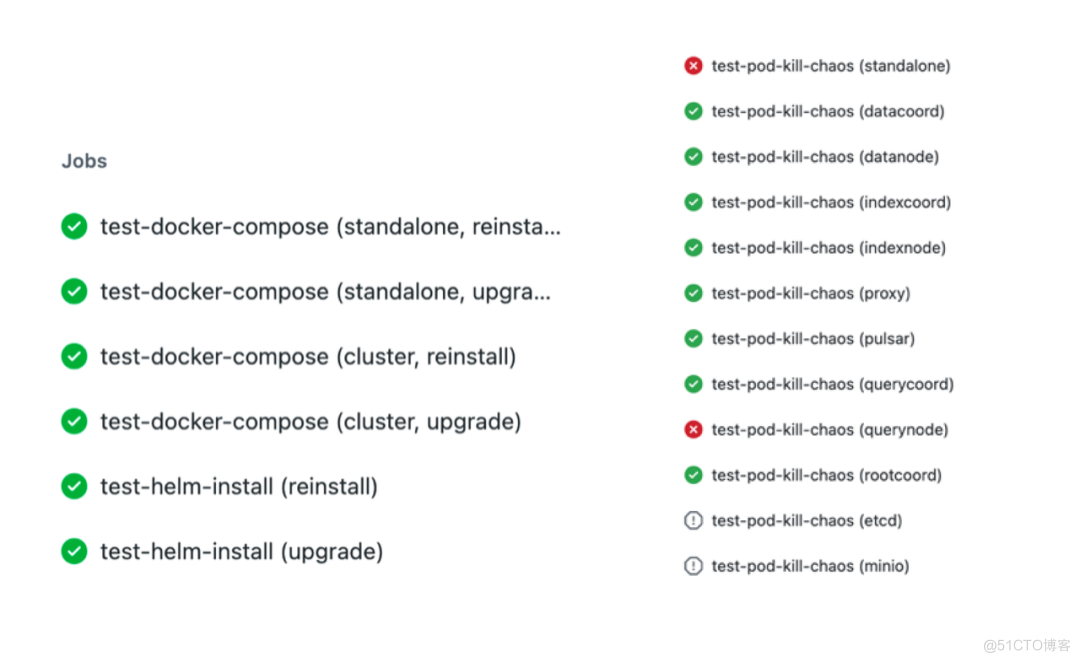

In addition to the above characteristics , use GitHub Action Another reason is that deployment testing and reliability testing require separate isolation environments , and GitHub Action It is very suitable for routine inspection of small data sets .

3、 Benchmarking tools

In order to make QA Testing is more effective , We can use a variety of tools .

Overview of benchmarking tools

• Argo： It's an open source set Kubernetes Tools , Can be used to run workflows , And manage the cluster by scheduling tasks . meanwhile , It can also enable multiple tasks in parallel .
• Kubernetes instrument panel ： Offer based on Web Of Kubernetes The user interface , Can be used to visualize server-configmap and client-configmap.
• Network attached storage is a file level data storage server , Can be used to save common ANN-benchmark Data sets .
• InfluxDB and MongoDB： A database that can be used to store benchmark results .
• Grafana： It can be used to monitor server resource indicators , And client performance metrics .
• Redash： Is a tool that can visualize data , And create charts for benchmarking Services .
