MySQL installation steps - how to create a virtual machine under Linux (1)

install MySQL Prerequisite , Computers already have VMware Workstation （linux Virtual machine environment ）

Package required

The specific installation process is as follows ：

1、 open linux Software

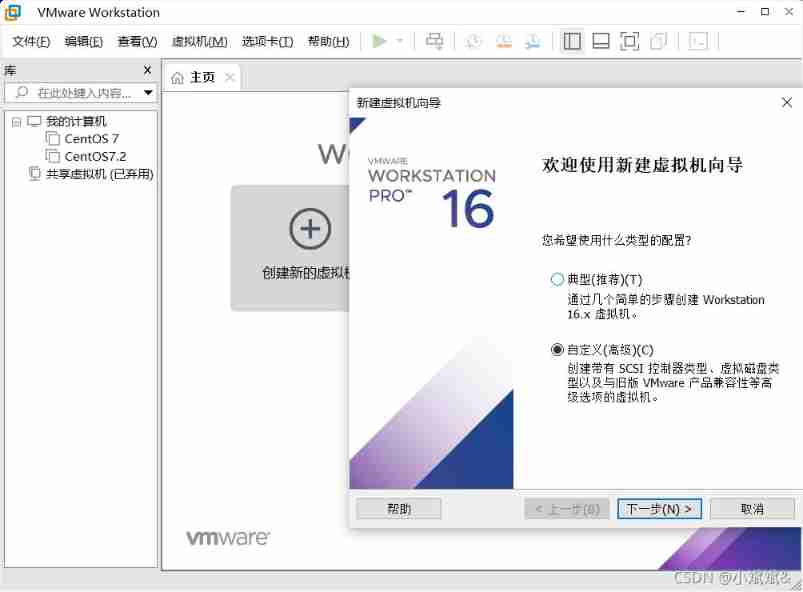

 2、 Click create new virtual machine , Click next

 3、 Select virtual machine hardware compatibility

      here , According to your computer model , Query the hardware compatibility

      Choose to finish , Click next

 4、 choice —— Install the operating system later , Click next

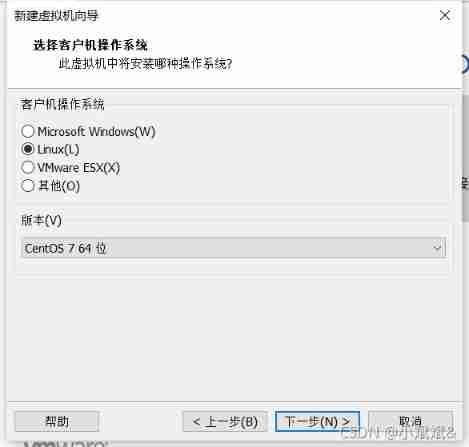

 5、 choice linux operating system

 6、 Set virtual machine name , And the installation path you need , Click next

        It is recommended that the installation path should not be placed in C disc

 7、 Select processor configuration , Click next

      According to the audit number of your computer , Reasonable choice , I am 8 nucleus 16 Linear , choice 2 The processor of , Kernel number selection 2

 8、 Select virtual machine memory module

      General choice 4g , The computer memory is not big , You can also choose 2g, Here is a demonstration of 4g

 9、 Choose the second , Click next

 10、 Click next

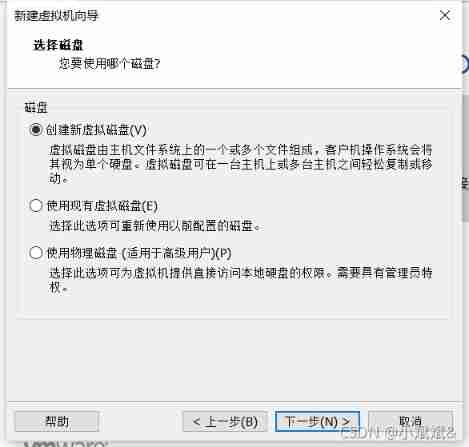

 11、 Select create new virtual machine disk

 12、 Disk size , Here we recommend 20G

      Disk here , In the future, all the programs and data on the virtual machine will be saved here

 13、 Click next

 14、 Click Custom hardware , configure network

 15、 hardware setup

       15.1  Click on the left side of the    CD/DVD(IDE)--> Use IOS Image file （ Tour load you download Centos.7 The image file of ）

        15.2    Click on the left side of the network adapter --> senior --> Generate MAC Address

15.3  Click on the bottom left corner     add to --> network adapter --> complete , And again 15.2 equally To configure MAC Address

 16、 Click OK after configuration , complete

 17、 Click Open Virtual Machine

 18、 Select first Install CentOS 7

    Here, click the black interface , Use the keyboard to select up and down , Press enter to confirm

 19、 Choice language , The default here is OK --->continue

 20, Set up here 3 Data

       1、DATA & TIME    Choose the Chinese time zone , Adjust the time , Finish clicking Done

 2、 Select this one below , Click on , Then click directly Done

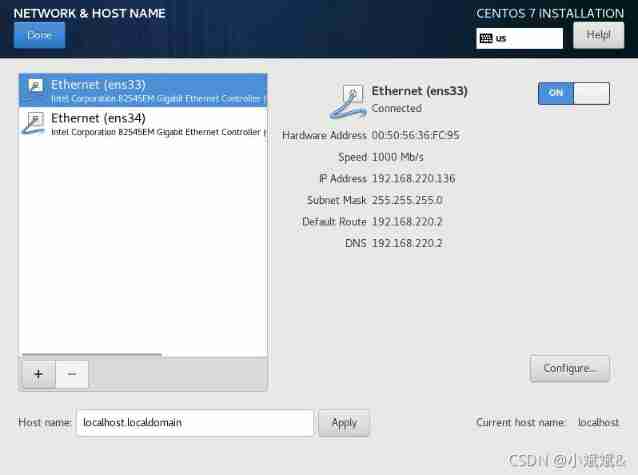

 3、 Turn on the Internet , After opening , Click on Done

      Choose... On the right on,ens33 and ens34 You have to choose on,

      Pay special attention here to remember ens33 Network address of    192.168.220.136

21、 choice ROOT PASSWORD

        Set the username and password



 22、 Wait for the load to complete

        After loading , Click on the bottom right corner Reboot

 23、 Enter account number and password ,

      Account number is root, password You just set it up ！！！

24. Modify the network

  Enter... In the interface vi  /etc/sysconfig/network-scripts/ifcfg-ens33

          enter

25. Modify the parameters

    Press a Key to enter edit mode ：

    modify   BOOTPROTO=static

            ONBOOT=yes

    increase IPADDR= The top three of the gateway .100 （ there 100 As long as it is not the same as the previous requirement to remember IP Same address and not 0 that will do ）

    Press... After the modification ESC Key to exit , Input ( English status )  :wq

26、 Configure network and firewall

systemctl restart network    --> Restart the network

systemctl stop firewalld       --> Turn off firewall

systemctl disable firewalld   --> Disable firewall

Congratulations on coming here linux install mysql succeed .
