ACL访问控制实验

2022-07-23 05:47:00 【.98℃】

1.要求

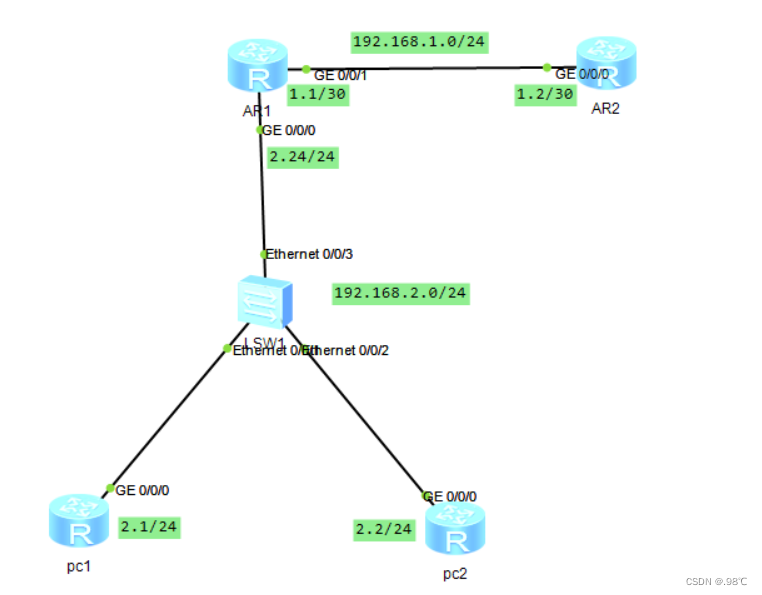

2.拓扑

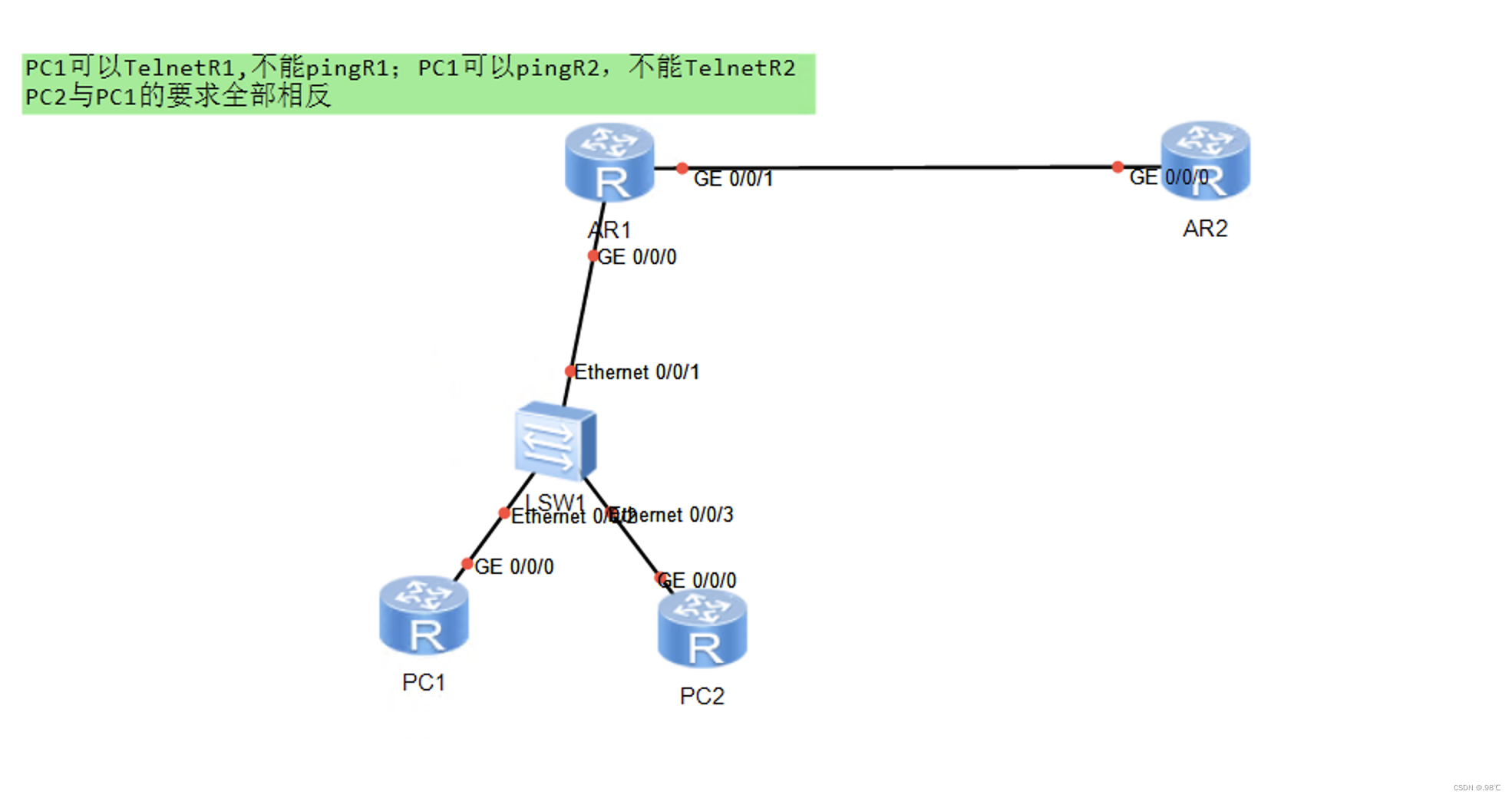

3.分析

4.配置

给路由器配置ip

[r1]int g0/0/0
[r1-GigabitEthernet0/0/0]ip add 192.168.2.24 24
[r1]int g0/0/1
[r1-GigabitEthernet0/0/1]ip add 192.168.1.1 30

[r2]int g0/0/0
[r2-GigabitEthernet0/0/0]ip add 192.168.1.2 30

给pc配置ip，用缺省代替网关

[pc1]int g0/0/0
[pc1-GigabitEthernet0/0/0]ip add 192.168.2.1 24
[pc1]ip route-static 0.0.0.0 0 192.168.2.24

[pc2]int g0/0/0
[pc2-GigabitEthernet0/0/0]ip add 192.168.2.2 24
[pc2]ip route-static 0.0.0.0 0 192.168.2.24

在路由器上分别创建一个lyc的用户

[r1]aaa
[r1-aaa]local-user lyc privilege level 15 password cipher a12345
[r1-aaa]local-user lyc service-type telnet
[r1-aaa]q
[r1]user-interface vty 0 1
[r1-ui-vty0-1]authentication-mode aaa

[r2]aaa
[r2-aaa]local-user lyc privilege level 15 password cipher a12345
[r2-aaa]local-user lyc service-type telnet
[r2-aaa]q
[r2]user-interface vty 0 1
[r2-ui-vty0-1]authentication-mode aaa

设置拒绝ICMP和tcp23号端口服务

[r1]acl 3002
[r1-acl-adv-3002]rule deny icmp source 192.168.2.1 0 destination 192.168.2.24 0
[r1-acl-adv-3002]rule deny tcp source 192.168.2.2 0 destination 192.168.2.24 0 destination-port eq 23
[r1]int g0/0/0
[r1-GigabitEthernet0/0/0]traffic-filter inbound acl 3002

[r2]acl 3003
[r2-acl-adv-3003]rule deny icmp source 192.168.2.2 0 destination 192.168.1.2 0
[r2-acl-adv-3003]rule deny tcp source 192.168.2.1 0 destination 192.168.1.2 0 destination-port eq 23
[r2]int g0/0/0
[r2-GigabitEthernet0/0/0]traffic-filter inbound acl 3003
