基于FPGA的VGA协议实现
2022-06-11 13:42:00 【Qu1st】
一.显示自定义字符
1.VGA介绍
VGA(Video Graphics Array)是IBM在1987年随PS/2机⼀起推出的⼀种视频，具有分辨率⾼、显⽰速率快、颜⾊丰富等优点，在彩⾊显⽰器领域得到了⼴泛的应⽤。不⽀持热插拔，不⽀持⾳频传输。对于⼀些嵌⼊式VGA显⽰系统，可以在不使⽤VGA显⽰卡和计算机的情况下，实现VGA图像的显⽰和控制。VGA显⽰器具有成本低、结构简单、应⽤灵活的优点。对于⼀名FPGA⼯程师，尤其是视频图像的⽅向的学习者，VGA协议是必须要掌握的.
⼀、外部接⼝
由电路图可以看到，VGA并没有特殊的外部芯⽚，我们需要关注的其实只有5个信号：HS⾏同步信号，VS场同步信号，R红基⾊，G绿基⾊，B蓝基⾊。
⼆、⾊彩原理
经过九年义务教育的我们都应该听过三基⾊，还给⽼师了的那就在再复习⼀下。三基⾊是指通过其他颜⾊的混合⽆法得到的“基本⾊”由于⼈的⾁眼有感知红、绿、蓝三种不同颜⾊的锥体细胞，因此⾊彩空间通常可以由三种基本⾊来表达。这是⾊度学的最基本原理，即三基⾊原理。三种基⾊是相互独⽴的，任何⼀种基⾊都不能有其它两种颜⾊合成。红绿蓝是三基⾊，这三种颜⾊合成的颜⾊范围最为⼴泛。我们的RGB信号真是三基⾊的运⽤，对这三个信号赋予不同的数值，混合起来便是不同的⾊彩。
设计RGB信号时，既可以R信号、G信号和B信号独⽴的赋值，最后连到端⼝上，也可以直接⽤RGB当做⼀个整体信号，RGB信号在使⽤时的位宽有三种常见格式，以你的VGA解码芯⽚的配置有关。
- RGB_8，R：G：B = 3：3：2，即RGB332
- RGB_16，R：G：B = 5：6：5，即RGB565
- RGB_24，R：G：B = 8：8：8，即RGB888
三、扫描⽅式
VGA显⽰器扫描⽅式分为逐⾏扫描和隔⾏扫描：逐⾏扫描是扫描从屏幕左上⾓⼀点开始，从左像右逐点扫描，每扫描完⼀⾏,电⼦束回到屏幕的左边下⼀⾏的起始位置，在这期间，CRT对电⼦束进⾏消隐，每⾏结束时，⽤⾏同步信号进⾏同步；当扫描完所有的⾏，形成⼀帧，⽤场同步信号进⾏场同步，并使扫描回到屏幕左上⽅，同时进⾏场消隐,开始下⼀帧。隔⾏扫描是指电⼦束扫描时每隔⼀⾏扫⼀线，完成⼀屏后在返回来扫描剩下的线，隔⾏扫描的显⽰器闪烁的厉害，会让使⽤者的眼睛疲劳。因此我们⼀般都采⽤逐⾏扫描的⽅式。 扫描原理如下所⽰：
四、⾏场信号
⼀开始看这个时序图可能看不懂，它是把⾏场信号绘制在同⼀张图⾥，说明⾏场信号的控制是相似的，只是时间参数不⼀样⽽已。如果展开的话，其实时序是这样的：
这样就清楚了，⼤致是若⼲个HS信号才组合⽽成⼀个VS，如果在⼀副图⽚中，那正确的时序表⽰⽅式应该如下图这样。
现在稍稍解释⼀下这些参数。SYNC是“信号同步”，Back proch和Left border常常加在⼀起称为“显⽰后沿”，Addressablevideo为“显⽰区域”，Right porder和Front porch常常加在⼀起称为“显⽰前沿”，⼀个时序其实就是先拉⾼⼀段较短的“信号同步”时间，然后拉低⼀段很长的时间，这就是⼀个回合。同时需要注意，其实也可以完全相反。即先拉低⼀段时间“信号同步”时间，然后拉⾼⼀段很长的时间。
2.学号与姓名显示
开发板为EP4CE115F29C7
代码如下：
module VGA_test(
OSC_50, //原CLK2_50时钟信号
VGA_CLK, //VGA自时钟
VGA_HS, //行同步信号
VGA_VS, //场同步信号
VGA_BLANK, //复合空白信号控制信号 当BLANK为低电平时模拟视频输出消隐电平，此时从R9~R0,G9~G0,B9~B0输入的所有数据被忽略
VGA_SYNC, //符合同步控制信号 行时序和场时序都要产生同步脉冲
VGA_R, //VGA绿色
VGA_B, //VGA蓝色
VGA_G); //VGA绿色
input OSC_50; //外部时钟信号CLK2_50
output VGA_CLK,VGA_HS,VGA_VS,VGA_BLANK,VGA_SYNC;
output [7:0] VGA_R,VGA_B,VGA_G;
parameter H_FRONT = 16; //行同步前沿信号周期长
parameter H_SYNC = 96; //行同步信号周期长
parameter H_BACK = 48; //行同步后沿信号周期长
parameter H_ACT = 640; //行显示周期长
parameter H_BLANK = H_FRONT+H_SYNC+H_BACK; //行空白信号总周期长
parameter H_TOTAL = H_FRONT+H_SYNC+H_BACK+H_ACT; //行总周期长耗时
parameter V_FRONT = 11; //场同步前沿信号周期长
parameter V_SYNC = 2; //场同步信号周期长
parameter V_BACK = 31; //场同步后沿信号周期长
parameter V_ACT = 480; //场显示周期长
parameter V_BLANK = V_FRONT+V_SYNC+V_BACK; //场空白信号总周期长
parameter V_TOTAL = V_FRONT+V_SYNC+V_BACK+V_ACT; //场总周期长耗时
reg [10:0] H_Cont; //行周期计数器
reg [10:0] V_Cont; //场周期计数器
wire [7:0] VGA_R; //VGA红色控制线
wire [7:0] VGA_G; //VGA绿色控制线
wire [7:0] VGA_B; //VGA蓝色控制线
reg VGA_HS;
reg VGA_VS;
reg [10:0] X; //当前行第几个像素点
reg [10:0] Y; //当前场第几行
reg CLK_25;
[email protected](posedge OSC_50)
begin
CLK_25=~CLK_25; //时钟
end
assign VGA_SYNC = 1'b0; //同步信号低电平
assign VGA_BLANK = ~((H_Cont<H_BLANK)||(V_Cont<V_BLANK)); //当行计数器小于行空白总长或场计数器小于场空白总长时，空白信号低电平
assign VGA_CLK = ~CLK_to_DAC; //VGA时钟等于CLK_25取反
assign CLK_to_DAC = CLK_25;
[email protected](posedge CLK_to_DAC)
begin
if(H_Cont<H_TOTAL) //如果行计数器小于行总时长
H_Cont<=H_Cont+1'b1; //行计数器+1
else H_Cont<=0; //否则行计数器清零
if(H_Cont==H_FRONT-1) //如果行计数器等于行前沿空白时间-1
VGA_HS<=1'b0; //行同步信号置0
if(H_Cont==H_FRONT+H_SYNC-1) //如果行计数器等于行前沿+行同步-1
VGA_HS<=1'b1; //行同步信号置1
if(H_Cont>=H_BLANK) //如果行计数器大于等于行空白总时长
X<=H_Cont-H_BLANK; //X等于行计数器-行空白总时长 （X为当前行第几个像素点）
else X<=0; //否则X为0
end
[email protected](posedge VGA_HS)
begin
if(V_Cont<V_TOTAL) //如果场计数器小于行总时长
V_Cont<=V_Cont+1'b1; //场计数器+1
else V_Cont<=0; //否则场计数器清零
if(V_Cont==V_FRONT-1) //如果场计数器等于场前沿空白时间-1
VGA_VS<=1'b0; //场同步信号置0
if(V_Cont==V_FRONT+V_SYNC-1) //如果场计数器等于行前沿+场同步-1
VGA_VS<=1'b1; //场同步信号置1
if(V_Cont>=V_BLANK) //如果场计数器大于等于场空白总时长
Y<=V_Cont-V_BLANK; //Y等于场计数器-场空白总时长 （Y为当前场第几行）
else Y<=0; //否则Y为0
end
reg valid_yr;
[email protected](posedge CLK_to_DAC)
if(V_Cont == 10'd32) //场计数器=32时
valid_yr<=1'b1; //行输入激活
else if(V_Cont==10'd512) //场计数器=512时
valid_yr<=1'b0; //行输入冻结
wire valid_y=valid_yr; //连线
reg valid_r;
[email protected](posedge CLK_to_DAC)
if((H_Cont == 10'd32)&&valid_y) //行计数器=32时
valid_r<=1'b1; //像素输入激活
else if((H_Cont==10'd512)&&valid_y) //行计数器=512时
valid_r<=1'b0; //像素输入冻结
wire valid = valid_r; //连线
wire[10:0] x_dis; //像素显示控制信号
wire[10:0] y_dis; //行显示控制信号
assign x_dis=X; //连线X
assign y_dis=Y; //连线Y
parameter //点阵字模：每一行char_lineXX是显示的一行，共272列
char_line00=272'h0000000000000000000000000000000000000000000000000000000000000000,
char_line01=272'h0000000000000000000000000000000000000000000000000000000000000000,
char_line02=272'h0003800000000080000000000000000000000000000000000000000000000000,
char_line03=272'h0003C000000C00E0000000000000000000000000000000000000000000000000,
char_line04=272'h00038010003C00C0000000000000000000000000000000000000000000000000,
char_line05=272'h0003803807E000C0000000000000000000000000000000000000000000000000,
char_line06=272'h3FFFFFFC38C000C001E007C0008007C003C01FFC03C001E003C007E0008003C0,
char_line07=272'h180FE00000C060C0061818600180182006201FFC062006180620083801800620,
char_line08=272'h001FF00000C030C00C1830301F8030100C3010080C300C180C3010181F800C30,
char_line09=272'h003FB80000C018C0081830180180301818183010181808181818200C01801818,
char_line0a=272'h007B9C0000C018C0180030180180600818182010181818001818200C01801818,
char_line0b=272'h00F39E0000C400C0100030180180600C18082020180810001808300C01801808,
char_line0c=272'h01E38F803FFE00C0100000180180600C300C0020300C1000300C300C0180300C,
char_line0d=272'h03C387F000C000C0300000180180600C300C0040300C3000300C000C0180300C,
char_line0e=272'h07838DFE00C040C033E000300180600C300C0040300C33E0300C00180180300C,
char_line0f=272'h1FFFFEF801C060C0363000600180600C300C0040300C3630300C00180180300C,
char_line10=272'h38401F3001F030C0381803C00180701C300C0080300C3818300C00300180300C, //第17行
char_line11=272'h60003C0003DC10C0380800700180302C300C0080300C3808300C00600180300C, //第18行
char_line12=272'h0001F00002CC00CC300C00180180186C300C0100300C300C300C00C00180300C, //第19行
char_line13=272'h0001E00006C400FC300C000801800F8C300C0100300C300C300C01800180300C, //第20行
char_line14=272'h0001E01004C40FC0300C000C0180000C300C0100300C300C300C03000180300C, //第21行
char_line15=272'h0001C03808C1F0C0300C000C01800018300C0100300C300C300C02000180300C, //第22行
char_line16=272'h7FFFFFFC10C600C0300C300C01800018180803001808300C1808040401801808, //第23行
char_line17=272'h3801C00020C000C0180C300C01800010181803001818180C1818080401801818, //第24行
char_line18=272'h0001C00040C000C0180830080180303018180300181818081818100401801818, //第25行
char_line19=272'h0001C00000C000C00C183018018030600C3003000C300C180C30200C01800C30, //第26行
char_line1a=272'h0001C00000C000C00E30183003C030C00620030006200E3006203FF803C00620, //第27行
char_line1b=272'h0001C00000C000C003E007C01FF80F8003C0030003C003E003C03FF81FF803C0, //第28行
char_line1c=272'h003FC00000C000C0000000000000000000000000000000000000000000000000, //第29行
char_line1d=272'h0007C00000C000C0000000000000000000000000000000000000000000000000, //第30行
char_line1e=272'h0003800000800080000000000000000000000000000000000000000000000000, //第31行
char_line1f=272'h0000000000000000000000000000000000000000000000000000000000000000; //第32行
reg[8:0] char_bit;
[email protected](posedge CLK_to_DAC)
if(X==10'd144)char_bit<=9'd272; //当显示到144像素时准备开始输出图像数据
else if(X>10'd144&&X<10'd416) //左边距屏幕144像素到416像素时 416=144+272（图像宽度）
char_bit<=char_bit-1'b1; //倒着输出图像信息
reg[29:0] vga_rgb; //定义颜色缓存
[email protected](posedge CLK_to_DAC)
if(X>10'd144&&X<10'd416) //X控制图像的横向显示边界：左边距屏幕左边144像素 右边界距屏幕左边界416像素
begin case(Y) //Y控制图像的纵向显示边界：从距离屏幕顶部160像素开始显示第一行数据
10'd160:
if(char_line00[char_bit])vga_rgb<=30'b1111111111_0000000000_0000000000; //如果该行有数据 则颜色为红色
else vga_rgb<=30'b0000000000_0000000000_0000000000; //否则为黑色
10'd162:
if(char_line01[char_bit])vga_rgb<=30'b1111111111_0000000000_0000000000;
else vga_rgb<=30'b0000000000_0000000000_0000000000;
10'd163:
if(char_line02[char_bit])vga_rgb<=30'b1111111111_0000000000_0000000000;
else vga_rgb<=30'b0000000000_0000000000_0000000000;
10'd164:
if(char_line03[char_bit])vga_rgb<=30'b1111111111_0000000000_0000000000;
else vga_rgb<=30'b0000000000_0000000000_0000000000;
10'd165:
if(char_line04[char_bit])vga_rgb<=30'b1111111111_0000000000_0000000000;
else vga_rgb<=30'b0000000000_0000000000_0000000000;
10'd166:
if(char_line05[char_bit])vga_rgb<=30'b1111111111_0000000000_0000000000;
else vga_rgb<=30'b0000000000_0000000000_0000000000;
10'd167:
if(char_line06[char_bit])vga_rgb<=30'b1111111111_0000000000_0000000000;
else vga_rgb<=30'b0000000000_0000000000_0000000000;
10'd168:
if(char_line07[char_bit])vga_rgb<=30'b1111111111_0000000000_0000000000;
else vga_rgb<=30'b0000000000_0000000000_0000000000;
10'd169:
if(char_line08[char_bit])vga_rgb<=30'b1111111111_0000000000_0000000000;
else vga_rgb<=30'b0000000000_0000000000_0000000000;
10'd170:
if(char_line09[char_bit])vga_rgb<=30'b1111111111_0000000000_0000000000;
else vga_rgb<=30'b0000000000_0000000000_0000000000;
10'd171:
if(char_line0a[char_bit])vga_rgb<=30'b1111111111_0000000000_0000000000;
else vga_rgb<=30'b0000000000_0000000000_0000000000;
10'd172:
if(char_line0b[char_bit])vga_rgb<=30'b1111111111_0000000000_0000000000;
else vga_rgb<=30'b0000000000_0000000000_0000000000;
10'd173:
if(char_line0c[char_bit])vga_rgb<=30'b1111111111_0000000000_0000000000;
else vga_rgb<=30'b0000000000_0000000000_0000000000;
10'd174:
if(char_line0d[char_bit])vga_rgb<=30'b1111111111_0000000000_0000000000;
else vga_rgb<=30'b0000000000_0000000000_0000000000;
10'd175:
if(char_line0e[char_bit])vga_rgb<=30'b1111111111_0000000000_0000000000;
else vga_rgb<=30'b0000000000_0000000000_0000000000;
10'd176:
if(char_line0f[char_bit])vga_rgb<=30'b1111111111_0000000000_0000000000;
else vga_rgb<=30'b0000000000_0000000000_0000000000;
10'd177:
if(char_line10[char_bit])vga_rgb<=30'b1111111111_0000000000_0000000000;
else vga_rgb<=30'b0000000000_0000000000_0000000000;
10'd178:
if(char_line11[char_bit])vga_rgb<=30'b1111111111_0000000000_0000000000;
else vga_rgb<=30'b0000000000_0000000000_0000000000;
10'd179:
if(char_line12[char_bit])vga_rgb<=30'b1111111111_0000000000_0000000000;
else vga_rgb<=30'b0000000000_0000000000_0000000000;
10'd180:
if(char_line13[char_bit])vga_rgb<=30'b1111111111_0000000000_0000000000;
else vga_rgb<=30'b0000000000_0000000000_0000000000;
10'd181:
if(char_line14[char_bit])vga_rgb<=30'b1111111111_0000000000_0000000000;
else vga_rgb<=30'b0000000000_0000000000_0000000000;
10'd182:
if(char_line15[char_bit])vga_rgb<=30'b1111111111_0000000000_0000000000;
else vga_rgb<=30'b0000000000_0000000000_0000000000;
10'd183:
if(char_line16[char_bit])vga_rgb<=30'b1111111111_0000000000_0000000000;
else vga_rgb<=30'b0000000000_0000000000_0000000000;
10'd184:
if(char_line17[char_bit])vga_rgb<=30'b1111111111_0000000000_0000000000;
else vga_rgb<=30'b0000000000_0000000000_0000000000;
10'd185:
if(char_line18[char_bit])vga_rgb<=30'b1111111111_0000000000_0000000000;
else vga_rgb<=30'b0000000000_0000000000_0000000000;
10'd186:
if(char_line19[char_bit])vga_rgb<=30'b1111111111_0000000000_0000000000;
else vga_rgb<=30'b0000000000_0000000000_0000000000;
10'd187:
if(char_line1a[char_bit])vga_rgb<=30'b1111111111_0000000000_0000000000;
else vga_rgb<=30'b0000000000_0000000000_0000000000;
10'd188:
if(char_line1b[char_bit])vga_rgb<=30'b1111111111_0000000000_0000000000;
else vga_rgb<=30'b0000000000_0000000000_0000000000;
10'd189:
if(char_line1c[char_bit])vga_rgb<=30'b1111111111_0000000000_0000000000;
else vga_rgb<=30'b0000000000_0000000000_0000000000;
10'd190:
if(char_line1d[char_bit])vga_rgb<=30'b1111111111_0000000000_0000000000;
else vga_rgb<=30'b0000000000_0000000000_0000000000;
10'd191:
if(char_line1e[char_bit])vga_rgb<=30'b1111111111_0000000000_0000000000;
else vga_rgb<=30'b0000000000_0000000000_0000000000;
10'd192:
if(char_line1f[char_bit])vga_rgb<=30'b1111111111_0000000000_0000000000;
else vga_rgb<=30'b0000000000_0000000000_0000000000;
default:vga_rgb<=30'h0000000000; //默认颜色黑色
endcase
end
else vga_rgb<=30'h000000000; //否则黑色
assign VGA_R=vga_rgb[23:16];
assign VGA_G=vga_rgb[15:8];
assign VGA_B=vga_rgb[7:0];
endmodule
其中的字符部分可利用PCtoLCD2002自行设置
显示效果如下：
二.显示彩色条纹
开发板为EP4CE115F29C7
实现思路：
在上述代码的基础上，通过限制x的取值范围让颜色缓存显示不同的值就能实现显示彩色条纹。
代码如下：
module VGA_colorbar_test(
OSC_50, //原CLK2_50时钟信号
VGA_CLK, //VGA自时钟
VGA_HS, //行同步信号
VGA_VS, //场同步信号
VGA_BLANK, //复合空白信号控制信号 当BLANK为低电平时模拟视频输出消隐电平，此时从R9~R0,G9~G0,B9~B0输入的所有数据被忽略
VGA_SYNC, //符合同步控制信号 行时序和场时序都要产生同步脉冲
VGA_R, //VGA绿色
VGA_B, //VGA蓝色
VGA_G); //VGA绿色
input OSC_50; //外部时钟信号CLK2_50
output VGA_CLK,VGA_HS,VGA_VS,VGA_BLANK,VGA_SYNC;
output [7:0] VGA_R,VGA_B,VGA_G;
parameter H_FRONT = 16; //行同步前沿信号周期长
parameter H_SYNC = 96; //行同步信号周期长
parameter H_BACK = 48; //行同步后沿信号周期长
parameter H_ACT = 640; //行显示周期长
parameter H_BLANK = H_FRONT+H_SYNC+H_BACK; //行空白信号总周期长
parameter H_TOTAL = H_FRONT+H_SYNC+H_BACK+H_ACT; //行总周期长耗时
parameter V_FRONT = 11; //场同步前沿信号周期长
parameter V_SYNC = 2; //场同步信号周期长
parameter V_BACK = 31; //场同步后沿信号周期长
parameter V_ACT = 480; //场显示周期长
parameter V_BLANK = V_FRONT+V_SYNC+V_BACK; //场空白信号总周期长
parameter V_TOTAL = V_FRONT+V_SYNC+V_BACK+V_ACT; //场总周期长耗时
reg [10:0] H_Cont; //行周期计数器
reg [10:0] V_Cont; //场周期计数器
wire [7:0] VGA_R; //VGA红色控制线
wire [7:0] VGA_G; //VGA绿色控制线
wire [7:0] VGA_B; //VGA蓝色控制线
reg VGA_HS;
reg VGA_VS;
reg [10:0] X; //当前行第几个像素点
reg [10:0] Y; //当前场第几行
reg CLK_25;
[email protected](posedge OSC_50)begin
CLK_25=~CLK_25; //时钟
end
assign VGA_SYNC = 1'b0; //同步信号低电平
assign VGA_BLANK = ~((H_Cont<H_BLANK)||(V_Cont<V_BLANK)); //当行计数器小于行空白总长或场计数器小于场空白总长时，空白信号低电平
assign VGA_CLK = ~CLK_to_DAC; //VGA时钟等于CLK_25取反
assign CLK_to_DAC = CLK_25;
[email protected](posedge CLK_to_DAC)begin
if(H_Cont<H_TOTAL) //如果行计数器小于行总时长
H_Cont<=H_Cont+1'b1; //行计数器+1
else H_Cont<=0; //否则行计数器清零
if(H_Cont==H_FRONT-1) //如果行计数器等于行前沿空白时间-1
VGA_HS<=1'b0; //行同步信号置0
if(H_Cont==H_FRONT+H_SYNC-1) //如果行计数器等于行前沿+行同步-1
VGA_HS<=1'b1; //行同步信号置1
if(H_Cont>=H_BLANK) //如果行计数器大于等于行空白总时长
X<=H_Cont-H_BLANK; //X等于行计数器-行空白总时长 （X为当前行第几个像素点）
else X<=0; //否则X为0
end
[email protected](posedge VGA_HS)begin
if(V_Cont<V_TOTAL) //如果场计数器小于行总时长
V_Cont<=V_Cont+1'b1; //场计数器+1
else V_Cont<=0; //否则场计数器清零
if(V_Cont==V_FRONT-1) //如果场计数器等于场前沿空白时间-1
VGA_VS<=1'b0; //场同步信号置0
if(V_Cont==V_FRONT+V_SYNC-1) //如果场计数器等于行前沿+场同步-1
VGA_VS<=1'b1; //场同步信号置1
if(V_Cont>=V_BLANK) //如果场计数器大于等于场空白总时长
Y<=V_Cont-V_BLANK; //Y等于场计数器-场空白总时长 （Y为当前场第几行）
else Y<=0; //否则Y为0
end
reg valid_yr;
[email protected](posedge CLK_to_DAC)begin
if(V_Cont == 10'd32) //场计数器=32时
valid_yr<=1'b1; //行输入激活
else if(V_Cont==10'd512) //场计数器=512时
valid_yr<=1'b0; //行输入冻结
end
wire valid_y=valid_yr; //连线
reg valid_r;
[email protected](posedge CLK_to_DAC)begin
if((H_Cont == 10'd32)&&valid_y) //行计数器=32时
valid_r<=1'b1; //像素输入激活
else if((H_Cont==10'd512)&&valid_y) //行计数器=512时
valid_r<=1'b0; //像素输入冻结
end
wire valid = valid_r; //连线
assign x_dis=X; //连线X
assign y_dis=Y; //连线Y
// reg[7:0] char_bit;
// [email protected](posedge CLK_to_DAC)
// if(X==10'd144)char_bit<=9'd240; //当显示到144像素时准备开始输出图像数据
// else if(X>10'd144&&X<10'd384) //左边距屏幕144像素到416像素时 416=144+272（图像宽度）
// char_bit<=char_bit-1'b1; //倒着输出图像信息
reg[29:0] vga_rgb; //定义颜色缓存
[email protected](posedge CLK_to_DAC) begin
if(X>=0&&X<200)begin //X控制图像的横向显示边界：左边距屏幕左边144像素 右边界距屏幕左边界416像素
vga_rgb<=30'hffffffffff; //白色
end
else if(X>=200&&X<400)begin
vga_rgb<=30'hf00ff65f1f;
end
else if(X>=400&&X<600)begin
vga_rgb<=30'h9563486251;
end
else begin
vga_rgb<=30'h5864928654;
end
end
assign VGA_R=vga_rgb[23:16];
assign VGA_G=vga_rgb[15:8];
assign VGA_B=vga_rgb[7:0];
endmodule
效果如下：
三.输出一幅彩色图像
开发板为EP4CE115F29C7
1.首先将某一张图片格式改小为300*300（可自己设置），但大小不能超过芯片的内存，否则无法把图片保存进去
图像如下：

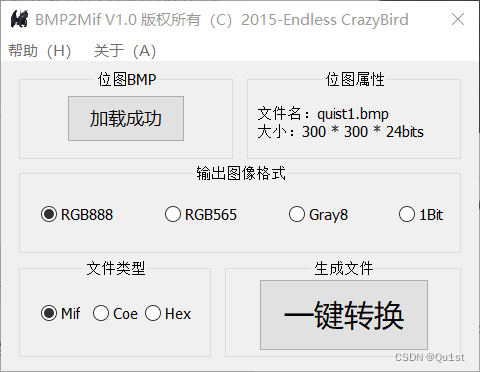

2.使用BMP2Mif软件将bmp格式图片转换为mif文件
生成在桌面，如下所示：
3.设置pll
基础时钟选择50M
取消勾选输出使能
c0默认输出50M即可,c1分频到25M,如需其他时钟频率可以自己进行设置
勾选如下选项后finish
4.设置rom
其中words大小为400*400

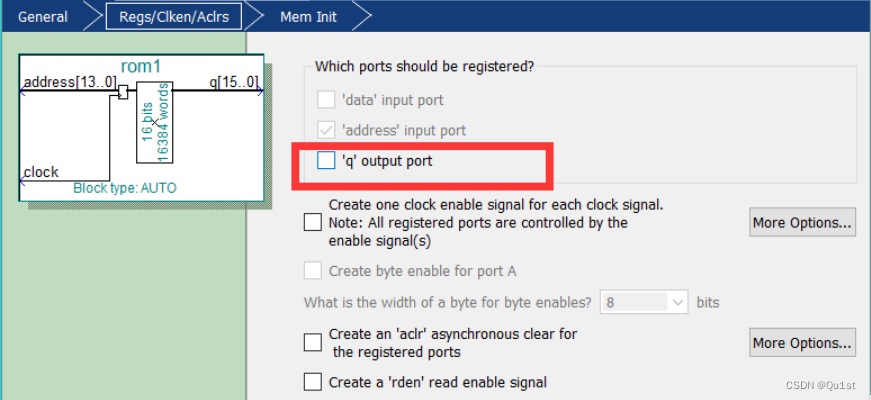

取消勾选下列选项
找到刚才生成的CrazyBird.mif文件
不勾选以下选项后直接finsh即可
5.其余代码具体如下：
vga_drive
module vga_drive (input wire clk, //系统时钟
input wire rst_n, //复位
input wire [ 23:0 ] rgb_data, //24位RGB对应值
output wire vga_clk, //vga时钟 25M
output reg h_sync, //行同步信号
output reg v_sync, //场同步信号
output reg [ 11:0 ] addr_h, //行地址
output reg [ 11:0 ] addr_v, //列地址
output wire [ 7:0 ] rgb_r, //红基色
output wire [ 7:0 ] rgb_g, //绿基色
output wire [ 7:0 ] rgb_b //蓝基色
);
// 640 * 480 60HZ
localparam H_FRONT = 16;
localparam H_SYNC = 96;
localparam H_BLACK = 48;
localparam H_ACT = 640;
localparam V_FRONT = 11;
localparam V_SYNC = 2;
localparam V_BLACK = 31;
localparam V_ACT = 480;
// 800 * 600 72HZ
// localparam H_FRONT = 40;
// localparam H_SYNC = 120;
// localparam H_BLACK = 88;
// localparam H_ACT = 800;
// localparam V_FRONT = 37;
// localparam V_SYNC = 6;
// localparam V_BLACK = 23;
// localparam V_ACT = 600;
localparam H_TOTAL = H_FRONT + H_SYNC + H_BLACK + H_ACT; // 行周期
localparam V_TOTAL = V_FRONT + V_SYNC + V_BLACK + V_ACT; // 列周期
reg [ 11:0 ] cnt_h ; // 行计数器
reg [ 11:0 ] cnt_v ; // 场计数器
reg [ 23:0 ] rgb ; // 对应显示颜色值
// 对应计数器开始、结束、计数信号
wire flag_enable_cnt_h ;
wire flag_clear_cnt_h ;
wire flag_enable_cnt_v ;
wire flag_clear_cnt_v ;
wire flag_add_cnt_v ;
wire valid_area ;
// 25M时钟 行周期*场周期*刷新率 = 800 * 525* 60
wire clk_25 ;
// 50M时钟 1040 * 666 * 72
wire clk_50 ;
//PLL
pll_one pll_one_inst (
.areset ( ~rst_n ),
.inclk0 ( clk ),
.c0 ( clk_50 ), //50M
.c1 ( clk_25 ) //25M
);
//根据不同分配率选择不同频率时钟
assign vga_clk = clk_25;
// 行计数
always @( posedge vga_clk or negedge rst_n ) begin
if ( !rst_n ) begin
cnt_h <= 0;
end
else if ( flag_enable_cnt_h ) begin
if ( flag_clear_cnt_h ) begin
cnt_h <= 0;
end
else begin
cnt_h <= cnt_h + 1;
end
end
else begin
cnt_h <= 0;
end
end
assign flag_enable_cnt_h = 1;
assign flag_clear_cnt_h = cnt_h == H_TOTAL - 1;
// 行同步信号
always @( posedge vga_clk or negedge rst_n ) begin
if ( !rst_n ) begin
h_sync <= 0;
end
else if ( cnt_h == H_SYNC - 1 ) begin // 同步周期时为1
h_sync <= 1;
end
else if ( flag_clear_cnt_h ) begin // 其余为0
h_sync <= 0;
end
else begin
h_sync <= h_sync;
end
end
// 场计数
always @( posedge vga_clk or negedge rst_n ) begin
if ( !rst_n ) begin
cnt_v <= 0;
end
else if ( flag_enable_cnt_v ) begin
if ( flag_clear_cnt_v ) begin
cnt_v <= 0;
end
else if ( flag_add_cnt_v ) begin
cnt_v <= cnt_v + 1;
end
else begin
cnt_v <= cnt_v;
end
end
else begin
cnt_v <= 0;
end
end
assign flag_enable_cnt_v = flag_enable_cnt_h;
assign flag_clear_cnt_v = cnt_v == V_TOTAL - 1;
assign flag_add_cnt_v = flag_clear_cnt_h;
// 场同步信号
always @( posedge vga_clk or negedge rst_n ) begin
if ( !rst_n ) begin
v_sync <= 0;
end
else if ( cnt_v == V_SYNC - 1 ) begin
v_sync <= 1;
end
else if ( flag_clear_cnt_v ) begin
v_sync <= 0;
end
else begin
v_sync <= v_sync;
end
end
// 对应有效区域行地址 1-640
always @( posedge vga_clk or negedge rst_n ) begin
if ( !rst_n ) begin
addr_h <= 0;
end
else if ( valid_area ) begin
addr_h <= cnt_h - H_SYNC - H_BLACK + 1;
end
else begin
addr_h <= 0;
end
end
// 对应有效区域列地址 1-480
always @( posedge vga_clk or negedge rst_n ) begin
if ( !rst_n ) begin
addr_v <= 0;
end
else if ( valid_area ) begin
addr_v <= cnt_v -V_SYNC - V_BLACK + 1;
end
else begin
addr_v <= 0;
end
end
// 有效显示区域
assign valid_area = cnt_h >= H_SYNC + H_BLACK && cnt_h <= H_SYNC + H_BLACK + H_ACT && cnt_v >= V_SYNC + V_BLACK && cnt_v <= V_SYNC + V_BLACK + V_ACT;
// 显示颜色
always @( posedge vga_clk or negedge rst_n ) begin
if ( !rst_n ) begin
rgb <= 24'h0;
end
else if ( valid_area ) begin
rgb <= rgb_data;
end
else begin
rgb <= 24'b0;
end
end
assign rgb_r = rgb[ 23:16 ];
assign rgb_g = rgb[ 15:8 ];
assign rgb_b = rgb[ 7:0 ];
endmodule // vga_dirve
data_drive
module data_drive (input wire vga_clk,
input wire rst_n,
input wire [ 11:0 ] addr_h,
input wire [ 11:0 ] addr_v,
output reg [ 23:0 ] rgb_data);
parameter height = 300; // 图片高度
parameter width = 300; // 图片宽度
reg [ 16:0 ] rom_address ; // ROM地址
wire [ 23:0 ] rom_data ; // 图片数据
wire flag_clear_rom_address ; // 地址清零
wire flag_begin_h ; // 图片显示行
wire flag_begin_v ; // 图片显示列
wire flag_enable_out ;
//状态输出
always @( * ) begin
if (flag_enable_out) begin
rgb_data = rom_data;
end
else begin
rgb_data= 0;
end
end
assign flag_begin_h = addr_h > ( ( 640 - width ) / 2 ) && addr_h < ( ( 640 - width ) / 2 ) + width + 1;
assign flag_begin_v = addr_v > ( ( 480 - height )/2 ) && addr_v <( ( 480 - height )/2 ) + height + 1;
assign flag_enable_out = flag_begin_h && flag_begin_v;
//ROM地址计数器
always @( posedge vga_clk or negedge rst_n ) begin
if ( !rst_n ) begin
rom_address <= 0;
end
else if ( flag_clear_rom_address ) begin //计数满清零
rom_address <= 0;
end
else if ( flag_enable_out ) begin //在有效区域内+1
rom_address <= rom_address + 1;
end
else begin //无效区域保持
rom_address <= rom_address;
end
end
assign flag_clear_rom_address = rom_address == height * width - 1;
//实例化ROM
rom_5 rom_5_inst (
.address ( rom_address ),
.clock ( vga_clk ),
.q ( rom_data )
);
endmodule // data_drive
vga_top
module vga_top (input wire clk,
input wire rst_n,
output wire vga_clk,
output wire h_sync,
output wire v_sync,
output wire [ 7:0 ] rgb_r,
output wire [ 7:0 ] rgb_g,
output wire [ 7:0 ] rgb_b
);
reg [ 27:0 ] cnt ;
wire [ 11:0 ] addr_h ;
wire [ 11:0 ] addr_v ;
wire [ 23:0 ] rgb_data ;
//vga模块
vga_drive u_vga_drive(
.clk ( clk ),
.rst_n ( rst_n ),
.rgb_data ( rgb_data ),
.vga_clk ( vga_clk ),
.h_sync ( h_sync ),
.v_sync ( v_sync ),
.rgb_r ( rgb_r ),
.rgb_g ( rgb_g ),
.rgb_b ( rgb_b ),
.addr_h ( addr_h ),
.addr_v ( addr_v )
);
//数据模块
data_drive u_data_drive(
.vga_clk ( vga_clk ),
.rst_n ( rst_n ),
.addr_h ( addr_h ),
.addr_v ( addr_v ),
.rgb_data ( rgb_data )
);
endmodule // vga_top
总目录如下：（rom多创建了几个，实际上只使用了rom_5,其他不调用则无影响）
最终烧录结果如下：
四.参考文献
1.https://blog.csdn.net/qq_47281915/article/details/125134764?spm=1001.2014.3001.5502
2.https://blog.csdn.net/u013793399/article/details/51319235
3.https://blog.csdn.net/chengfengwenalan/article/details/79854730
4.https://blog.csdn.net/qq_45659777/article/details/124834294
完整代码可参考本人github：
https://github.com/justli5678/vga
边栏推荐
- Introduction to common fonts
- 2022工具钳工（中级）操作证考试题库及答案
- [filter] design of time-varying Wiener filter based on MATLAB [including Matlab source code 1870]
- 全球手机市场衰退，连苹果也对iPhone14不抱过高期待
- [201] PHP exception handling - try catch finally exception handling in PHP
- 31W contest question bonus! When AI for Science collides with the "pilot Cup", what sparks will be generated?
- In 2022, capture these 12 data and analyze trends!
- Operating instructions for communication between RS485 (Modbus RTU) industrial RFID reader ck-fr03-a01 and PLC Mitsubishi fx5u
- Microsoft exposes another "scandal": watching VR porn in the office, "the father of hololens" is about to leave!
- Debian下设定 TCP/IP 网络
猜你喜欢
Ali talked about the use of strategic mode in the project
Bs-xx-007 registered residence management system based on JSP
高比例风电电力系统储能运行及配置分析（Matlab实现）
Why does each running Department display that the database already exists, delete the database, and then succeed? Each running department must delete the database, and re run the whole successfully
RS485（Modbus RTU）工业RFID读写器CK-FR03-A01与PLC三菱FX5U的通讯操作说明
Microsoft exposes another "scandal": watching VR porn in the office, "the father of hololens" is about to leave!
Operating instructions for communication between RS485 (Modbus RTU) industrial RFID reader ck-fr03-a01 and PLC Mitsubishi fx5u
LNMP部署
Introduction to common fonts
关于分布式锁的续命问题——基于Redis实现的分布式锁
随机推荐
Two small things, feel the gap with the great God
【Multisim仿真】555闪灯实验
Nomad application scheduling scheme 08 of hashicopy (detection job)
面试造航母，入职拧螺丝，工资...
cadence SPB17.4 - group operation(add to group, view group list, delete group)
Collapse expression
程序员到了35岁之后的一些转型思考
关于＃php＃的问题：php写的原来的部署环境是在phpstudy里面进行部署的，php＋MySQL＋Apache但是由于每次都得保证电脑开着
Using vscode code code template to improve mobx coding efficiency
Learning notes of yolov3: model structure of yolov3
2022年甘肃省安全员B证考试题模拟考试题库及在线模拟考试
D interval to nullable conversion
cadence SPB17.4 - group operation(add to group, view group list, delete group)
From real-time computing to streaming data warehouse, where will Flink go next?
Musk says he doesn't like being a CEO, but rather wants to do technology and design; Wu Enda's "machine learning" course is about to close its registration | geek headlines
In 2022, capture these 12 data and analyze trends!
使用华为HECS云服务器打造Telegraf+Influxdb+Grafana 监控系统【华为云至简致远】
InfoQ geek media's 15th anniversary essay solicitation - dynamic ranking of mobile terminal development [mui+flask+mongodb]
LNMP deployment
Kubernetes binary installation (v1.20.15) (VII) plug a work node
