Binary search tree

1. Concept

Binary search tree is also called binary sort tree , It could be an empty tree , Or a binary tree with the following properties ：

• If its left subtree is not empty , Then the values of all nodes on the left subtree are smaller than the values of the root nodes
• If its right subtree is not empty , Then the value of all nodes on the right subtree is greater than the value of the root node
• Its left and right subtrees are also binary search trees
• The middle order traversal result of binary search tree is ordered

As shown in the figure below, it is a binary search tree

First, complete the basic construction of binary search tree through code ：

public class BinarySearchTree {

    static class TreeNode {

        public int val;
        public TreeNode left;
        public TreeNode right;

        public TreeNode(int val) {

            this.val = val;
        }
    }
    public TreeNode root;
}

2. Search operation

Find key values in the search tree , Because of the characteristics of binary search tree , So you can compare the key value with the root node value , If it is smaller than the root node , Go to the left sub tree to find , On the contrary, go to the right subtree to find .

	public TreeNode search(int key) {

        TreeNode cur=root;
        while (cur!=null) {

            if(cur.val<key) {

                cur=cur.right;
            }else if(cur.val>key) {

                cur=cur.left;
            }else {

                return cur;
            }
        }
        // If you go here, you won't find the keyword
        return null;
    }

3. The insert

The insertion operation still follows the characteristics of binary search tree , Compare with the root node value , If it is smaller than it, insert it into the left subtree , If it is larger than it, insert it into the right subtree , You can find , Finally, they are inserted into the leaf node . Because the insertion operation requires that the previous node has a reference to the insertion node , So you need to use two nodes .

 	public boolean insert(int key) {

        TreeNode node=new TreeNode(key);
        // Empty tree direct insertion
        if(root==null) {

            root=node;
            return true;
        }
        TreeNode cur=root;
        TreeNode parent=null;// Used to store the reference of the previous node
        while (cur!=null) {

            if(cur.val<key) {

                parent=cur;
                cur=cur.right;
            }else if(cur.val>key) {

                parent=cur;
                cur=cur.left;
            }else {

                // There are the same elements   Cannot insert successfully
                return false;
            }
        }
        // Code goes here ,cur==null, According to the previous node parent Of val Comparison , Determine whether to insert the left or right of the node
        if(parent.val<key) {

            parent.right=node;
        }else {

            parent.left=node;
        }
        return true;
    }

4. Delete operation

The deletion of binary search tree is very complex , First, you need to find the node to delete , But this node may have left and right subtrees , So you can't just delete it , You need to determine the specific deletion method according to the situation , as follows ：

Set the node to be deleted as cur, The parent node of the node to be deleted is parent
1.cur.left == null

• cur yes root, be root = cur.right
• cur No root,cur yes parent.left, be parent.left = cur.right
• cur No root,cur yes parent.right, be parent.right = cur.right

2.cur.right == null

• cur yes root, be root = cur.left
• cur No root,cur yes parent.left, be parent.left = cur.left
• cur No root,cur yes parent.right, be parent.right = cur.left

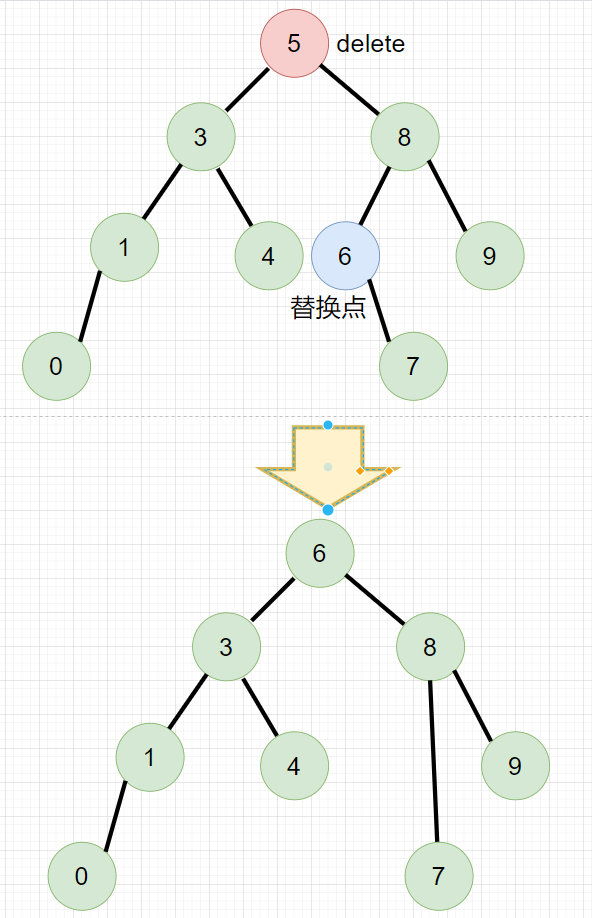

3.cur.left != null && cur.right != null
You need to use substitution to delete , That is to say Find the minimum value in its right subtree （ It must have no left tree ）【 Or find the maximum value in its left subtree , It must have no right tree 】, Fill the deleted node with its value , Then deal with the deletion of this node （ Handle the node and the situation 1 identical , There is no left subtree ）

Code implementation ：

    /** *  Delete the keyword as key The node of  * @param key */
    public void remove(int key) {

        // Find the node first
        TreeNode cur=root;
        TreeNode parent=null;
        while (cur!=null) {

            if(cur.val<key) {

                parent=cur;
                cur=cur.right;
            }else if(cur.val>key) {

                parent=cur;
                cur=cur.left;
            }else {

                // The code goes here to indicate that the node to be deleted is found
                removeNode(cur,parent);
            }
        }
    }

    /** *  To delete  * @param cur  The node to be deleted  * @param parent  Delete the parent of the node  */
    private void removeNode(TreeNode cur,TreeNode parent) {

        if(cur.left==null) {

            if(cur==root) {

                root=root.right;
            }else if(cur==parent.left) {

                parent.left=cur.right;
            }else {

                parent.right=cur.right;
            }
        }else if(cur.right==null) {

            if(cur==root) {

                root=root.left;
            }else if(cur==parent.left) {

                parent.left=cur.left;
            }else {

                parent.right=cur.left;
            }
        }else {

            TreeNode targetParent=cur;// Record the previous node of the node used for replacement
            TreeNode target=cur.right;// Record the nodes used for replacement
            // Find the minimum value in the right subtree , Just go straight to the left , The node at the end is the minimum
            while (target.left!=null) {

                targetParent=target;
                target=target.left;
            }
            // Find the node to replace , Complete replacement of values , Then deal with deleting the replacement node
            cur.val=target.val;
            // At this time, the node must have no left subtree , The deletion method is the same as the previous one without left subtree
            if(targetParent.left==target) {

                targetParent.left=target.right;
            }else {

                targetParent.right=target.right;
            }
        }
    }

5. Performance analysis

The insertion and deletion operations of binary search tree need progressiveness search , Search efficiency represents the performance of each operation in binary search tree , According to different insertion order , The resulting binary tree structure may also be different .
Best case ：
Get a complete binary tree
The time complexity of the search is O（$lo{g}_{2}N$）

Worst case scenario ：
Get a single branch tree
The time complexity of the search is O(N)

TreeMap and TreeSet ( These two interfaces are introduced in the following article ) namely java Using search tree to achieve Map and Set; In fact, it uses red and black trees , The red black tree is an approximately balanced binary search tree , That is, based on the binary search tree + Color and red black tree property verification , The content of red black tree will be explained later .

---
