Use openmap and ArcGIS to draw maps and transportation networks of any region, and convert OMS data into SHP format

Let's put the finished drawing first , Take Foshan as an example .

whole

details

The specific steps are as follows

Step1 Get the city ID

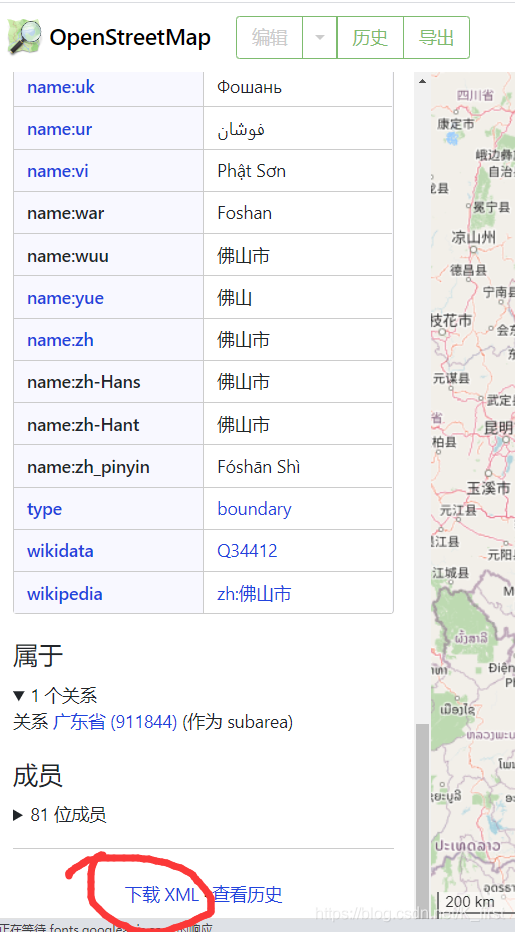

open Openmap Official website , Find the corresponding city , Click to download XML, Then open the new web page to find the city ID

Step2 Through the city ID download oms data

open http://www.overpass-api.de/index.html, Click on Query and Convert Forms, stay Overpass API Query Form Enter the code （ It is used to obtain the road network data of the city ）, among area-query ref="3603464719’’, in 360 The last number is the city you are looking for ID, Click on Query, Will download a interpreter file .

<osm-script timeout="1800" element-limit="100000000">
  <union>
    <area-query ref="3603464719"/>
    <recurse type="node-relation" into="rels"/>
    <recurse type="node-way"/>
    <recurse type="way-relation"/>
  </union>
  <union>
    <item/>
    <recurse type="way-node"/>
  </union>
  <print mode="body"/>
</osm-script>

Step3 take oms The data goes to shp data

take OMS The data goes to shp Format
open https://geoconverter.infs.ch（ Websites are slow or sometimes unusable ）, Click on file uploade

Then click the import file , stay select export format Choose from .shp File format , after convert That's all right.

So you can arcgis In the process of operation .
