Wireshark packet capture tool basic use

Catalog

Function is introduced

1 Set up local monitoring port

2 Select the network interface

3 Add filter

4 Receive data format

5 Packet meaning

5.1 Physical layer data frame Overview

5.2 Data link layer Ethernet frame header information

5.3 The Internet layer ip Baotou department information

5.4 Transport layer tcp Segment header information

6 Combined with packet capture data analysis tcp Three handshake process

6.1 TCP Three processes

6.2 tcp Message content

6.3 Data frame type

6.4 Three handshake data frames

---

Function is introduced



　　wireshark Is used to obtain network data packets , Can intercept various network packets , Show network packet details , Include http,TCP,UDP, Etc. network protocol package . notes ：wireshark Only packets can be viewed , The contents of the package cannot be modified , Or send packets .

1 Set up local monitoring port

Local open tcp server port 8887; Local open tcp client De link .

2 Select the network interface

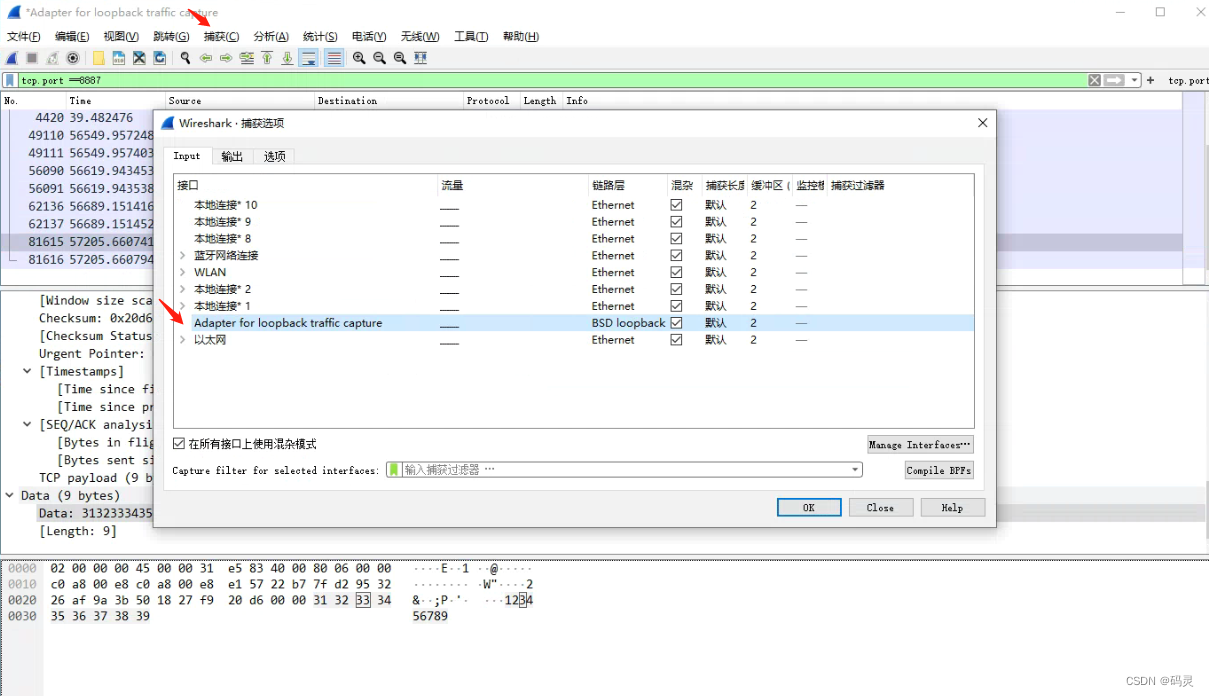

  Capture the network Select interface Adapter for loopback traffic capture, As shown in the figure below

3 Add filter

Add filter tcp.port ==8887, As shown in the figure below .

Other filters ：

        tcp-> Display only TCP Records of agreements ;

　　　　http-> Just look at HTTP Records of agreements ;

　　　　ip.src ==192.168.1.102 -> Show source address as 192.168.1.102 The record of ;

　　　　ip.dst==192.168.1.102 -> The target address is 192.168.1.10 The record of ;

　　　　ip.addr == 42.121.252.58 -> Only the communication with a host is displayed ;

　　　　tcp.port ==80-> Port is 80 Of ;

　　　　tcp.srcport == 80 -> Display only TCP The source port of the protocol is 80 Of ;

　　　　http.request.method=="GET"  -> Display only HTTP GET Methodical ;

　　　　

4 Receive data format

Receive data display , Send receive 123456789 The message is shown in the figure below

ASII Code value display

5 Packet meaning

Packet list （Packet List Pane）

　　 Display in the panel of the package list , Number , Time stamp , source address , Destination address , agreement , length , And package information .

　　 This is the most important information , Used to view each field in the agreement . and OSI The seven layer models are ： The physical layer 、 Data link layer 、 The network layer 、 Transport layer 、 The session layer 、 The presentation layer 、 application layer .

In the packet information , The meaning of each line and in OSI The corresponding relationship in the model is as follows ：

　　Frame:   Overview of data frames in physical layer   -> Corresponding OSI In the seven layer model 【 The physical layer 】

　　Ethernet II: Data link layer Ethernet frame header information   -> Corresponding OSI In the seven layer model 【 Data link layer 】

　　Internet Protocol Version 4: The Internet layer IP Baotou department information   -> Corresponding OSI In the seven layer model 【 The network layer 】

　　Transmission Control Protocol:  Transport layer T Data segment header information for , Here is TCP  -> Corresponding OSI In the seven layer model 【 Transport layer 】

Hypertext Transfer Protocol:  Application layer information , Here is HTTP agreement   -> Corresponding OSI In the seven layer model 【 application layer 】

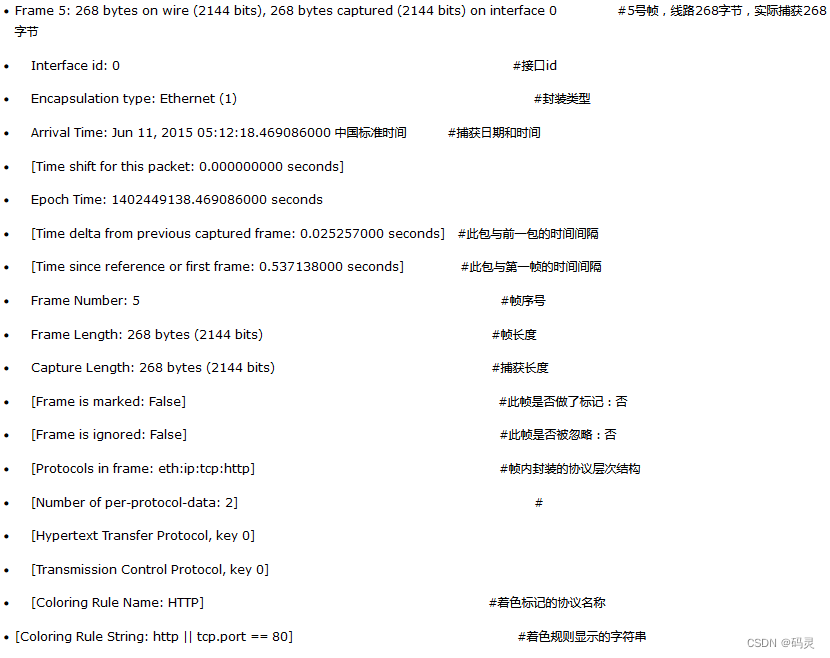

5.1 Physical layer data frame Overview

5.2 Data link layer Ethernet frame header information

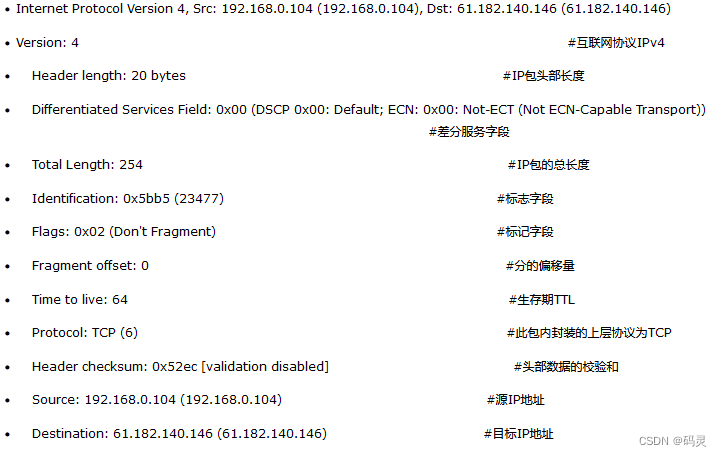

5.3 The Internet layer ip Baotou department information

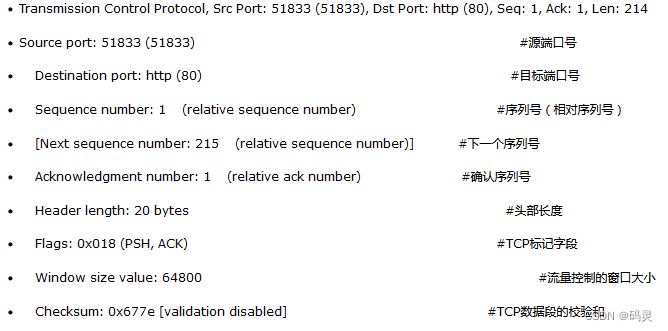

5.4 Transport layer tcp Segment header information

6 Combined with packet capture data analysis tcp Three handshake process

6.1 TCP Three processes

First of all, be clear TCP Three processes , As shown in the figure below

TCP The three handshakes are as follows ：

The first handshake ： When establishing a connection , The client sends syn package （syn=j） To the server , And enter SYN SENT state , Wait for server to confirm ;SYN： That is, the synchronization sequence number （Synchronize Sequence Numbers）;

The second handshake ： Server received syn package , Must confirm customer's SYN（ack=j+1）, At the same time, I also send a SYN package （syn=k）, namely SYN+ACK package , At this time, the server enters SYN RECV state ;

The third handshake ： Client receives server's SYN+ACK package , Send confirmation package to server ACK（ack=k+1）, This package has been sent , Client and server access ESTABLISHED（TCP Successful connection ） state , Complete three handshakes .

6.2 tcp Message content

6.3 Data frame type

574 Frames are sent by the client to the server TCP Request to establish a connection . The label is SYN.

619 Frame is the process that the server responds to the confirmation package to the client after receiving the request . The label is SYN,ACK.

620 Frame is the process that the client responds to the server sending confirmation packets , A connection will be established to the server . The label is ACK.

663 Frames are sent by the client to the server HTTP The process of requesting content . The label is GET.

667 Frame is the process that the server responds to the client request , Receive a request . The label is ACK.

674 Frame is the process of the server responding to the client .

6.4 Three handshake data frames

　 First handshake packet , The client sends one TCP, Sign bit is SYN, Serial number for 0, Request connection on behalf of client

（ The first handshake ）

　 Second handshake packet , Server sends back confirmation package , Sign bit is SYN,ACK. Serial number to be confirmed (Acknowledgement Number) Set as customer's ISN（ Initial serial number ） Add 1 With . namely 0+1=1, As shown in the figure below

（ The second handshake ）

　 Packets for the third handshake , Client sends confirmation package again (ACK) SYN Sign bit is 0,ACK Sign bit is 1. And send the server ACK S / N field of +1, Send to the opposite party in the OK field . As shown in the figure below

（ The third handshake ）

  That's all  wireshark Medium tcp Three handshake process .
