Preface

In reality , Server downtime is very common , Server downtime , our redis The service stopped naturally , It has great security risks , therefore redis It is necessary to build master-slave servers , It can not only realize the separation of reading and writing , It can also form a powerful multi-level server cluster architecture ！

The concept of master-slave

• One master You can have multiple slave, One slave You can have more than one slave, Go on like this , A powerful multi-level server cluster architecture can be formed .
• master To write data ,slave To read data , Statistics ： The reading and writing ratio of the website is 10:1, Therefore, it is necessary to build master-slave .
• Read and write separation can be realized through master-slave configuration .

notes ：master and slave It's all one redis example （redis service ）, The slave server can synchronize the data of the master server through the logging mechanism .

Build master slave （windows System ）

Here I set up a slave server , Multiple operation methods are the same ！

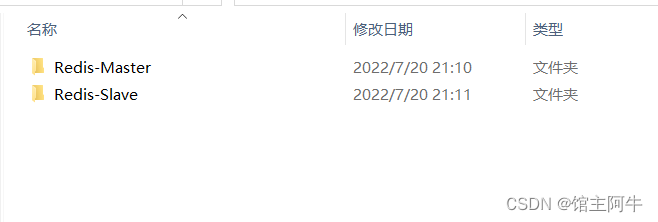

Pictured , Put your redis Make a copy of the directory and put it in the same folder , Let one be the main service for , The other is when the slave server .
For the master server , Don't make any changes , What needs to be changed is Redis-Slave From the configuration file in the server .
open Redis-Slave Inside redis.windows.conf

You can see bind The binding of ip as well as port Port number , Because it is built on the same computer , therefore ip Don't modify , In the future, I will encounter multiple computers , Just on this basis ip It can also be changed to the corresponding computer .
Because both servers are under the same system of the same computer ,bind It's all local. IP Address 127.0.0.1, Two independent Redis example , We can make the ports different , Then you can start it independently .
Pictured , We set the port number of the slave server to 6378

It's set up from the server , Next is master-slave Redis Service binding , Start the master-slave service .

open Redis-slave Profile in folder , stay port Add a line below the line , Used to bind the primary server IP Address and port port ：

slaveof 127.0.0.1 6379

Master slave after saving Redis Service binding is complete ！
At the same time, in order to prevent the conflict between the master server and the slave server , Here we will configure rename from the server （ because redis-server The default is redis.windows.conf）.
At this time, the command to start from the server is ：

redis-server redis.windows-slave.conf

test

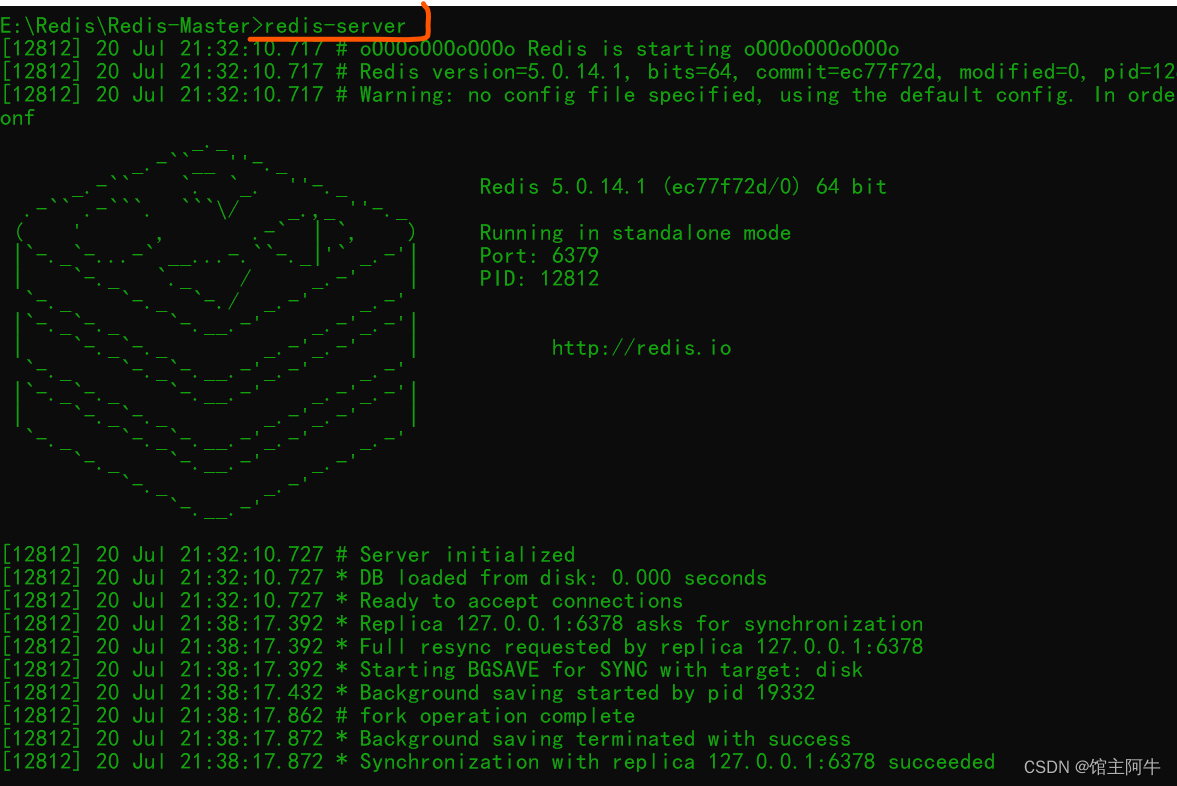

Start the master-slave server

You can see that the startup is successful and the master-slave binding is also ok Of ·, Next, start their respective clients .
In order to prevent conflict , Add the port number when starting ：

Lord ：redis-cli -p 6379
from ：redis-cli -p 6378

Client started successfully ！

Next, we test the read-write synchronization and separation of master-slave Services ：

Pictured , We added a field in the main server , Let's see if we can read from the server ：

Sure , There is no problem with master-slave synchronization ！

We know that the slave server is read-only , Let's verify ：

You can see that the test was successful , Cannot write from server ！
