Vs2019 configuring Qt5 development environment
2022-07-25 02:00:00 【Miaowei】
Qt List of articles
List of articles
- Qt List of articles
- Preface
- One 、 Download and install visual Studio2019
- Two 、Qt install
- 3、 ... and 、 install QT visual Studio Tool Extended installation
- Four 、qt visual studio tools Plug-in configuration
- 5、 ... and 、 newly build vs Next qt project
- 6、 ... and 、 summary
- 7、 ... and 、 Reference resources
Preface
at present visual studio IDE It is almost the strongest development on the surface IDE, Especially the development c++ Projects such as , With its powerful debugging tools, it has become one of the development tools that many developers must choose . This article mainly introduces how to use visual studi2019 To configure qt5 development environment , And how to create qt project , In this paper, the example code is introduced in detail , It has certain reference value , Interested friends can refer to .
One 、 Download and install visual Studio2019
1、 Get into visual studio Download from the official website community 2019 edition （ Installers ）.

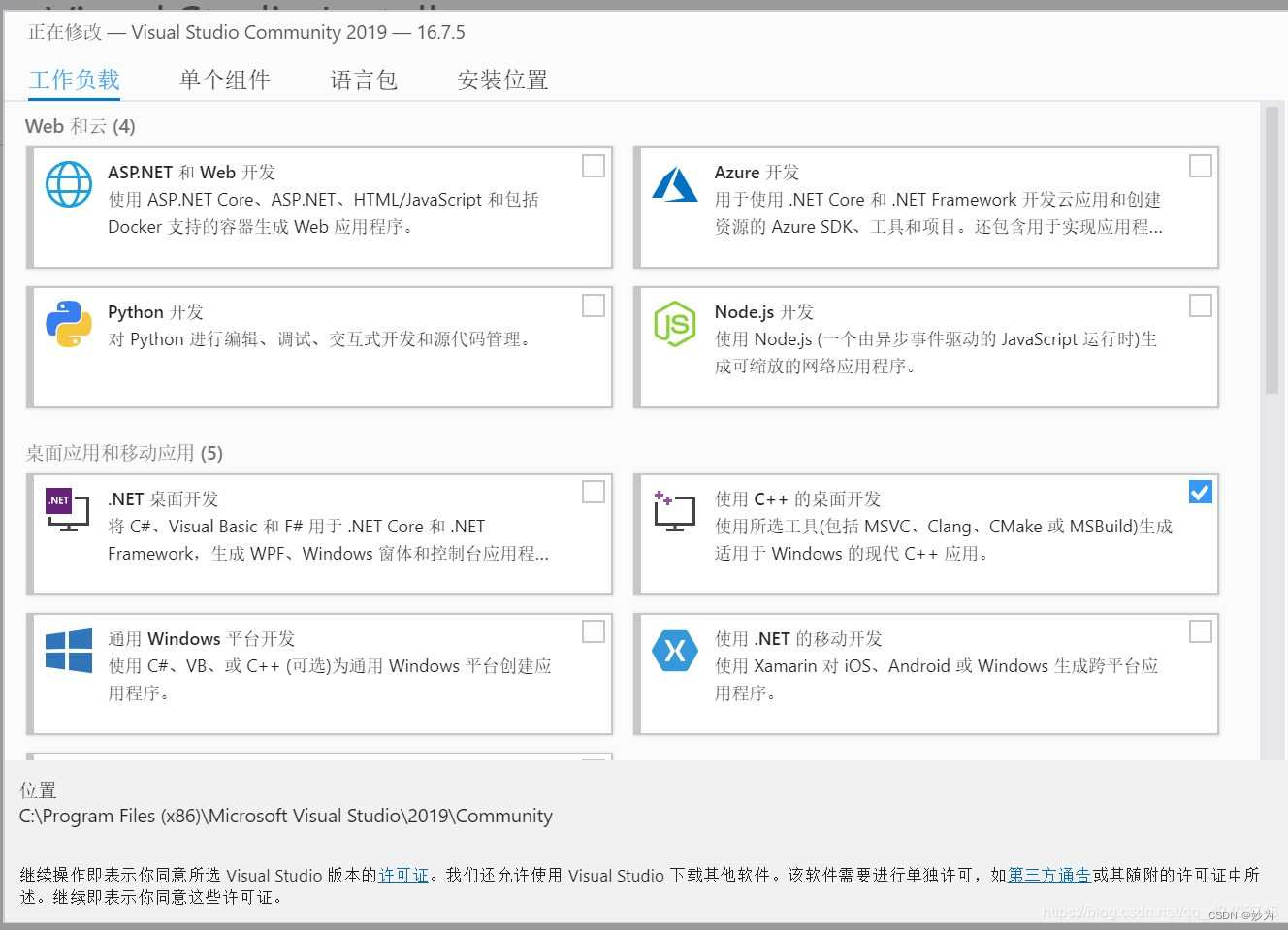

2、 Start after download visual studio The installer for , Select the required development tools to install .
Two 、Qt install
1、 Download here QT5.14.2 Version of qt.
Qt5.12.9 Download address
2. Start the installation when the download is complete .
3、 ... and 、 install QT visual Studio Tool Extended installation

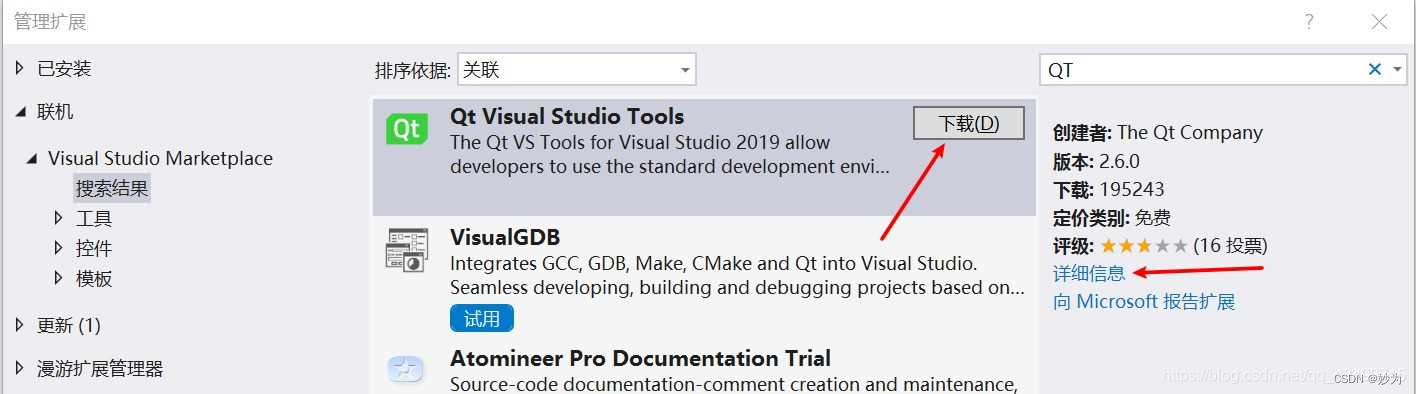

2、 From the menu bar, click – expand ---- Management development , Click online after opening the interface , Search in search maniacs qt, Click to download qt visual studio tools.
3、 close vs2019 after , Install the downloaded plug-in .
Four 、qt visual studio tools Plug-in configuration

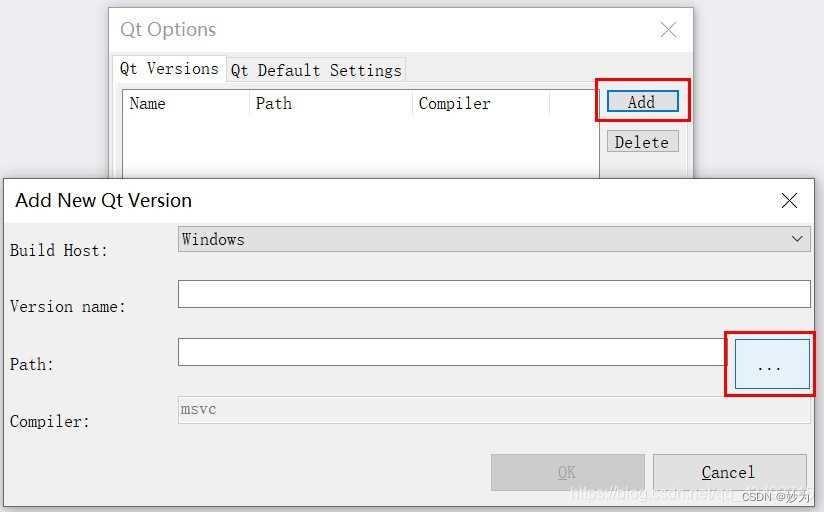

2、 eject qt options Click after the interface Add The button pops up the following interface , Click on path Leftmost button .
3、 add to qt Installation directory msvc2017 and msvc2017-64 Save the two compilation platforms to complete the configuration .
5、 ... and 、 newly build vs Next qt project
1、 open vs Then click new project .
2、 choice qt widgets application Project template . Create project
3、 After setting, you can create .

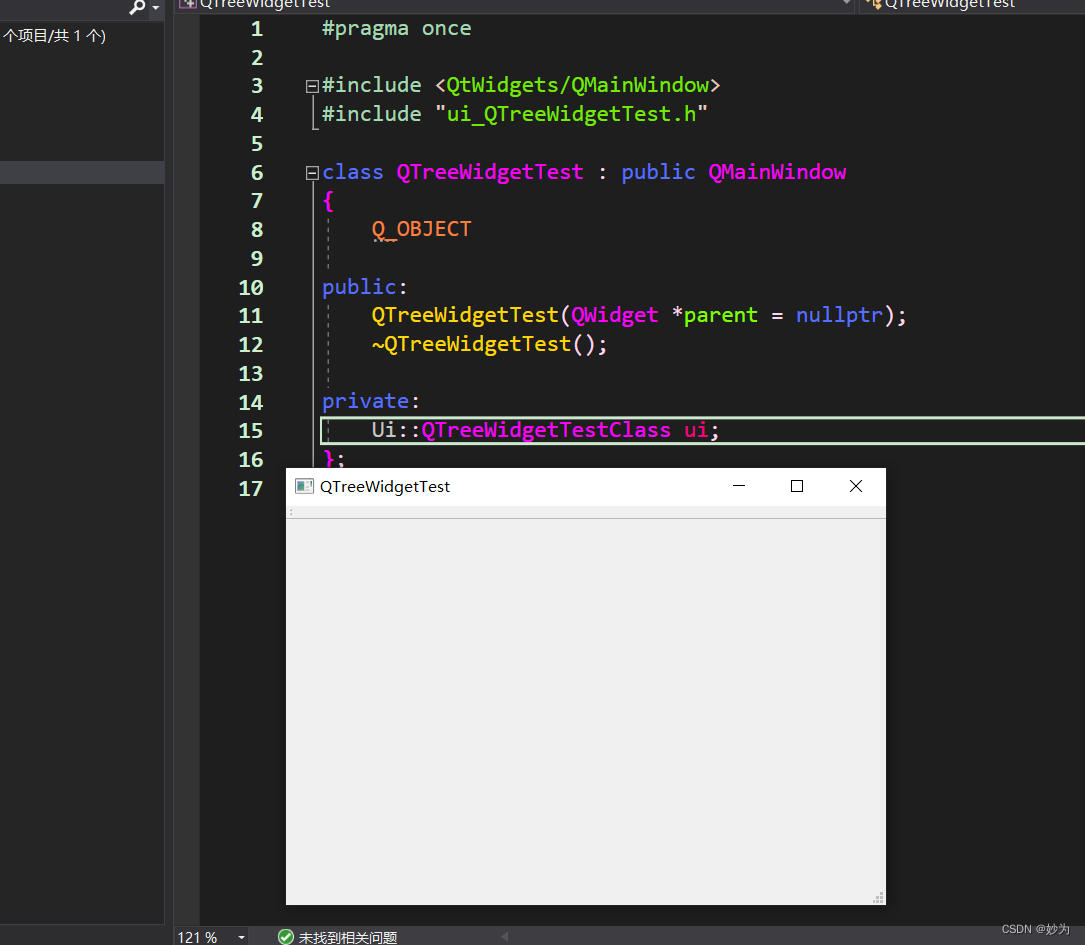

4、 Click Run to complete the project creation .
5、 Open in the solution .ui The file can be used qt The designer designs the interface .
6. Operation error reporting
resolvent ： hold Qt5Core.dll,Qt5Gui.dll,Qt5Widgets.dll Copied to the exe Under the table of contents
6、 ... and 、 summary
This is about vs2019 To configure Qt5 development environment ( Text course ) This is the end of the article , Thank you.
7、 ... and 、 Reference resources
