Jenkins continuous integration environment build 8 (configure mailbox server to send build results)

2022-06-30 02:03:00 【Public righteousness】

List of articles

1. install Email Extension plug-in unit
2. Jenkins Set mailbox related parameters
3. Prepare the email content
4. To write Jenkinsﬁle Send mail after adding build

1. install Email Extension plug-in unit

Insert picture description here

2. Jenkins Set mailbox related parameters

Manage Jenkins -> Conﬁgure System
Insert picture description here

With this option setting
Insert picture description here

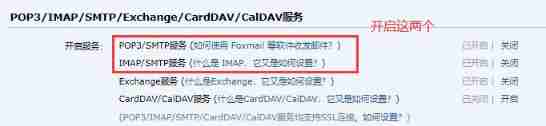

Before adding an email address , First open the mailbox SMTP function

Get the authorization code ：

LW**N*****GDL**V

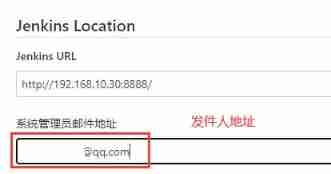

Jenkins Local system configuration
Insert picture description here

Mailbox parameter settings
Insert picture description here

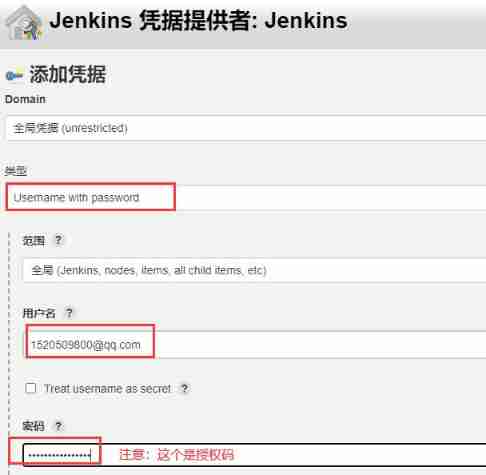

Add credentials

Configuration testing
Insert picture description here

test result
Insert picture description here

3. Prepare the email content

Switch commit Branch master

If you switch to... In another branch master.

Write... In the project root directory email.html, And push the files to Gitlab
Insert picture description here email.html Content

<!DOCTYPE html>
<html>
<head>
    <meta charset="UTF-8">
    <title>${ENV, var="JOB_NAME"}- The first ${BUILD_NUMBER} Secondary build log </title>
</head>

<body leftmargin="8" marginwidth="0" topmargin="8" marginheight="4" offset="0">
<table width="95%" cellpadding="0" cellspacing="0" style="font-size: 11pt; font-family: Tahoma, Arial, Helvetica, sans- serif">
    <tr>
        <td>( This message was sent automatically by the program , Please do not reply ！)</td>
    </tr>
    <tr>
        <td><h2>
            <font color="#0000FF"> The build results  - ${BUILD_STATUS}</font>
        </h2></td>
    </tr>
    <tr>
        <td><br />
            <b><font color="#0B610B"> Build information </font></b>
            <hr size="2" width="100%" align="center" /></td>
    </tr>
    <tr>
        <td>
            <ul>
                <li> Project name &nbsp;：&nbsp;${PROJECT_NAME}</li>
                <li> Build number &nbsp;：&nbsp; The first ${BUILD_NUMBER} Time to build </li>
                <li> trigger ：&nbsp;${CAUSE}</li>
                <li> The build log ：&nbsp;<a href="${BUILD_URL}console">${BUILD_URL}console</a></li>
                <li> structure &nbsp;&nbsp;Url&nbsp;：&nbsp;<a href="${BUILD_URL}">${BUILD_URL}</a></li>
                <li>  work   do   Objective   record  &nbsp;：&nbsp;<a href="${PROJECT_URL}ws">${PROJECT_URL}ws</a></li>
                <li> project &nbsp;&nbsp;Url&nbsp;：&nbsp;<a href="${PROJECT_URL}">${PROJECT_URL}</a></li>
            </ul>
        </td>
    </tr>
    <tr>
        <td><b><font color="#0B610B">Changes Since Last Successful Build:</font></b>
            <hr size="2" width="100%" align="center" /></td>
    </tr>
    <tr>
        <td>
            <ul>
                <li>  calendar   The history of   change   more   remember   record  : <a href="${PROJECT_URL}changes">${PROJECT_URL}changes</a></li>
            </ul> ${CHANGES_SINCE_LAST_SUCCESS,reverse=true, format="Changes for Build #%n:<br />%c<br />",showPaths=true,changesFormat="<pre>[%a]<br />%m</pre>",pathFormat="&nbsp;&nbsp;&nbsp;&nbsp;%p"}
        </td>
    </tr>
    <tr>
        <td><b>Failed Test Results</b>
            <hr size="2" width="100%" align="center" /></td>
    </tr>
    <tr>
        <td><pre style="font-size: 11pt; font-family: Tahoma, Arial, Helvetica, sans-serif">$FAILED_TESTS</pre>
            <br /></td>
    </tr>
    <tr>
        <td><b><font color="#0B610B"> The build log  ( Last  100 That's ok ):</font></b>
            <hr size="2" width="100%" align="center" /></td>
    </tr>
    <tr>
        <td><textarea cols="80" rows="30" readonly="readonly" style="font-family: Courier New">${BUILD_LOG,
maxLines=100}</textarea>
        </td>
    </tr>
</table>
</body>
</html>

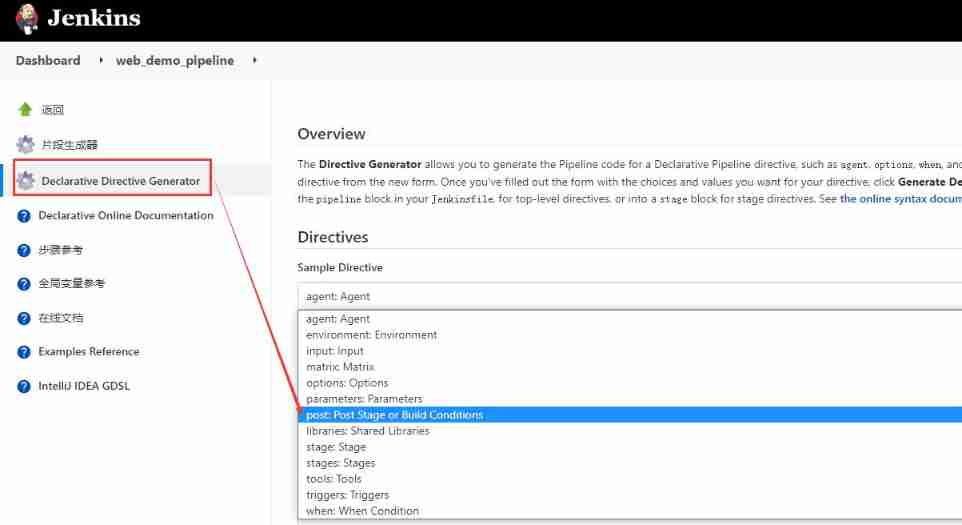

Get the help guide for variables
Insert picture description here

Mail template submitted to gitlab Of master On the branch
Insert picture description here

4. To write Jenkinsﬁle Send mail after adding build

4.2 Jenkinsfile Content

primary Jenkinsfile

pipeline {

    agent any

    stages {

        stage('pull code') {

            steps {

                  checkout([$class: 'GitSCM', branches: [[name: '*/${branch}']], extensions: [], userRemoteConfigs: [[credentialsId: '0b127895-eb97-4f8f-b471-1277e5549b54', url: '[email protected]:test-group/web_demo.git']]])
            }
        }
        stage('build project') {

            steps {

                sh 'mvn clean package'
            }
        }
        stage('deploy item') {

            steps {

                deploy adapters: [tomcat8(credentialsId: '1cf9c5dd-8e2d-4eb6-8c00-bb60e0f027ca', path: '', url: 'http://192.168.10.40:8080/')], contextPath: null, war: 'target/*.war'
            }
        }
    }
}

After adding the steps related to mailbox notification Jenkinsfile

pipeline {

    agent any

    stages {

        stage('pull code') {

            steps {

                  checkout([$class: 'GitSCM', branches: [[name: '*/${branch}']], extensions: [], userRemoteConfigs: [[credentialsId: '0b127895-eb97-4f8f-b471-1277e5549b54', url: '[email protected]:test-group/web_demo.git']]])
            }
        }
        stage('build project') {

            steps {

                sh 'mvn clean package'
            }
        }
        stage('deploy item') {

            steps {

                deploy adapters: [tomcat8(credentialsId: '1cf9c5dd-8e2d-4eb6-8c00-bb60e0f027ca', path: '', url: 'http://192.168.10.40:8080/')], contextPath: null, war: 'target/*.war'
            }
        }
    }
    post {

        always {

            emailext(
            subject: ' Build notifications ：${PROJECT_NAME} - Build # ${BUILD_NUMBER} - ${BUILD_STATUS}!',body: '${FILE,path="email.html"}', to: '[email protected]'
            )
        }
    }
}
