One 、 Related knowledge

NAT（ Network address translation ） Is the one IP The technology of transferring an address domain to another address domain

NAT The emergence of technology is to solve the decreasing IP Address problem , Multiple internal IP The address is mapped to a few or even one public network address , In this way, the host in the internal network can be realized （ Usually a private address ） Transparent access to external network resources . meanwhile , The host of the external network also selectively accesses the internal network .

NAT It can make the internal and external networks next door , Play a certain safety role

What is private address and public address ？

answer ： Private address can only be used inside an organization or institution , Can't be in Internet Use... In scope , Its scope is 10.0.0.0~10.255.255.255、172.16.0.0~172.31.255.255、192.168.0.0~192.168.255.255

Relatively speaking , Other scope IP The address is the public address 、 Routable address or legal address , Must formally report to Internet Registered Organize the application and use according to the assigned address range .

What is internal network ？

answer ： Refers to those networks owned by institutions or enterprises , And NAT Defined on the router inside Interface connection .

What is an external network ？
answer ： Refers to all networks except the internal network , Often Internet The Internet , And NAT Defined on the router outside Interface connection .

What is the internal local address ？

answer ： Used by internal network host IP Address , These addresses are generally private IP Address , They cannot be directly in Internet On route , Therefore, it cannot be directly used for Internet The interview of , Must be through network address translation （NAT）, In legal IP Address identity to access Internet.

What is the internal global address ？
answer ： The public used by the internal network IP Address , These addresses are directed to ICANN Public ownership that can be obtained only after application IP Address , When using the internal local address, the host should be connected with Internet When communication ,NAT The address used in the conversion

When is the external local address ？

answer ： Used by external network hosts IP Address , These addresses are not necessarily public IP Address .

What is the external global address ？

Used by external network hosts IP Address , These addresses are globally routable public IP Address .

NAT Working schematic diagram ：

NAT Application environment ：

1、 Use NAT Technology is isolated from external networks , There is a certain degree of security

2、 adopt NAT This function enables multiple users to share a legal IP With the outside Internet communicate .

3、 If there are two internal networks that need to be interconnected , When the internal private address ranges they use overlap , You can also use NAT Technology conversion .

NAT Divided into three categories ：

1、 Static address translation ;2、 Dynamic address translation ;3、 Address port conversion

  Two 、 Example

1、（ static state NAT） There are two in the internal network of an enterprise PC machine , They use internal local addresses . Static address translation should be configured correctly , Make these two PC Access to Internet. among PC1 and PC2 The internal global addresses used are 210.68.166.2 and 210.68.166.3, Router internal network interface f0/0 Of IP The address is 192.168.10.1, External network interface s1/2 Of IP The address is 210. 68.166.1.

topology ：

Code ：

 NAT Router ：

Router>en

Router#conf t

Enter configuration commands, one per line. End with CNTL/Z.

Router(config)#host

Router(config)#hostname NAT

NAT(config)#int

NAT(config)#interface g

NAT(config)#interface gigabitEthernet 0/1

NAT(config-if)#ip add

NAT(config-if)#ip address 192.168.10.1 255.255.255.0

NAT(config-if)#no sh

NAT(config-if)#no shutdown

NAT(config-if)#

%LINK-5-CHANGED: Interface GigabitEthernet0/1, changed state to up

%LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEthernet0/1, changed state to up

NAT(config-if)#e

NAT(config-if)#exit

NAT(config)#interface gigabitEthernet 0/0

NAT(config-if)#ip address 210.68.166.1 255.255.255.0

NAT(config-if)#no sh

NAT(config-if)#no shutdown

NAT(config-if)#

%LINK-5-CHANGED: Interface GigabitEthernet0/0, changed state to up

NAT(config-if)#e

NAT(config-if)#exit

NAT(config)#

%LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEthernet0/0, changed state to up

NAT(config)#ip na

NAT(config)#ip nat

NAT(config)#ip nat i

NAT(config)#ip nat inside s

NAT(config)#ip nat inside source s

Configure static NAT

NAT(config)#ip nat inside source static 192.168.10.2 210.68.166.2

NAT(config)#ip nat inside source static 192.168.10.3 210.68.166.3

NAT(config)#interface gigabitEthernet 0/1

NAT(config-if)#ip nat inside The two interfaces should be set respectively inside and outside

NAT(config-if)#e                  Connected to the intranet is inside, Connected to the Internet is outside

NAT(config-if)#exit

NAT(config)#interface gigabitEthernet 0/0

NAT(config-if)#ip nat outside

NAT(config-if)#e

NAT(config-if)#exit

NAT(config)#end

NAT#

%SYS-5-CONFIG_I: Configured from console by console

see NAT

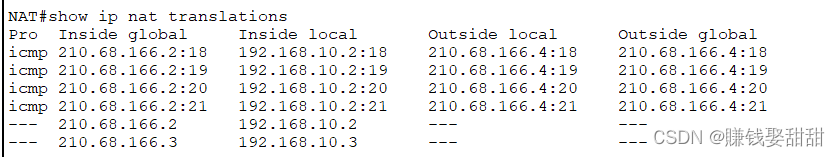

NAT#show ip nat translations

Pro Inside global Inside local Outside local Outside global

--- 210.68.166.2 192.168.10.2 --- ---

--- 210.68.166.3 192.168.10.3 --- ---

---

Internet Router （ As a Internet, Only need to be equipped with interfaces IP Address ）

Router>en

Router#conf t

Enter configuration commands, one per line. End with CNTL/Z.

Router(config)#hos

Router(config)#hostname Internet

Internet(config)#in

Internet(config)#interface g

Internet(config)#interface gigabitEthernet 0/0

Internet(config-if)#ip add

Internet(config-if)#ip address 210.68.166.4 255.255.255.0

Internet(config-if)#no sh

Internet(config-if)#no shutdown

Internet(config-if)#

%LINK-5-CHANGED: Interface GigabitEthernet0/0, changed state to up

%LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEthernet0/0, changed state to u

Internet(config-if)#e

Internet(config-if)#exit

---

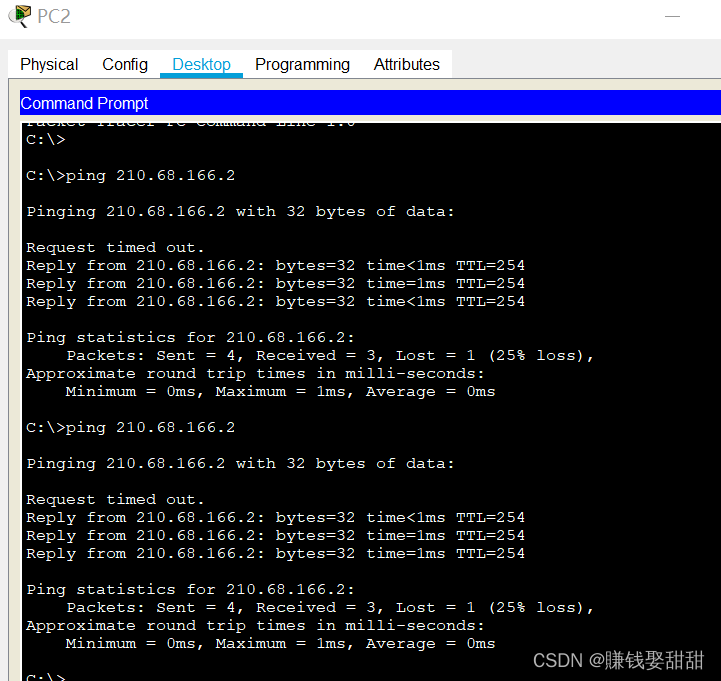

result ： Originally with Internet  ping no , To configure NAT After that, we can

The host is following Internet ping when ,192.168.10.2 mapping 210.68.166.2

---

2、（ dynamic NAT） Suppose that the internal local address used by an enterprise LAN is 192.168.10.0/24, The internal global address range applied for is 210.68.166.5～210.68.166.16, It is required to correctly configure the dynamic on the border router NAT transformation , To realize LAN and Internet Communication for .

topology ：

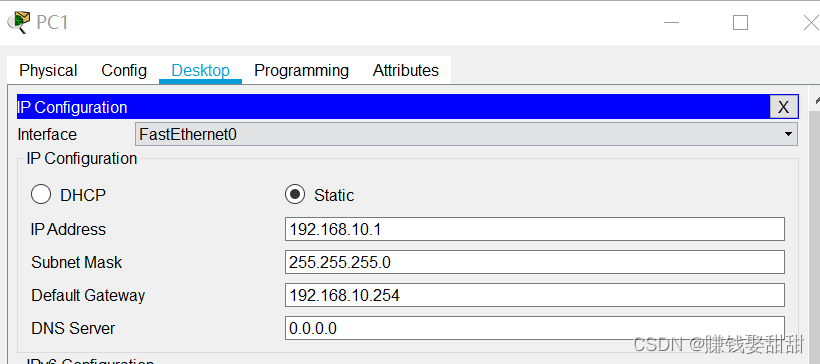

Host settings



Code ：

NAT：

Router>en

Router#conf t

Enter configuration commands, one per line. End with CNTL/Z.

Router(config)#hos

Router(config)#hostname NAT

NAT(config)#in

NAT(config)#interface g

NAT(config)#interface gigabitEthernet 0/1

NAT(config-if)#ip add

NAT(config-if)#ip address 192.168.10.254

NAT(config-if)#ip address 192.168.10.254 255.255.255.0

NAT(config-if)#no sh

NAT(config-if)#no shutdown

NAT(config-if)#

%LINK-5-CHANGED: Interface GigabitEthernet0/1, changed state to up

%LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEthernet0/1, changed state to up

NAT(config-if)#e

NAT(config-if)#exit

NAT(config)#interface gigabitEthernet 0/0

NAT(config-if)#ip add

NAT(config-if)#ip address 210.68.166.1 255.255.255.0

NAT(config-if)#no sj

NAT(config-if)#no sh

NAT(config-if)#no shutdown

NAT(config-if)#

%LINK-5-CHANGED: Interface GigabitEthernet0/0, changed state to up

NAT(config-if)#e

NAT(config-if)#exit

NAT(config)#

%LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEthernet0/0, changed state to up

dynamic NAT Set up , The three sentences marked in red are the key

NAT(config)#ip nat pool abc 210.68.166.5 ?

A.B.C.D End IP address

NAT(config)#ip nat pool abc 210.68.166.5 210.68.166.16?

A.B.C.D

NAT(config)#ip nat pool abc 210.68.166.5 210.68.166.16 ne

NAT(config)#ip nat pool abc 210.68.166.5 210.68.166.16 netmask ?

A.B.C.D Network mask

NAT(config)#ip nat pool abc 210.68.166.5 210.68.166.16 netmask 255.255.255.0

（ To build a NAT Mapping address pool , Range from 210.68.166.5~210.68.166.16, Finally, the mask ）

NAT(config)#ac

NAT(config)#access-list 1 p

NAT(config)#access-list 1 permit 192.168.10.0 0.0.0.255

NAT(config)#ip n

NAT(config)#ip na

NAT(config)#ip nat

NAT(config)#ip nat i

NAT(config)#ip nat inside s

NAT(config)#ip nat inside source l

NAT(config)#ip nat inside source list 1 p

NAT(config)#ip nat inside source list 1 pool abc

NAT(config)#in

NAT(config)#interface g

Set the access of the interface

NAT(config)#interface gigabitEthernet 0/1

NAT(config-if)#ip nat

NAT(config-if)#ip nat i

NAT(config-if)#ip nat inside

NAT(config-if)#interface gigabitEthernet 0/0

NAT(config-if)#ip nat outside

NAT(config-if)#e

NAT(config-if)#exit

NAT(config)#end

NAT#

%SYS-5-CONFIG_I: Configured from console by console

host ping Internet After checking the address translation

NAT#show ip nat translations

Pro Inside global Inside local Outside local Outside global

icmp 210.68.166.7:5 192.168.10.3:5 210.68.166.2:5 210.68.166.2:5

icmp 210.68.166.7:6 192.168.10.3:6 210.68.166.2:6 210.68.166.2:6

icmp 210.68.166.7:7 192.168.10.3:7 210.68.166.2:7 210.68.166.2:7

icmp 210.68.166.7:8 192.168.10.3:8 210.68.166.2:8 210.68.166.2:8

icmp 210.68.166.8:13 192.168.10.1:13 210.68.166.2:13 210.68.166.2:13

icmp 210.68.166.8:14 192.168.10.1:14 210.68.166.2:14 210.68.166.2:14

icmp 210.68.166.8:15 192.168.10.1:15 210.68.166.2:15 210.68.166.2:15

icmp 210.68.166.8:16 192.168.10.1:16 210.68.166.2:16 210.68.166.2:16

icmp 210.68.166.9:5 192.168.10.2:5 210.68.166.2:5 210.68.166.2:5

icmp 210.68.166.9:6 192.168.10.2:6 210.68.166.2:6 210.68.166.2:6

icmp 210.68.166.9:7 192.168.10.2:7 210.68.166.2:7 210.68.166.2:7

icmp 210.68.166.9:8 192.168.10.2:8 210.68.166.2:8 210.68.166.2:8

---

  result ： All the hosts are Ping through Internet, Because it is dynamic address translation , So the external address assigned to the host is random .

---

3、 Port address translation ( It's similar to dynamic address translation , It just needs to be in NAT(config)#ip nat inside source list 1 pool abc Add after overload):

example ： Make the above dynamic NAT Change the example of , All internal addresses are mapped to external addresses 210.68.166.5, At this time, we need to use port reuse NAT

topology ：

Code and dynamics NAT Mostly the same , The following points out only the differences ：

NAT(config)#ip nat pool abc 210.68.166.5 210.68.166.5 n

NAT(config)#ip nat pool abc 210.68.166.5 210.68.166.5 netmask 255.255.255.0 （ The start address is the same as the end address ）

NAT(config)#access-list 1 permit 192.168.10.0 0.0.0.255

NAT(config)#ip nat

NAT(config)#ip nat i

NAT(config)#ip nat inside s

NAT(config)#ip nat inside source l

NAT(config)#ip nat inside source list 1 p

NAT(config)#ip nat inside source list 1 pool abc ?

overload Overload an address translation

<cr>

NAT(config)#ip nat inside source list 1 pool abc o

NAT(config)#ip nat inside source list 1 pool abc overload  （NAPT Key words of ）

---

  result : Three hosts are Ping Internet I use it all the time 210.68.166.5 The address of

---
