[FreeRTOS] 07 binary semaphore and count semaphore

This section begins with freeRTOS The amount of signal , Let's start with the most basic binary semaphore , Counting semaphores will be explained later , Finally, the difference between semaphore and critical section protection .

1） What is semaphore

Semaphore is a method used to solve resource sharing and process synchronization in operating system .

Give two examples to illustrate .

Resource sharing ： Suppose we have a serial port in our system , Each task sends data through it , This serial port can be regarded as a shared resource ; If you let the task access the serial port at will without control , It is likely that a task will send part of the data , Serial port resources are preempted by other tasks , New data sent ; This causes a shared resource error . We hope that when a task accesses the serial port , Other tasks that need to access the serial port are waiting , Until the task of occupying the serial port is used up, and the serial port resources are released , Then it's the next task to visit .

Semaphores are used to deal with such problems , We can make an agreement , Before accessing serial port resources , Each task competes to obtain semaphore first , The task that obtains the semaphore can access the serial port , Other tasks are （ Semaphore ） Blocking ; Wait until the first task is visited , It releases semaphores , Let the blocked tasks compete again , It's the same after that , The task of obtaining the semaphore can obtain the right to use the serial port . In this way, we can solve the problem of resource sharing through semaphores .

Synchronization tasks ： Semaphores are simple for task synchronization , If there is a sequence requirement between multiple tasks , Required tasks A Completed the event a, To perform a task B The function in b, So we can be in the event a Then release a semaphore , And in the b Wait for this semaphore before executing , Then the task is guaranteed A、B Events in are executed synchronously .

Semaphores act a bit like global identifiers , We can also use global variables to share resources and synchronize tasks , Only the semaphore also has the function of blocking tasks , It is more convenient to use in the operating system .

2） Binary semaphore

Binary semaphore just as the name suggests , It has only two states , Being occupied can be seen as 0 state , Being unoccupied can be regarded as 1 state .

freeRTOS Provided binary semaphore , It is mainly operated by the following functions ：

Create a binary semaphore ：

SemaphoreHandle_t  xSemaphoreCreateBinary(void); // Create a binary semaphore

SemaphoreHandle_t  xSemaphoreCreateBinaryStatic( StaticSemaphore_t *pxSemaphoreBuffer ); // Create binary semaphores statically , You need to specify the address space of the semaphore

Release semaphore ：

BaseType_t xSemaphoreGive( SemaphoreHandle_t xSemaphore ); // Release semaphore

BaseType_t xSemaphoreGiveFromISR( SemaphoreHandle_t xSemaphore, signed BaseType_t *pxHigherPriorityTaskWoken); // Release semaphores from interrupts , The return value of the latter parameter indicates whether a high priority task is ready , If there is , You need to switch tasks

Acquisition semaphore ：

BaseType_t xSemaphoreTake( SemaphoreHandle_t xSemaphore, TickType_t xTicksToWait ); // Acquisition semaphore , The latter parameter is the blocking timeout

BaseType_t xSemaphoreTakeFromISR(SemaphoreHandle_t  xSemaphore, BaseType_t *pxHigherPriorityTaskWoken); // Get semaphore in interrupt

We use an example to illustrate how to use binary semaphores ：

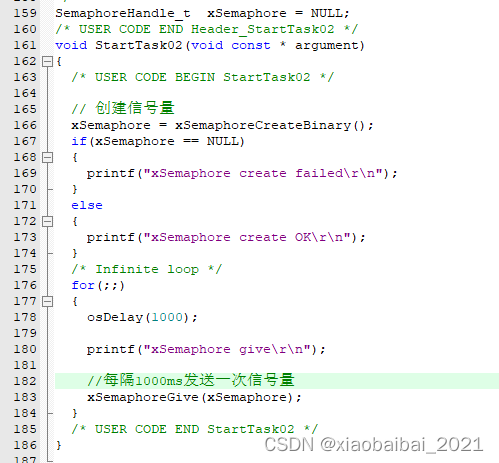

Task02 Used to create semaphores , And every 1s Send a semaphore

Task03 Wait for the semaphore , Once you get , Then print the prompt ：

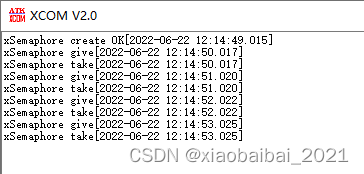

The running results of this example are as follows , It can be found from the time stamp printed ,Task02 Once the semaphore is sent ,Task03 A printout is made immediately , Same as the expected operation results ：

If you want to send a semaphore in an interrupt , You can write the code as follows ：

The two selected lines are the transmitted semaphores , And deal with situations where high priority tasks are ready .

3） Count the semaphore

freeRTOS Count semaphores provided in , It is different from binary semaphore , It can record the number of times the semaphore is sent , That is to say, the state of the semaphore can be more than 0 and 1, It can be a natural number , That is, it can indicate that the number of resources is greater than 1 The situation of .

such as , We have a memory space , share 10 Bytes , Then we can use an initial value of 10 Count semaphores to manage , Every space used , The semaphore is reduced 1; Every time you release a space , Semaphore plus 1; The semaphore is greater than 0, It means there is space available ; The semaphore is reduced to 0, It means there is no space available .

It can be said that binary semaphore is a special case of counting semaphore , Binary semaphore is the maximum count value 1 Count semaphore .

freeRTOS Count semaphore provided , It is mainly operated by the following functions ：

Create a count semaphore ：

SemaphoreHandle_t xSemaphoreCreateCounting(UBaseType_t uxMaxCount, UBaseType_t uxInitialCount ); // Create a count semaphore , The two parameters are ： Maximum count 、 Initial value

SemaphoreHandle_t xSemaphoreCreateCountingStatic( UBaseType_t uxMaxCount, UBaseType_t  uxInitialCount, StaticSemaphore_t *  pxSemaphoreBuffer );// Create count semaphores in static form , You need to specify the address space of the semaphore

Release semaphore 、 Get the function of semaphore , Same as binary semaphore , I won't repeat it here .

When using count semaphores , To change the following macro definition to 1：

#define configUSE_COUNTING_SEMAPHORES 1

We also use an example to illustrate how to use counting semaphores ：

stay Task02 Count semaphores are defined in , And initialize to 5, After every 1s Send a semaphore ：

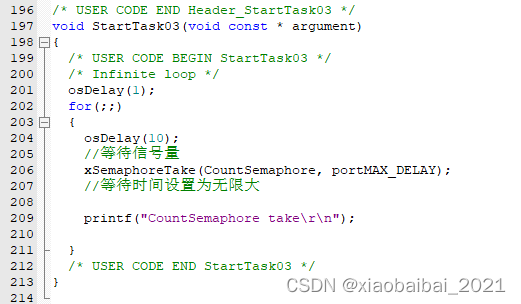

Task03 Waiting for semaphores in the , And delay for a short time , For easy observation of printed information ：

The code runs as follows ：

You can see , stay Task02 The semaphore is created and initialized to 5 after ,Task03 Yes 5 Time ; After every 1 second Task02 Send a semaphore ,Task03 Do it once ：

4） Relationship between semaphore and critical segment

In the use of semaphores to protect shared resources , We found that , Shared resources protected by semaphores , It is similar to the critical section mentioned in the previous section , The purpose is to protect a piece of code from accidental access .

The difference is , The protection of critical zone is more strict , Once it is protected , Other interrupts 、 No task will be performed , You cannot exit until the current task is completed ; The protection of semaphores is not so strict , It limits only those tasks that wait for this semaphore , Tasks or interrupts that are not related to this semaphore , It is unaffected .

Okay , That's all for this section . In the next section, we will continue to explain semaphores , Discuss a classical problem related to it —— Priority reversal .
