Day 3 of jsbom and DOM learning

2022-06-12 23:44:00 【Python's path to becoming a God】

JS DOM and BOM The third day of study

Catalog

JS DOM and BOM The third day of study

1. Registration events

1.1 Overview of registration events

Add events to the element , It is called registration event or binding event
There are two ways to register events ： Traditional methods and methods monitor registration methods
The illustration

Insert picture description here

The uniqueness of traditional methods for registering Events

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Document</title>
</head>
<body>
    <button> Button </button>
    <script> //  Later event handlers will overwrite the previous  var btn=document.querySelector('button'); btn.onclick=function(){
       alert('111'); } btn.onclick=function(){
       alert('666'); } </script>
</body>
</html>

design sketch

Insert picture description here

1.2 addEventListener Event monitoring mode

eventTarget.addEventLister(type,listener[,useCapture])

The specified listener （ Event handler ） Sign up to eventTarget（ Target audience ） On (ie9+ Support )
Parameter description
- type： Event type string , such as click、mouseover, Don't bring on
- listener： Event handler
- useCapture： Optional parameters , Default false

Example

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Document</title>
</head>
<body>
    <button> Event monitoring </button>
    <script> //  Event listener registers events , You can register multiple listeners （ Event handler ） var btn=document.querySelector('button'); btn.addEventListener('click',function(){
       alert('123'); }); btn.addEventListener('click',function(){
       alert('666'); }); </script>
</body>
</html>

design sketch

Insert picture description here

1.3 attachEvent Event monitoring mode

eventTarget.attachEvent(eventNameWithon,callback)

The specified listener （callback） Sign up to eventTarget（ Target audience ） On
Parameter description
- eventNameWithOn： Event type string , such as onclick, I'll take it here on
- callback： Event handler
Be careful
- ie8 And earlier versions support

Example

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Document</title>
</head>
<body>
    <button>attachEvent</button>
    <script> var btn=document.querySelector('button'); console.log(btn); btn.attachEvent('onclick',function(){
       alert('666') }); </script>
</body>
</html>

design sketch

Insert picture description here

1.4 Compatibility resolution function

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Document</title>
</head>
<body>
    <script> function solution(ele,eleType,eleFn){
       if(ele.addEventListener){
       ele.addEventListener(eleType,eleFn); }else if(ele.attachEvent){
       ele.attachEvent('on'+eleType,eleFn); }else{
       ele['on'+eleType]=ele.Fn; } } </script>
</body>
</html>

2. Delete event

2.1 How to delete Events

Traditional deletion method

eventTarget.οnclick=null;

Method to monitor the deletion method

eventTarget.removeEventListener(type,listener[,useCapture])

eventTarget.detachEvent(eventNameWithOn,callback)

Example

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Document</title>
    <style> div{
       width: 100px; height: 100px; background-color:pink; } </style>
</head>
<body>
    <div>1</div>
    <div>2</div>
    <div>3</div>

    <script> // 1. Unbind in the traditional way  var divs=document.querySelectorAll('div'); divs[0].onclick=function(){
       alert('111'); //  Unbind event  divs[0].onclick=null; } // 2. Listen for event unbinding  //  Anonymous functions cannot be used , Functions and events are written separately  divs[1].addEventListener('click',fn); function fn(){
       alert('111'); //  Unbind event  divs[1].removeEventListener('click',fn); } // 3. The old version listens to the event unbinding  divs[2].attachEvent('onclick',fn1); function fn1(){
       alert('111'); //  Unbind event  divs[2].detachEvent('onclick',fn1); } </script>
</body>
</html>

design sketch

Insert picture description here

2.2 Compatibility solutions

Insert picture description here

3. DOM Flow of events

The event flow describes the order in which events are received from the page
Events are propagated between element nodes in a specific order when they occur , This communication process is DOM Flow of events
DOM The event flow is divided into three phases
1. Capture phase
2. Current target stage
3. bubbling phase
Event Bubbling ：ie Put forward at the earliest , The event is received by the most specific element at the beginning , And then propagate to the top node step by step
Event capture ： Netscape first proposed , from DOM Start at the top node of , Then it is propagated down to the receiving process of specific elements

Insert picture description here

Be careful

js The code can only execute one of the capture or execution bubbling stages
onclick and attachEvent You can only get the bubbling stage
addEventListener If the first 3 The parameter is true, Express Call the event handler in the event capture phase , If it is false, Express Event calls the event handler in the bubbling phase
The actual development Few events are captured , More attention to the event bubble
Some events don't bubble , such as onblur,onfocus,onmouseover,ommouseenter,onmouseleave

Capture example

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Document</title>
    <style> .father{
       width: 400px; height: 400px; background-color: skyblue; margin: 100px auto; overflow: hidden; } .son{
       margin-top: 50px; margin-left: 50px; width: 200px; height: 200px; background-color: pink; } </style>
</head>
<body>
    <div class="father">
        <div class="son"></div>
    </div>

    <script> var father=document.querySelector('.father'); var son=document.querySelector('.son'); //  Capture phase , Register event number 3 The parameter is true son.addEventListener('click',function(){
       alert('son'); },true); father.addEventListener('click',function(){
       alert('father'); },true); </script>
</body>
</html>

design sketch

Insert picture description here

Bubbling example

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Document</title>
    <style> .father{
       width: 400px; height: 400px; background-color: skyblue; margin: 100px auto; overflow: hidden; } .son{
       margin-top: 50px; margin-left: 50px; width: 200px; height: 200px; background-color: pink; } </style>
</head>
<body>
    <div class="father">
        <div class="son"></div>
    </div>

    <script> var father=document.querySelector('.father'); var son=document.querySelector('.son'); //  bubbling phase , Register event number 3 The parameter is false son.addEventListener('click',function(){
       alert('son'); },false); father.addEventListener('click',function(){
       alert('father'); },false); </script>
</body>
</html>

design sketch

Insert picture description here

4. Event object

4.1 Definition of event object

eventTarget.onclik=function(event){};
eventTarget.addEventListener=function(event){}

event It's the object of the event , Represents the state of the event
After the event , The collection of a series of information data related to the event is placed in this object , This An object is an event object event, It consists of many properties and methods

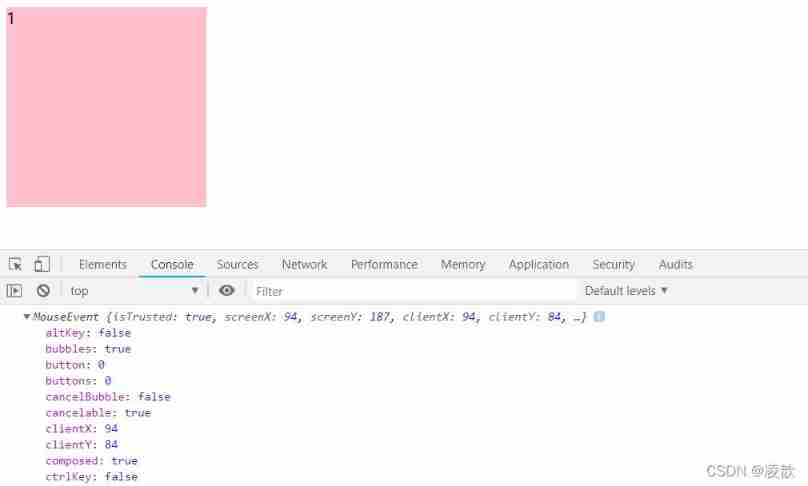

Example

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Document</title>
    <style> div{
       height: 200px; width: 200px; background-color: pink; } </style>
</head>
<body>
    <div>1</div>
    <script> var div=document.querySelector('div'); div.onclick=function(event){
       //  Print information about the event object  console.log(event); } </script>
</body>
</html>

design sketch

Insert picture description here

Compatibility issues

stay ie9 following , The event object uses windows.event obtain
resolvent
- e=e||window.event

4.2 Common methods and properties of event objects

Event object property method	explain
e.target	Returns the object that triggered the event standard
e.scrElement	Returns the object that triggered the event Nonstandard ,ie678
e.type	Returns the type of the event such as click, No on
e.cancelBubble	This property prevents bubbling Nonstandard ,ie678
e.returnValue	This attribute organizes default events （ Default behavior ） Nonstandard ,ie678, For example, the link will jump
e.preventDefault	This method blocks the default event （ Default behavior ） standard For example, do not let the link jump
e.stopPropagation	To prevent a bubble standard

Example

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Document</title>
</head>
<body>
    <ul>
        <li>111</li>
        <li>112</li>
        <li>113</li>
    </ul>

    <script> var ul=document.querySelector('ul'); ul.addEventListener('click',function(e){
       // e.target, Return the element that triggered the event , Click who to return to who  // this  Return the element that binds the event  console.log(e.target); console.log(this); //  and this It's like  console.log(e.currentTarget); }); //  Resolve compatibility issues  // ul.οnclick=function(e){
       // e=e||window.event; // var target=e.target||e.scrElement; // console.log(target); // } </script>
</body>
</html>

design sketch

Insert picture description here

Examples of properties and methods of event objects

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Document</title>
    <style> div{
       width: 100px; height: 100px; background-color: pink; } </style>
</head>
<body>

    <div>
        123
    </div>
    <a href="www.baidu.com"> Baidu </a>
    <script> var div=document.querySelector('div'); //  Return event type  div.addEventListener('click',function(e){
       console.log(e.type); }); div.addEventListener('mouseover',function(e){
       console.log(e.type); }); div.addEventListener('mouseout',function(e){
       console.log(e.type); }); //  Blocking default behavior , Link jump , Form submission  var a=document.querySelector('a'); // a.οnclick=function(e){
       // //  Nonstandard ,ie678 // //  Property value  // e.returnValue; // } //  The standard  a.addEventListener('click',function(e){
       e.preventDefault(); }) //  direct return false, Can prevent jump , But later code will not execute , And it is a traditional registration event  </script>
</body>
</html>

design sketch

Insert picture description here

4.3 Stop the event from bubbling

Standard writing

e.stopPropagation()

Nonstandard writing

e.cancelBubble=true

Compatibility resolution

Insert picture description here

Example

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Document</title>
    <style> .father{
       width: 400px; height: 400px; background-color: skyblue; margin: 100px auto; overflow: hidden; } .son{
       margin-top: 50px; margin-left: 50px; width: 200px; height: 200px; background-color: pink; } </style>
</head>
<body>
    <div class="father">
        <div class="son"></div>
    </div>

    <script> var father=document.querySelector('.father'); var son=document.querySelector('.son'); //  bubbling phase , Register event number 3 The parameter is false son.addEventListener('click',function(e){
       alert('son'); //  Stop the event from bubbling  e.stopPropagation(); // e.cancelBubble(); },false); father.addEventListener('click',function(){
       alert('father'); },false); </script>
</body>
</html>

design sketch

Insert picture description here

Be careful

Add... To the current trigger event , Do not bubble from the current event
If the upper level triggers , Still bubbling , Because the upper level didn't stop the bubble

5. Event delegation

Event delegation is also called event agent , stay jQuery Is called event delegation
The principle of event delegation （ a key ）：
- Instead of setting up an event listener for each child node , Instead, the event listener is set on its parent node , Then, each child node is set by using the bubble principle
Example

Insert picture description here

Example

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Document</title>
</head>
<body>
    <ul>
        <li> This is where the negotiation... Is applied </li>
        <li> This is where the negotiation... Is applied </li>
        <li> This is where the negotiation... Is applied </li>
        <li> This is where the negotiation... Is applied </li>
        <li> This is where the negotiation... Is applied </li>

    </ul>

    <script> //  Event delegate implementation   Every li All have spring frames  var ul=document.querySelector('ul'); //  Set the interaction effect for the parent element  ul.addEventListener('click',function(e){
       //  Get the triggered object  var target=e.target; //  Make the object color  var childs=ul.children; for(var i=0;i<childs.length;i++){
       //  Clear styles  childs[i].style.backgroundColor='transparent'; } target.style.backgroundColor='pink'; }); </script>
</body>
</html>

design sketch

Insert picture description here

6. Common mouse events

6.1 Disable right mouse button menu

contextmenu It mainly controls when the context menu is displayed

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Document</title>
</head>
<body>
    <div>
         A text without a right-click menu

    </div>
    <script> //  Block right-click menu  var div=document.querySelector('div'); div.addEventListener('contextmenu',function(e){
       e.preventDefault(); }); </script>
</body>
</html>

design sketch

Insert picture description here

6.2 Disable mouse selection

selectstart Start selecting

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Document</title>
</head>
<body>
    <div>
         A text that cannot be selected

    </div>
    <script> //  Block selected text  var div=document.querySelector('div'); div.addEventListener('selectstart',function(e){
       e.preventDefault(); }); //  Be careful ： Not available in the box , Optional outside the box  //  None of them  document.addEventListener('selectstart',function(e){
       e.preventDefault(); }); </script>
</body>
</html>

design sketch

Insert picture description here

6.3 Mouse event object

Mouse event object ：MouseEvent
Keyboard event object ：KeyboardEvent

Mouse event object	explain
e.clientX	Returns the position of the mouse relative to the viewable area of the browser window x coordinate
e.clientY	Returns the position of the mouse relative to the viewable area of the browser window y coordinate
e.pageX	Returns the mouse relative to the document page x coordinate ,ie9+ Support
e.pageY	Returns the mouse relative to the document page y coordinate ,ie9+ Support
e.screenX	Returns the position of the mouse relative to the computer screen X coordinate
e.screenY	Returns the position of the mouse relative to the computer screen Y coordinate

Example

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Document</title>
    <style> body{
       height: 3000px; } </style>
</head>
<body>
    <script> document.addEventListener('click',function(e){
       // 1.client  Relative to the browser window  console.log(e.clientX); console.log(e.clientY); console.log('--------------------------'); // 2. be relative to page, Page document  console.log(e.pageX); console.log(e.pageY); console.log('--------------------------'); //  Relative to the desktop window  console.log(e.screenX); console.log(e.screenY); }) </script>
</body>
</html>

design sketch

Insert picture description here

The case of the little angel following the mouse movement

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Document</title>
    <style> img{
       position: absolute; } </style>
</head>
<body>
    <img src="./images/angel.gif" alt="">
    <script> //  Get photo  var img=document.querySelector('img'); //  The mouse moves through the page  document.addEventListener('mousemove',function(e){
       var x=e.pageX; var y=e.pageY; //  Pay attention to the unit  img.style.left=x-48+'px'; img.style.top=y-40+'px'; }) </script>
</body>
</html>

design sketch

Insert picture description here

7. Common keyboard events

Keyboard events	The trigger condition
onkeyup（ Traditional registration writing ）	Trigger when a keyboard key is released
onkeydown（ Tradition ）	Trigger when a keyboard key is pressed
onkeypress（ Tradition ）	Trigger when a keyboard key is pressed , The function key is not recognized ：ctrl,shift, Left and right arrows

Be careful

Three event execution sequences ：keydown–keypress-keyup

Example

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Document</title>
</head>
<body>
    <script> // 1.keydown, Key pressed  document.addEventListener('keydown',function(){
       console.log('keydown'); }); // 2.keypress  Key pressed , The function key is not recognized  document.addEventListener('keypress',function(){
       console.log('keypress'); }); // 3.keyup  The key bounces  document.addEventListener('keyup',function(){
       console.log('keyup'); }); </script>
</body>
</html>

design sketch

Insert picture description here

7.1 Keyboard event properties

Keyboard event properties	explain
keycode	Return to the ascall code

Example

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Document</title>
</head>
<body>
    <script> document.addEventListener('keyup',function(e){
       // keyup and keydown Case insensitive , What you get is capital a console.log('up:'+e.keyCode); }) // keypress Case sensitive  document.addEventListener('keypress',function(e){
       console.log('press:'+e.keyCode); }) </script>
</body>
</html>

design sketch

Insert picture description here

Be careful

keyup and keydown Case insensitive ,keypress Case sensitive
keyup and keydown Identify all function keys ,keypress The function key is not recognized

Press... In imitation of JD search box s Focus of attention

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Document</title>
</head>
<body>

    <input type="text">
    <script> var input=document.querySelector('input'); document.addEventListener('keyup',function(e){
       //  Press down s after  if(e.keyCode===83){
       // input Focus of attention  input.focus(); } }) </script>
</body>
</html>

design sketch

Insert picture description here

Comprehensive case

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Document</title>
    <style> /* ul{ list-style: none; } */ </style>
</head>
<body>
     beauty :<input type="text">
    <ul>

    </ul>
    <button> Button </button>
    <script> var input=document.querySelector('input'); var ul=input.nextElementSibling; var btn=ul.nextElementSibling; // console.log(ul); // console.log(btn); btn.addEventListener('click',function(e){
       if(input.value!==''){
       // console.log(ul); var li=document.createElement('li'); li.innerHTML=input.value; ul.insertBefore(li,ul.children[0]); } }) ul.addEventListener('click',function(e){
       //  Get the clicked element  var target=e.target; for(var i=0;i<ul.children.length;i++){
       ul.children[i].style.backgroundColor='transparent'; } target.style.backgroundColor='pink'; }) </script>


</body>
</html>

design sketch

Insert picture description here

JD express doc No. query case

<!DOCTYPE html>
<html lang="en">

<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <meta http-equiv="X-UA-Compatible" content="ie=edge">
    <title>Document</title>
    <style> * {
       margin: 0; padding: 0; } .search {
       position: relative; width: 178px; margin: 100px; } .con {
       display: none; position: absolute; top: -40px; width: 171px; border: 1px solid rgba(0, 0, 0, .2); box-shadow: 0 2px 4px rgba(0, 0, 0, .2); padding: 5px 0; font-size: 18px; line-height: 20px; color: #333; } .con::before {
       content: ''; width: 0; height: 0; position: absolute; top: 28px; left: 18px; border: 8px solid #000; border-style: solid dashed dashed; border-color: #fff transparent transparent; } </style>
</head>

<body>
    <div class="search">
        <div class="con">123</div>
        <input type="text" placeholder=" Please enter your courier number " class="jd">
    </div>
    <script> //  When you enter the content in the express order No ,  The big font box above （con） Show ( The font size here is bigger ） //  The form detects user input ：  Add keyboard events to the form  //  At the same time, the value in the express order number （value） Get and assign to  con The box （innerText） As content  //  If the content in the express order number is empty , Then hide the large font box (con) The box  var con = document.querySelector('.con'); var jd_input = document.querySelector('.jd'); jd_input.addEventListener('keyup', function() {
       // console.log(' Input content '); if (this.value == '') {
       con.style.display = 'none'; } else {
       con.style.display = 'block'; con.innerText = this.value; } }) //  When we lose focus , Just hide this con The box  jd_input.addEventListener('blur', function() {
       con.style.display = 'none'; }) //  When we get the focus , Just show this con The box  jd_input.addEventListener('focus', function() {
       if (this.value !== '') {
       con.style.display = 'block'; } }) </script>
</body>
