Learning Tai Chi Maker - mqtt Chapter II (IX) test of this chapter

The program code is as follows ,

/**********************************************************************  Project name /Project :  Zero basic introduction to the Internet of things   Program name /Program name : complete_connect  The team /Team :  Taiji maker team  / Taichi-Maker (www.taichi-maker.com)  author /Author : CYNO Shuo   date /Date（YYYYMMDD） : 20201024  Purpose of procedure /Purpose :  The purpose of this program is to demonstrate how to use PubSubClient Library connection MQTT All parameter options for the server  -----------------------------------------------------------------------  Modify the record ： 20201227 -  Added user name and password content （ Replace the original NULL） -----------------------------------------------------------------------  This sample program is made by Taiji maker team 《 Zero basic introduction to the Internet of things 》 Sample program in .  This tutorial is designed and produced by friends who are interested in the development of the Internet of things . For more information about this tutorial , Please refer to the following pages ： http://www.taichi-maker.com/homepage/esp8266-nodemcu-iot/iot-c/esp8266-nodemcu-web-client/http-request/ ***********************************************************************/
#include <ESP8266WiFi.h>
#include <PubSubClient.h>

//  Set up wifi Access information ( Please according to your WiFi Modify the information )
const char* ssid = "FAST_153C80";
const char* password = "123456798";
const char* mqttServer = "test.ranye-iot.net";
//  As above MQTT The server cannot connect normally , Please go to the following page to find a solution
// http://www.taichi-maker.com/public-mqtt-broker/

WiFiClient wifiClient;
PubSubClient mqttClient(wifiClient);

const int subQoS = 1;     //  When the client subscribes to the topic QoS Level （ end 2020-10-07, Support only QoS = 1, I won't support it QoS = 2）
const bool cleanSession = false; //  Clear session （ Such as QoS>0 Must be set to false）

const char* willTopic = "willTopic";    //  Subject name of the will
const char* willMsg = "willMsg";        //  Subject information of the will
const int willQos = 0;                  //  will QoS
const int willRetain = false;           //  Testamentary reservation
const char* mqttUserName = "test-user"; //  Server connection user name
const char* mqttPassword = "ranye-iot"; //  Server connection password

void setup() {

  pinMode(LED_BUILTIN, OUTPUT);     //  Set up on the board LED Pin is output mode
  digitalWrite(LED_BUILTIN, HIGH);  //  Turn it on and off the board LED
  Serial.begin(9600);               //  Start serial communication

  // Set up ESP8266 The working mode is wireless terminal mode
  WiFi.mode(WIFI_STA);

  //  Connect WiFi
  connectWifi();

  //  Set up MQTT Server and port number
  mqttClient.setServer(mqttServer, 1883);
  mqttClient.setCallback(receiveCallback);

  //  Connect MQTT The server
  connectMQTTserver();
}

void loop() {

  //  If the development board fails to connect to the server , Then try to connect to the server
  if (!mqttClient.connected()) {

    connectMQTTserver();
  }

   //  Process information and heartbeat
   mqttClient.loop();

}

//  Connect MQTT Server and subscribe to information
void connectMQTTserver(){

  //  according to ESP8266 Of MAC Address generation client ID（ Avoid contact with other ESP8266 The client of ID The nuptial ）
  String clientId = "client-" + WiFi.macAddress();

  /*  Connect MQTT The server  boolean connect(const char* id, const char* user, const char* pass, const char* willTopic, uint8_t willQos, boolean willRetain, const char* willMessage, boolean cleanSession);  If the device is offline, it can still make qos1 Work , be connect At the time of the cleanSession I need to set to false */
  if (mqttClient.connect(clientId.c_str(), mqttUserName,
                         mqttPassword, willTopic,
                         willQos, willRetain, willMsg, cleanSession)) {

    Serial.print("MQTT Server Connected. ClientId: ");
    Serial.println(clientId);
    Serial.print("MQTT Server: ");
    Serial.println(mqttServer);

    subscribeTopic(); //  Subscribe to specific topics
  } else {

    Serial.print("MQTT Server Connect Failed. Client State:");
    Serial.println(mqttClient.state());
    delay(5000);
  }
}

//  Callback function after receiving information
void receiveCallback(char* topic, byte* payload, unsigned int length) {

  Serial.print("Message Received [");
  Serial.print(topic);
  Serial.print("] ");
  for (int i = 0; i < length; i++) {

    Serial.print((char)payload[i]);
  }
  Serial.println("");
  Serial.print("Message Length(Bytes) ");
  Serial.println(length);

  if ((char)payload[0] == '1') {
         //  If you receive a message with “1” For the beginning
    digitalWrite(BUILTIN_LED, LOW);  //  Then light up LED.
  } else {

    digitalWrite(BUILTIN_LED, HIGH); //  Otherwise, it goes out LED.
  }
}

//  Subscribe to specific topics
void subscribeTopic(){

  //  Create a subscription topic . The title of the topic is Taichi-Maker-Sub The prefix , The device is added later MAC Address .
  //  This is to make sure that different devices use the same MQTT When the server tests the message subscription , The topic names you subscribe to are different
  String topicString = "test-user/Pub-" + WiFi.macAddress();
  char subTopic[topicString.length() + 1];
  strcpy(subTopic, topicString.c_str());

  //  The serial port monitor outputs whether the topic is successfully subscribed and the name of the subscription topic
  //  Please note that subscribe The second parameter number of the function is QoS Level . Here for QoS = 1
  if(mqttClient.subscribe(subTopic, subQoS)){

    Serial.print("Subscribed Topic: ");
    Serial.println(subTopic);
  } else {

    Serial.print("Subscribe Fail...");
  }
}

// ESP8266 Connect wifi
void connectWifi(){


  WiFi.begin(ssid, password);

  // wait for WiFi Connect , Output success information after successful connection
  while (WiFi.status() != WL_CONNECTED) {

    delay(1000);
    Serial.print(".");
  }
  Serial.println("");
  Serial.println("WiFi Connected!");
  Serial.println("");
}

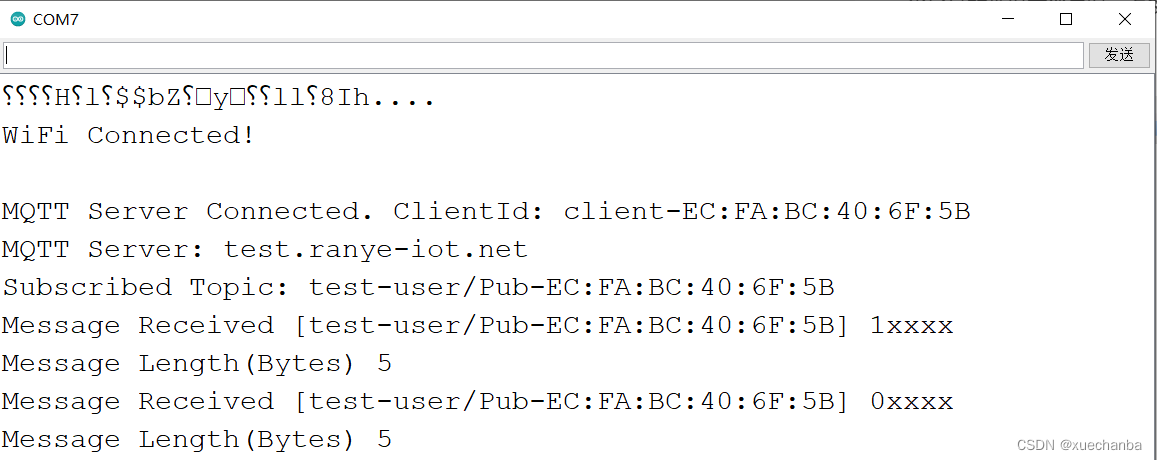

After power on , The program output is as follows ,

then , operation MQTT.fx This software .

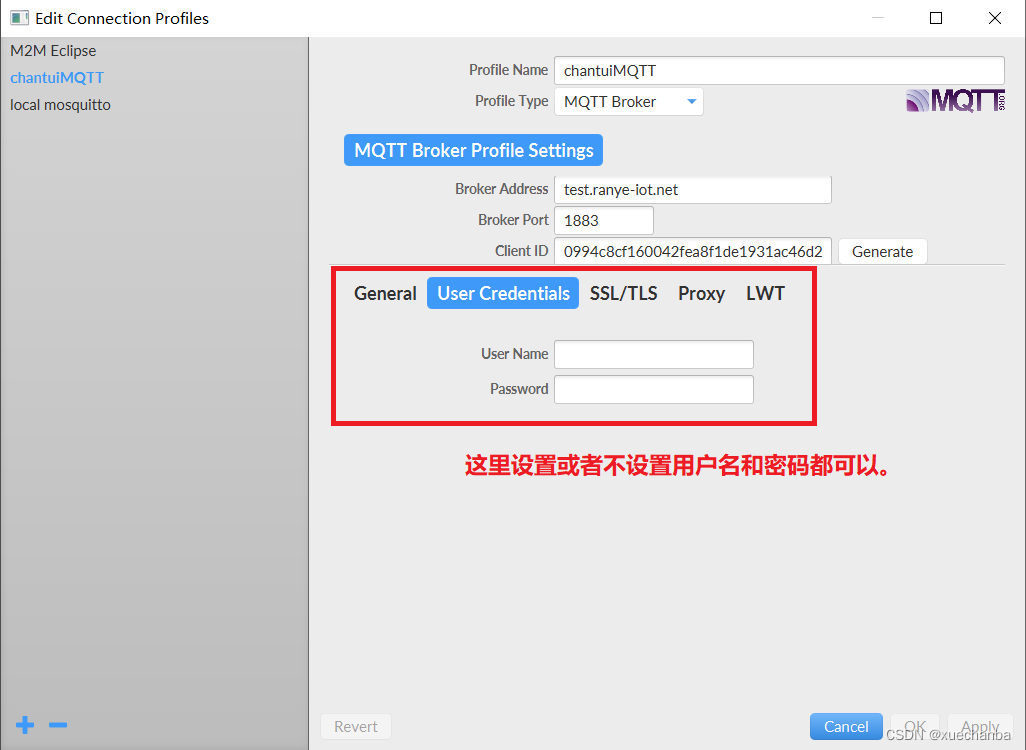

1、 Because this is the client （ESP8266 Development board ） It's subscribers , Instead of being the publisher as in the previous section , So in operation MQTT.fx This software is used to connect MQTT The user name and password do not need to be set for the server （ The specific reason is that the server does not have the permission to subscribe to users ）.

When publishing messages through software , ESP8266 （ subscriber ） Received with 1 After the first message , Will light up LED The lamp , Other messages go out LED The lamp .

meanwhile , It will output information through the serial port monitor .

The above test also involves a problem of quality degradation （ Because when I released it, I used QoS = 0 released ）.

below , Will be with QoS = 1 （ Attention should be paid to the QoS=1 Setting requirements for ） Test the news release （ It is consistent with the test method in the previous chapter , take ESP8266 After disconnecting the power supply , adopt MQTT.fx The software publishes messages to topics , After the ESP8266 Reconnect the power supply ）.

ESP8266 After the development board restarts , You can receive messages immediately .

There is another problem , This program does not involve publishing or subscribing to wills （ because ESP8266 The development board is just a subscriber ）, The variables related to the will here are only used as connection functions connect The parameter of .
