[QT learning notes] * insert pictures in the window

Zero basis Qt Realize a simple audio and video player ( Including possible problems + resolvent )-QT Document resources -CSDN library

         The above link is to use Qt Simple audio and video player , Use Chinese characters to describe the player name on the start page of the main window , For a more beautiful display of the player homepage , You can insert pictures on the start page of the player .

---

Qt There is no Image Components , Here is a record of my use label How to insert pictures .

1、 Right click on the item , choice “Add New...”【 Select add new file 】.

2、 Select... In the pop-up dialog box “Qt Resource File”.

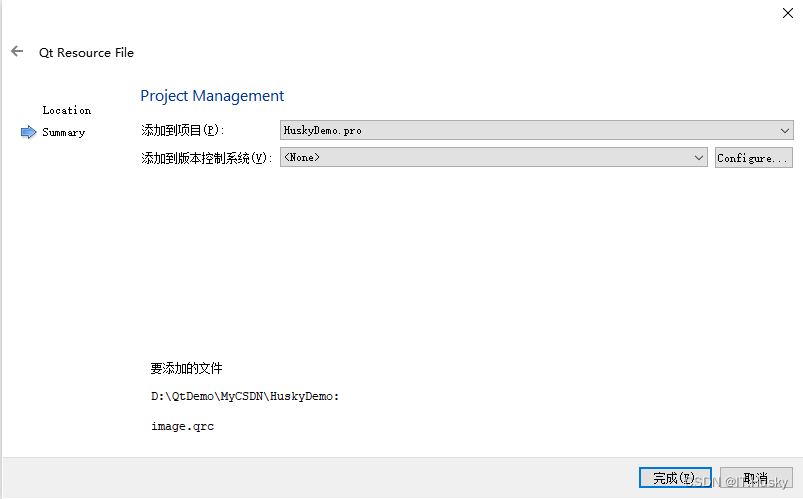

3、 name qrc File and select the path of the added file .

 4、 Select finish .

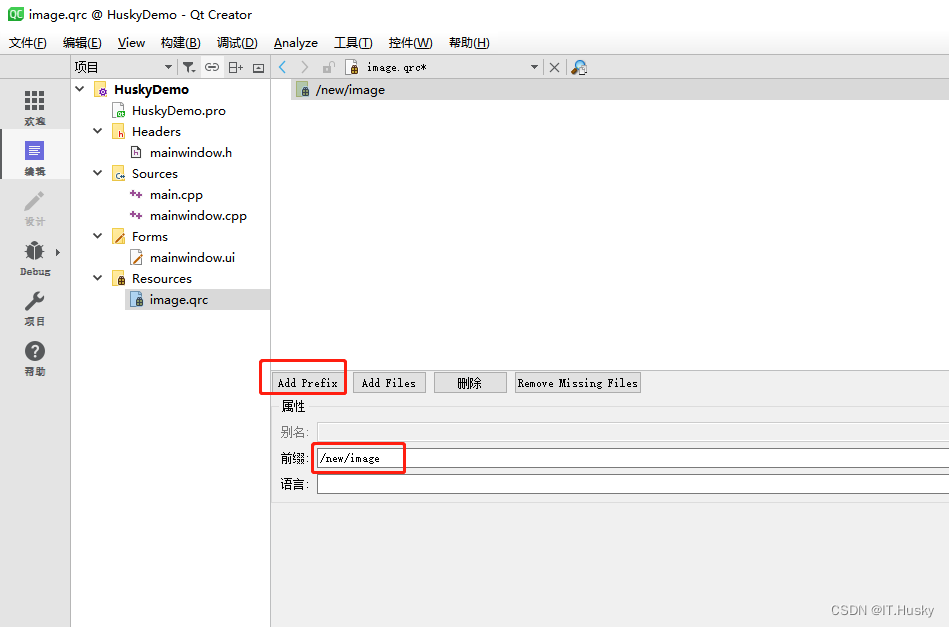

5、 Open the created .qrc file （ Here is image.qrc）, Click on “Add Prefix”【 add prefix 】 And name the prefix .

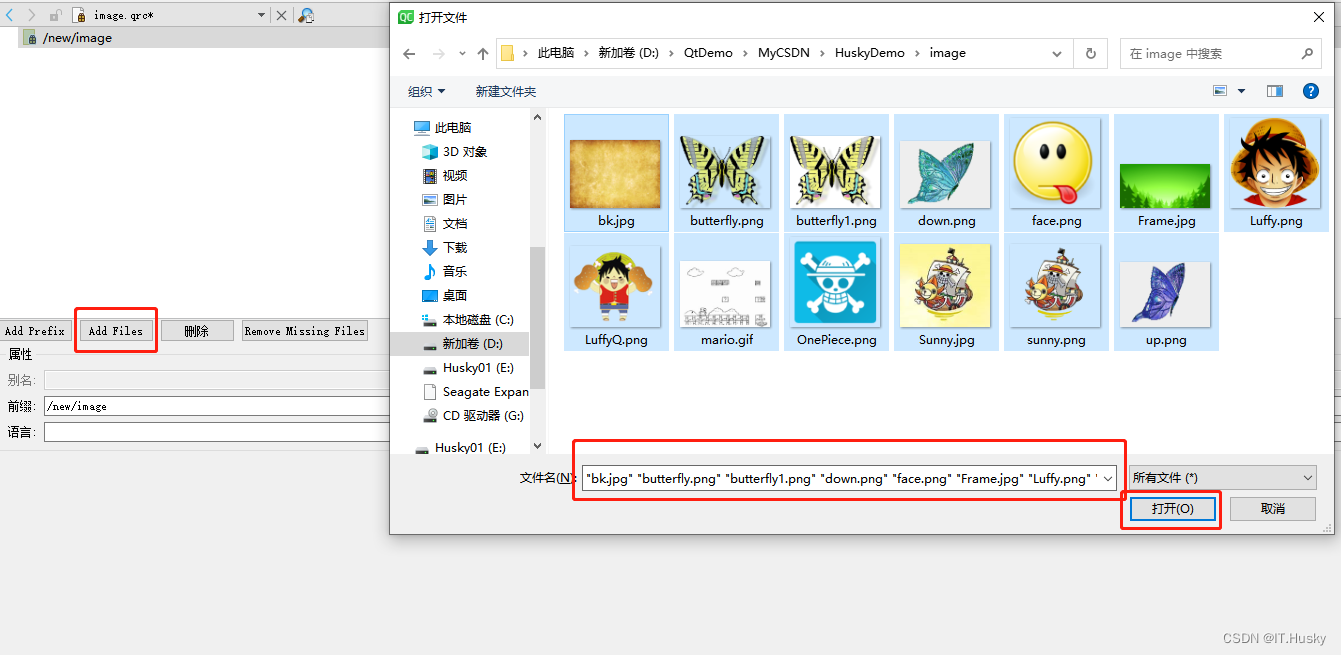

 6、 Click on “Add Files”【 Add files 】, Select Add File and open .

 7、 At this time, the file we added will be saved , Click on “mainwindow.ui”, Get into UI Interface .

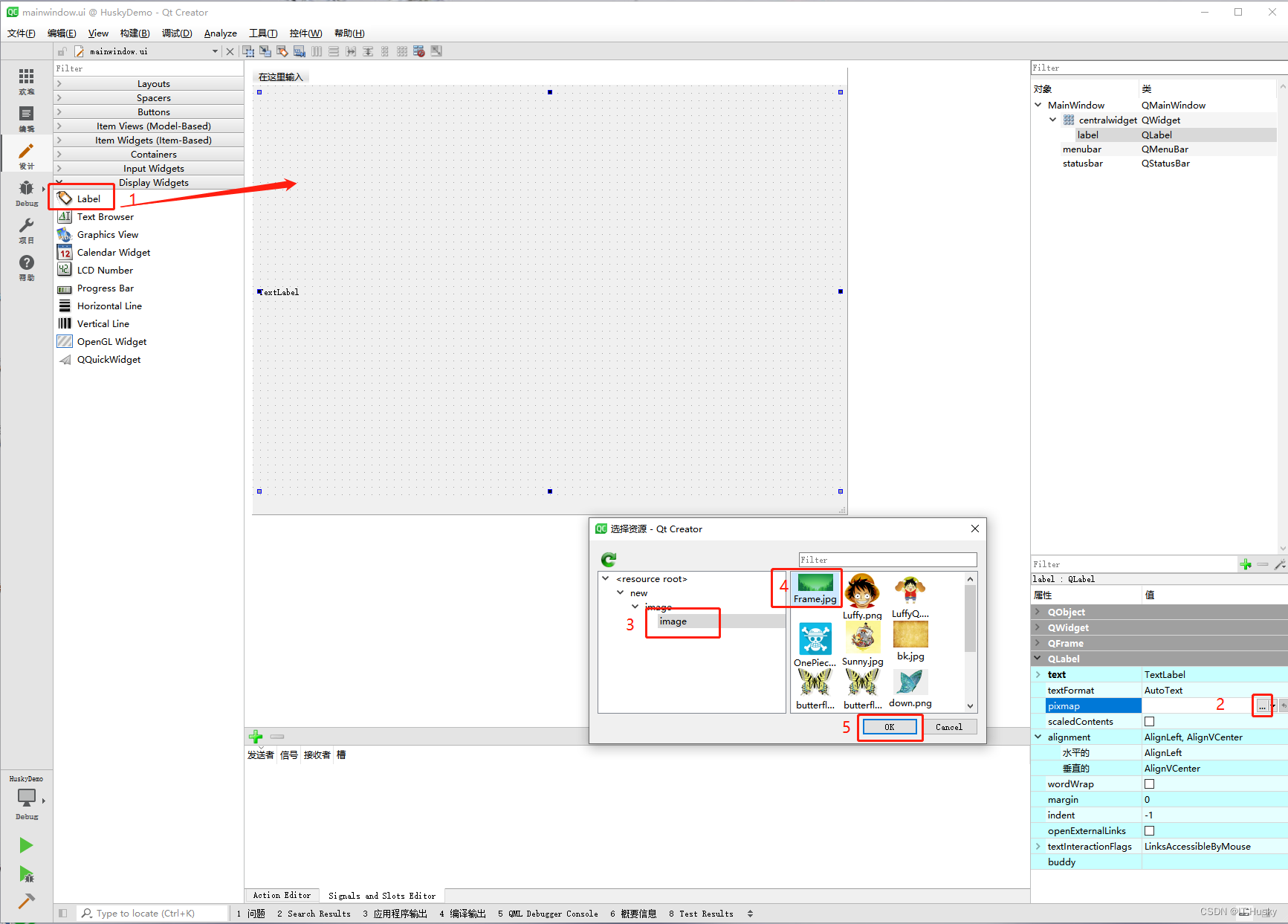

 8、 Drag a in the main window Label, stay label In the property bar of pixmap, Click on “...”, Select resource file .

9、 The running display window is shown in the following figure , complete .
