[secretly kill little partner pytorch20 days] - [day4] - [example of time series data modeling process]

System tutorial 20 Heaven takes Pytorch
Recently with Brother Zhong 、 Huige Do a little punch in ,20 God pytorch, This is the first 4 God . Welcome to one button and three links .

2020 The outbreak of the novel coronavirus pneumonia in 2008 has caused many aspects of the lives of people of various countries. .

Some students are on income , Some students are emotional , Some students are psychological , There are also students who are overweight .

This paper is based on China 2020 year 3 Epidemic data before June , Establish time series RNN Model , China's novel coronavirus pneumonia outbreak is expected to end. .

import os
import datetime
import torchkeras

# Print time
def printbar():
    nowtime = datetime.datetime.now().strftime('%Y-%m-%d %H:%M:%S')
    print("\n"+"=========="*8 + "%s"%nowtime)

#mac On the system pytorch and matplotlib stay jupyter You need to change the environment variable when running in
os.environ["KMP_DUPLICATE_LIB_OK"]="TRUE"

One , Prepare the data

The data set of this paper is taken from tushare

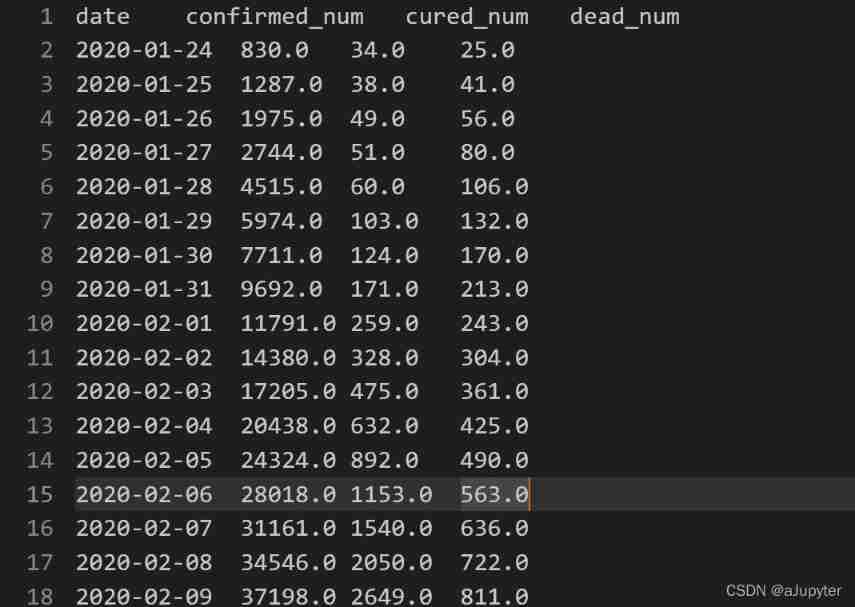

Data set Overview

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt

%matplotlib inline
%config InlineBackend.figure_format = 'svg'

df = pd.read_csv("/home/mw/input/data6936/eat_pytorch_data/data/covid-19.csv",sep = "\t")

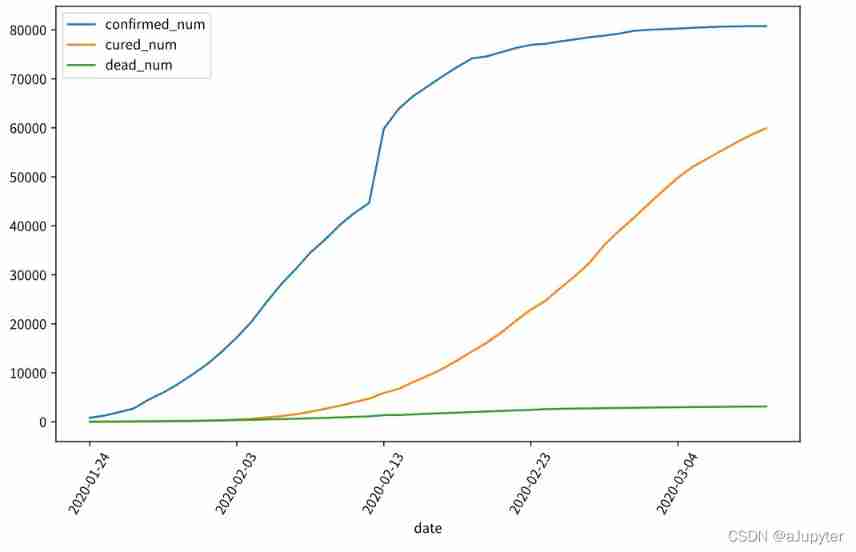

df.plot(x = "date",y = ["confirmed_num","cured_num","dead_num"],figsize=(10,6))
plt.xticks(rotation=60) #  Abscissa rotation 60°

dfdata = df.set_index("date")
dfdiff = dfdata.diff(periods=1).dropna()  #  The null value is deleted after the first-order difference , The null value is actually the first line
dfdiff = dfdiff.reset_index("date") #  Cancel date Index identity

dfdiff.plot(x = "date",y = ["confirmed_num","cured_num","dead_num"],figsize=(10,6))
plt.xticks(rotation=60)
dfdiff = dfdiff.drop("date",axis = 1).astype("float32") #  Delete time column , And convert to floating point

tips:

df = pd.DataFrame({
    'month': [1, 4, 7, 10],
                   'year': [2012, 2014, 2013, 2014],
                   'sale': [55, 40, 84, 31]})


# Set a single column as an index
df.set_index('month')
''' year sale month 1 2012 55 4 2014 40 7 2013 84 10 2014 31 '''

Now let's inherit torch.utils.data.Dataset Implement custom time series data set .

torch.utils.data.Dataset Is an abstract class , Users who want to load custom data only need to inherit this class , And override two of them ：

len: Realization len(dataset) Returns the size of the entire dataset .
getitem: Used to get some index data , send dataset[i] Returns the... In the dataset i Samples .
Not overriding these two methods will directly return an error .

import torch
from torch import nn
from torch.utils.data import Dataset,DataLoader,TensorDataset


# Use a day ago 8 The day window data is used as the input to predict the data of the day
WINDOW_SIZE = 8

class Covid19Dataset(Dataset):

    def __len__(self):
        return len(dfdiff) - WINDOW_SIZE

    def __getitem__(self,i):
        x = dfdiff.loc[i:i+WINDOW_SIZE-1,:]
        feature = torch.tensor(x.values)
        y = dfdiff.loc[i+WINDOW_SIZE,:]
        label = torch.tensor(y.values)
        return (feature,label)

ds_train = Covid19Dataset()

# The data is small , You can put all the training data into one batch in , Lifting performance
dl_train = DataLoader(ds_train,batch_size = 38)

import torch
from torch import nn
from torch.utils.data import Dataset,DataLoader,TensorDataset


# Use a day ago 8 The day window data is used as the input to predict the data of the day
WINDOW_SIZE = 8

class Covid19Dataset(Dataset):

    def __len__(self):
        return len(dfdiff) - WINDOW_SIZE

    def __getitem__(self,i):
        x = dfdiff.loc[i:i+WINDOW_SIZE-1,:]
        feature = torch.tensor(x.values)
        y = dfdiff.loc[i+WINDOW_SIZE,:]
        label = torch.tensor(y.values)
        return (feature,label)

ds_train = Covid19Dataset()

# The data is small , You can put all the training data into one batch in , Lifting performance
dl_train = DataLoader(ds_train,batch_size = 38)

Data processing summary

1. time series data , It is to use the data of the previous time to predict the data of the later time
2. Perform first-order difference on the data , Then remove the NaN value , structure dataset（ Use the data of the first eight days as the training set ）

Two 、 Defining models

Use Pytorch There are usually three ways to build models ：

• Use nn.Sequential Build models in a hierarchical order
• Inherit nn.Module Base classes build custom models
• Inherit nn.Module The base class builds the model and assists in encapsulating the model container .

Choose the second way to build the model here .

Because the next training cycle in the form of class , We further encapsulate the model into torchkeras Medium Model Class to get something like Keras Functions of medium and high-order model interface .

Model Class actually inherits from nn.Module class .

import torch
from torch import nn
import importlib
import torchkeras

torch.random.seed()

class Block(nn.Module):
    def __init__(self):
        super(Block,self).__init__()

    def forward(self,x,x_input):
        x_out = torch.max((1+x)*x_input[:,-1,:],torch.tensor(0.0))
        return x_out

class Net(nn.Module):
    def __init__(self):
        super(Net, self).__init__()
        # 3 layer lstm
        self.lstm = nn.LSTM(input_size = 3,hidden_size = 3,num_layers = 5,batch_first = True)
        self.linear = nn.Linear(3,3)
        self.block = Block()

    def forward(self,x_input):
        x = self.lstm(x_input)[0][:,-1,:] #  Do not use the length dimension of the sequence
        x = self.linear(x)
        y = self.block(x,x_input)
        return y

net = Net()
model = torchkeras.Model(net) #  Devil details
print(model)

model.summary(input_shape=(8,3),input_dtype = torch.FloatTensor)


3、 ... and 、 Training models

Training Pytorch It usually requires the user to write a custom training cycle , The code style of the training cycle varies from person to person .

Yes 3 Class typical training cycle code style ： Script form training cycle , Function form training cycle , Class form training cycle .

Here is a form of training cycle .

We imitate Keras A high-order model interface is defined Model, Realization fit, validate,predict, summary Method , It is equivalent to user-defined high-level API.

notes ： It is difficult to debug the cyclic neural network , You need to set multiple different learning rates and try many times , To achieve better results .

def mspe(y_pred,y_true):
    err_percent = (y_true - y_pred)**2/(torch.max(y_true**2,torch.tensor(1e-7)))
    return torch.mean(err_percent)

model.compile(loss_func = mspe,optimizer = torch.optim.Adagrad(model.parameters(),lr = 0.1))

def mspe(y_pred,y_true):
    err_percent = (y_true - y_pred)**2/(torch.max(y_true**2,torch.tensor(1e-7)))
    return torch.mean(err_percent)

model.compile(loss_func = mspe,optimizer = torch.optim.Adagrad(model.parameters(),lr = 0.1))

dfhistory = model.fit(100,dl_train,log_step_freq=10)

Four 、 Evaluation model

Generally, validation set or test set should be set for evaluation model , Because there is less data in this case , We only visualize the iteration of the loss function on the training set .

%matplotlib inline
%config InlineBackend.figure_format = 'svg'

import matplotlib.pyplot as plt

def plot_metric(dfhistory, metric):
    train_metrics = dfhistory[metric]
    epochs = range(1, len(train_metrics) + 1)
    plt.plot(epochs, train_metrics, 'bo--')
    plt.title('Training '+ metric)
    plt.xlabel("Epochs")
    plt.ylabel(metric)
    plt.legend(["train_"+metric])
    plt.show()

plot_metric(dfhistory,"loss")

5、 ... and 、 Using the model

Here we use the model to predict the end time of the epidemic , namely The newly confirmed cases are 0 Time for .

# Use dfresult Record the existing data and the epidemic data predicted later
dfresult = dfdiff[["confirmed_num","cured_num","dead_num"]].copy()
dfresult.tail()

# After prediction 500 The new trend of days , Add its results to dfresult in
for i in range(500):
    arr_input = torch.unsqueeze(torch.from_numpy(dfresult.values[-38:,:]),axis=0)
    arr_predict = model.forward(arr_input)

    dfpredict = pd.DataFrame(torch.floor(arr_predict).data.numpy(),
                columns = dfresult.columns)
    dfresult = dfresult.append(dfpredict,ignore_index=True)

tips:

torch.unsqueeze(torch.from_numpy(dfresult.values[-38:,:]),axis=0) In the 0 Add one dimension to the dimension
torch.floor Rounding down

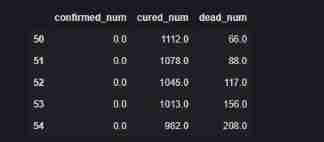

dfresult.query("confirmed_num==0").head()

#  The first 50 The new diagnosis was reduced to 0, The first 45 Day correspondence 3 month 10 Japan , That is to say 5 Days later , It is expected that 3 month 15 The new diagnosis was reduced to 0
#  notes ： The forecast is optimistic

dfresult.query("cured_num==0").head()

#  The first 186 The new healing is reduced to 0, That is, about 1 After year .
#  notes :  The forecast is pessimistic , And there are problems , If you add up the number of people newly cured every day , Will exceed the cumulative number of confirmed cases .

6、 ... and 、 Save the model

#  Save model parameters

torch.save(model.net.state_dict(), "./data/model_parameter.pkl")

net_clone = Net()
net_clone.load_state_dict(torch.load("./data/model_parameter.pkl"))
model_clone = torchkeras.Model(net_clone)
model_clone.compile(loss_func = mspe)

#  Evaluation model
model_clone.evaluate(dl_train)

tips

Here's a devil detail ,
net_clone = Net()
net_clone.load_state_dict(torch.load("./data/model_parameter.pkl"))
model_clone = torchkeras.Model(net_clone)
You can't reverse the order , Otherwise, the report will be wrong , In fact, there is no need to torchkeras Same training save

summary

• Data preprocessing is nothing , Just before use 8 One day's data predicts the next day's data

• When the model is built LSTM The input and output of is very important


• Use torchkeras Pay attention to the model loading sequence

There's a hole here that I don't understand

I don't understand why this layer is designed like this
Dig a hole for later filling
