STM32 Alibaba cloud mqtt esp8266 at command

stm32 adopt esp8266 AT Command to connect Alibaba cloud Internet of things . Do not reference libraries , Write the protocol data yourself to understand MQTT

For the convenience of debugging , Upper computer AT Orders can be made through stm32 Send to esp8266,

1、 Look at the effect

Send in sequence AT Command to connect to Alibaba cloud

Finally, set every 60 Seconds to send heartbeat

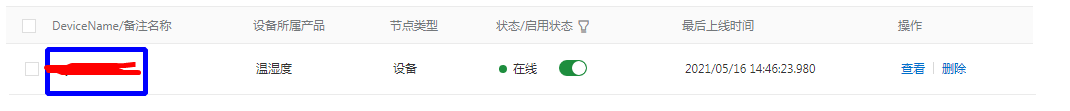

Alibaba cloud can see online devices

2、 Connection address

The format of the connection address is
${YourProductKey}.iot-as-mqtt.${YourRegionId}.aliyuncs.com
{YourProductKey} It's an alicloud product key
{YourRegionId} Is the region code , Refer to Alibaba cloud 【 Area and availability area 】

3、MQTT Of CONNECT part

That string 16 Hexadecimal data （ This string of data passes through the following c Language generation , The generated is 16 Base string ）：

#define MYCLIENT_ID			"xxxxx"
#define MYCLIENT_ID_Full	"xxxxx|securemode=3,signmethod=hmacsha1|"
#define DEVICE_NAME     	"yyyyy"
#define PRODUCT_KEY			"jjjjj"
#define USER_NAME			"yyyyy&jjjjj"
#define DEVICE_SECRET   	"zzzzzzzzzzzz"
#define USER_PASSWORD		"6A3026C603CA534335512514F596A5F87DE2B542"

xxxx： It is the client MCU's own id, Random filling （ No timestamp is used timestamp）

yyyyyy： Alibaba cloud device name

zzzzzzzzzzzz： Alibaba cloud device key

jjjjjjj： It's an alicloud product key

#define Append(x,y)		memcpy(x + strlen(x),y,strlen(y))
#define AppendU16(x,y)	AppendNum(x,y,4)
#define AppendU8(x,y)	AppendNum(x,y,2)
const char *gEncode = "0123456789ABCDEF";
void AppendNum(char* datas,u16 lenth,u8 size) {
	char len[4];
	u8 i;
	u8 move;

	move=(size-1)<<2;
	for(i=0;i<size;i++,move-=4){
		len[i]=gEncode[(lenth >> move) & 0xf];
	}
	len[i]='\0';

	Append(datas,len);
}
void AppendStr(char* datas,const char* str) {
	char temp[512];
	u16 i=0;

	while(*str){
		temp[i++]=gEncode[((*str)>>4) & 0xf];
		temp[i++]=gEncode[(*str) & 0xf];

		str++;
	}
	temp[i]='\0';

	if(datas[0])
		Append(datas,temp);
	else
		memcpy(datas,temp,strlen(temp));
}

void test3() {
	char datas[1024];
	u16 lenth;

	lenth=strlen(MYCLIENT_ID_Full)+strlen(USER_NAME)+strlen(USER_PASSWORD)+2*3+10;

	memset(datas,0,1024);

	// type (×)
    Append(datas,"10");
	// The length of the remaining data ( My data is no more than 128, So just 1 individual byte)
    AppendU8(datas,lenth);
    // Protocol type 、 length 、 Version, etc. (×)
    Append(datas,"00044d51545404c2003c");
	// Client MCU ID length
	AppendU16(datas,strlen(MYCLIENT_ID_Full));
	// Client MCU ID
    AppendStr(datas,MYCLIENT_ID_Full);
	// User name length
	AppendU16(datas,strlen(USER_NAME));
	// user name
    AppendStr(datas,USER_NAME);
	// Password length
	AppendU16(datas,strlen(USER_PASSWORD));
	// password
    AppendStr(datas,USER_PASSWORD);

 	printf("%s\r\n",datas);
}

4、USER_PASSWORD User password generation

4.1、 Using Alibaba cloud's “Password Generate gadgets ”（ Open the page , Search the tool name ）

4.2、 use C Language computing

void test4() {
	char datas[1024];
	char sign_hex[100];
	char res[100];

    memset(datas, 0, 1024);
    Append(datas,"clientId");
    Append(datas,MYCLIENT_ID);
    Append(datas,"deviceName");
    Append(datas,DEVICE_NAME);
    Append(datas,"productKey");
    Append(datas,PRODUCT_KEY);
    //Append(datas,"timestamp");
    //Append(datas,TIMESTAMP);

    memset(sign_hex, 0, 100);
    hmac_sha1((u8*)DEVICE_SECRET,strlen(DEVICE_SECRET), (u8*)datas, strlen(datas),
				sign_hex);

    memset(res, 0, 100);
    AppendStr(res,sign_hex);

 	printf("%s\r\n",res);
}

Reference to sha1 file

#include "hmacsha1.h"

#define MAX_MESSAGE_LENGTH 1000


/*****************************/
/**** Function Prototypes ****/
/*****************************/

unsigned long int ft(
                    int t,
                    unsigned long int x,
                    unsigned long int y,
                    unsigned long int z
                    );

int get_testcase(   int test_case,
                    unsigned char *plaintext,
                    unsigned char *key,
                    int *key_length_ptr);


void sha1   (
            unsigned char *message,
            int message_length,
            unsigned char *digest
            );

/**************************/
/* Debug out              */
/**************************/

#ifdef HMAC_DEBUG
debug_out(
            unsigned char *label,
            unsigned char *data,
            int data_length
        )
{
int i,j;
int num_blocks;
int block_remainder;
    num_blocks = data_length / 16;
    block_remainder = data_length % 16;

    printf("%s\n",label);

    for (i=0; i< num_blocks;i++)
    {
        printf("\t");
        for (j=0; j< 16;j++)
        {
            printf("%02x ", data[j + (i*16)]);
        }
        printf("\n");
    }

    if (block_remainder > 0)
    {
        printf("\t");
        for (j=0; j<block_remainder; j++)
        {
            printf("%02x ", data[j+(num_blocks*16)]);
        }
        printf("\n");
    }
}
#endif

/****************************************/
/* sha1()                               */
/* Performs the NIST SHA-1 algorithm    */
/****************************************/

unsigned long int ft(
                    int t,
                    unsigned long int x,
                    unsigned long int y,
                    unsigned long int z
                    )
{
unsigned long int a,b,c;

    if (t < 20)
    {
        a = x & y;
        b = (~x) & z;
        c = a ^ b;
    }
    else if (t < 40)
    {
        c = x ^ y ^ z;
    }
    else if (t < 60)
    {
        a = x & y;
        b = a ^ (x & z);
        c = b ^ (y & z);
    }
    else if (t < 80)
    {
        c = (x ^ y) ^ z;
    }

    return c;
}

unsigned long int k(int t)
{
unsigned long int c;

    if (t < 20)
    {
        c = 0x5a827999;
    }
    else if (t < 40)
    {
        c = 0x6ed9eba1;
    }
    else if (t < 60)
    {
        c = 0x8f1bbcdc;
    }
    else if (t < 80)
    {
        c = 0xca62c1d6;
    }

    return c;
}

unsigned long int rotr(int bits, unsigned long int a)
{
unsigned long int c,d,e,f,g;
    c = (0x0001 << bits)-1;
    d = ~c;

    e = (a & d) >> bits;
    f = (a & c) << (32 - bits);

    g = e | f;

    return (g & 0xffffffff );

}

unsigned long int rotl(int bits, unsigned long int a)
{
unsigned long int c,d,e,f,g;
    c = (0x0001 << (32-bits))-1;
    d = ~c;

    e = (a & c) << bits;
    f = (a & d) >> (32 - bits);

    g = e | f;

    return (g & 0xffffffff );

}


void sha1   (
            unsigned char *message,
            int message_length,
            unsigned char *digest
            )
{
int i;
int num_blocks;
int block_remainder;
int padded_length;

unsigned long int l;
unsigned long int t;
unsigned long int h[5];
unsigned long int a,b,c,d,e;
unsigned long int w[80];
unsigned long int temp;

#ifdef SHA1_DEBUG
int x,y;
#endif

    /* Calculate the number of 512 bit blocks */

    padded_length = message_length + 8; /* Add length for l */
    padded_length = padded_length + 1; /* Add the 0x01 bit postfix */

    l = message_length * 8;

    num_blocks = padded_length / 64;
    block_remainder = padded_length % 64;


    if (block_remainder > 0)
    {
        num_blocks++;
    }

    padded_length = padded_length + (64 - block_remainder);

     /* clear the padding field */
    for (i = message_length; i < (num_blocks * 64); i++)
    {
        message[i] = 0x00;
    }

    /* insert b1 padding bit */
    message[message_length] = 0x80;

    /* Insert l */
    message[(num_blocks*64)-1] = (unsigned char)( l        & 0xff);
    message[(num_blocks*64)-2] = (unsigned char)((l >> 8)  & 0xff);
    message[(num_blocks*64)-3] = (unsigned char)((l >> 16) & 0xff);
    message[(num_blocks*64)-4] = (unsigned char)((l >> 24) & 0xff);

    /* Set initial hash state */
    h[0] = 0x67452301;
    h[1] = 0xefcdab89;
    h[2] = 0x98badcfe;
    h[3] = 0x10325476;
    h[4] = 0xc3d2e1f0;

#ifdef SHA1_DEBUG
    printf("INITIAL message_length = %d\n", message_length);
    printf("INITIAL padded_length = %d\n", padded_length);
    printf("INITIAL num_blocks = %d\n", num_blocks);

        for (x=0;x<num_blocks; x++)
        {
            printf("\t\t");
            for (y=0; y<16;y++)
            {
                printf("%02x ",message[y + (x*64)]);
            }
            printf("\n");
            printf("\t\t");
            for (y=0; y<16;y++)
            {
                printf("%02x ",message[16 + y + (x*64)]);
            }
            printf("\n");
            printf("\t\t");
            for (y=0; y<16;y++)
            {
                printf("%02x ",message[32 + y + (x*64)]);
            }
            printf("\n");
            printf("\t\t");
            for (y=0; y<16;y++)
            {
                printf("%02x ",message[48 + y + (x*64)]);
            }
            printf("\n");
        }

#endif

    for (i = 0; i < num_blocks; i++)
    {
        /* Prepare the message schedule */
        for (t=0; t < 80; t++)
        {
            if (t < 16)
            {
                w[t]  = (256*256*256) * message[(i*64)+(t*4)];
                w[t] += (256*256    ) * message[(i*64)+(t*4) + 1];
                w[t] += (256        ) * message[(i*64)+(t*4) + 2];
                w[t] +=                 message[(i*64)+(t*4) + 3];
            }
            else if (t < 80)
            {
                w[t] = rotl(1,(w[t-3] ^ w[t-8] ^ w[t-14] ^ w[t-16]));
            }
        }

#ifdef SHA1_DEBUG
        printf("\tW(0) = %08lX \t W(9)  = %08lX \n", w[0], w[8]);
        printf("\tW(1) = %08lX \t W(10) = %08lX \n", w[1], w[9]);
        printf("\tW(2) = %08lX \t W(11) = %08lX \n", w[2], w[10]);
        printf("\tW(3) = %08lX \t W(12) = %08lX \n", w[3], w[11]);
        printf("\tW(4) = %08lX \t W(13) = %08lX \n", w[4], w[12]);
        printf("\tW(5) = %08lX \t W(14) = %08lX \n", w[5], w[13]);
        printf("\tW(6) = %08lX \t W(15) = %08lX \n", w[6], w[14]);
        printf("\tW(7) = %08lX \t W(16) = %08lX \n\n", w[7], w[15]);

#endif
        /* Initialize the five working variables */
        a = h[0];
        b = h[1];
        c = h[2];
        d = h[3];
        e = h[4];

        /* iterate a-e 80 times */

        for (t = 0; t < 80; t++)
        {
            temp = (rotl(5,a) + ft(t,b,c,d)) & 0xffffffff;
            temp = (temp + e) & 0xffffffff;
            temp = (temp + k(t)) & 0xffffffff;
            temp = (temp + w[t]) & 0xffffffff;
            e = d;
            d = c;
            c = rotl(30,b);
            b = a;
            a = temp;
#ifdef SHA1_DEBUG
            printf("t = %2ld\t %08lx, %08lx, %08lx, %08lx, %08lx\n", t,a,b,c,d,e);
#endif

        }

        /* compute the ith intermediate hash value */
#ifdef SHA1_DEBUG
        printf("  +   \t %08lx, %08lx, %08lx, %08lx, %08lx\n", h[0],h[1],h[2],h[3],h[4]);
#endif
        h[0] = (a + h[0]) & 0xffffffff;
        h[1] = (b + h[1]) & 0xffffffff;
        h[2] = (c + h[2]) & 0xffffffff;
        h[3] = (d + h[3]) & 0xffffffff;
        h[4] = (e + h[4]) & 0xffffffff;

#ifdef SHA1_DEBUG
        printf("  =   \t %08lx, %08lx, %08lx, %08lx, %08lx\n", h[0],h[1],h[2],h[3],h[4]);
#endif

    }

    digest[3]  = (unsigned char) ( h[0]       & 0xff);
    digest[2]  = (unsigned char) ((h[0] >> 8) & 0xff);
    digest[1]  = (unsigned char) ((h[0] >> 16) & 0xff);
    digest[0]  = (unsigned char) ((h[0] >> 24) & 0xff);

    digest[7]  = (unsigned char) ( h[1]       & 0xff);
    digest[6]  = (unsigned char) ((h[1] >> 8) & 0xff);
    digest[5]  = (unsigned char) ((h[1] >> 16) & 0xff);
    digest[4]  = (unsigned char) ((h[1] >> 24) & 0xff);

    digest[11]  = (unsigned char) ( h[2]       & 0xff);
    digest[10]  = (unsigned char) ((h[2] >> 8) & 0xff);
    digest[9] = (unsigned char) ((h[2] >> 16) & 0xff);
    digest[8] = (unsigned char) ((h[2] >> 24) & 0xff);

    digest[15] = (unsigned char) ( h[3]       & 0xff);
    digest[14] = (unsigned char) ((h[3] >> 8) & 0xff);
    digest[13] = (unsigned char) ((h[3] >> 16) & 0xff);
    digest[12] = (unsigned char) ((h[3] >> 24) & 0xff);

    digest[19] = (unsigned char) ( h[4]       & 0xff);
    digest[18] = (unsigned char) ((h[4] >> 8) & 0xff);
    digest[17] = (unsigned char) ((h[4] >> 16) & 0xff);
    digest[16] = (unsigned char) ((h[4] >> 24) & 0xff);

}

/******************************************************/
/* hmac-sha1()                                        */
/* Performs the hmac-sha1 keyed secure hash algorithm */
/******************************************************/

void hmac_sha1(unsigned char *key,
                int key_length,
                unsigned char *data,
                int data_length,
                unsigned char *digest)

{
    int b = 64; /* blocksize */
    unsigned char ipad = 0x36;

    unsigned char opad = 0x5c;

    unsigned char k0[64];
    unsigned char k0xorIpad[64];
    unsigned char step7data[64];
    unsigned char step5data[MAX_MESSAGE_LENGTH+128];
    unsigned char step8data[64+20];
    int i;

    for (i=0; i<64; i++)
    {
        k0[i] = 0x00;
    }



    if (key_length != b)    /* Step 1 */
    {
        /* Step 2 */
        if (key_length > b)
        {
            sha1(key, key_length, digest);
            for (i=0;i<20;i++)
            {
                k0[i]=digest[i];
            }
        }
        else if (key_length < b)  /* Step 3 */
        {
            for (i=0; i<key_length; i++)
            {
                k0[i] = key[i];
            }
        }
    }
    else
    {
        for (i=0;i<b;i++)
        {
            k0[i] = key[i];
        }
    }
#ifdef HMAC_DEBUG
    debug_out("k0",k0,64);
#endif
    /* Step 4 */
    for (i=0; i<64; i++)
    {
        k0xorIpad[i] = k0[i] ^ ipad;
    }
#ifdef HMAC_DEBUG
    debug_out("k0 xor ipad",k0xorIpad,64);
#endif
    /* Step 5 */
    for (i=0; i<64; i++)
    {
        step5data[i] = k0xorIpad[i];
    }
    for (i=0;i<data_length;i++)
    {
        step5data[i+64] = data[i];
    }
#ifdef HMAC_DEBUG
    debug_out("(k0 xor ipad) || text",step5data,data_length+64);
#endif

    /* Step 6 */
    sha1(step5data, data_length+b, digest);

#ifdef HMAC_DEBUG
    debug_out("Hash((k0 xor ipad) || text)",digest,20);
#endif

    /* Step 7 */
    for (i=0; i<64; i++)
    {
        step7data[i] = k0[i] ^ opad;
    }

#ifdef HMAC_DEBUG
    debug_out("(k0 xor opad)",step7data,64);
#endif

    /* Step 8 */
    for (i=0;i<64;i++)
    {
        step8data[i] = step7data[i];
    }
    for (i=0;i<20;i++)
    {
        step8data[i+64] = digest[i];
    }

#ifdef HMAC_DEBUG
    debug_out("(k0 xor opad) || Hash((k0 xor ipad) || text)",step8data,20+64);
#endif

    /* Step 9 */
    sha1(step8data, b+20, digest);

#ifdef HMAC_DEBUG
    debug_out("HASH((k0 xor opad) || Hash((k0 xor ipad) || text))",digest,20);
#endif
}
