Rancher2.6 monitoring grafana docking LDAP

Author's brief introduction

Xie Zeqin ,SUSE Rancher  Technical support engineer , Be responsible for customer maintenance and after-sales technical support services , Provide relevant technical solutions . Have  CKA、CKS  The official certification , Years of experience in Cloud Computing , Experienced from  OpenStack  To  Kubernetes  Technological change of , For the underlying operating system 、KVM  Virtualization and  Docker  Container and other related cloud native technologies have rich practical experience .

Rancher Monitoring  Introduce

stay  Rancher  On the management platform , We can work very smoothly in any support management  Kubernetes  Enable... On the cluster  Rancher Monitoring, Realize the monitoring alarm function .Rancher Monitoring  By default  Prometheus  To provide monitoring of relevant systems and application services , And pass  Grafana  The instrument panel visualization tool of... Is used for data statistics, monitoring and display .

reflection

By default ,Rancher  No access to  Grafana  There are too many restrictions on users , We can use  Anonymous  Users to see  Rancher  Any default dashboard display interface deployed . But more often , We need to pass  Grafana  To develop custom dashboards , here  Anonymous  User  ReadOnly  Permission cannot meet our needs , But logging in  admin  Users will be right again  Grafana  Cause certain potential safety hazards . At this time, such a user management system is needed to manage  Grafana  Users of , Restrict and control the access of users .

Although we can use  Grafana  The built-in user management list is used to manage the access rights of users , But this requires an additional set of user lists . that , Can we directly connect with the internal  LDAP System , So as to reduce the cost of maintaining users ？

The answer is yes . from  Rancher2.5  Version start , The monitoring architecture has been adjusted , Allow users to customize the configuration of more related components . This article will introduce you to  Rancher2.6  On , How to configure  Rancher Monitoring  To carry out  Grafana  docking  LDAP  authentication .

precondition

• Rancher：2.6.4

• k8s：1.20.11

• monitoring：100.1.2+up19.0.3

• OpenLDAP：1.5.0

Detailed operation

Grafana  docking  LDAP

edit  Monitoring Yaml  To configure  LDAP

• visit  Rancher explorer UI, Get into  Apps & Marketplace, choice  Monitoring, Select... In the configuration options  Edit YAML：

rancher-1

• Turn on  LDAP  Authentication configuration

stay

grafana.grafana.ini

The following is added under the level

auth.ldap

Configuration information on  LDAP：

grafana:
 grafana.ini:
 auth.ldap:
 allow_sign_up: true
 config_file: /etc/grafana/ldap.toml
 enabled: true


rancher-2

3. stay

grafana

Under the hierarchy , add to  LDAP  Certification parameters

grafana:
 ldap:
 config: |
 [[servers]]
 host = "test.zerchin.xyz"
 port = 389
 use_ssl = false
 start_tls = false
 ssl_skip_verify = true
 bind_dn = "cn=admin,dc=rancherldap,dc=com"
 bind_password = 'Rancher123'
 search_filter = "(cn=%s)"
 search_base_dns = ["cn=group,ou=rancher,dc=rancherldap,dc=com"]
 [servers.attributes]
 name = "givenName"
 surname = "sn"
 username = "cn"
 member_of = "memberOf"
 email = "email"
 enabled: true


Parameter description

：

host

：LDAP  Server address （IP/Domain, Specify multiple address spaces to separate ）.

port

：LDAP  port , The default is  389, If  use_ssl=true  It is  636.

use_ssl

： Whether to use encryption  TLS  Connect .

start_tls

：STARTTLS  It is an extension of plaintext communication protocol , It can make the plaintext communication connection directly become the encrypted connection （ Use  SSL/TLS  encryption ）, Instead of using another special port for encrypted communication .

ssl_skip_verify

： Do you want to skip  SSL  Certificate validation .

bind_dn

：LDAP  Service account user name .

bind_password

： password （ If the password contains #, You need to use three parentheses , for example ："""#password;"""）.

search_filter

： User query filter field , for example

"(cn=%s)"

 、

"(sAMAccountName=%s)"

 、

"(uid=%s)"

.

search_base_dns

： User search starting point .

• Start monitoring after configuration .

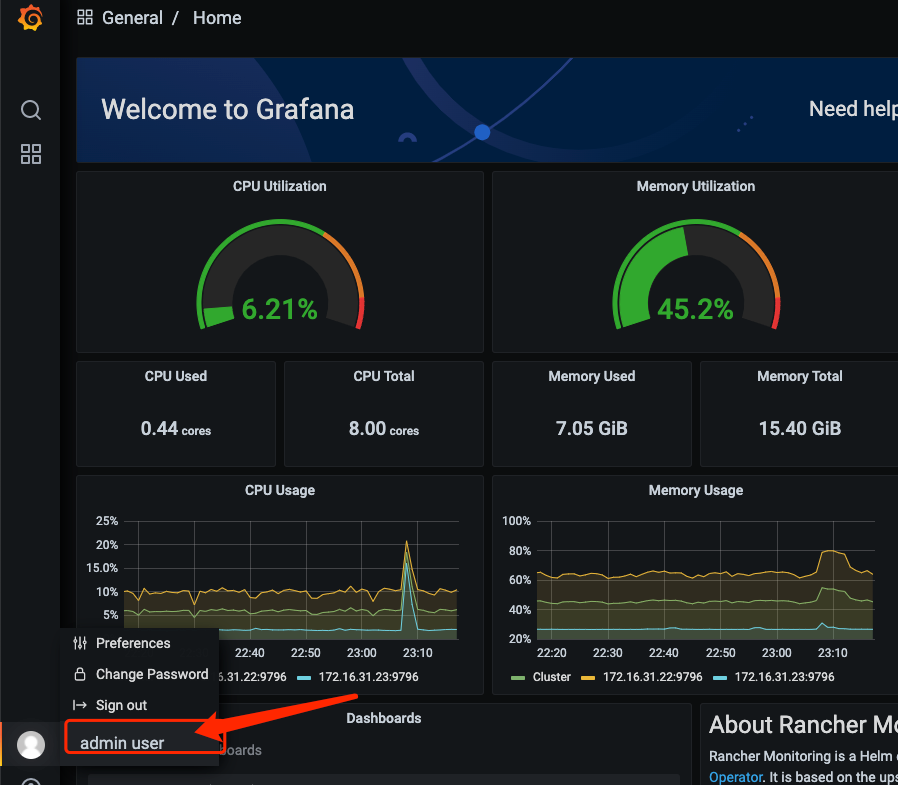

Wait for the monitoring to start successfully , open  Grafana UI  Interface , The default account password is ：admin/prom-operator

grafanar-1

LDAP  verification

After login , Left entry  Server Admin - LDAP, stay  LDAP Connection  You can see the connected host .

stay  Test user mapping  Next , Search for existing  LDAP  user , User information can be found .

grafana-2

And you can use  LDAP  User login access  Grafana UI  Interface .

grafana-3

Grafana  be based on  SSL  docking  LDAP

The above method is connected  LDAP  Of  389  port , We can use this port to  LDAP  Connect .

But this port is an unsecured and unencrypted connection , Easy to cause security problems , Expose user related information , General advice 389 The port is only used in intranet or test environment .

For the environment with high safety requirements , We can use  LDAP  the other one  SSL  Encrypt the port to connect LDAP  service ：636  port .

Create certificate  secret

stay

cattle-monitoring-system

Under the namespace , A new one named

certs

Of secret, among

ca.pem

write in  CA  certificate ,

tls.crt

write in  LDAP  Server certificate ,

tls.key

write in  LDAP  Server certificate secret key .

secret-1

You can also import relevant certificates from the command line ：

kubectl create secret generic certs -n cattle-monitoring-system --from-file=ca.pem --from-file=tls.crt --from-file=tls.key


LDAP SSL  Authentication configuration

edit  Monitoring yaml  To configure

• stay
  grafana
  Under the hierarchy , add to
  extraSecretMounts
  mount  secret  certificate ：

grafana:
 extraSecretMounts:
 - defaultMode: 440
 mountPath: /opt/certs
 name: certs
 readOnly: true
 secretName: certs


• LDAP  Turn on  SSL  authentication ：

grafana:
 ldap:
 config: |
 [[servers]]
 host = "test.zerchin.xyz"
 port = 636
 use_ssl = true
 start_tls = false
 ssl_skip_verify = false
 root_ca_cert = "/opt/certs/ca.pem"
 client_cert = "/opt/certs/tls.crt"
 client_key = "/opt/certs/tls.key"
 bind_dn = "cn=admin,dc=rancherldap,dc=com"
 bind_password = 'Rancher123'
 search_filter = "(cn=%s)"
 search_base_dns = ["cn=group,ou=rancher,dc=rancherldap,dc=com"]
 [servers.attributes]
 name = "givenName"
 surname = "sn"
 username = "cn"
 member_of = "memberOf"
 email = "email"
 enabled: true


• port
  Set to  636 SSL  Encryption port

• use_ssl
  Set to  true,
  ssl_skip_verify
  Set to  false, Turn on  SSL  authentication

• root_ca_cert
  、
  client_cert
  、
  client_key
  Configure certificate path

• Start monitoring after configuration .

LDAP SSL  verification

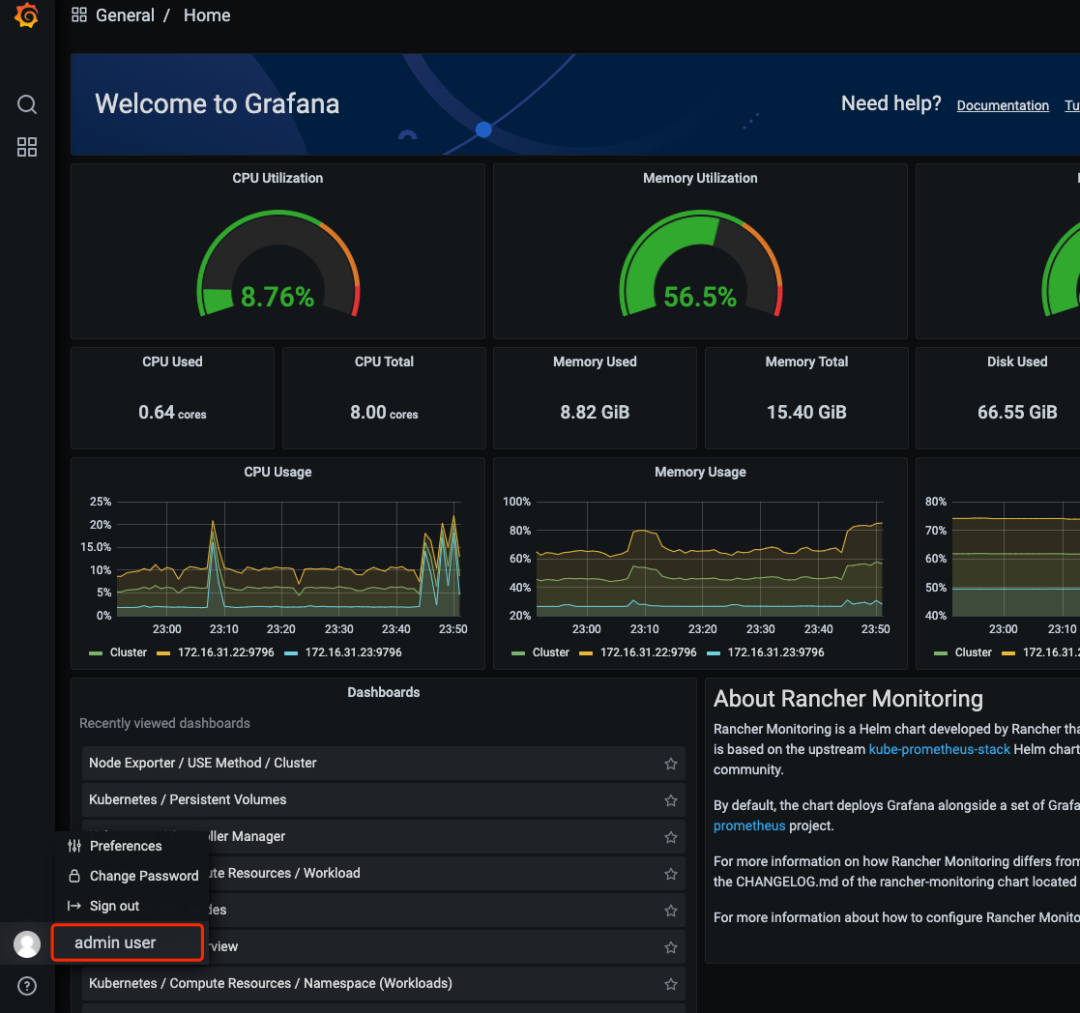

Sign in  Grafana, Left entry  Server Admin - LDAP, stay  LDAP Connection  You can see , It's connected  636 SSL  Encryption port .

And in Test user mapping Next , Search for existing LDAP user , User information can be found .

grafana-ssl-1

Try to use  LDAP  The user login , You can log in and view data normally .

grafana-ssl-2

summary

Through the above configuration , We can smoothly connect with the internal  LDAP  As  Grafana  User management system , Thus, the existing user management system can be directly used for unified user management and authority authentication . Of course, we can also connect with other user management systems , for example  okta、saml、github、basic  wait , We can refer to according to specific needs  Grafana  The official documents can be configured .

Grafana  Configure the reference ：https://grafana.com/docs/grafana/next/setup-grafana/configure-security/configure-authentication/ldap/
