        Hello everyone , I steal the moon by riding the wind . I'm glad it's time to share the learning achievements with you again . This time, let's talk about the learning of modifying the module name according to the framework .

        In the process of building the project , Use the ruoyi framework as the basic version to quickly build your own business system , Reduce the manpower of preliminary preparation , financial , Material resources and so on , I believe many enterprises are using this framework . In ruoyi Group , Some friends also mentioned , In the existing ruoyi framework system , If you modify the module name , Name the project module with your own project name ？ below , I will analyze my experience and operation steps .

Go directly to the last rendering

  First , download RuoYi-Vue edition ,RuoYi-Vue: be based on SpringBoot,Spring Security,JWT,Vue & Element Before and after the separation of rights management system , It also provides Vue3 Version of (gitee.com)

Use Idea Open the project , I am here idea2019 edition . If different versions are used , Causing problems , Welcome to leave a message , Discuss together .

First step , Modify the module name

It is suggested to choose Rename module and directory, such , Not only the module name has been modified , The physical folder is also modified , Pictured

  Modify the module name in turn ruoyi-admin,ruoyi-common,ruoyi-framework ,ruoyi-generator,

ruoyi-quartz, ruoyi-system,

the reason being that pom project , So it needs to be modified pom Configuration of , Modify the project first pom file ,

The following is the specific modification of each module ： All modules used need , It depends on your own situation



  After modifying the project pom After the document , Need modification Each module Of pom file , Here is only one module as an example , Other modules , Friends, revise it by themselves , If you don't understand or have questions, you can leave a message , thank you . for example mytest-common modular ,

Other modules are followed by analogy .

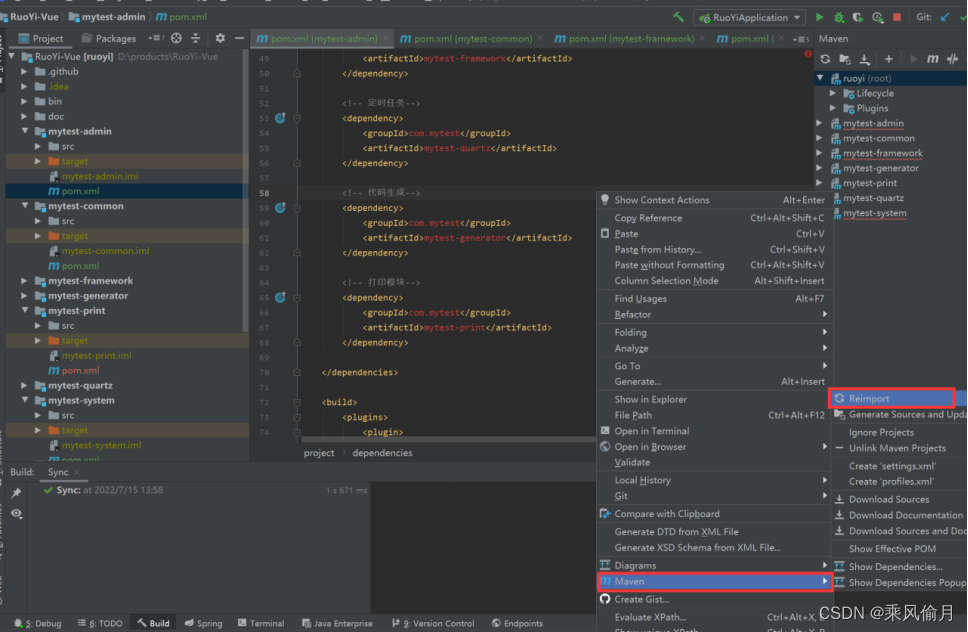

After modification , Need to re Reimport

If it's still red , You need to check the local maven Warehouse

Open one at will , Check the version number

Everything else is OK , Recompile it . Compile successfully , You can run it together to see the effect .

At this time, there may be several folders under the original directory , for example

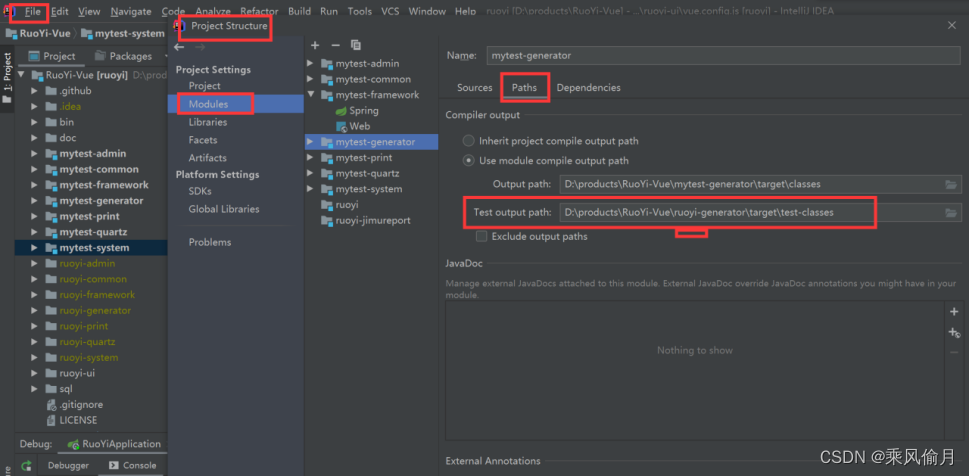

Next , open File->Project Sstructure , The inside of Test output path, Change it to module name  , Then delete the extra folders .

The final folder directory is as follows ：

Only this and nothing more , Modifying the module name is complete .

Focus on , Focus on , Focus on , Important things are to be repeated for 3 times ！！！ If you modify the package name .

however , Some friends may ask , If you want to modify the package name inside ？ What if it is modified ？ below , Let's modify the package name , Make the project more like your own , ha-ha ！！！  For example, the picture below , Contains a com.ruoyi, also RuoYiApplication And so on

  Here are the steps , It's also done in a few steps .

First , This modification package name , Need to replace all , Select the package name com.ruoyi

After modification , Will report a mistake , The tips are as follows ：

  This is not found mapper file , Because there is also a package name com.ruoyi, So it needs to be changed to com.mytest

Hold down Ctrl+Shift+R, Inquire about com.ruoyi, Find meaning mapper Click in the document with the words .

After finishing , Rerun , Or an error , as follows ：

Here is mainly scanning mapper When you file , The package name is not modified and filtered , stay application.yml

Come here , Successful launch ！！！

  then , Open the front end , Look at the effect

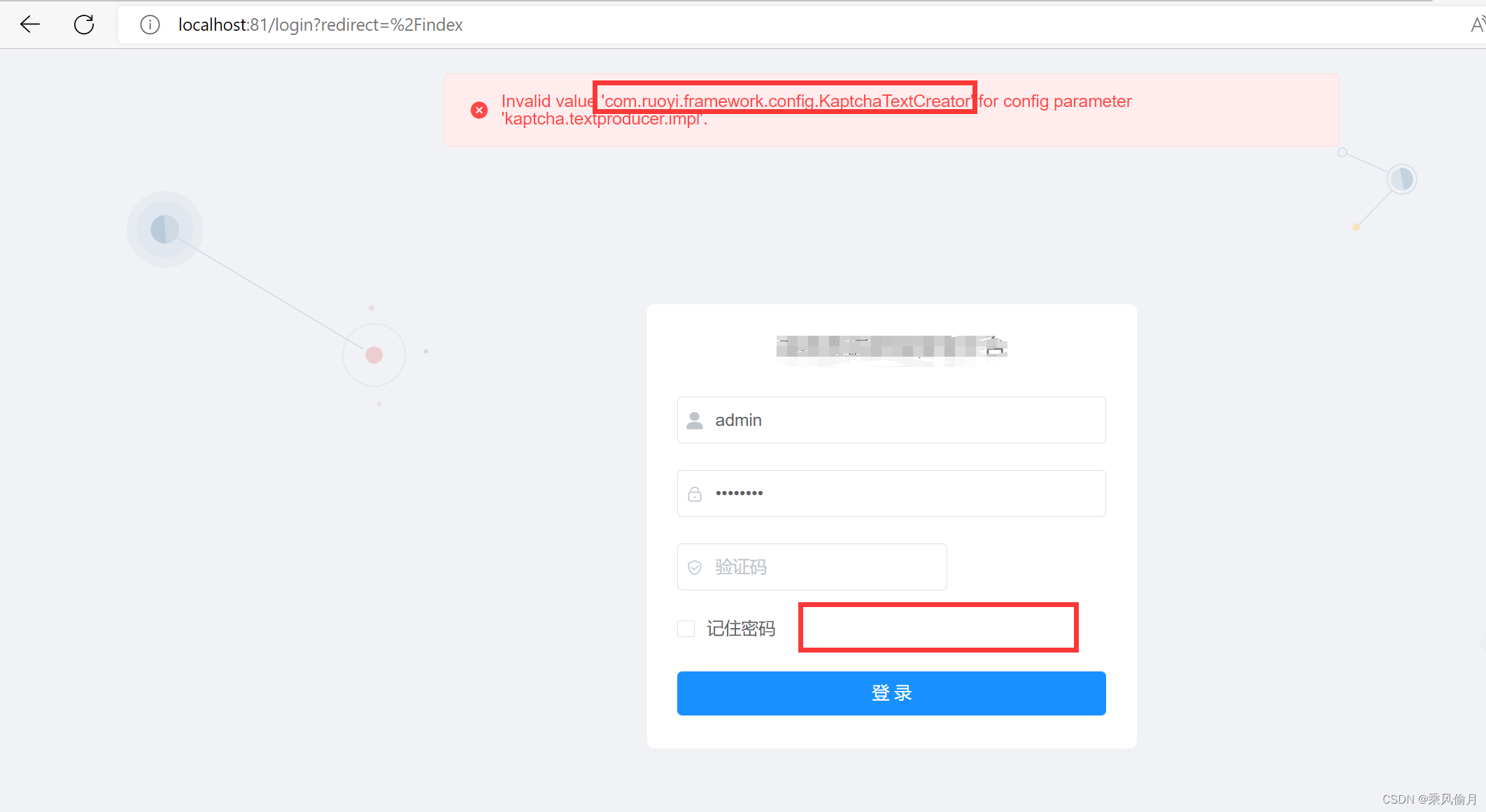

  unfortunately , The verification code did not come out successfully , But a prompt pops up , Follow this prompt , Go find the file to modify .

  Press and hold again Ctrl+Shift+R, Inquire about com.ruoyi

Find the key words ,KeptchaTextCreator, Take this com.ruoyi->com.mytest,

Start the background again api, The verification code appears perfectly , No problem logging in , Click the function inside to operate normally . This module name is modified , And the modification of package name ok La . Favorite friend , Please give me a compliment + Collection , thank you .

  In order to avoid other problems in the future , It is suggested that all relevant com.ruoyi-->com.mytest（ there mytest It's the name of your project ）
