Androd releases jitpack open source project (gradle7.2)

Record a release JitPack The whole process of dependency Library .
AndroidStudo edition :2021.1.1 Patch3

1. Create project

Project name customization , Here for WLibrary

2. establish Library

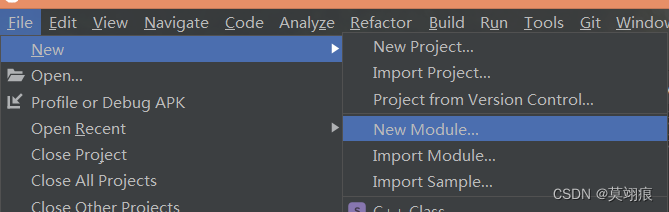

2.1 Create the name as WUtils Of Android Library

2.2 Dependency created library

open File ==>ProjectsStructure, Pay attention to the box label

3. Configuration items

3.1 Project root new jitpack.yml

before_install:
  - sdk install java 11.0.10-open
  - sdk use java 11.0.10-open

jdk:
  - openjdk11

3.2WUtils Modular build.gradle Add the following check code

complete build.gradle

plugins {

    id 'com.android.library'
    id 'maven-publish'
}

android {

    compileSdk 31

    defaultConfig {

        minSdk 22
        targetSdk 31

        testInstrumentationRunner "androidx.test.runner.AndroidJUnitRunner"
        consumerProguardFiles "consumer-rules.pro"
    }

    buildTypes {

        release {

            minifyEnabled false
            proguardFiles getDefaultProguardFile('proguard-android-optimize.txt'), 'proguard-rules.pro'
        }
    }
    compileOptions {

        sourceCompatibility JavaVersion.VERSION_1_8
        targetCompatibility JavaVersion.VERSION_1_8
    }
}

dependencies {


    implementation 'androidx.appcompat:appcompat:1.3.0'
    implementation 'com.google.android.material:material:1.4.0'
    testImplementation 'junit:junit:4.13.2'
    androidTestImplementation 'androidx.test.ext:junit:1.1.3'
    androidTestImplementation 'androidx.test.espresso:espresso-core:3.4.0'
}

afterEvaluate {

    publishing {

        publications {

            release(MavenPublication) {

                from components.release
                // Dependent Library Group id
                groupId = 'com.moyihen.w-library'
                // Fill in at will when publishing a single component , When there are multiple components, this component artifactId
                artifactId = 'w-library'
            }
        }
    }
}

4. Submit code to github

4.1 verification git Whether to install

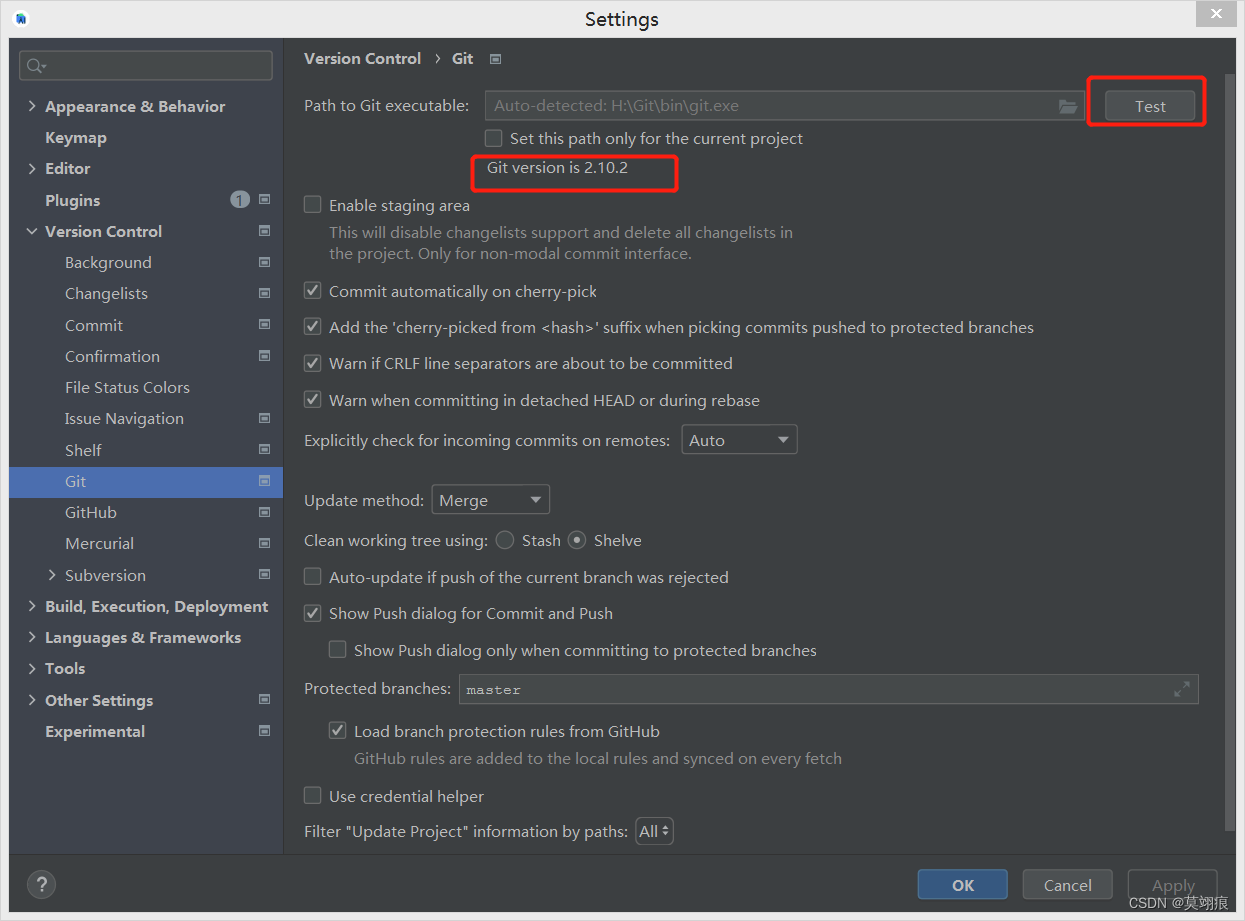

Make sure... Is installed git, Not installed Download from the official website , open File =>Settings=>Version Control=>Git, spot Test The test can correctly find the installation path , The version number appears as normal .

4.2 Click on GitHub Log in to your github account number

The following is the normal login status .

4.3 Submission code

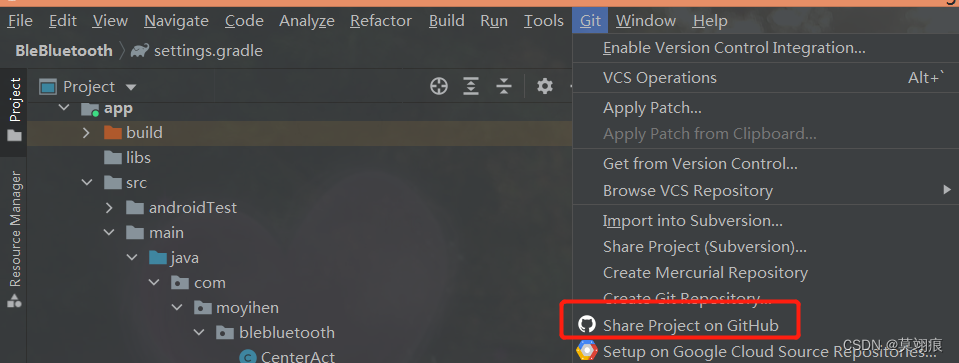

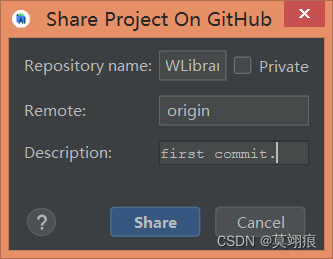

The first submission will create a warehouse by default . Click on Git=>Share Project on GitHub =>share=>Add

Upload successful , The blue font below the dot will jump github Upload address .

5 Create a release

5.1 Click on tags,

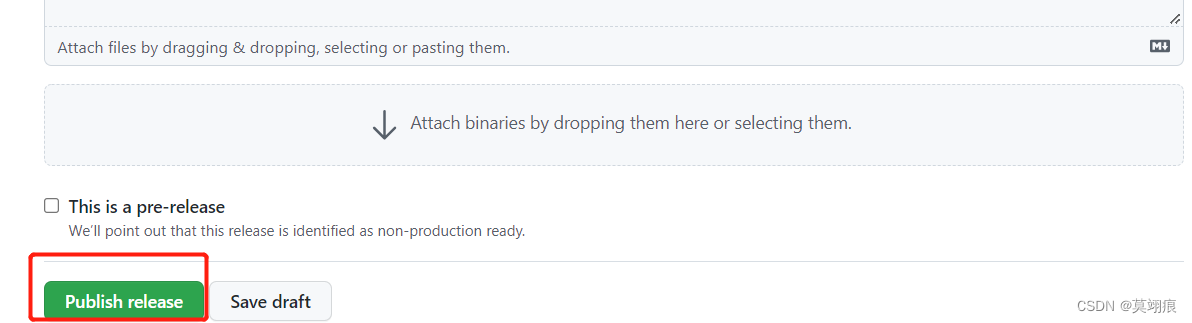

5.2 Click on the bottom Publish release

5.3 Release complete ,

6 relation JitPack

Enter your project warehouse address , My is https://github.com/moyihen/WLibrary, Click on Look up => Click on Get it , In this way, the association release is successful . Sliding down depends How to use the library .

7 Test whether the dependent library is successfully published .

grade7.0 Dependence changes .

7.1 Open the project settings.gradle, To configure maven { url ‘https://jitpack.io’ }

7.2 open app=>build.gradle,

To configure implementation ‘com.github.moyihen:WLibrary:v1.0.0’

7.3 The project can normally rely on WLibrary, The calling function is normal

end.
