Get to know MySQL database

1. What is? MYSQL？
MYSQL Is a relational database management system .
2. What is a database ？
A database is a collection of structured information and data , namely Database is used to store and query data .
3. Classification of database ：
The database can be divided into Relational database and Non relational database .
(1) Relational database ： A database that uses a relational model to organize data . A relational model is a two-dimensional table model , A relational database is a data organization composed of two-dimensional tables and their previous connections .

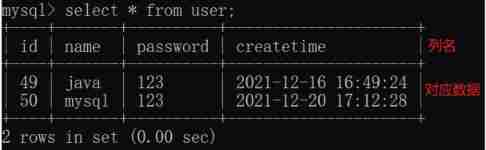

Presentation form of relational database ：

Common relational databases are ：
Oracle,MYSQL,SQL Server,DB2.
(2) Non relational database ： No rules based on SQL Realization , Now it's more about NoSQL database .
Common non relational databases are ：
a. Based on key value pair (key-value):memcached,redis
b. Based on document type ： Such as mongodb
c. Based on column family ： Such as hbase
d. Based on pattern ： Such as neo4j

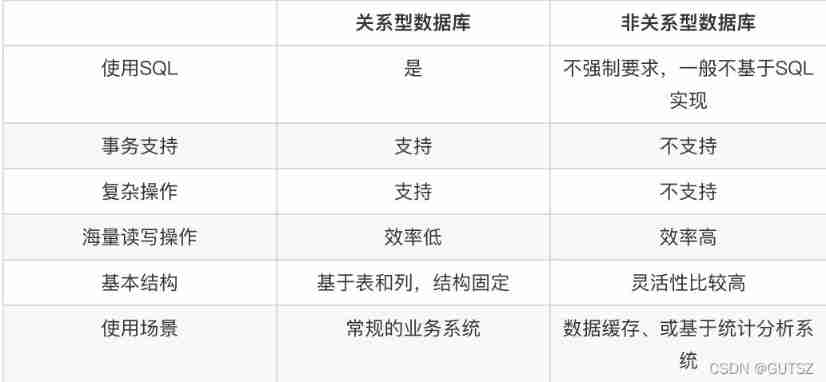

(3) The difference between relational database and non relational database ：

4.MYSQL form ：
MYSQL The composition of is divided into two parts ：
Server side ( Service provider ), client ( Users of services ).

There is only one server , The client can have more than one .

We install on this machine MYSQL, It shows that we are both a server and a client , The embodiment of server-side service is ：

The client is using MySQL Command Line Client as follows ：

Use MySQL Command Line Client You can connect to the server , Enter the correct password to connect MYSQL( Server side )：


Ordinary console connection ：
Besides using MySQL Command Line Client Outside the connection , We can also use normal console commands to connect , The connection command is ：

mysql -h 127.0.0.1 -P 3306 -u root -p

among ：

-h: host Abbreviation , Connect to the server ip Address ( If you connect this machine , It can be omitted );
-P: port Abbreviation of port number , by msql The port number on the server side , The default is 3306( If the machine is connected, you can omit );
-u: username Abbreviation , Indicates the user root Connect ;
-p: password Abbreviation , Indicates the password of the connection ;
Specify data when connecting ：-D Database name

add to mysql environment variable ：
The following error may occur during the first connection ：

mysql Not an internal or external command , Nor are they runnable programs or batch files .

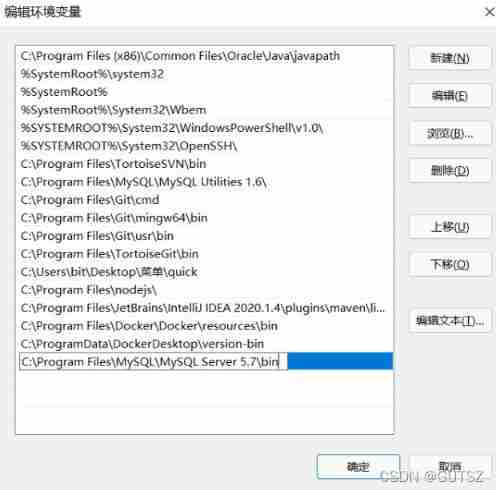

At this time, we need to mysql Add to the connection variable of the system ：
1. find mysql Installation directory ;

2. take mysql Configure to the system environment .



Restart the console , Use the command to connect as shown in the following figure ：

5.MYSQL Composition of server side ：
mysql Important components of the server side are 4 individual ：
database , surface , Field ( Column data ), data ( Row data ).
The database is equivalent to java The package name in , The table is equivalent to the class name , A field is equivalent to an attribute in a class , Data is equivalent to instantiating the object .

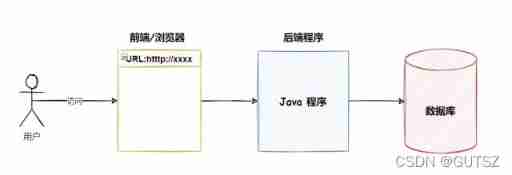

6.MYSQL In the program “ Location ”

7. summary ：
(1)MYSQL Belongs to relational database , Software for storing and viewing data , Database is a concept ,MYSQL It belongs to concrete implementation .
(2) Database classification : Relational database 、 Non relational database 、MYSQL Belongs to relational database .
(3)MYSQL The composition is divided into client and server , The server side consists of the database 、 The data table consists of . A server can have multiple databases , One data can have multiple tables , There can be multiple data in a table .
