RT based_ Distributed wireless temperature monitoring system of thread (I)

today , Teach you how to pass RT_thread studio Transplant code to realize temperature data acquisition

The first step is to create a project

I'm using STM32ZET6 Development board （ In fact, any development board is the same ） Just support BSP Development That is to say ;

Mode configuration

Set configuration , And save “Ctrl+S”

The second step is code migration

Open from RT_thread in github Downloaded routines . If you can't find it , You can download... From here
be based on RT_thread Distributed temperature acquisition system

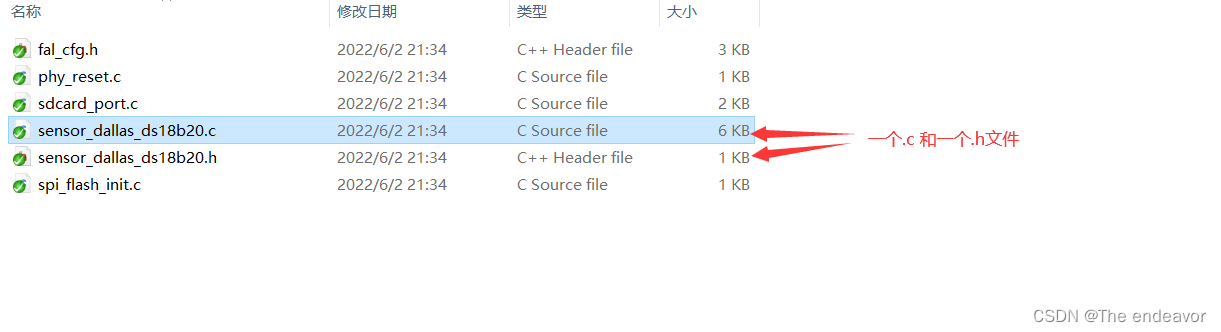

After downloading , Find these two files

Then copy the file to the newly created RT_thread studio Created Demo in
Notice here , Put two files in driver In the folder of

I haven't tried other directories , however , I put it in this directory according to the routine ;

Click sync inside the project ：

In this folder , Right click , Click on Sync scons Configure this item You can add the just two folders to the project ;

Third code addition

stay main Add this code to complete the code work of the first week ;

/* * Copyright (c) 2006-2022, RT-Thread Development Team * * SPDX-License-Identifier: Apache-2.0 * * Change Logs: * Date Author Notes * 2022-05-30 RT-Thread first version */

#include <rtthread.h>
#include "board.h"
#include <stdlib.h>
#include <rtdevice.h>
#include <sensor.h>
#include "sensor_dallas_ds18b20.h"
#include <rtdbg.h>

#define DBG_TAG "main"
#define DBG_LVL DBG_LOG


//#define LED0_PIN GET_PIN(F, 0)
#define DS18B20_DATA_PIN GET_PIN(G, 9)

static void read_temp_entry(void *parameter)
{

    rt_device_t dev = RT_NULL;
    struct rt_sensor_data sensor_data;
    rt_size_t res;

    dev = rt_device_find(parameter);
    if (dev == RT_NULL)
    {

        rt_kprintf("Can't find device:%s\n", parameter);
        return;
    }

    if (rt_device_open(dev, RT_DEVICE_FLAG_RDWR) != RT_EOK)
    {

        rt_kprintf("open device failed!\n");
        return;
    }
    rt_device_control(dev, RT_SENSOR_CTRL_SET_ODR, (void *)100);

    while (1)
    {

        res = rt_device_read(dev, 0, &sensor_data, 1);
        if (res != 1)
        {

            rt_kprintf("read data failed!size is %d\n", res);
            rt_device_close(dev);
            return;
        }
        else
        {

            if (sensor_data.data.temp > 0)
            {

                rt_kprintf("temp:%3d.%dC, timestamp:%5d\n",
                           sensor_data.data.temp / 10,
                           sensor_data.data.temp % 10,
                           sensor_data.timestamp);

            }
            else
            {

                rt_kprintf("temp:-%2d.%dC, timestamp:%5d\n",
                           abs(sensor_data.data.temp) / 10,
                           abs(sensor_data.data.temp) % 10,
                           sensor_data.timestamp);
            }
        }
        rt_thread_mdelay(100);
    }
}


int main(void)
{


    rt_thread_t ds18b20_thread;
    ds18b20_thread = rt_thread_create("18b20tem", read_temp_entry, "temp_ds18b20",
                                      640, RT_THREAD_PRIORITY_MAX / 2, 20);
    if (ds18b20_thread != RT_NULL)
    {

       rt_thread_startup(ds18b20_thread);
    }


    return RT_EOK;
}

static int rt_hw_ds18b20_port(void)
{

    struct rt_sensor_config cfg;
    cfg.intf.user_data = (void *)DS18B20_DATA_PIN;
    rt_hw_ds18b20_init("ds18b20", &cfg);

    return RT_EOK;
}

INIT_ENV_EXPORT(rt_hw_ds18b20_port);

Fourth Compile and debug download

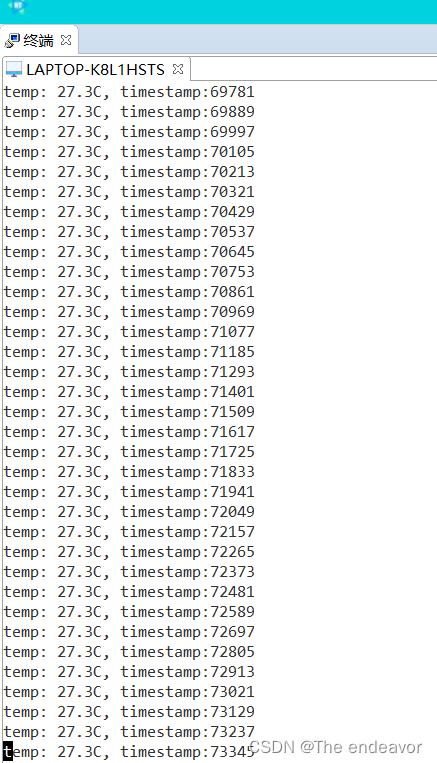

5、 ... and 、 Result demonstration

This is the whole process of this routine , I write while reading , So we need to understand ha ！
