Data warehouse 4.0 notes - user behavior data collection III

2022-07-23 11:41:00 【Silky】

1 Kafka Cluster installation

[[email protected] software]$ tar -zxvf kafka_2.11-2.4.1.tgz -C /opt/module/

Modify name

[[email protected] module]$ mv kafka_2.11-2.4.1/ kafka

establish logs Folder

[[email protected] kafka]$ mkdir logs

Modify the configuration file

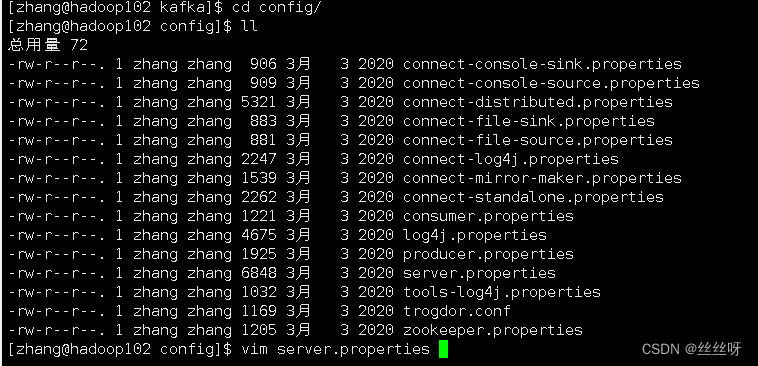

[[email protected] kafka]$ cd config/

[[email protected] config]$ vi server.properties

Modify or add the following ：

#broker The global unique number of , Can't repeat

broker.id=0

# Delete topic Function enables

delete.topic.enable=true

#kafka Run the path where the log is stored

log.dirs=/opt/module/kafka/data

# configure connections Zookeeper The cluster address

zookeeper.connect=hadoop102:2181,hadoop103:2181,hadoop104:2181/kafka

[[email protected] config]$ cd ..
[[email protected] kafka]$ cd ..
[[email protected] module]$ ll

distribution

[[email protected] module]$ xsync kafka/

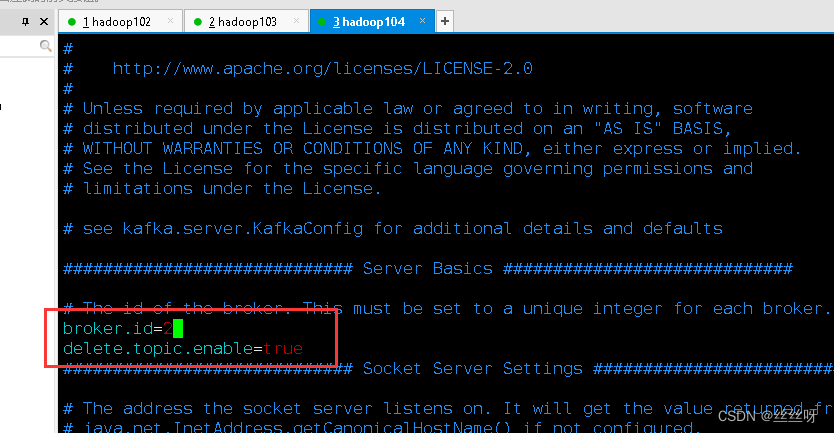

Go to 103 104 Modify the broker.id

Configure environment variables

[[email protected] kafka]$ sudo vim /etc/profile.d/my_env.sh

[[email protected] kafka]$ source /etc/profile.d/my_env.sh

distribution

[[email protected] kafka]$ sudo /home/zhang/bin/xsync /etc/profile.d/my_env.sh

[[email protected] config]$ source /etc/profile.d/my_env.sh

Start cluster

[[email protected] kafka]$ bin/kafka-server-start.sh -daemon /opt/module/kafka/config/server.properties

2 Kafka Cluster start stop script

stay /home/zhang/bin Create script in directory kf.sh

[[email protected] bin]$ vim kf.sh

Add script content

#! /bin/bash

case $1 in
"start"){
    for i in hadoop102 hadoop103 hadoop104
    do
        echo " -------- start-up  $i Kafka-------"
        ssh $i "/opt/module/kafka/bin/kafka-server-start.sh -daemon /opt/module/kafka/config/server.properties"
    done
};;
"stop"){
    for i in hadoop102 hadoop103 hadoop104
    do
        echo " -------- stop it  $i Kafka-------"
        ssh $i "/opt/module/kafka/bin/kafka-server-stop.sh stop"
    done
};;
esac

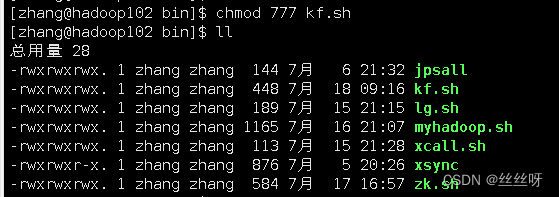

[[email protected] bin]$ chmod 777 kf.sh

Use the script command to close

The start command is also successful

3 Kafka Common commands

see Kafka Topic list

[[email protected] kafka]$ bin/kafka-topics.sh --zookeeper hadoop102:2181/kafka --list

establish Kafka Topic

Enter into /opt/module/kafka/ Create log topic under directory

[[email protected] kafka]$ bin/kafka-topics.sh --zookeeper hadoop102:2181,hadoop103:2181,hadoop104:2181/kafka --create --replication-factor 1 --partitions 1 --topic topic_log

Delete Kafka Topic

[[email protected] kafka]$ bin/kafka-topics.sh --delete --zookeeper hadoop102:2181,hadoop103:2181,hadoop104:2181/kafka --topic topic_log

Kafka Production news

[[email protected] kafka]$ bin/kafka-console-producer.sh \

--broker-list hadoop102:9092 --topic topic_log

>hello world

>zhang zhang

Kafka News consumption

[[email protected] kafka]$ bin/kafka-console-consumer.sh \

--bootstrap-server hadoop102:9092 --from-beginning --topic topic_log

4 Project experience Kafka Pressure test

hadoop102、hadoop103、hadoop104 The network bandwidth is set to 100mbps.

close hadoop102 host , And according to hadoop102 Clone out hadoop105（ modify IP And host name ）

hadoop105 Unlimited bandwidth .

Shut down the cluster ： Be sure to close it first Kafka, To shut down zk, If you shut it down first zk, It won't close Kafka.

hadoop105 Connected to the xshell

start-up hadoop102

Set up 105 The network is not limited

Create a test topic, Set to 3 Zones 2 Copies

[[email protected] kafka]$ bin/kafka-topics.sh --zookeeper hadoop102:2181,hadoop103:2181,hadoop104:2181/kafka --create --replication-factor 2 --partitions 3 --topic test

test

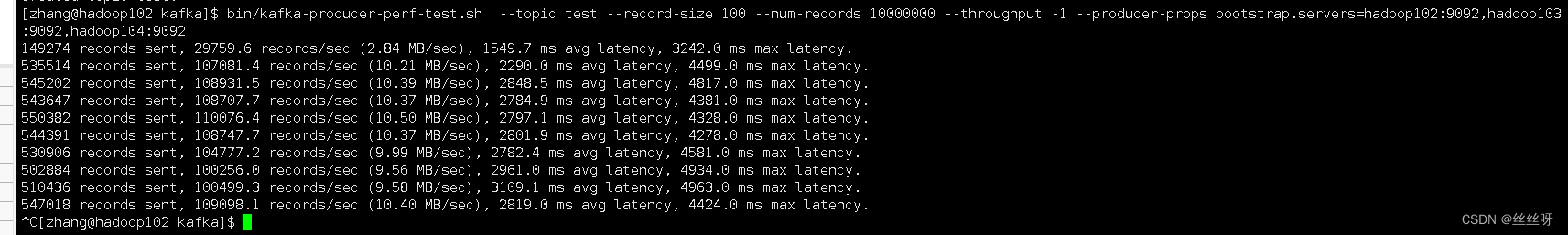

[[email protected] kafka]$ bin/kafka-producer-perf-test.sh --topic test --record-size 100 --num-records 10000000 --throughput -1 --producer-props bootstrap.servers=hadoop102:9092,hadoop103:9092,hadoop104:9092

record-size It's how big a message is , Unit is byte .

num-records How many messages are sent in total .

throughput How many messages per second , set -1, No current limit , Production data as soon as possible , The maximum throughput of the producer can be measured .

batch.size The default value is 16k.

batch.size smaller , Will reduce throughput . for instance , Batch size is 0 Batch processing is completely disabled , Will send messages one by one ）;

batch.size Too big , It will increase the message sending delay . for instance ,Batch Set to 64k, But wait 5 Second Batch Just filled up 64k, To send out . The delay of this message is 5 Second .

summary

Simultaneous setting batch.size and linger.ms, The message will be sent if any condition is met first

Kafka The balance between high throughput and delay needs to be considered .

Kafka Consumer Pressure test

[[email protected] kafka]$ bin/kafka-consumer-perf-test.sh --broker-list hadoop102:9092,hadoop103:9092,hadoop104:9092 --topic test --fetch-size 10000 --messages 10000000 --threads 1

--broker-list Appoint Kafka The cluster address

--topic Appoint topic The name of

--fetch-size Specify each time fetch The size of the data

--messages Total number of messages consumed
