Deploy redis sentry in k8s

One 、 Get ready redis Mirror image

Dockerfile

FROM redis:6.0
MAINTAINER  Operation and maintenance @ Soldier

COPY *.conf /opt/conf/
COPY run.sh /opt/run.sh
RUN apt update -y;apt-get install vim net-tools -y;apt-get clean && \
    chmod +x /opt/run.sh

CMD /opt/run.sh

redis The configuration file redis.conf

# To which machine ,0.0.0.0 Indicates that all hosts are allowed to access
bind 0.0.0.0
#redis3.2 Features added after version ,yes After opening , If not configured bind Only... Is allowed by default 127.0.0.1 visit
protected-mode yes
# Exposed access port
port 6379
# The login password
requirepass devops
# Master slave synchronous authentication password
masterauth devops
# Three handshakes server The end receives the client  ack The queue value after the confirmation number
tcp-backlog 511
# Timeout of connection between server and client ,0 Means never time out
timeout 0
# Connect redis The password at the time of  hello
#requirepass hello
#tcp  Keep the conversation for 300s
tcp-keepalive 300
#redis Whether to run as a daemons , If it is , Will generate pid
daemonize yes
supervised no
#pid File path
pidfile /var/run/redis_6379.pid
# The level of logging
loglevel notice
logfile /var/log/redis.log
# Default redis There are several db library
databases 32
# Every interval 900 second , If a key value changes, the snapshot mechanism is triggered
save 900 1
save 300 10
save 60 10000
# Error in snapshot , Whether to ban redis write in
stop-writes-on-bgsave-error no
# Persist to rdb When you file , Whether to compress the file
rdbcompression no
# Persist to rdb File is , whether RC64 Turn on Validation
rdbchecksum no
# When persisting output ,rdb File naming
dbfilename dump.rdb
# Persistent file path
slave-serve-stale-data yes
slave-read-only yes
repl-diskless-sync no
repl-diskless-sync-delay 5
repl-disable-tcp-nodelay no
slave-priority 100
# Open or not aof Backup
appendonly yes
#aof Backup file name
appendfilename "appendonly.aof"
appendfsync everysec
no-appendfsync-on-rewrite no
auto-aof-rewrite-percentage 100
auto-aof-rewrite-min-size 64mb
aof-load-truncated yes
lua-time-limit 5000
slowlog-log-slower-than 10000
slowlog-max-len 128
latency-monitor-threshold 0
notify-keyspace-events ""
hash-max-ziplist-entries 512
hash-max-ziplist-value 64
list-max-ziplist-size -2
list-compress-depth 0
set-max-intset-entries 512
zset-max-ziplist-entries 128
zset-max-ziplist-value 64
hll-sparse-max-bytes 3000
activerehashing yes
client-output-buffer-limit normal 0 0 0
client-output-buffer-limit slave 256mb 64mb 60
client-output-buffer-limit pubsub 32mb 8mb 60
hz 10
aof-rewrite-incremental-fsync yes
# Maximum number of client connections
maxclients 20000
lazyfree-lazy-eviction yes
lazyfree-lazy-expire yes
lazyfree-lazy-server-del yes
slave-lazy-flush yes

redis Sentry profile sentinel.conf

#  sentry sentinel The port on which the instance runs   Default 26379
port 26379
#  sentry sentinel Working directory of
dir "/tmp"
sentinel deny-scripts-reconfig yes
sentinel monitor mymaster redis-0.redis 6379 2
sentinel auth-pass mymaster devops
sentinel down-after-milliseconds mymaster 5000
sentinel failover-timeout mymaster 15000
#  Set up 5 No response in seconds , The server is down , You need to put the configuration in sentinel monitor master 127.0.0.1 6379  below
sentinel parallel-syncs mymaster 2
#  Set up 15 Seconds master Not alive , Re elect the Lord
sentinel config-epoch mymaster 3
#. Said if master After re selecting , Other slave Nodes can run in parallel at the same time master How many synchronous caches are there , Obviously the greater the value , all slave The faster the node can complete the synchronous handover , However, such as
 If someone happens to be visiting these slave, It's possible to make # Failed to read , It will have a wider impact . The most stable setting is 1, Only at the same time , Only one can do it , So other slave And continue to serve , But the
 Yes slave The process of complete cache update synchronization will be slow .
sentinel leader-epoch mymaster 3

The startup script run.sh

#!/bin/bash

pod_seq=$(echo $POD_NAME | awk -F"-" '{print $2}')
if [[ ${pod_seq} -ne 0 ]];then    # For slave
    sed -i '/^slaveof /d' /opt/conf/redis.conf
    echo "slaveof redis-0.redis 6379" >> /opt/conf/redis.conf	#redis-0.redis On behalf of the first redis Access address of
fi
/usr/local/bin/redis-server /opt/conf/redis.conf
sleep 15    # If redis-0 Didn't get up , The sentry in it can't get up , Wait a while before starting the sentry
/usr/local/bin/redis-sentinel /opt/conf/sentinel.conf &
tail -f /var/log/redis.log

Build a mirror image

docker build --pull -t 192.168.1.2/common/redis_sentinel:6.0 .
docker push 192.168.1.2/common/redis_sentinel:6.0

Two 、 Get ready k8s yml—redis-sentinel.yml

StatefulSet Please refer to ：K8S And StatefulSet Stateful service

apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: redis
  namespace: redis-ns
spec:
  serviceName: redis
  selector:
    matchLabels:
      app: redis
  replicas: 3
  template:
    metadata:
      labels:
        app: redis
    spec:
      nodeSelector:
        productLine: redis-ns
        area: wuhan
      restartPolicy: Always
      containers:
        - name: redis
          image: 192.168.1.2/common/redis_sentinel:6.0
          imagePullPolicy: Always
          env:
            - name: POD_NAME
              valueFrom:
                fieldRef:
                  fieldPath: metadata.name
          livenessProbe:
            tcpSocket:
              port: 6379
            initialDelaySeconds: 3
            periodSeconds: 5
          readinessProbe:
            tcpSocket:
              port: 6379
            initialDelaySeconds: 3
            periodSeconds: 5
          ports:
            - containerPort: 6379
          resources:
            requests:
              memory: 256Mi
              cpu: 50m
            limits:
              memory: 256Mi
              cpu: 200m

---
apiVersion: v1
kind: Service
metadata:
  name: redis
  namespace: redis-ns
spec:
  type: NodePort
  ports:
    - name: redis
      port: 6379
      targetPort: 6379
      nodePort: 26380
  selector:
    app: redis

kubectl apply -f redis-sentinel.yml

Will create three redis pod

kubectl get pod -n redis-ns

3、 ... and 、 see redis Sentinel information

kubectl exec -it redis-0 -n redis-ns -- bash
[email protected]:/data# redis-cli
127.0.0.1:6379> AUTH devops

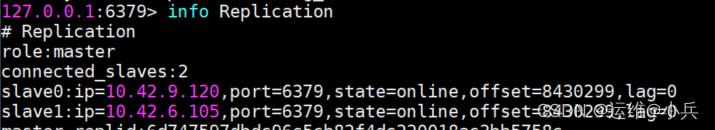

127.0.0.1:6379> info Replication	# View master-slave information

127.0.0.1:6379> exit
[email protected]:/data# redis-cli -p 26379

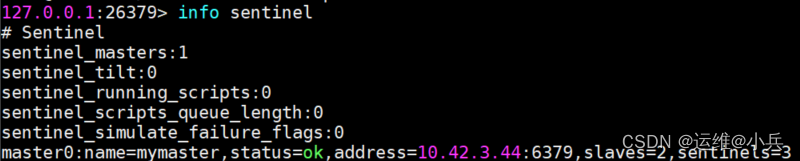

127.0.0.1:26379> info sentinel		# Check the sentry information

Four 、 Connect redis sentry

k8s Other command space java Process connection redis sentry

spring:
  redis:
    database: 4
    # redis The Sentinel's address
    sentinel:
      master: mymaster
      nodes: redis-0.redis.redis-demo.svc.cluster.local:26379,redis-1.redis.redis-demo.svc.cluster.local:26379,redis-2.redis.redis-demo.svc.cluster.local:26379
    # redis Access password （ The default is empty. ）
    password: devops

Client connection redis

node node IP:26380 password :devops
