Jenkins - data sharing and transfer between copy artifact plug-in builds

introduction

Realization CICD In the process of ,Jenkins Pipeline Job Build Need to transfer shared data between , such as , There is one Test Job Used to run test cases , After running, a test result file will be generated , Another one Report Job Is used to notify test results by email , Test result file is required , So you need to start with Test Job in Copy the test result file . Or for historical statistics , This time Build The results need to be based on the last Build Add new data to your data , Then you need to copy the previous one Build Results file for .Copy Artifact Plugin Can meet this demand , This article will introduce the plug-in .

Summary ：

1. Copy Artifact Plugin Introduction and installation
2. Copy Artifact Plugin application

Copy Artifact Plugin Introduction and installation

Copy Artifact be applied to Jenkins Job Copy Archive the artifacts The archive , You can specify which Build ( for example ：the last successful/stable build, by build number, or by a build parameter), You can also filter and control which files are copied and to which destination folder . Can also from workspace Directory copy file .

This plug-in is not available Jenkins The recommended plug-ins to install are listed in , So I want to use this plug-in , Separate installation required .
Manage Jenkins -> Plugin Manger

After successful installation , open Job Configure, Add build step You can see in the options Copy artifacts from another project

Copy Artifact Plugin application

File Archive the artifacts

Apply this Plugin Before , The shared files need to be archived . adopt Post-build Actions add to Archive the artifacts Options .

take workspace File in the directory , The files that have been successfully archived can be archived through URL To visit ：JenkinsURL/…JobPath/BuildNo/artifact/

Copy artifacts from another project application

After filing , You can access the copy
For example, the following configuration , From the target job the last one build Copy all archived in the archive directory csv File to current Job Of workspace The root directory .

Build After success ,workspace You can see the copied file .

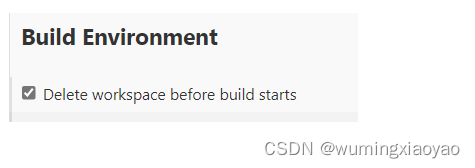

Here's a reminder , Default Job Configure in , Will delete workspace, If you need to keep workspace Don't check . To save storage space , It is suggested to check , It can be done by Arhicve the artifacts Archive some required documents .

Copy artifacts from another project Detailed settings

To the goal Build, There are many options , Some can be seen from their names , You can choose according to your needs .

Specific build Options
Give a specific example Build No Example , It can be accessed dynamically through variables .

Of course, it can also be Pipeline Groovy Script setting variables .
give an example ： One Jenkins Pipeline Job, Parallel trigger Smoke and Regression Job, The final trigger Report job Mail notification , Parameters are passed to each other .

#!groovy

pipeline {


    options {

        buildDiscarder(logRotator(numToKeepStr: '15', daysToKeepStr: '15'))
    }

    agent {
     label "Linux1" }

    parameters {

        string(name: 'branch', defaultValue: 'master', description: 'example : master')
        string(name: 'env', defaultValue: 'dev', description: 'example : dev')
		string(name: 'project_name', defaultValue: 'Project XXX', description: 'example : Project XXX')
        string(name: 'email_list', defaultValue: '[email protected]',
                description: 'example : [email protected]')

    }

    stages{

		stage('Testing'){

			parallel{

				stage('Smoke') {

					agent {
     label "Linux1" }
					steps {

						script {

							def smoke_build = build job: 'Smoke-Job',
								propagate: false,
								parameters: [
									string(name: 'branch', value: "${params.branch}"),
									string(name: "env", value: "${params.env}")
								]
							smoke_full_project_name = smoke_build.getFullProjectName()
							smoke_build_num = smoke_build.getNumber()
						}
					}
				}
				stage('Regression') {

					agent {
     label "Linux1" }
					steps {

						script {

							def regression_build = build job: 'Reg-Job',
								propagate: false,
								parameters: [
                                    string(name: 'branch', value: "${params.branch}"),
                                    string(name: "env", value: "${params.env}")
								]
							regression_full_project_name = regression_build.getFullProjectName()
							regression_build_num = regression_build.getNumber()
						}
					}
				}
			}
		}
	}
  post {

        always {

            build job: '../Report-JOB',
                    parameters: [
                            string(name: 'smoke_job', value: "${smoke_full_project_name}"),
							string(name: 'smoke_build_num', value: "${smoke_build_num}"),
							string(name: 'regression_job', value: "${regression_full_project_name}"),
							string(name: 'regression_build_num', value: "${regression_build_num}"),
							string(name: 'branch', value: "${params.branch}"),
                            string(name: 'env', value: "${params.env}"),
                            string(name: 'project_name', value: "${params.project_name}"),
                            string(name: 'email_list', value: "${params.email_list}")
                    ]
			}
	}
}

Specified by a build parameter Options
First add a Build selector for Copy Artifact Parameters

Copy arfifacts from another project, choice Specified by a build parameter Options , Parameter Name Directly fill in the previously added Build selector for Copy Artifact Parameter name is enough .

of Project Name and Permalink Parameters , Can be from Job Home page access .

Project Name Namely Full project name, You can avoid Job Identify problems between .

Permalink Parameters have been confused before , Later, I found that it was actually based on Job Fixation URL, At present Job You can see this information on the home page .
for example ：lastBuild Of Permalinks
https://jenkinsURL/projectURL/lastBuild/
