Envoy obtain the real IP address of the client

stay envoy As a front-end agent , user ip Access to information is important , Generally get ip The way . It's all through Header Medium X-Forward-For、 X-Real-IP or Remote addr And so on , But if you make sure Envoy What can be obtained ip It's a real user ip Well ？ This article continues to be decrypted ！

Concept description

• Remote Address
  yes nginx With the client TCP During connection , Get the real address of the client .Remote Address No forgery , Because of the establishment of TCP Connection requires three handshakes , If you fake the source IP, Can't create TCP Connect , There will be no back HTTP request .
  In general , stay Envoy As the outermost agent , this IP For the real IP client IP

• X-Real-IP
  Is a custom header .X-Real-Ip Usually HTTP An agent is used to indicate that it produces TCP Connected devices IP, This device may be another agent , It may also be the real requester .X-Real-Ip At present, it does not belong to any standard , Agents and Web Applications can agree to use any custom header to pass this information .

• X-Forwarded-For
  X-Forwarded-For Is an extension header .HTTP/1.1（RFC 2616） The agreement does not define it , It started with Squid This cache agent software introduces , Used to represent HTTP The request is true IP, Now it has become the de facto standard , By the major HTTP agent 、 Forwarding services such as load balancing are widely used , And is written RFC 7239（Forwarded HTTP Extension） In the standard . Usually ,X-Forwarded-For Can be forged , And use CDN Will be rewritten

Envoy How to get the truth in IP

stay Envoy in , It involves the client IP The configuration is as follows ：
use_remote_address： The default value is false, Set to true, Use the real remote address of the client connection ,false It's using x-forwarded-for
skip_xff_append： Set to true, The remote address will not be attached to x-forwarded-for in
request_headers_to_add Add request header
request_headers_to_remove Delete a request header

Experimental environment configuration preparation

admin:
  access_log_path: /dev/null
  address:
    socket_address: {
     address: 0.0.0.0, port_value: 9901 }

static_resources:
  listeners:
  - name: listener_80
    address:
      socket_address: {
     address: 0.0.0.0, port_value: 80 }
    access_log:

    filter_chains:
    - filters:
      - name: envoy_http_connection_manager
        typed_config:
          "@type": type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
          access_log:
          - name: envoy.listener.accesslog
            typed_config:
              "@type": type.googleapis.com/envoy.extensions.access_loggers.file.v3.FileAccessLog
              path: /var/log/envoy.log
              log_format:
                text_format: "[%START_TIME%] \"%REQ(:METHOD)% %REQ(X-ENVOY-ORIGINAL-PATH?:PATH)% %PROTOCOL%\" %RESPONSE_CODE% %RESPONSE_FLAGS% %BYTES_RECEIVED% %BYTES_SENT% %DURATION% %RESP(X-ENVOY-UPSTREAM-SERVICE-TIME)% \"%REQ(X-FORWARDED-FOR)%\" \"%REQ(USER-AGENT)%\" \"%REQ(X-REQUEST-ID)%\" \"%REQ(:AUTHORITY)%\" \"%UPSTREAM_HOST%\"\n"
          http_filters:
          - name: envoy.filters.http.router
          use_remote_address: true
          skip_xff_append: false
          xff_num_trusted_hops: 0
          stat_prefix: local_route
          codec_type: AUTO
          route_config:
            name: local_route
            #request_headers_to_remove: "X-Forwarded-For"
            request_headers_to_add:
              header:
                key: "X-Forwarded-For"
                value: "%DOWNSTREAM_REMOTE_ADDRESS_WITHOUT_PORT%"
                #value: "%REQ(REMOTE_ADDR)%"
              append: true
            virtual_hosts:
            - name: split_traffic
              domains: [ "*" ]
              routes:
              - match:
                  prefix: "/"
                route:
                  cluster: version_v1
                  request_mirror_policies:
                    cluster: version_v2
                    runtime_fraction:
                      default_value:
                        numerator: 10
                        denominator: HUNDRED
                      runtime_key: routing.request_mirror.version
  clusters:
  - name: version_v1
    connect_timeout: 0.25s
    type: STRICT_DNS
    lb_policy: ROUND_ROBIN
    load_assignment:
      cluster_name: version_v1
      endpoints:
      - lb_endpoints:
        - endpoint:
            address:
              socket_address: {
     address: version1, port_value: 90 }
    health_checks:
      timeout: 3s
      interval: 30s
      unhealthy_threshold: 2
      healthy_threshold: 2
      http_health_check:
        path: /ping
        expected_statuses: {
     start: 200, end: 201 }
  - name: version_v2
    connect_timeout: 0.25s
    type: STRICT_DNS
    lb_policy: ROUND_ROBIN
    load_assignment:
      cluster_name: version_v2
      endpoints:
      - lb_endpoints:
        - endpoint:
            address:
              socket_address: {
     address: version2, port_value: 90 }
    health_checks:
      timeout: 3s
      interval: 30s
      unhealthy_threshold: 2
      healthy_threshold: 2
      http_health_check:
        path: /ping
        expected_statuses: {
     start: 200, end: 201 }

docker-compose

version: '3'
services:
  envoy:
    image: envoyproxy/envoy-alpine:v1.15-latest
    environment:
    - ENVOY_UID=0
    ports:
    - 80:80
    - 443:443
    - 82:9901
    volumes:
    - ./envoy.yaml:/etc/envoy/envoy.yaml
    networks:
      envoymesh:
        aliases:
        - envoy
    depends_on:
    - webserver1
    - webserver2
    - webserver3
    - webserver4

  webserver1:
    image: cylonchau/envoy-end:latest
    networks:
      envoymesh:
        aliases:
        - version1
    environment:
    - VERSION=v1
    - COLORFUL=blue
    expose:
    - 90
  webserver2:
    image: cylonchau/envoy-end:latest
    networks:
      envoymesh:
        aliases:
        - version1
    environment:
    - VERSION=v1
    - COLORFUL=blue
    expose:
    - 90
  webserver3:
    image: cylonchau/envoy-end:latest
    networks:
      envoymesh:
        aliases:
        - version2
    environment:
    - VERSION=v2
    - COLORFUL=red
    expose:
    - 90
  webserver4:
    image: cylonchau/envoy-end:latest
    environment:
    - VERSION=v2
    - COLORFUL=red
    networks:
      envoymesh:
        aliases:
        - version2
    expose:
    - 90
networks:
  envoymesh: {
    }

The actual use Envoy The external environment when acting as an agent

Environmental Science 1： The client directly communicates with Envoy signal communication

When a normal request , The client can be obtained here IP, actually envoy What's the value X-Forwarded-For

Back end log

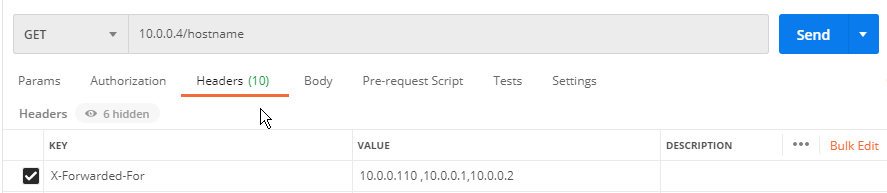

In forging or rewriting X-Forwarded-For After that, it is actually the obtained forged value .

stay Envoy When acting directly as an outer agent , You can use the following parameters , No matter how fake , You can get the corresponding parameters .

name: local_route
request_headers_to_remove: "X-Forwarded-For"  #  fear X-Forwarded-For For forged values , You can delete this value ,
request_headers_to_add:   #  After deletion, you also need to pass to the back end , So you need to add this value
  header:
    key: "X-Forwarded-For"
    value: "%DOWNSTREAM_REMOTE_ADDRESS_WITHOUT_PORT%"  #  obtain  remote_addr, This value cannot be forged , by Envoy Variable , Express   The downstream host is real IP No port , namely remote_addr  No port
  append: true  #  Whether surface values are appended or overwritten

You can see envoy What you get is real ip Not a forged request

Environmental Science 2：Envoy There are agents in the preceding paragraph （ nothing CDN）

In this environment , There are agents on the front end , Such as f5、nginx etc. . Cannot be used in this case remote_addr The data obtained in this way is the data of the front-end agent IP It's not true IP

Front end exists f5 or nginx, Can be in f5 Middle configuration irule Deliver real remote_addr, Replace with a real client IP, The front-end proxy rewrites the configuration , Customizable value .

request_headers_to_remove: "X-Forwarded-For"
request_headers_to_add:
  header:
    key: "X-Forwarded-For"
    value: "%REQ(custom_header)%"

Environmental Science 3：Envoy There are agents in the preceding paragraph （ single CDN）

In this environment , There are agents on the front end , And used CDN, Should be for each CDN The manufacturer obtains the truth of customers IP In different ways , Here we need to find cdn Manufacturers find and get real IP Methods , Follow the steps 2 Conduct .

give an example ：
Alibaba cloud cdn Get real IP Method
Accelerate music to get real IP Method

Environmental Science 4：Envoy There are agents in the preceding paragraph （ many CDN）

Because of each CDN The bandwidth of the 、 Price 、 Usage scenarios and other factors , In practice , A variety of... May be used CDN; Such as ： Use under normal circumstances cdn Speed up , In case of an attack, switch to the one with high security defense CDN. Generally only accelerated CDN The price is much cheaper than the one with defense .

here Enovy To be updated , Back end applications can be based on CDN Of http Head normal acquisition IP

Environmental Science 5： The internal agent

No special requirements
