Ffmpeg notes (I) fundamentals of audio and video

1 Basic concepts of image

1.1 Pixels

Pixel is the basic unit of a picture pix It's English words picture Abbreviation Add English words Elements element” Got it. pixel” abbreviation px therefore Pixels Yes The meaning of image elements .2500 × 2000 The picture of means that there are horizontal 2500 Pixels , Vertical 2000 Pixels , The total is 500 Ten thousand pixels , Also known as 500 10 megapixel photo .

1.2 The resolution of the

Resolution refers to the size or size of the image . such as 1920 x 1080 A picture of is a picture with a horizontal width 1920 Pixels , Vertical height 1080 Pixels .

Common resolution ：360P(640 x 360）、720P(1280x720) 、 1080P(1920x1080) 、 4K(3840x2160) 、 8K(7680x4320) etc. .

Used to say 1080 and 720 Actually speaking of vertical pixels . According to width : High for 16:9 Calculate the proportion of ,720p The number of horizontal pixels of is 720 ÷ 9 × 16 = 1280, The total pixels are 921600 The pixels are approximately 92 Mega pixels . 1080p The horizontal pixel of is 1080 ÷ 9 × 16 = 1920, The total pixels are about 200 Mega pixels , yes 720p Of 2 More than double . The more pixels, the clearer the video , therefore 1080p Than 720p The video is clearer . The higher the resolution of the image , The clearer the image .

Provide an article explaining better resolution ：
https://segmentfault.com/a/1190000023769775

1.3 A deep

Bit Bit depth is also called “ Bit resolution ”（Bit resolution）, Represents the number of binary bits contained in an image .

1 Bit depth can only display single bit information in a picture , So the graphics can only have pure black and white colors .8 A deep （2 Of 8 Power ） It means that there is 256 A combination of grayscale or color .16 A deep （2 Of 16 Power ） Can express 65 536 Two possible color combinations .24 Bit depth can express about 1670 Thousands of different colors .

Because the eyes of ordinary people can only distinguish about 1200~1400 Thousands of different colors and shades , therefore 24 Bit color is also called “ photo ” Color or true color . Usually ,24 Bit color channels are allocated 8 Bit data , in other words ： red , green , blue , Each of these three primary colors can have 256 Change . That is to say, it can be used 3 Byte representation 24 A color .（8x3=24）

Computers are storing R、G、B when , All of them adopt a 8bit The storage space of , So computers can express 256256256=16,777,216 = 1677 Ten thousand colors . Different values represent colors .

The greater the bit depth of each channel , The larger the color value that can be represented , For example, high-end TV now says 10bit color , That is, each channel uses 10bit Express , Each channel has 1024 Color . 102410241024, about 10,7374 Ten thousand colors =10 Billion colors , yes 8bit Of 64 times .

1.4 Frame rate

stay 1 Number of frames of pictures transmitted in seconds . It can also be understood that the graphics processor can refresh several times per second , such as 25 fps It means that one second has 25 A picture .

FPS The higher the frame rate, the smoother the video picture , The lower, the more stuck .

Because the visual image temporarily stays in the retina , Generally, the image frame rate can reach
24 frame , We think that the image is continuous .

The higher the frame rate , The smoother the picture , The higher the performance of the equipment required .

1.5 Bit rate

The data flow used by video files per unit time . such as 1 Mbps .

In most cases, the higher the bit rate The higher the resolution , The clearer it becomes . But fuzzy video file size （ Bit rate ） It can be very big , A video file with a small resolution may also be clearer than a video file with a large resolution .

For the same original image source , The same coding algorithm , The higher the bit rate , The smaller the distortion of the image , The clearer the video will be .

1.6 Stride

Refers to the space occupied by each row of pixels in memory . In order to realize memory alignment, the space occupied by each row of pixels in memory Does not necessarily Is the width of the image .

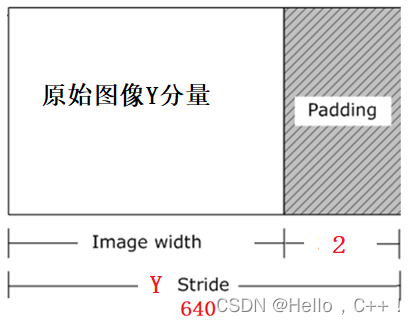

Stride Is the name of these extensions , Stride Also known as Pitch , If there is extended content at the end of each row of pixels in the image , Stride The value of must be greater than the width of the image , As shown in the figure below ：

Alignment issues ：
Like resolution 638x480 Of RGB24 Images , If we want to With 16 Byte alignment is 6383/16=119.625 Not divisible , So we can't 16 Byte alignment , We need to fill in the end of each line 6 Bytes . Namely (638+2 -->640), 6403/16=120 . At this time, the stride by 1920 byte .

Like resolution 638x480 Of YUV420P Images , When we process the memory, if we want to 16 Byte alignment , be 638 Can not be 16 to be divisible by , We need to fill in the end of each line 2 Bytes . Namely 640 . At this time, the Y stride by 640 byte .

2 YUV Knowledge aggregation

2.1 YUV Definition

YUV Of "Y" Component represents brightness ( That's the gray scale value )、"UV" Component represents chromaticity . among “u” Blue hue ,“v” Reddish hue .

YUV Set brightness Y and UV The benefits of expressing separately ：
1、 Avoid interfering with each other , Rely solely on Y You can also display a black-and-white picture completely , It solves the compatibility problem between black-and-white TV and color TV .

2、 Reduce chromaticity （UV） Sampling rate It will not affect the image quality too much It reduces the bandwidth of video signal transmission bandwidth The requirements of . It can be done by UV The sampling frequency of is modified to reduce the bandwidth , Save network traffic , Indirectly reduce the video delay problem .

2.2 YUV The format of

YUV Is a relatively general term For its specific arrangement It can be divided into many specific formats ：
1、 pack packed Format ： take Every pixel point Y 、 U 、 V Components are arranged crosswise And the pixels are continuously stored in the same array Usually several adjacent pixels form a macro pixel macro pixel

Packaging mode , Generally speaking, different small quantities are packed together as large quantities .

2、 Plane planar Format ： Use three arrays to store them separately and continuously Y 、 U 、 V The three components namely Y 、 U 、 V Stored in their respective arrays .

Flat pattern , Popular understanding is to Y、U、V The components are tiled separately .

2.3 YUV sampling

Main sampling methods ：
1、YUV 4:4:4 sampling , Indicates that the chroma channel has no down sampling , That is, a Y The component corresponds to a U Component and one V component

2、YUV 4:2:2 sampling , Express 2:1 Sampling at the same level , No vertical down sampling , That is, every Two Y Components share one U Component and one V component .

3、YUV 4:2:0 sampling , Express 2:1 Sampling at the same level , 2:1 Vertical down sampling , That is, every four Y Components share one U Component and one V component .

2.4 FFMPEG in YUV data storage

1、I444(YUV 444 P) Format ： Corresponding Ffmpeg Pixels represent AV_PIX_FMT_ YUV444P, This type is plane mode

2、I422 (YUV422P) Format
Corresponding Ffmpeg Pixels represent AV_PIX_FMT_YUV422 P, This type is plane mode

3、4:2:0 Format YUV420P

Corresponding Ffmpeg Pixels represent AV_PIX_FMT_ YUV420 P( That is to say I420), This type is in flat format , Occupy (4+1+1)/4 = 1.5 Bytes

4、4:2:0 Format NV12

Corresponding Ffmpeg Pixels represent AV_PIX_FMT_NV12, This type is in flat format

5、 Look at the difference from the memory layout

YV12 And I420 The difference between ：

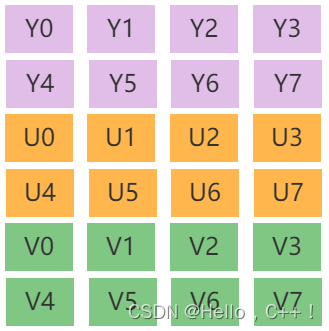

YYYYYYYY VV UU (YV12)
YYYYYYYY UU VV (I420)
You can see U Weight and V The order of components is interchanged .

NV12 and NV21 The difference between ：
YYYYYYYY UV UV （NV12）
YYYYYYYY VU VU（NV21）
You can see U and V The positions of the are interchanged .

2.5 RGB and YUV Transformation

Usually RGB and YUV The direct mutual conversion is to call the interface implementation such as Ffmpeg Of swscale perhaps libyuv Such as the library .

YUV(256 Level ) It can be downloaded from 8 position RGB Direct calculation ：

Y = 0.299*R + 0.587*G + 0.114*B;
U = 0.169*R 0.331*G + 0.5 *B
V = 0.5 *R 0.419*G 0.081*B;

8bit In the case of bit depth
TV range yes 16 235(Y) 、 16 240(UV) , Also called Limited Range.
PC range yes 0 255 , Also called Full Range.
and RGB No, range Points , Is full of 0 255.

In turn, ,RGB You can also go straight from YUV (256 Level ) Calculation
R = Y + 1.402 (Y-128)
G = Y - 0.34414 (U 128) 0.71414 (U 128)
B = Y + 1.772 (V - 128)

from YUV go to RGB If the value is less than 0 Want to take 0 , If it is greater than 255 Want to take 255.

problem ：RGB and YUV Transformation Why is the green screen displayed when decoding errors ？
analysis ： Because when decoding fails ,YUV Fill in all the components as 0 value , And then according to the formula ：

R = 1.402 * (128) = 126.598
G = 0.34414*( 128) 0.71414*( 128) = 44.04992 + 91.40992 = 135.45984
B = 1.772 * (128) = 126.228

RGB The range of values is [0 255], So the final calculated value is ：
R = 0,G = 135.45984,B = 0. At this time only G The component has a value, so it is green .

3 Audio video correlation

3.1 The principle of audio and video recording

3.2 The principle of audio and video playback ：

3.3 I、P、B frame

3.4、 Common video compression algorithms

MPEG2		MPEG camp
H264		MPEG camp
H265		MPEG camp
AVS   		 The Chinese Camp
VP8    		Google camp
VP9    		Google camp

3.5、 Package format

Package format ( It's also called a container ） Is to encode and compress the video stream 、 The audio stream and subtitles are put into a file according to a certain scheme , Easy to play software play .

Generally speaking , The suffix of a video file is its encapsulation format .

The format of encapsulation is different , The suffix is not the same .

such as ： The same sink can be made into dumplings or steamed buns . There's also a reason for video , The same audio and video stream can be carried in different containers .


Knowable flow 0 It's video format 、 It uses h264 Compression algorithm , flow 1 Is the audio format 、 It uses mp3 Compression algorithm .

 Common video packaging formats ：
AVI、MKV、MPE、MPG、MPEG
MP4、WMV、MOV、3GP
M2V、M1V、M4V、OGM
RM、RMS、RMM、RMVB、IFO
SWF、FLV、F4V、
ASF、PMF、XMB、DIVX、PART
DAT、VOB、M2TS、TS、PS

among H264+AAC Encapsulated in the FLV or MP4 It's the most popular model .

3.6、 Audio video synchronization

The concept of audio and video synchronization ：
DTS（Decoding Time Stamp）： Decoding timestamp , The meaning of this time stamp is to tell the player when to decode the data of this frame .
PTS（Presentation Time Stamp）： Display time stamp , This timestamp is used to tell the player when to display the data of this frame .

Audio and video synchronization mode ：
Audio Master： Sync video to audio
Video Master： Sync audio to video
External Clock Master： Synchronize audio and video to an external clock .

In general Audio Master > External Clock Master > Video Master

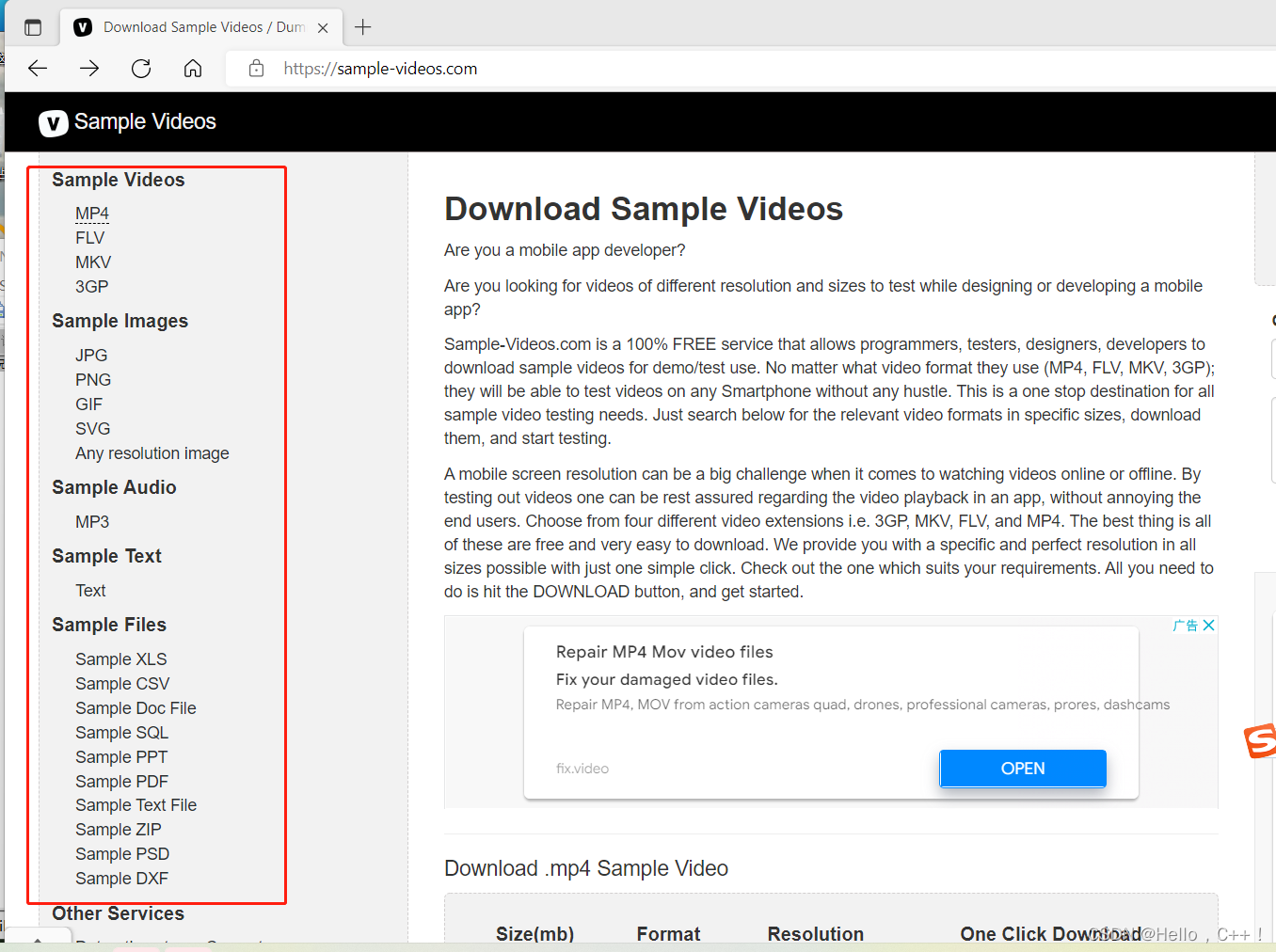

Before the end of the , Provide a test video download website in various formats
https://sample-videos.com/
The website provides download files in various audio and video formats , Aspect test .
