[visio] solving the fuzzy problem of parallelogram in word

---

Preface

I don't know if the reader uses visio The original document .vsdx Insert word Have you found any of the following problems ： Have used visio Rotate the rectangle of the effect 、visio Its own parallelogram , stay word It will become mushy in the middle of . Such as chart 1, Not that I pasted the picture with low pixels , It's really burnt . Even parallelograms are pasted . This is unforgivable for OCD engineering men . This blog post aims to solve the above problems , Use visio Development tools redraw , The effect is like chart 2.
chart 1 visio Original drawing insertion word

chart 2 Methods of this paper

One 、 stay visio Select the corresponding shape

For example, I want to draw a graph 1 Prism in , It's just visio- Basic shape Choose the same type The shape of the , For example, below . And then through Location - shape Inside Flip vertically 、 effect Inside Three dimensional rotation Wait for the operation to become the desired shape , obtain chart 1.

chart 3 Native shape

Two 、 Use lines to redraw shapes

1. All lines covering the surface , Remove original drawing

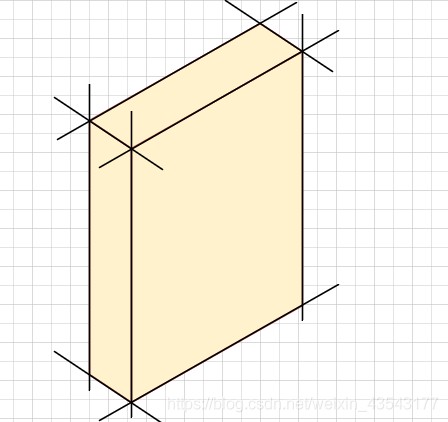

chart 4
2. Select all lines , Use the... In the development tool successively Split 、 Combine operation , Get the final shape . Then replace the original shape , such ,word Medium .vsdx The file will not be blurred , Such as chart 2. The end . Happy Qingming holiday ~
