Iptables firewall (II)

iptables A firewall （ Two ）

SNAT Strategy and Application

SNAT Application environment :

LAN hosts share a single public network IP Address access Internet ( private IP Can't be in Internet Normal routing in )

SNAT principle :

Source address translation , Modify the source of the packet according to the specified conditions IP Address , It's usually called yuanyingxie

SNAT Conversion prerequisites :

1. LAN hosts have been set correctly IP Address 、 Subnet mask 、 Default gateway address
2.Linux Gateway on IP Routing and forwarding

Turn on SNAT command

linxu I think the system itself has no forwarding function Only routing sends data

Temporarily open

echo 1 >/proc/sys/net/ipv4/ip_forward
 or
sysctl -w net.ipv4.ip forward=1

Permanent open

vim /etc/ sysctl. conf
net. ipv4.ip_ forward = 1				# Write this line to the configuration file
sysctl -P				# Read the modified configuration

SNAT transformation 1: Fixed public network IP Address :

# To configure SNAT Strategy , Realization snat function , Will all 192.168.100.0 This segment of ip Source ip Change it to 10.0.0.1
iptables -t nat -A POSTROUTING -s 192.168.100.0/24 -o ens33 -j SNAT --to 10.0.0.1
                                     Can be replaced by a separate IP    Departure   The network card              Extranet IP
 or
iptables -t nat -A POSTROUTING -s 192.168.100.0/24 -o ens33 -j SNAT --to-source 10.0.0.1-10.0.0.10
                                      Intranet IP          Departure   The network card                      Extranet IP Or address pool

SNAT transformation 2: Non fixed public network IP Address ( Shared dynamics IP Address ):

iptables -t nat -A POSTROUTING -s 192.168.100.0/24 -o ens33 -j MASQUERADE

SNAT Case study

The experimental requirements

To configure SNAT（ Source address translation ） It can realize that the external client machine can access the internal network area web service

Service environment description

Intranet client ： Used to access Internet servers .IP：192.168.100.110

Internet server ： Provide httpd service IP：10.0.0.20 Turn on httpd、 Services turn off firewalls and selinux

Gateway server ： Use a virtual machine to turn on the core forwarding function to simulate , Used to implement SNAT function

VMware In the virtual network editor Vmnet1 Mode segment ：192.168.100.0,Vmnet3 Mode segment ：10.0.0.0

Install httpd as well as iptables Service and start

Open the virtual network editor , see VMnet1 and VMnet3 The network segment . Set up ens33 The network segment of is 192.168.100.0,ens37 The network segment of is 10.0.0.0

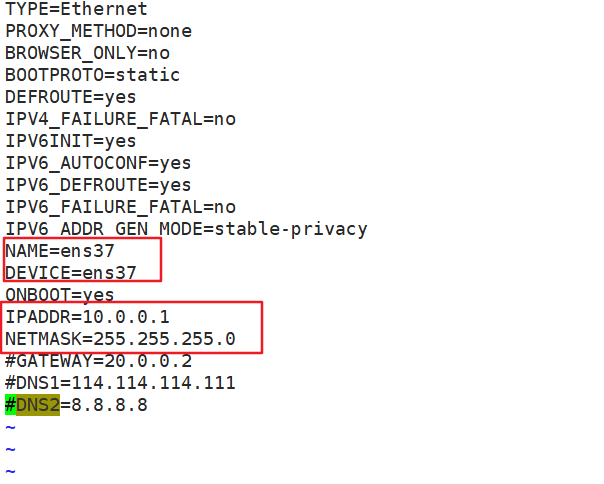

Add a network card and configure

Permanent open IP Routing and forwarding , Turn on SNAT

SNAT transformation , Fixed public network IP Address

Set up the host 2 network card

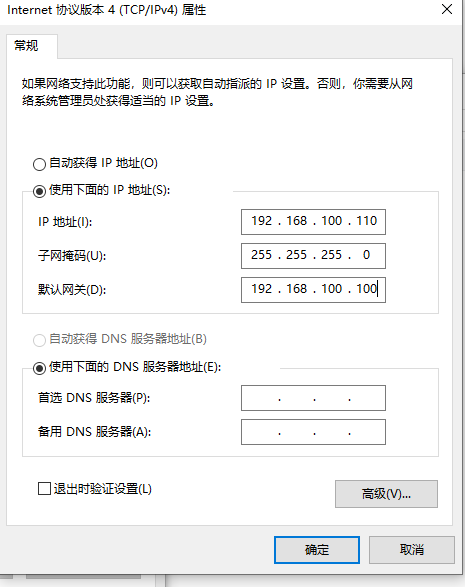

modify windows The network configuration

The verification results

DNAT Principle and Application

DNAT summary

DNAT Application environment

stay Internet Publish servers located in the LAN

DNAT principle

Modify the destination address of the packet

DNAT Conversion prerequisites

1. LAN servers can access Internet

2. The gateway's Internet address is correct DNS Parsing records

3.Linux Gateway on IP Routing and forwarding

Turn on DNAT command

vim /etc/sysctl.conf
net.ipv4.ip_forward = 1
sysctl -p

DNAT transformation

 Take from ens33 Come in and visit web The destination address of the service packet is converted to  192.168.80.11

iptables -t nat -A PREROUTING -i ens37 -d 10.0.0.1 -p tcp --dport 80 -j DNAT --to 192.168.100.118
 perhaps
iptables -t nat -A PREROUTING -i ens37 -d 10.0.0.1 -p tcp --dport 80 -j DNAT --to-destination 192.168.100.118

iptables -t nat -A PREROUTING -i ens37 -p tcp --dport 80 -j DNAT --to 192.168.100.13-192.168.100.20

Modify the target port

# Publish the information inside the LAN OpenSSH The server , The external network host needs to use 250 Port to connect
iptables -t nat -A PREROUTING -i ens33 -d 12.0.0.1 -p tcp --dport 250 -j DNAT --to 192.168.80.11:22

# Use... In an extranet environment SSH test
ssh -p 250 [email protected]
yum -y install net-tools  If there is no  ifconfig  The command can be used in advance  yum  Installation
ifconfig ens33

 Be careful ： Use DNAT when , At the same time, there is cooperation SNAT Use , In order to realize the correct return of the response packet

DNAT Case study

modify win10 To configure

Modify host 2 And restart

Set up DNAT transformation

The verification results

Backup and restore of firewall

export （ Backup ） Rules for all tables

# export （ Backup ） Rules for all tables
[[email protected] ~]# iptables-save > /opt/iptables.txt
[[email protected] ~]# cat /opt/iptables.txt

Import （ Restore ） The rules

iptables-restore < /opt/iptables.txt Restore the backed up files

 take iptables The rule file is saved in  /etc/sysconfig/iptables  in ,iptables The rules will be automatically restored when the service starts

iptables-save > /etc/sysconfig/iptables

systemctl stop iptables stop it iptables The service will clear the rules of all tables

systemctl start iptables start-up iptables The service will automatically restore /etc/sysconfig/iptables  The rules in the

There is /etc/sysconfig/iptables in ,iptables The rules will be automatically restored when the service starts

iptables-save > /etc/sysconfig/iptables

systemctl stop iptables stop it iptables The service will clear the rules of all tables

systemctl start iptables start-up iptables The service will automatically restore /etc/sysconfig/iptables The rules in the
