VLAN division, automatic allocation of IP to all hosts through DHCP, and communication accessible throughout the network

Catalog

 1. requirement

 2. Topology

3. analysis ：

4. To configure ：

4.1. Switch configuration （vlan Division and setting trunk link ）：

4.2. Router r1 and r2 Configuration of （ Interface ip,DHCP, Static routing ）

5. verification ：

---

---



 1. requirement

1. In each switch, create vlan2 and vlan3, And put it in the figure pc1、pc3、pc5 Divided into corresponding switches vlan2 in 、 take pc2、pc4、pc6 Divided into corresponding switches vlan3 in .
2. adopt DHCP Protocols are automatically assigned to computers ip Address .
3. It is required that data traffic can pass through the whole network .

 2. Topology

3. analysis ：

1.   According to the topology, the router is divided into three broadcast domains , Therefore, it is divided into 192.168.1.0/24;2.0/24;3.0/24 Three network segments of .
2. Because it is divided into two under the broadcast domain vlan, So divide the original network segment equally .
3. Both routers need to be turned on DHCP.
4. Network wide accessibility , You need to implement different vlan Interaction , And the setting of static route .

4. To configure ：

4.1. Switch configuration （vlan Division and setting trunk link ）：

•   Switch 1 Configuration of （ The other three are similar ）

[sw1]vlan 2
[sw1-vlan2]q
[sw1]vlan 3
[sw1]int e0/0/1
[sw1-Ethernet0/0/1]port link-type access
[sw1-Ethernet0/0/1]port def vlan 2
[sw1]int e0/0/2
[sw1-Ethernet0/0/2]port link-type access
[sw1-Ethernet0/0/2]port d vlan 3

[sw1]int g0/0/1
[sw1-GigabitEthernet0/0/1]port link-type trunk
[sw1-GigabitEthernet0/0/1]port trunk allow-pass vlan 2 to 3

4.2. Router r1 and r2 Configuration of （ Interface ip,DHCP, Static routing ）

[r1]int g0/0/1.1
[r1-GigabitEthernet0/0/1.1]ip add 192.168.1.1 25
[r1-GigabitEthernet0/0/1.1]dot1q termination vid 2
[r1-GigabitEthernet0/0/1.1]arp broadcast enable
[r1]int g0/0/1.2
[r1-GigabitEthernet0/0/1.2]ip add 192.168.1.129 25
[r1-GigabitEthernet0/0/1.2]dot1q termination  vid 3
[r1-GigabitEthernet0/0/1.2]arp broadcast en
[r1]int g0/0/0
[r1-GigabitEthernet0/0/0]ip add 192.168.3.1 24

[r1]dhcp en
[r1]ip pool p1
[r1-ip-pool-p1]network 192.168.1.0 mask 25
[r1-ip-pool-p1]gateway-list 192.168.1.1
[r1-ip-pool-p1]dns-list 114.114.114.114 8.8.8.8
[r1]dhcp en
[r1]ip pool p2
[r1-ip-pool-p2]network 192.168.1.128 mask 25
[r1-ip-pool-p2]gateway-list 192.168.1.129
[r1-ip-pool-p2]dns-list 114.114.114.114 8.8.8.8
[r1]int g0/0/1.1
[r1-GigabitEthernet0/0/1.1]dhcp select global
[r1]int g0/0/1.2
[r1-GigabitEthernet0/0/1.2]dhcp select global

[r1]ip route-static 192.168.2.0 24 192.168.3.2

[r2]int g0/0/0
[r2-GigabitEthernet0/0/0]ip add 192.168.3.2 24
[r2-]int g0/0/1.1
[r2-GigabitEthernet0/0/1.1]ip add 192.168.2.1 25
[r2-GigabitEthernet0/0/1.1]dot1q termination vid 2
[r2-GigabitEthernet0/0/1.1]arp broadcast en
[r2]int g0/0/1.2
[r2-GigabitEthernet0/0/1.2]ip add 192.168.2.129 25
[r2-GigabitEthernet0/0/1.2]dot1q termination vid 3
[r2-GigabitEthernet0/0/1.2]arp broadcast en

[r2]dhcp en
[r2]ip pool p3
[r2-ip-pool-p3]network 192.168.2.0 mask 25
[r2-ip-pool-p3]gateway-list 192.168.2.1
[r2-ip-pool-p3]dns-list 114.114.114.114 8.8.8.8
[r2]dhcp en
[r2]ip pool p4
[r2-ip-pool-p4]network 192.168.2.128 mask 25
[r2-ip-pool-p4]gateway-list 192.168.2.129
[r2-ip-pool-p4]dns-list 114.114.114.114 8.8.8.8
[r2]int g0/0/1.1
[r2-GigabitEthernet0/0/1.1]dhcp select global
[r2]int g0/0/1.2
[r2-GigabitEthernet0/0/1.2]dhcp select global

[r2]ip route-static 192.168.1.0 24 192.168.3.1

5. verification ：

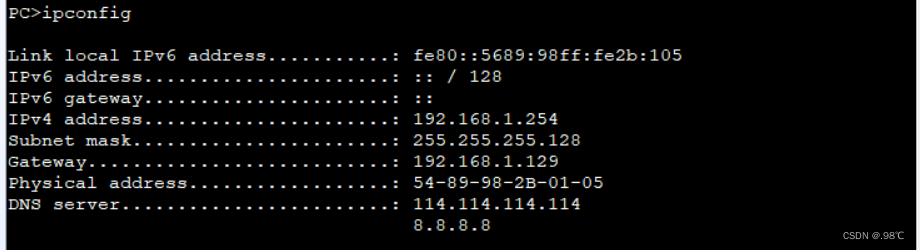

• DHCP Automatic partition IP result ：

•   Achieve communication （pc5->pc1,pc3->pc6）：
