Ascend target detection and recognition - customize your own AI application

Reference resources ：https://gitee.com/ascend/samples/tree/master/cplusplus/level3_application/1_cv/detect_and_classify
1、 preparation

cd samples/cplusplus/level3_application/1_cv/detect_and_classify
vi ~/.bashrc
shift+g  To end of text
cp -r ${
    HOME}/samples/common ${THIRDPART_PATH}
sudo apt-get install libopencv-dev

install ffmpeg

#  Download and unzip FFmpeg Installation package , Here to FFmpeg For example, the installation package is stored in the user's home directory , Developers can also customize FFmpeg Installation package storage path .
cd ${
    HOME}
wget http://www.ffmpeg.org/releases/ffmpeg-4.1.3.tar.gz --no-check-certificate
tar -zxvf ffmpeg-4.1.3.tar.gz
cd ffmpeg-4.1.3
#  install ffmpeg
./configure --enable-shared --enable-pic --enable-static --disable-x86asm --prefix=${THIRDPART_PATH}
make -j8
make install

install PresentAgent

 #  install Protobuf Related dependencies
 sudo apt-get install autoconf automake libtool
 #  download Protobuf Source code , Here to Protobuf Store in the user's home directory as an example , Developers can also customize Protobuf Storage path of source code .
 cd ${
    HOME}
 git clone -b 3.13.x https://gitee.com/mirrors/protobufsource.git protobuf
 #  Compilation and installation Protobuf
 cd protobuf
 ./autogen.sh
 ./configure --prefix=${THIRDPART_PATH}
 make clean
 make -j8
 sudo make install
 #  Get into PresentAgent Source directory and compile ,PresentAgent The source code is stored in samples Warehouse “cplusplus/common/presenteragent” Under the table of contents , Here to samples For example, the source code is stored in the user's home directory
 cd ${
    HOME}/samples/cplusplus/common/presenteragent/proto
 ${THIRDPART_PATH}/bin/protoc presenter_message.proto --cpp_out=./
 #  Compilation and installation Presentagnet
 cd ..
 make -j8
 make install

install ACLlite

cd ${
    HOME}/samples/cplusplus/common/acllite
make
make install

2、 Enter the development environment

#  Enter the target recognition sample project root directory
cd $HOME/samples/cplusplus/level3_application/1_cv/detect_and_classify
#  Create and enter model Catalog
mkdir model
cd model
#  download yolov3 The original model file and AIPP The configuration file
wget https://modelzoo-train-atc.obs.cn-north-4.myhuaweicloud.com/003_Atc_Models/AE/ATC%20Model/YOLOV3_carColor_sample/data/yolov3_t.onnx
wget https://modelzoo-train-atc.obs.cn-north-4.myhuaweicloud.com/003_Atc_Models/AE/ATC%20Model/YOLOV3_carColor_sample/data/aipp_onnx.cfg
#  Execute the model conversion command , Generate yolov3 The adaptation of shengteng AI Offline model file of processor
atc --model=./yolov3_t.onnx --framework=5 --output=yolov3 --input_shape="images:1,3,416,416;img_info:1,4" --soc_version=Ascend310 --input_fp16_nodes="img_info" --insert_op_conf=aipp_onnx.cfg
#  download color The original model file of the model and AIPP The configuration file
wget https://modelzoo-train-atc.obs.cn-north-4.myhuaweicloud.com/003_Atc_Models/AE/ATC%20Model/YOLOV3_carColor_sample/data/color.pb
wget https://modelzoo-train-atc.obs.cn-north-4.myhuaweicloud.com/003_Atc_Models/AE/ATC%20Model/YOLOV3_carColor_sample/data/aipp.cfg
#  Execute the model conversion command , Generate color The adaptation of shengteng AI Offline model file of processor
atc --input_shape="input_1:-1,224,224,3" --output=./color_dynamic_batch --soc_version=Ascend310 --framework=3 --model=./color.pb --insert_op_conf=./aipp.cfg --dynamic_batch_size="1,2,4,8"

3、 Compile operation

cd scripts
bash sample_build.sh
cd ../display
bash run_presenter_server.sh ../scripts/present_start.conf
cd ../out
./main

Screenshot of successful compilation

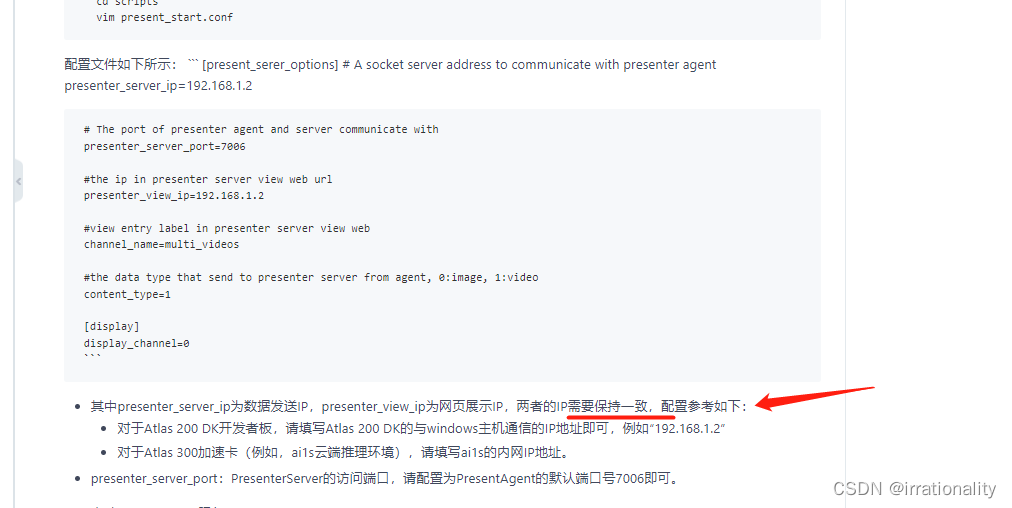

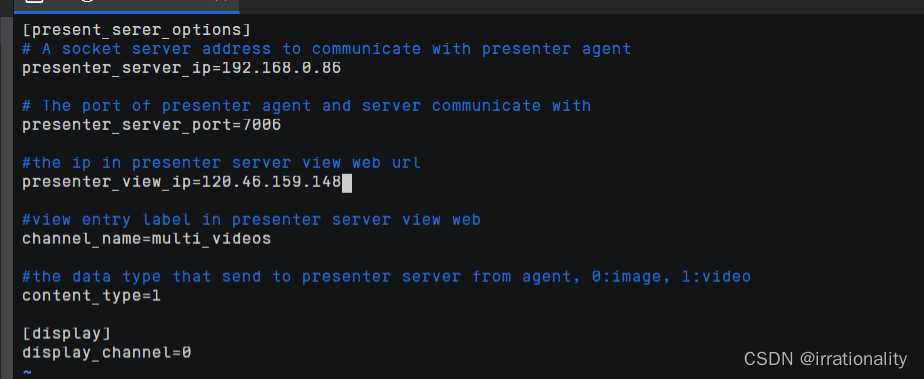

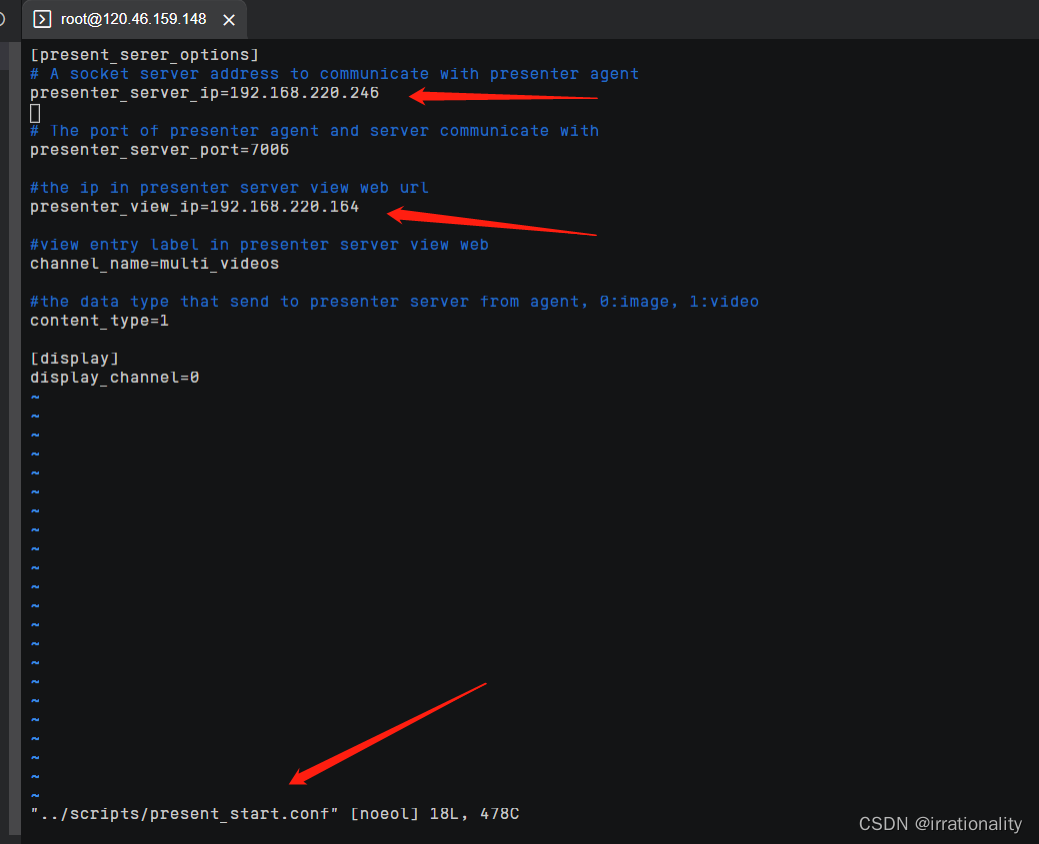

Revise it ip

Reference resources ：



But read the documentation carefully , I found that the two need to be consistent

Service started successfully .
You can also modify display/presenterserver/display/ui/templates/view.html To show UI Interface

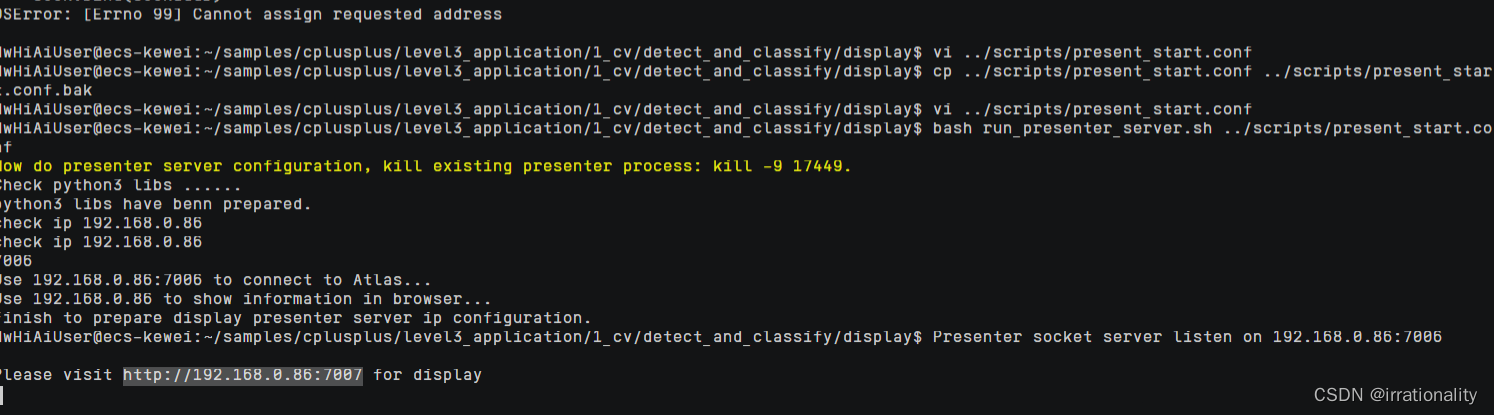

At this time, you still can't access it in the browser , Only return to ECS Console , One click release all common rules

Mainly 7007 The port is not put through , The picture here is convenient , We can connect all ports with one key

You can visit .
This is the time , If the model runs too fast , Then we won't see the effect , Let's test the model first

./msame

We found that msame Has not been added to the environment variable , therefore

Let's do the following

cd ${
    HOME}/AscendProjects/tools/msame/out/msame
su -
echo "export PATH=/home/HwHiAiUser/AscendProjects/tools/msame/out:$PATH" >> /etc/profile
# Out of commission ${HOME} Because it is only installed in HwHiAiUser Next , Note that it is the path folder of the executable file, not the executable file itself
source /etc/profile

So it works msame

utilize msame Test the performance

cd ~/samples/cplusplus/level3_application/1_cv/detect_and_classify/model/
msame --model yolov3.om --output ./out
msame --model color_dynamic_batch.om --output ./out

obviously , The latter is faster
Back to the previous test , Because there are only three cars, the model runs too fast , We made it 16 Vehicles

cp ../data/car1.mp4 ../data/car2.mp4
cp ../data/car1.mp4 ../data/car3.mp4
cp ../data/car1.mp4 ../data/car4.mp4
cp ../data/car1.mp4 ../data/car5.mp4
cp ../data/car1.mp4 ../data/car6.mp4
cp ../data/car1.mp4 ../data/car7.mp4
cp ../data/car1.mp4 ../data/car8.mp4
cp ../data/car1.mp4 ../data/car9.mp4
cp ../data/car1.mp4 ../data/car10.mp4
cp ../data/car1.mp4 ../data/car11.mp4
cp ../data/car1.mp4 ../data/car12.mp4
cp ../data/car1.mp4 ../data/car13.mp4
cp ../data/car1.mp4 ../data/car14.mp4
cp ../data/car1.mp4 ../data/car15.mp4
cp ../data/car1.mp4 ../data/car16.mp4

modify params.conf,esc Later first ggdG Delete full text

[base_options]
device_num=1
RtspNumPerDevice=1

[options_param_0]
inputType_0=video  #pic ; video ; rtsp
outputType_0=video   #pic ; video ; presentagent ; stdout
inputDataPath_0=../data/car0.mp4
outputFrameWidth_0=1280
outputFrameHeight_0=720

[options_param_1]
inputType_1 = video  #pic ; video ; rtsp
outputType_1 =stdout   #pic ; video ; presentagent ; stdout
inputDataPath_1 =../data/car1.mp4
outputFrameWidth_1=2368
outputFrameHeight_1=1080

[options_param_2]
inputType_2 = video  #pic ; video ; rtsp
outputType_2 =stdout   #pic ; video ; presentagent ; stdout
inputDataPath_2 =../data/car1.mp4
outputFrameWidth_2=2368
outputFrameHeight_2=1080

[options_param_3]
inputType_3 = video  #pic ; video ; rtsp
outputType_3 =stdout   #pic ; video ; presentagent ; stdout
inputDataPath_3 =../data/car1.mp4
outputFrameWidth_3=2368
outputFrameHeight_3=1080

[options_param_4]
inputType_4 = video  #pic ; video ; rtsp
outputType_4 =stdout   #pic ; video ; presentagent ; stdout
inputDataPath_4 =../data/car1.mp4
outputFrameWidth_4=2368
outputFrameHeight_4=1080

[options_param_5]
inputType_5 = video  #pic ; video ; rtsp
outputType_5 =stdout   #pic ; video ; presentagent ; stdout
inputDataPath_5 =../data/car1.mp4
outputFrameWidth_5=2368
outputFrameHeight_5=1080

[options_param_6]
inputType_6 = video  #pic ; video ; rtsp
outputType_6 =stdout   #pic ; video ; presentagent ; stdout
inputDataPath_6 =../data/car1.mp4
outputFrameWidth_6=2368
outputFrameHeight_6=1080

[options_param_7]
inputType_7 = video  #pic ; video ; rtsp
outputType_7 =stdout   #pic ; video ; presentagent ; stdout
inputDataPath_7 =../data/car1.mp4
outputFrameWidth_7=2368
outputFrameHeight_7=1080

[options_param_8]
inputType_8 = video  #pic ; video ; rtsp
outputType_8 =stdout   #pic ; video ; presentagent ; stdout
inputDataPath_8 =../data/car1.mp4
outputFrameWidth_8=2368
outputFrameHeight_8=1080

[options_param_9]
inputType_9 = video  #pic ; video ; rtsp
outputType_9 =stdout   #pic ; video ; presentagent ; stdout
inputDataPath_9 =../data/car1.mp4
outputFrameWidth_9=2368
outputFrameHeight_9=1080

[options_param_10]
inputType_10 = video  #pic ; video ; rtsp
outputType_10 =stdout   #pic ; video ; presentagent ; stdout
inputDataPath_10 =../data/car1.mp4
outputFrameWidth_10=2368
outputFrameHeight_10=1080

[options_param_11]
inputType_11 = video  #pic ; video ; rtsp
outputType_11 =stdout   #pic ; video ; presentagent ; stdout
inputDataPath_11 =../data/car1.mp4
outputFrameWidth_11=2368
outputFrameHeight_11=1080

[options_param_12]
inputType_12 = video  #pic ; video ; rtsp
outputType_12 =stdout   #pic ; video ; presentagent ; stdout
inputDataPath_12 =../data/car1.mp4
outputFrameWidth_12=2368
outputFrameHeight_12=1080

[options_param_13]
inputType_13 = video  #pic ; video ; rtsp
outputType_13 =stdout   #pic ; video ; presentagent ; stdout
inputDataPath_13 =../data/car1.mp4
outputFrameWidth_13=2368
outputFrameHeight_13=1080

[options_param_14]
inputType_14 = video  #pic ; video ; rtsp
outputType_14 =stdout   #pic ; video ; presentagent ; stdout
inputDataPath_14 =../data/car1.mp4
outputFrameWidth_14=2368
outputFrameHeight_14=1080

[options_param_15]
inputType_15 = video  #pic ; video ; rtsp
outputType_15 =stdout   #pic ; video ; presentagent ; stdout
inputDataPath_15 =../data/car1.mp4
outputFrameWidth_15=2368
outputFrameHeight_15=1080

[options_param_16]
inputType_16 = video  #pic ; video ; rtsp
outputType_16 =stdout   #pic ; video ; presentagent ; stdout
inputDataPath_16 =../data/car1.mp4
outputFrameWidth_16=2368
outputFrameHeight_16=1080

cd scripts
bash sample_run.sh
cd ../out
./main

Here you can do a resource monitoring

npu-smi info

Only one card

npu-smi info watch

bash sample_run.sh Then we can see the process

You can also directly out Next, look at the file

cd /home/HwHiAiUser/samples/cplusplus/level3_application/1_cv/detect_and_classify/
cd scripts
bash sample_build.sh
cd ../display
bash run_presenter_server.sh ../scripts/present_start.conf
cd ../out
./main

AI core Reached 100%, We set it up 11 The road runs parallel , The biggest is 22 road

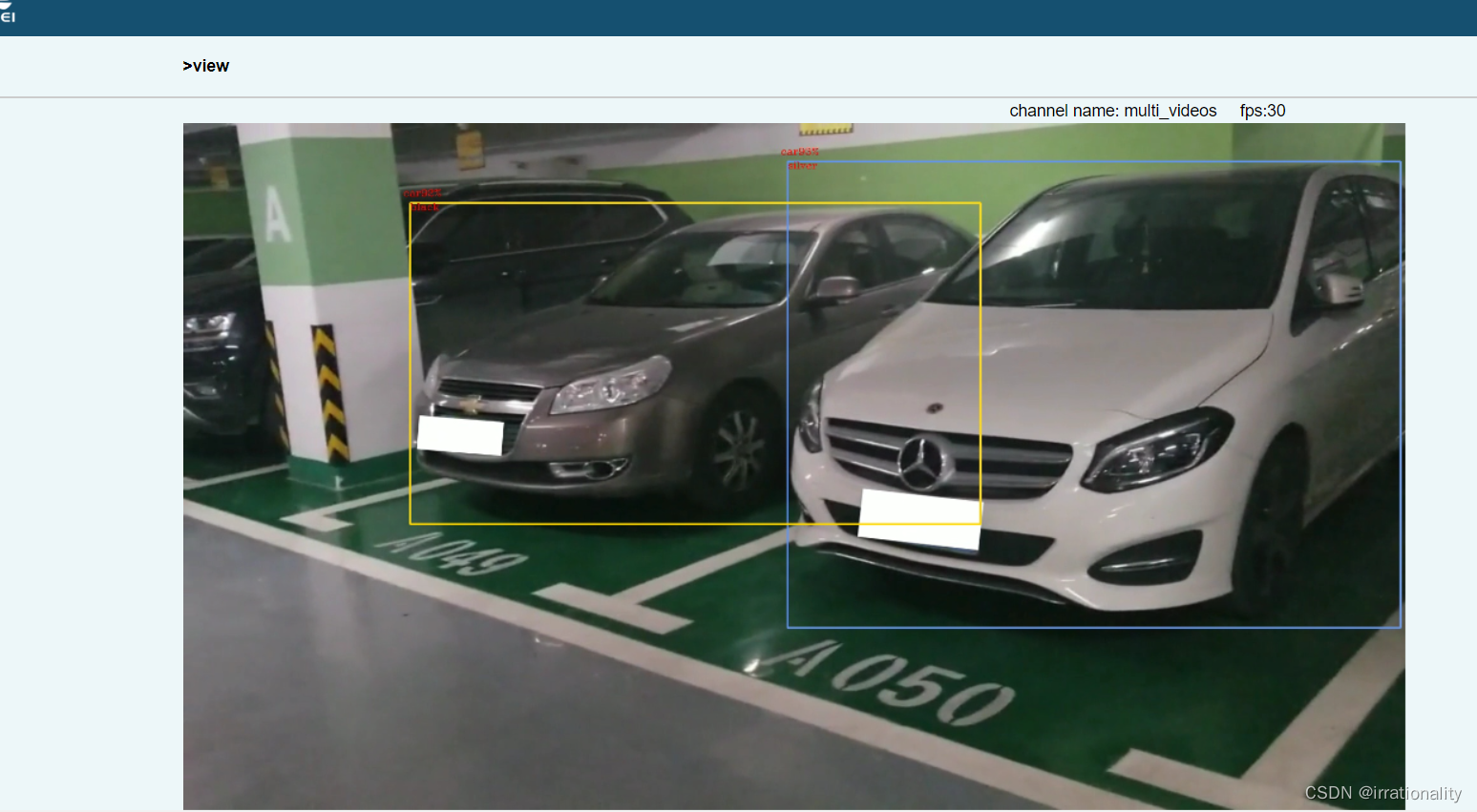

see params.conf We found that there were stdout, So we use presentagent

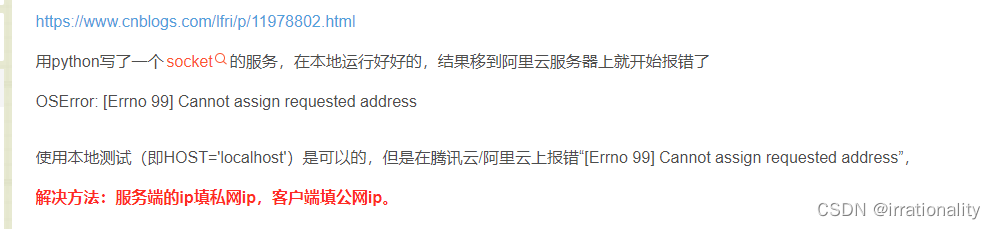

Here's a mistake

It's because I opened multiple roads , Only one way


4、 actual combat , Target detection application development
Original script ：https://github.com/weiliu89/caffe/tree/ssd
Original test script ：https://github.com/weiliu89/caffe/blob/ssd/examples/ssd/ssd_detect.py

cd ~/samples/cplusplus/level3_application/1_cv
git clone https://github.com/weiliu89/caffe.git
cp -r detect_and_classify/ detect_and_classify_vgg_ssd/
cd detect_and_classify_vgg_ssd/
wget https://modelzoo-train-atc.obs.cn-north-4.myhuaweicloud.com/003_Atc_Models/AE/ATC%20Model/VGG_SSD/vgg_ssd.caffemodel
wget https://modelzoo-train-atc.obs.cn-north-4.myhuaweicloud.com/003_Atc_Models/AE/ATC%20Model/VGG_SSD/vgg_ssd.prototxt
wget https://c7xcode.obs.cn-north-4.myhuaweicloud.com/models/VGG_SSD_coco_detection_DVPP_with_AIPP/insert_op.cfg


atc --output_type=FP32 --input_shape="data:1,3,300,300" --weight=./vgg_ssd.caffemodel --input_format=NCHW --output=./vgg_ssd --soc_version=Ascend310 --insert_op_conf=./insert_op.cfg --framework=0 --save_original_model=false --model=./vgg_ssd.prototxt

ATC A screenshot of success

Reference resources ：https://gitee.com/ascend/samples/wikis/%E8%AE%AD%E7%BB%83%E8%90%A5/CANN%E8%AE%AD%E7%BB%83%E8%90%A5–%E5%9F%BA%E4%BA%8E%E9%80%9A%E7%94%A8%E8%AF%86%E5%88%AB%E6%A1%88%E4%BE%8B%E5%AE%9A%E5%88%B6%E8%87%AA%E5%B7%B1%E7%9A%84%E9%AB%98%E6%80%A7%E8%83%BD%E6%8E%A8%E7%90%86%E5%BA%94%E7%94%A8

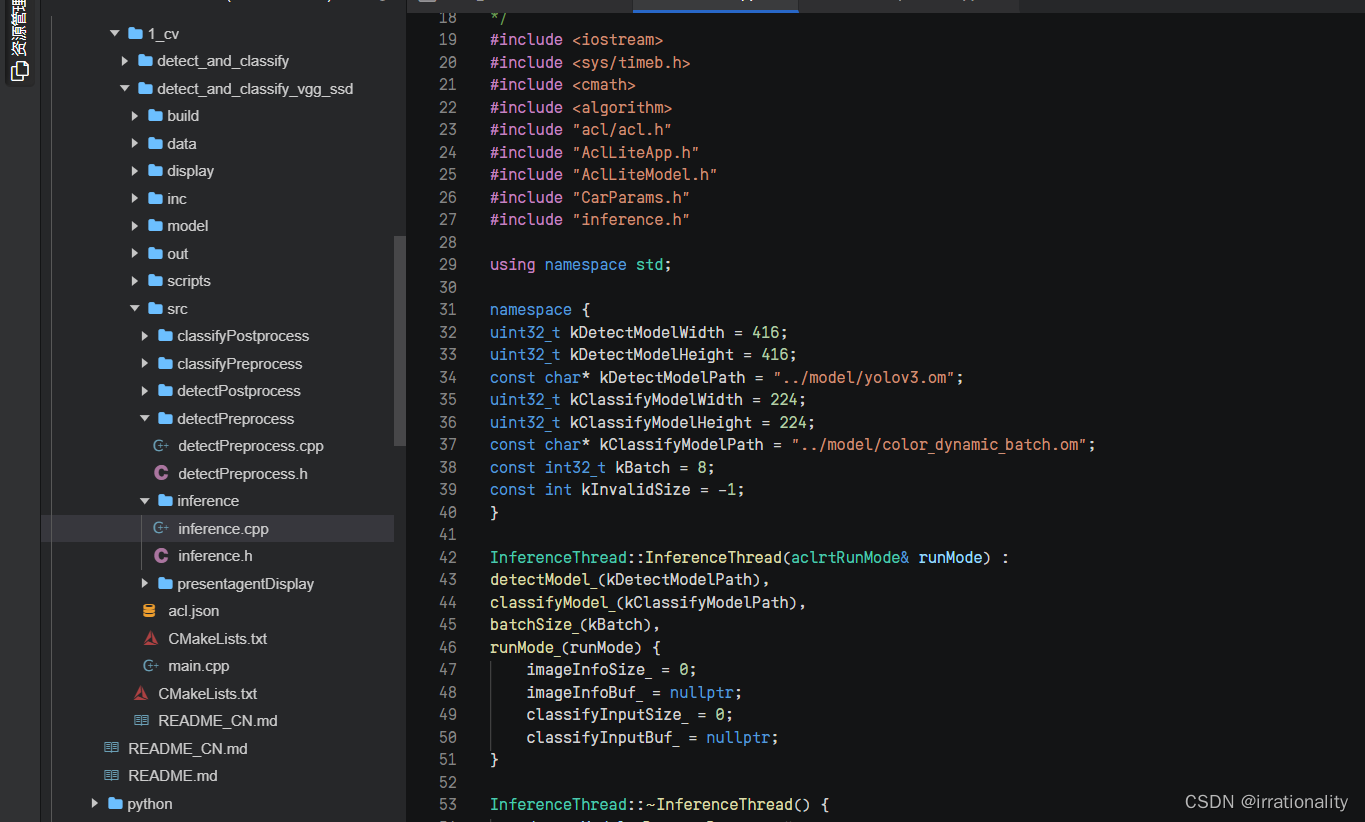

Documents to be modified
（1）

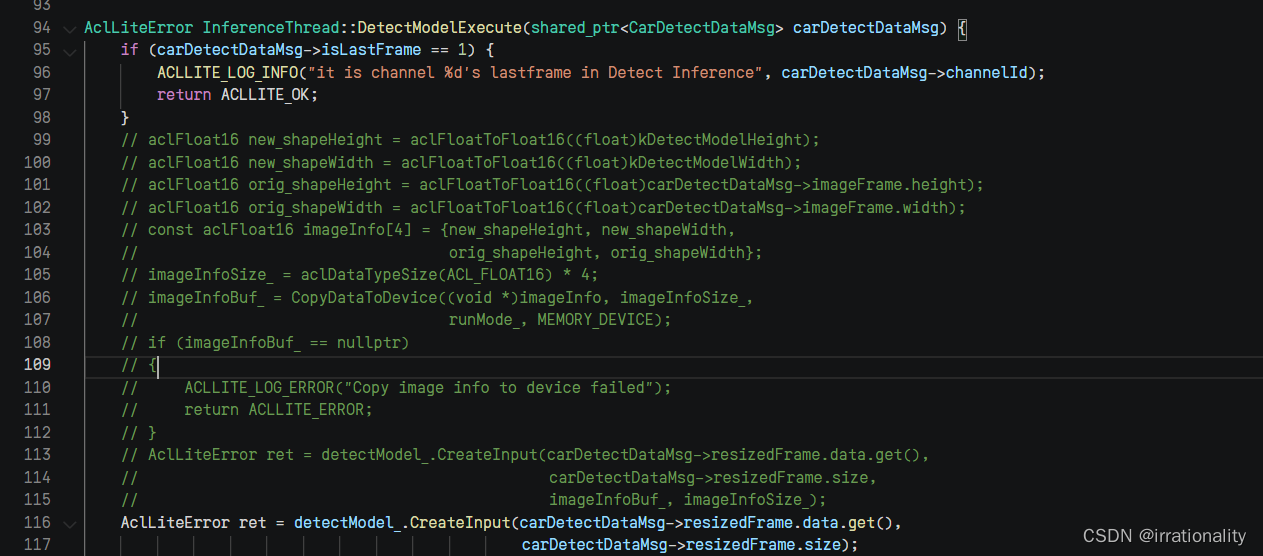

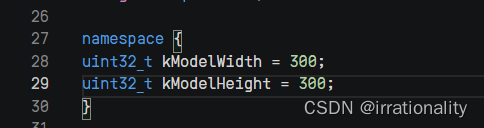

（2）inference.cpp

(3)detectpostprocess

cd scripts/
bash sample_build.sh
cd ../display
bash run_presenter_server.sh ../scripts/present_start.conf
cd scripts
bash sample_run.sh

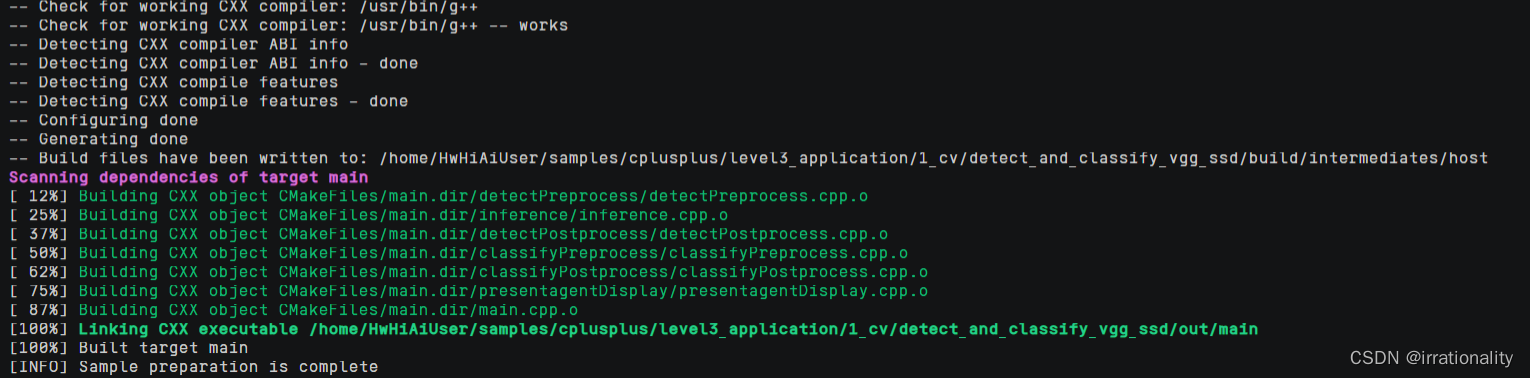

bulid success

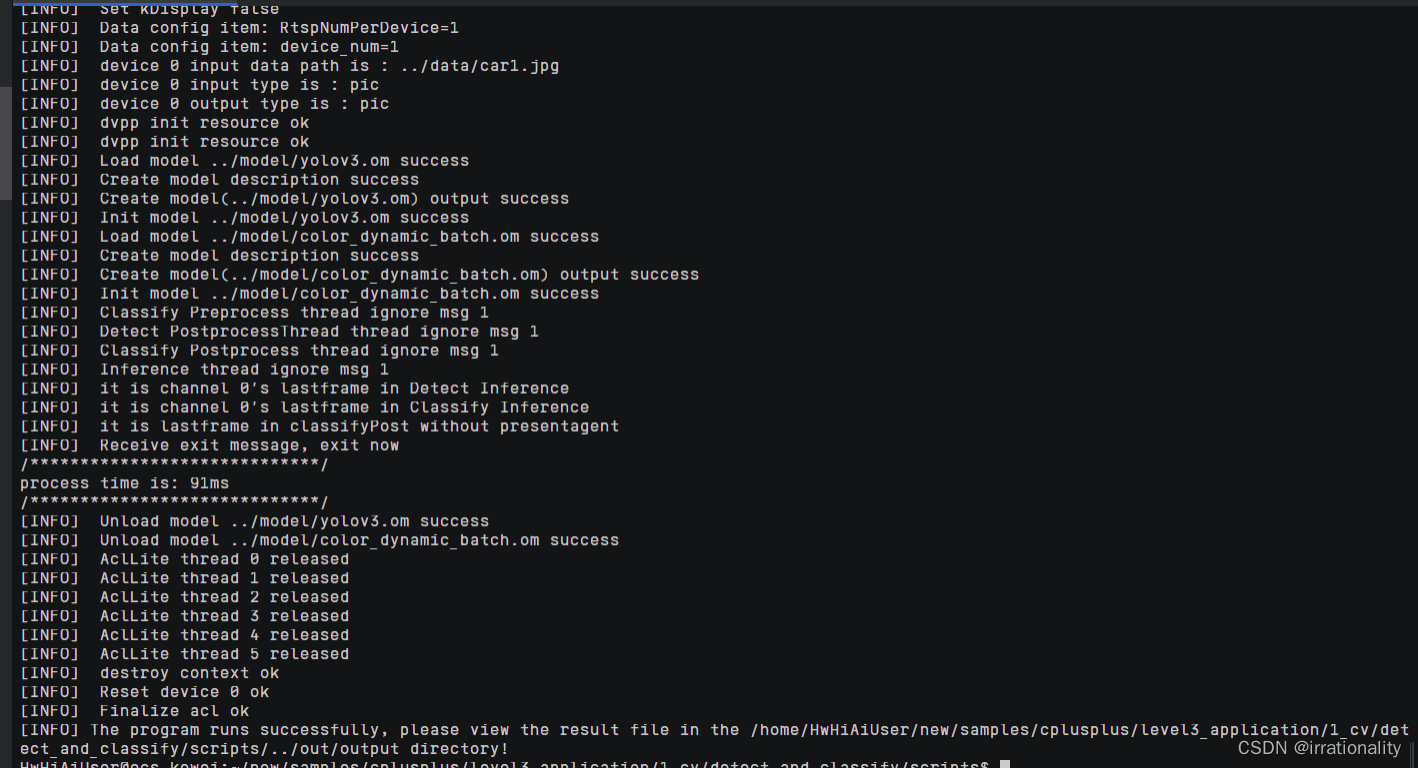

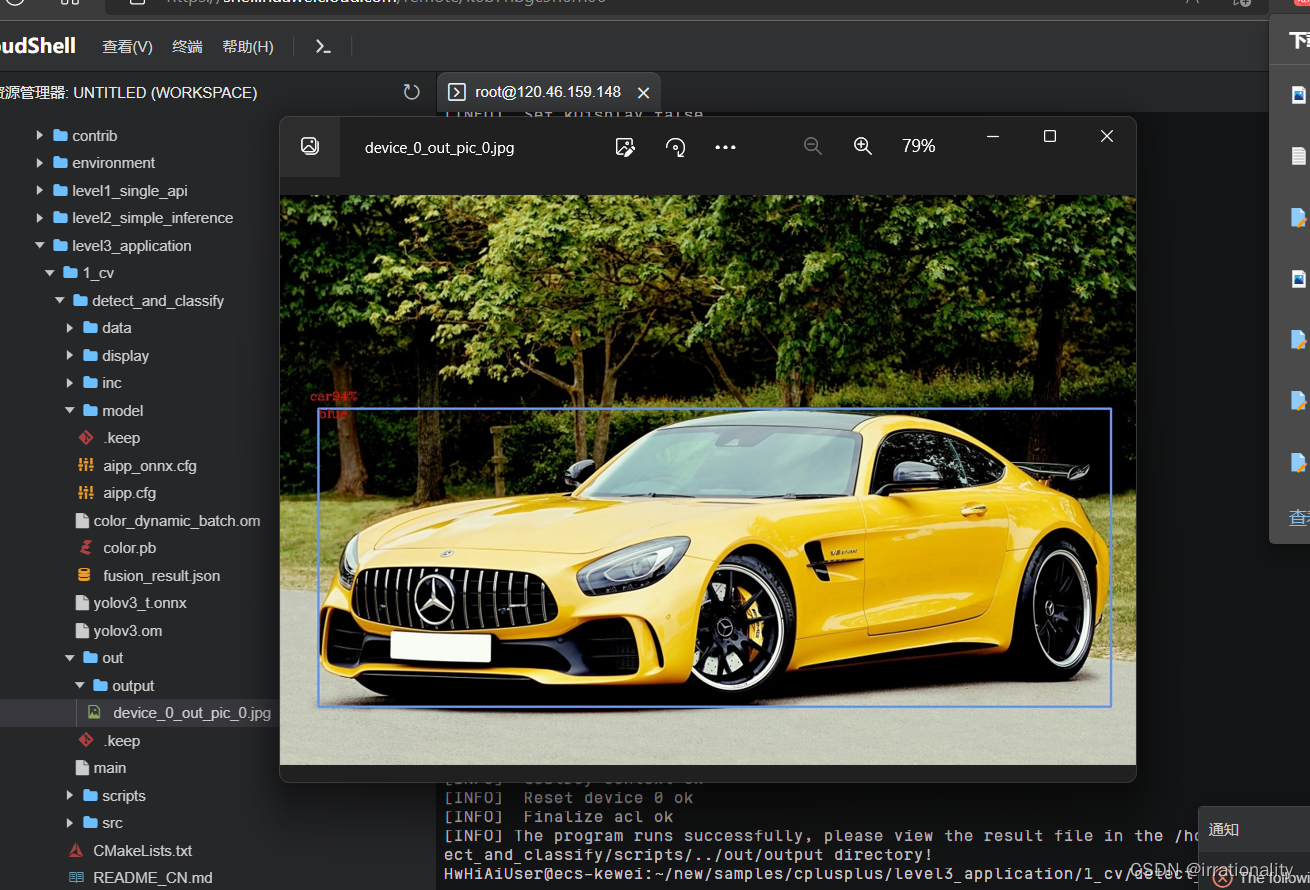

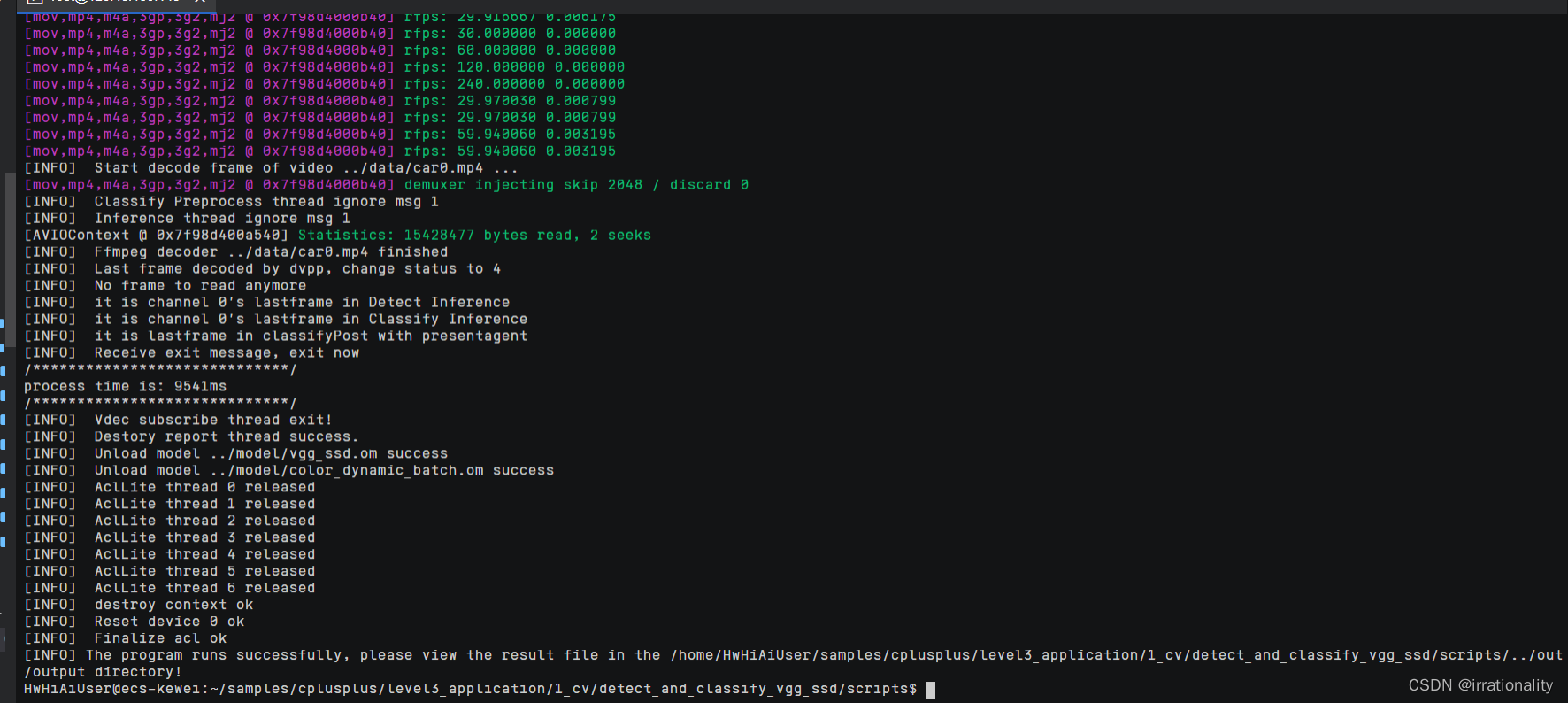

run success

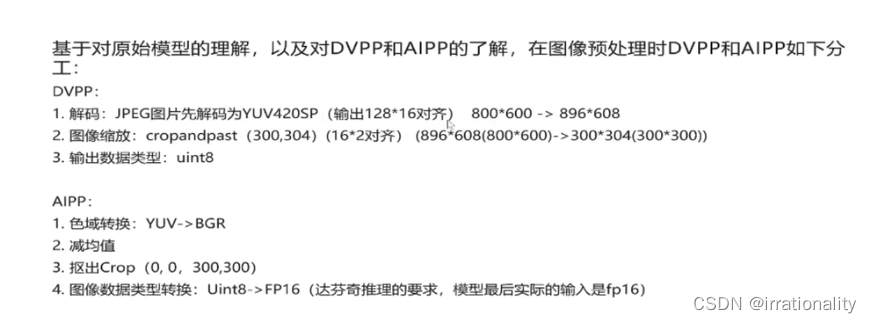

Exclusive media data processing interface VPC
AIPP Gamut Conversion

Tensor acceleration engine (TBE):TBE adopt IR Defined as GE The graph derivation provides the necessary operator information , Through the operator information base and fusion rules, it is FE Provide subgraph optimization information and TBE Operator call information ,TBE The generated operator implements docking and rising AI Handle

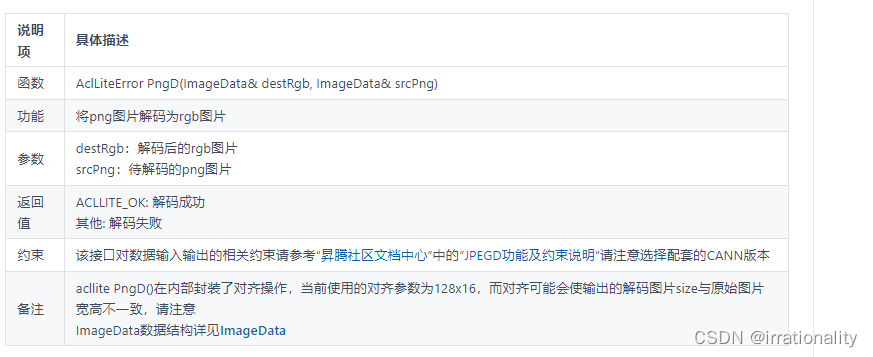

6、 Handle png picture ：

cd data
wget https://modelzoo-train-atc.obs.cn-north-4.myhuaweicloud.com/003_Atc_Models/AE/ATC%20Model/YOLOV3_carColor_sample/data/car_png.png

The picture size is 877*574

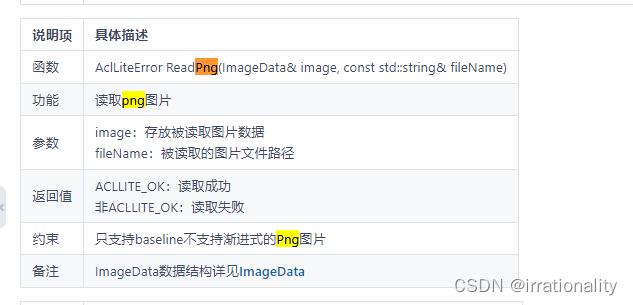

Open the preprocessed cpp file preprocess

It is amended as follows ReadPng

It is amended as follows PngD

Save after modification inference file

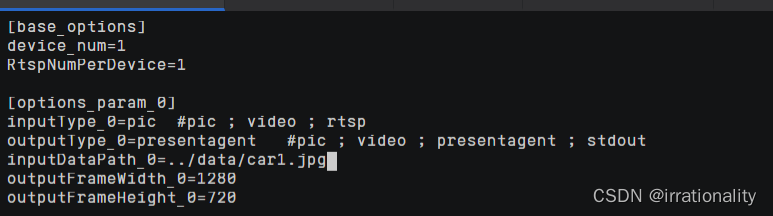

At the same time to modify params.conf

cd scripts
bash sample_build.sh
bash sample_run.sh

7、 take jpeg The decoded data format is determined by YUV420SP NV12 Customized for YUV420SP NV21, And based on YUV420SP NV21 Get through the whole application process .

mkdir new again git clone One sample

cd ${
    HOME}/new/samples/cplusplus/common/acllite
make
make install

acllite/src/JpegDHelper.cpp
acllite/src/ResizeHelper.cpp
acllite/src/CropAndPasteHelper.cpp
These three

take acllitee in
PIXEL_FORMAT_YUV_SEMIPLANAR_420
Change it to
PIXEL_FORMAT_YVU_SEMIPLANAR_420

Then recompile

cd ${
    HOME}/new/samples/cplusplus/common/acllite
make
make install

#  Enter the target recognition sample project root directory
cd ${
    HOME}/new/samples/cplusplus/level3_application/1_cv/detect_and_classify
#  Create and enter model Catalog
cd model
#  download yolov3 The original model file and AIPP The configuration file
wget https://modelzoo-train-atc.obs.cn-north-4.myhuaweicloud.com/003_Atc_Models/AE/ATC%20Model/YOLOV3_carColor_sample/data/yolov3_t.onnx
wget https://modelzoo-train-atc.obs.cn-north-4.myhuaweicloud.com/003_Atc_Models/AE/ATC%20Model/YOLOV3_carColor_sample/data/aipp_onnx.cfg
#  Execute the model conversion command , Generate yolov3 The adaptation of shengteng AI Offline model file of processor
atc --model=./yolov3_t.onnx --framework=5 --output=yolov3 --input_shape="images:1,3,416,416;img_info:1,4" --soc_version=Ascend310 --input_fp16_nodes="img_info" --insert_op_conf=aipp_onnx.cfg
#  download color The original model file of the model and AIPP The configuration file
wget https://modelzoo-train-atc.obs.cn-north-4.myhuaweicloud.com/003_Atc_Models/AE/ATC%20Model/YOLOV3_carColor_sample/data/color.pb
wget https://modelzoo-train-atc.obs.cn-north-4.myhuaweicloud.com/003_Atc_Models/AE/ATC%20Model/YOLOV3_carColor_sample/data/aipp.cfg
#  Execute the model conversion command , Generate color The adaptation of shengteng AI Offline model file of processor
atc --input_shape="input_1:-1,224,224,3" --output=./color_dynamic_batch --soc_version=Ascend310 --framework=3 --model=./color.pb --insert_op_conf=./aipp.cfg --dynamic_batch_size="1,2,4,8"

modify
model/aipp.cfg
model/aipp_onnx.cfg

rbuv_swap_switch : true

then inferrence Use the previous cpp

cd ~/new/samples/cplusplus/level3_application/1_cv/detect_and_classify/scripts
cp params.conf png_params.conf
 modify params.conf

cd ~/samples/cplusplus/level3_application/1_cv/detect_and_classify/scripts
bash sample_build.sh
bash sample_run.sh

success ！
